Automated Razor Wire Packaging Solutions-High Throughput Steel Wire Coil Wrapping Machine

Automated Razor Wire Packaging Solutions-High Throughput Steel Wire Coil Wrapping Machine

Provides multi-layer protective sealing as an automated packaging solution specifically designed for razor barbed wire products

●The machine features a modular design, which facilitates daily maintenance and part replacement

●The PLC system combined with precise variable frequency control ensures that the wrapping tape is tightly and evenly wound around the surface of the razor barbed wire coil

●The production mode ensures a high level of safety by eliminating the risk of direct hand contact with the sharp blades of the razor barbed wire

From stamping, forming, straightening, and welding to packaging, MeiRun can provide professional equipment and technical support for every step of the razor barbed wire production process

Since its establishment, MeiRun has been focused on the design and development of razor barbed wire machinery. We have built an efficient, flexible, and comprehensive production line for razor barbed wire, covering every stage from stamping and forming to straightening, welding, and finally packaging, with specialized equipment replacing manual labor at each step. This razor barbed wire wrapping and packing machine effectively isolates the sharp edges of the wire, and through precise variable frequency control, wraps the packaging tape tightly and evenly around the coil surface, ensuring a safe and secure process. Once wrapped, the razor barbed wire products are protected against moisture and rust, and maintain structural integrity during long-distance transport, preventing loosening or abrasion. This is essential for the final delivery stage.

Razor barbed wire wrapping and packing machine--Fully automatic packaging machine that 100% replaces manual wrapping. It makes the transport and delivery of razor barbed wire simpler and safer

The machine features automatic feeding and automatic cutting of the wrapping tape, which effectively reduces material waste.

High Efficiency

The machine can reach speeds of 40 to 100 revolutions/minute.

Versatile applications

Not limited to razor barbed wire coils, it can also be used for packaging cables, tires, hoses, and other metal coil products.

Eco-friendly and low energy consumption

Features a low-noise operation mode with 5.5 kW power output, helping to save energy.

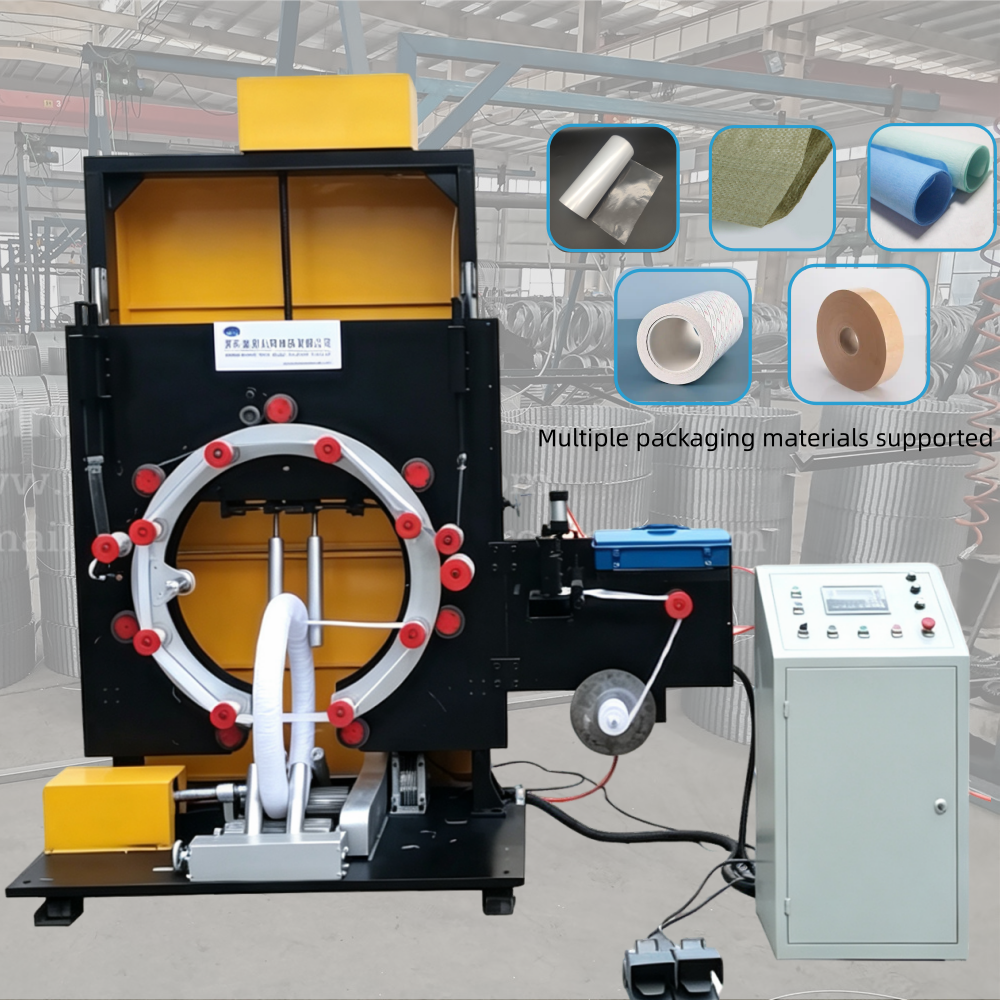

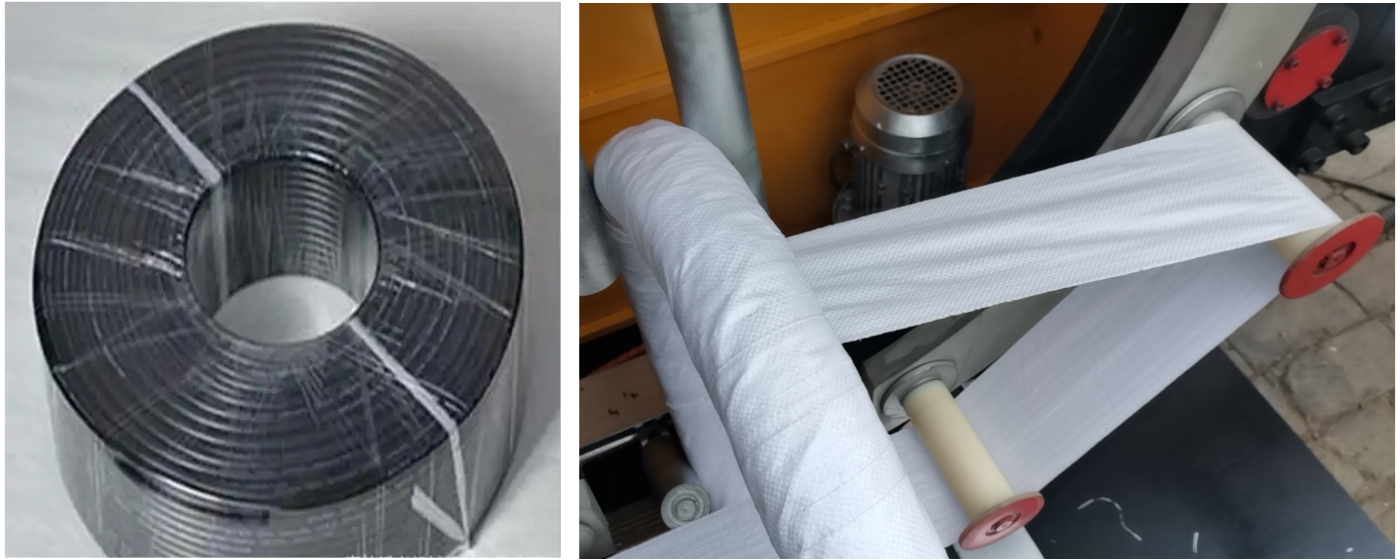

Compatible with multiple packaging materials

Crepe paper, knitted tape, composite paper, HDPE film, and LLDPE stretch film are all supported.

Product Introduction

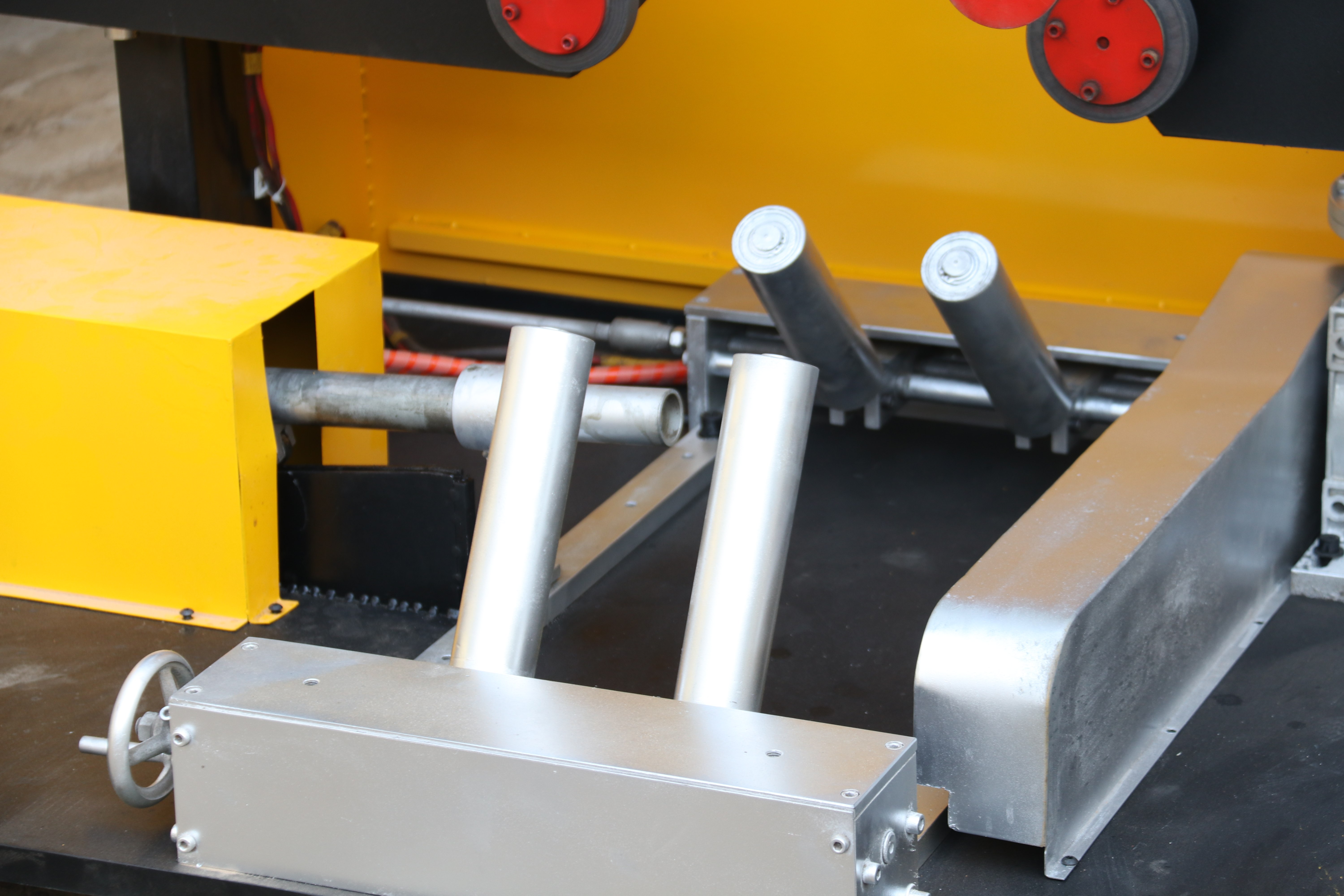

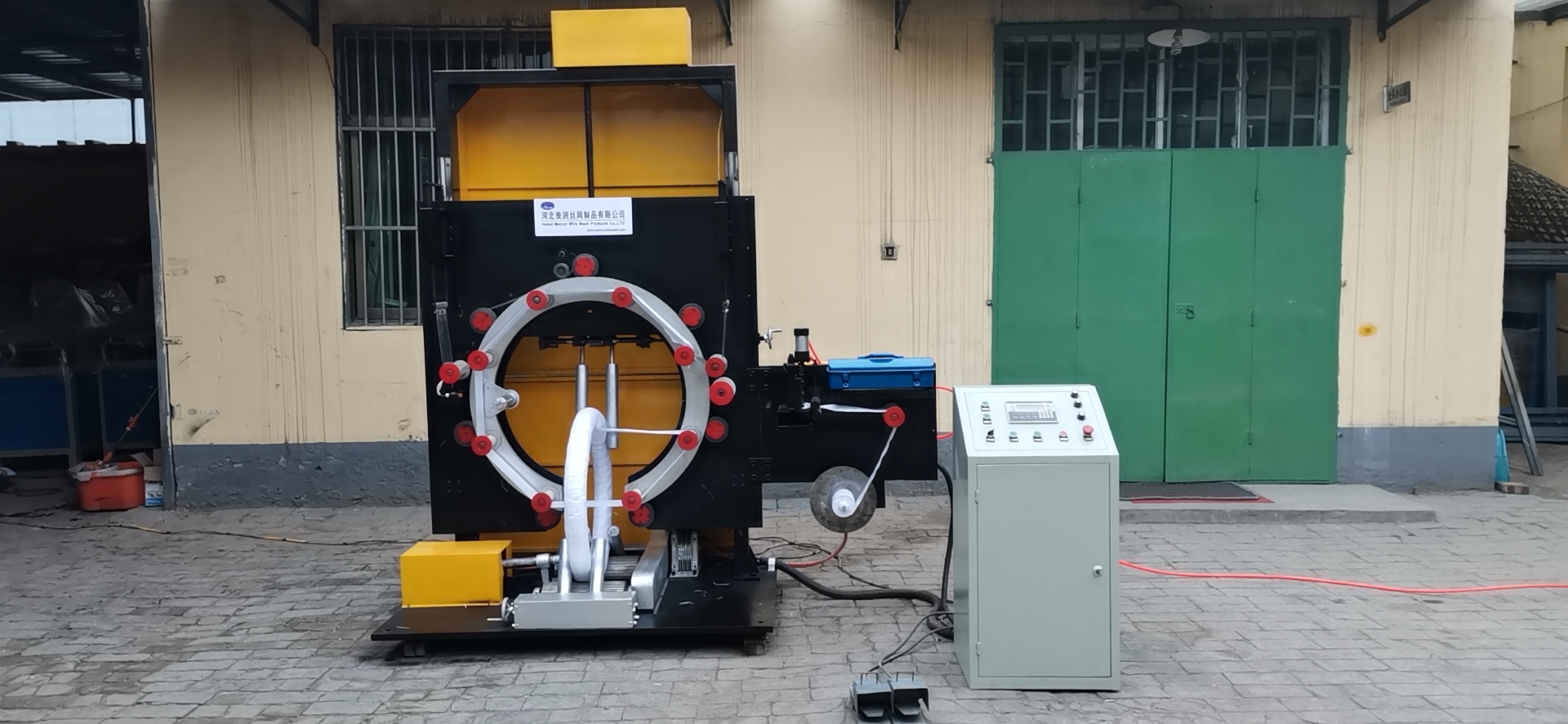

The razor barbed wire wrapping and packing machine is an automated packaging device specifically designed for razor barbed wire products. Its purpose is to provide a reliable layer of cushioning and protection for razor barbed wire coils, while also preventing handling and packing personnel from being injured by the sharp blades. The machine is equipped with a separate electrical cabinet and control panel, allowing the operator to adjust the rotation speed of the winding ring, roller speed, and the overlap of the wrapping tape via a variable frequency drive. There are three sets of protective rollers, one on the top and two on the bottom, to support and secure the razor barbed wire coil. During operation, the operator first places the coil onto the worktable, manually adjusts the protective rollers to fix the coil in position, and then starts the machine. The winding ring rotates at a steady speed and automatically wraps the tape evenly around the coil. The entire process is flexible, efficient, and poses no risk of injury to the operator, ensuring a high level of safety.

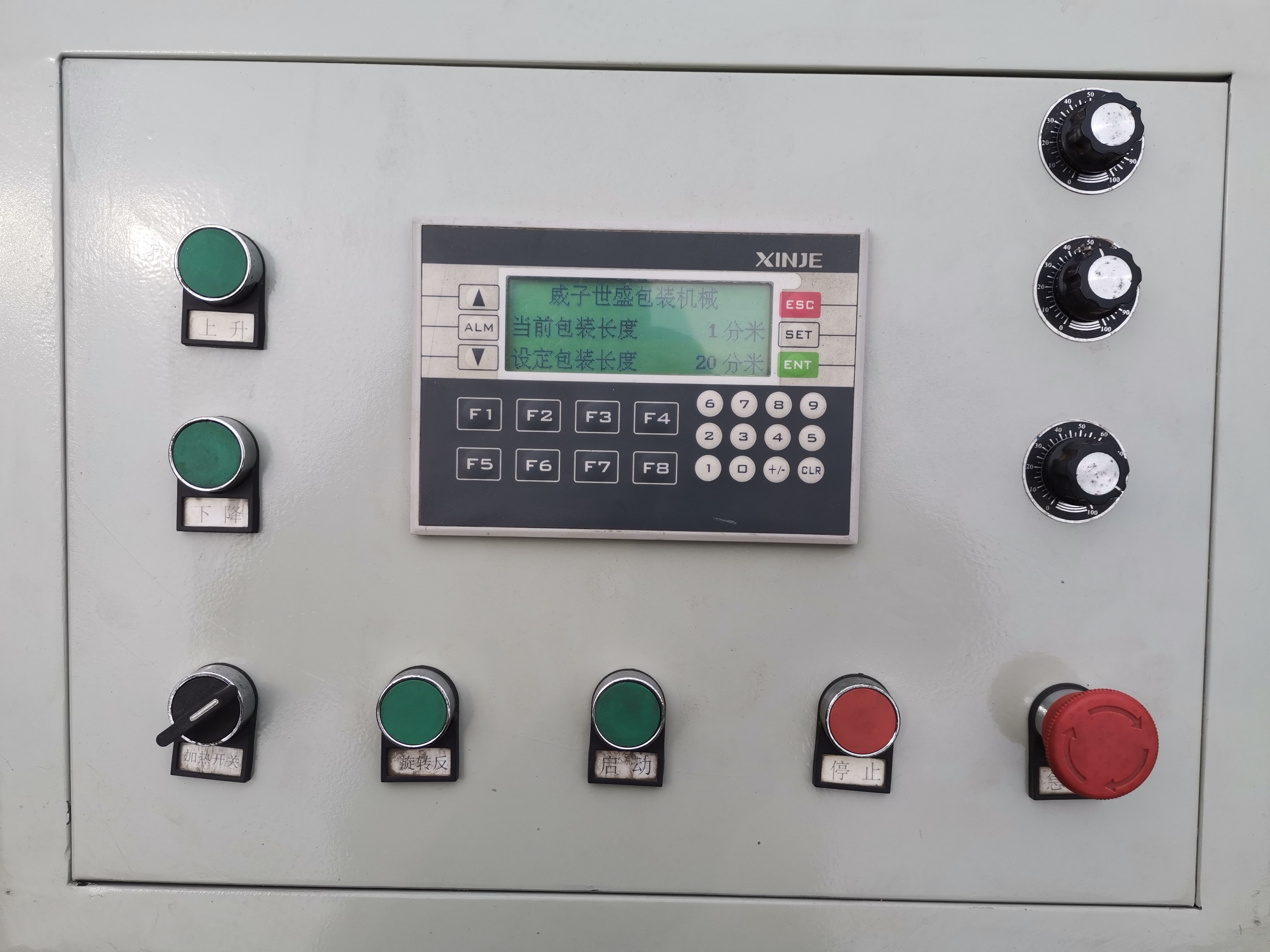

Smart adjustment and control

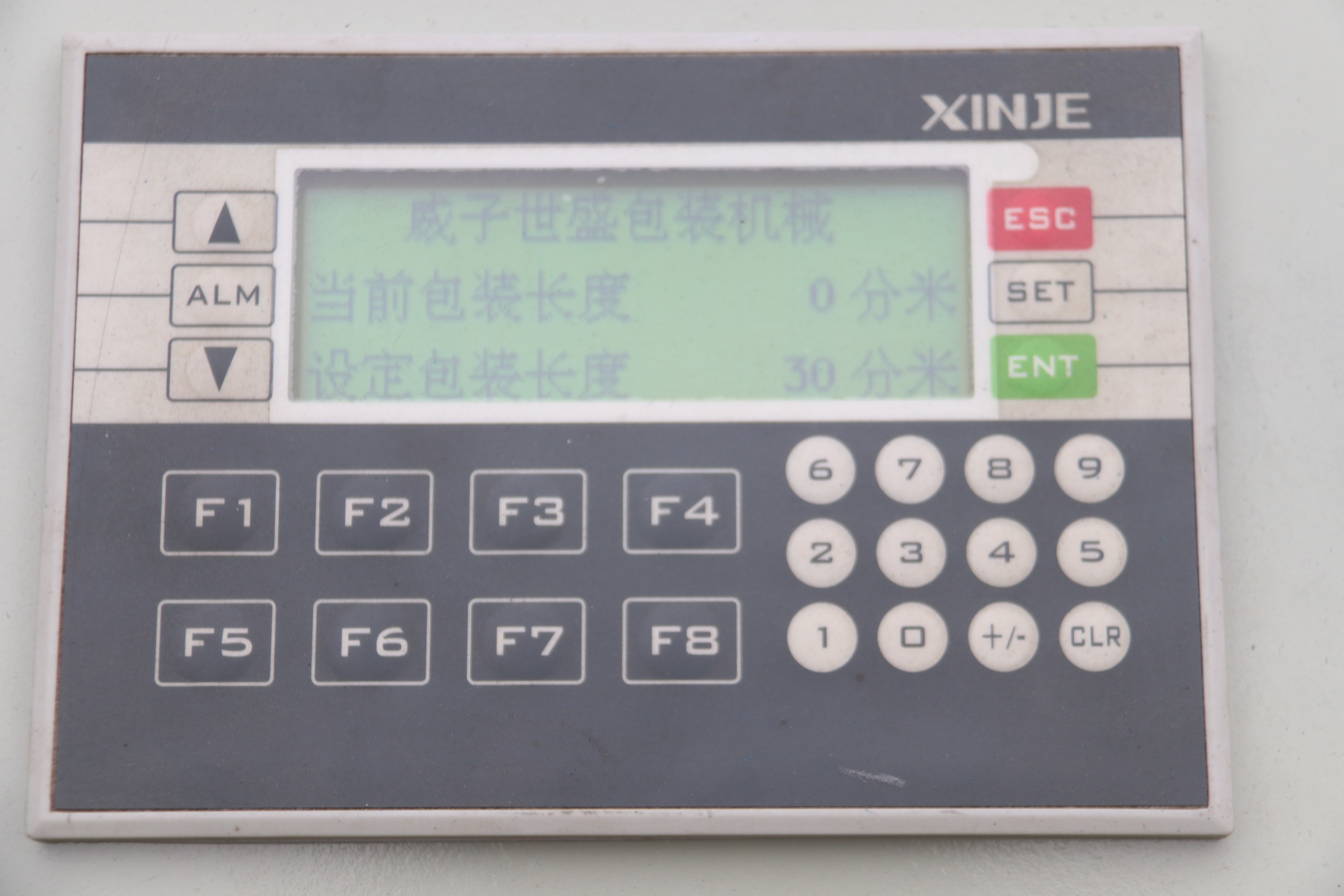

Through the control panel, you can adjust the packaging length, machine speed, and the overlap range of the wrapping tape (from 20% to 90%), as well as preset the timing for automatic tape cutting.

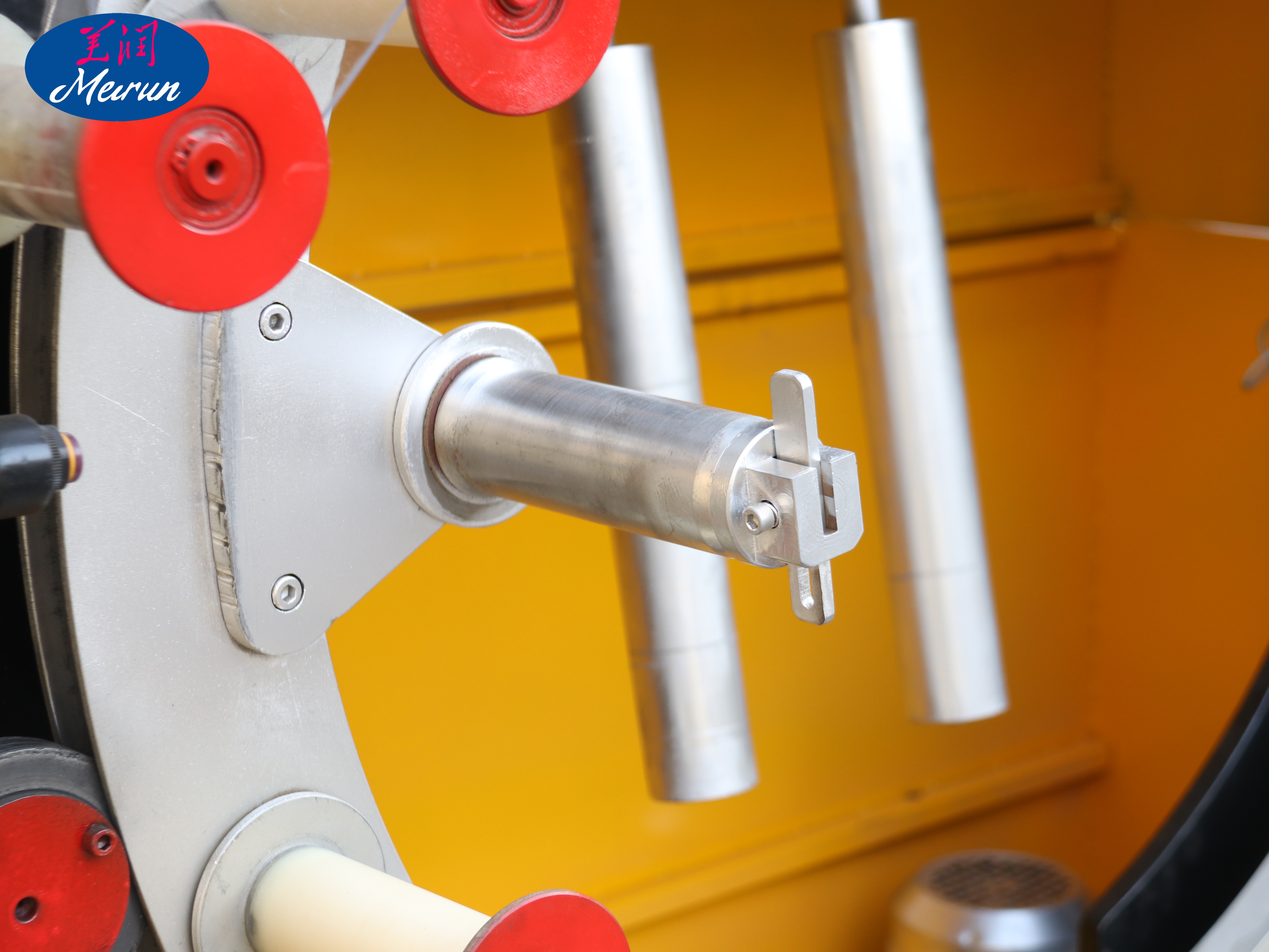

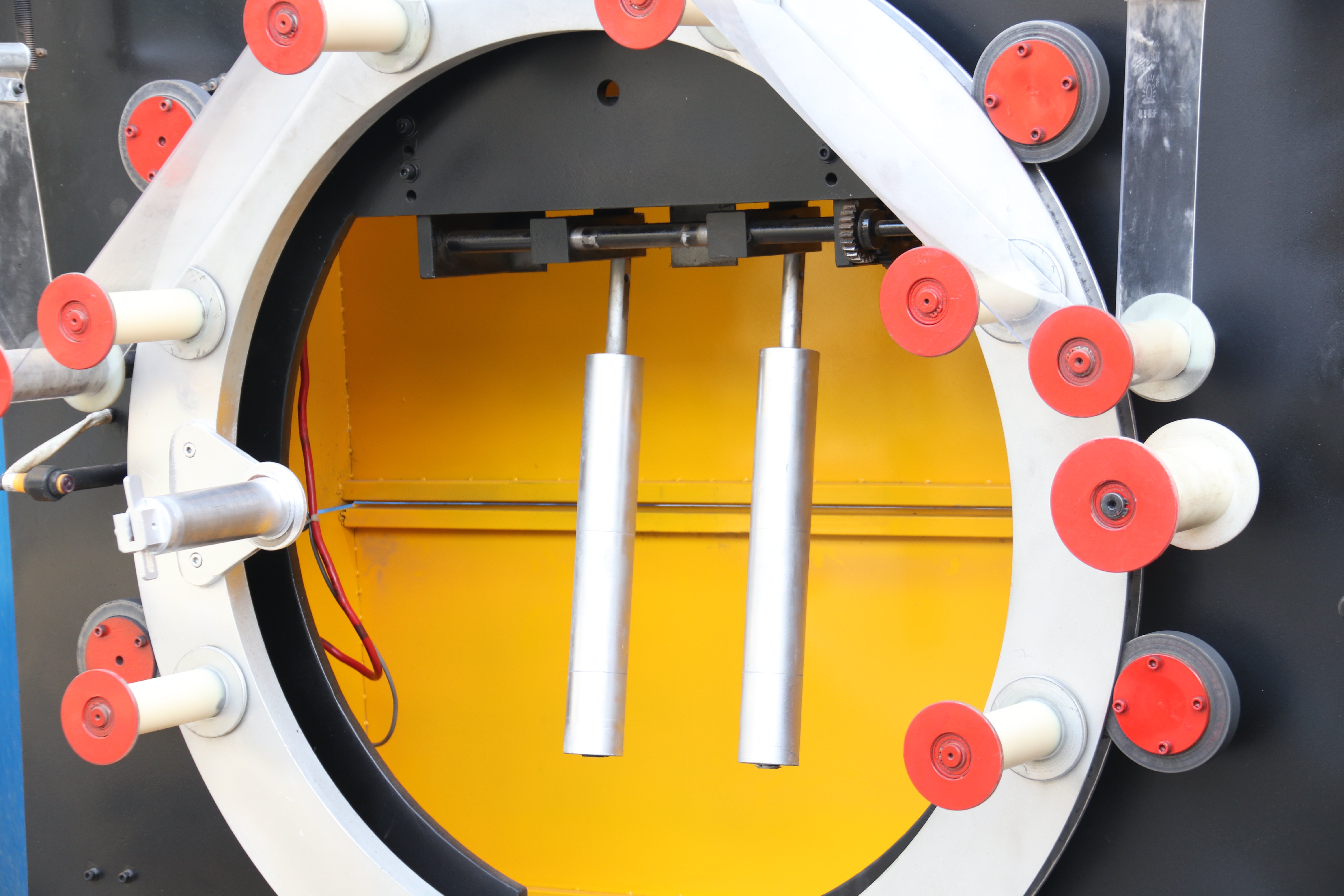

The winding ring (wrapping unit) is an independent working module with an adjustable height, allowing it to accommodate coils of different sizes.

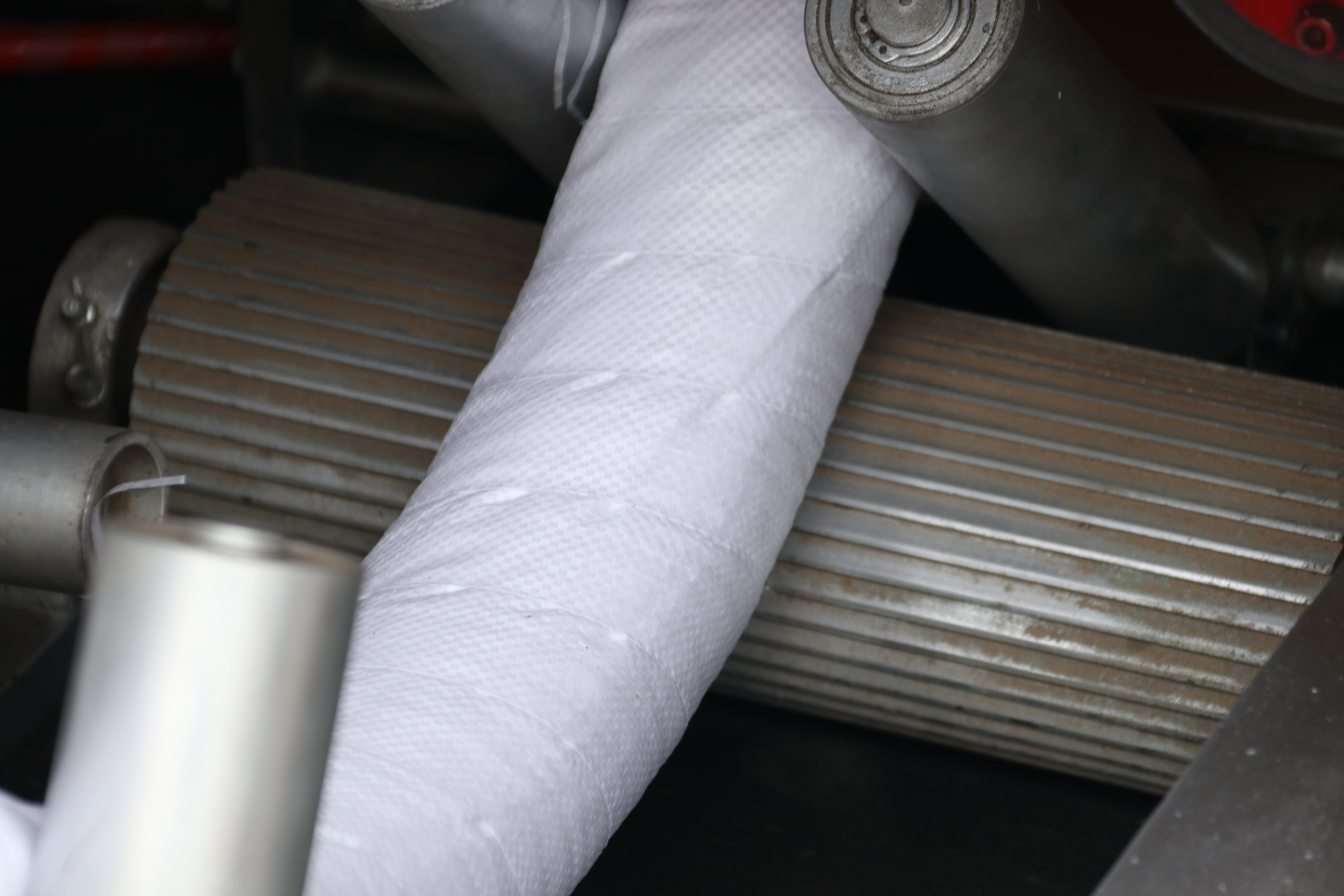

Excellent wrapping and packaging process

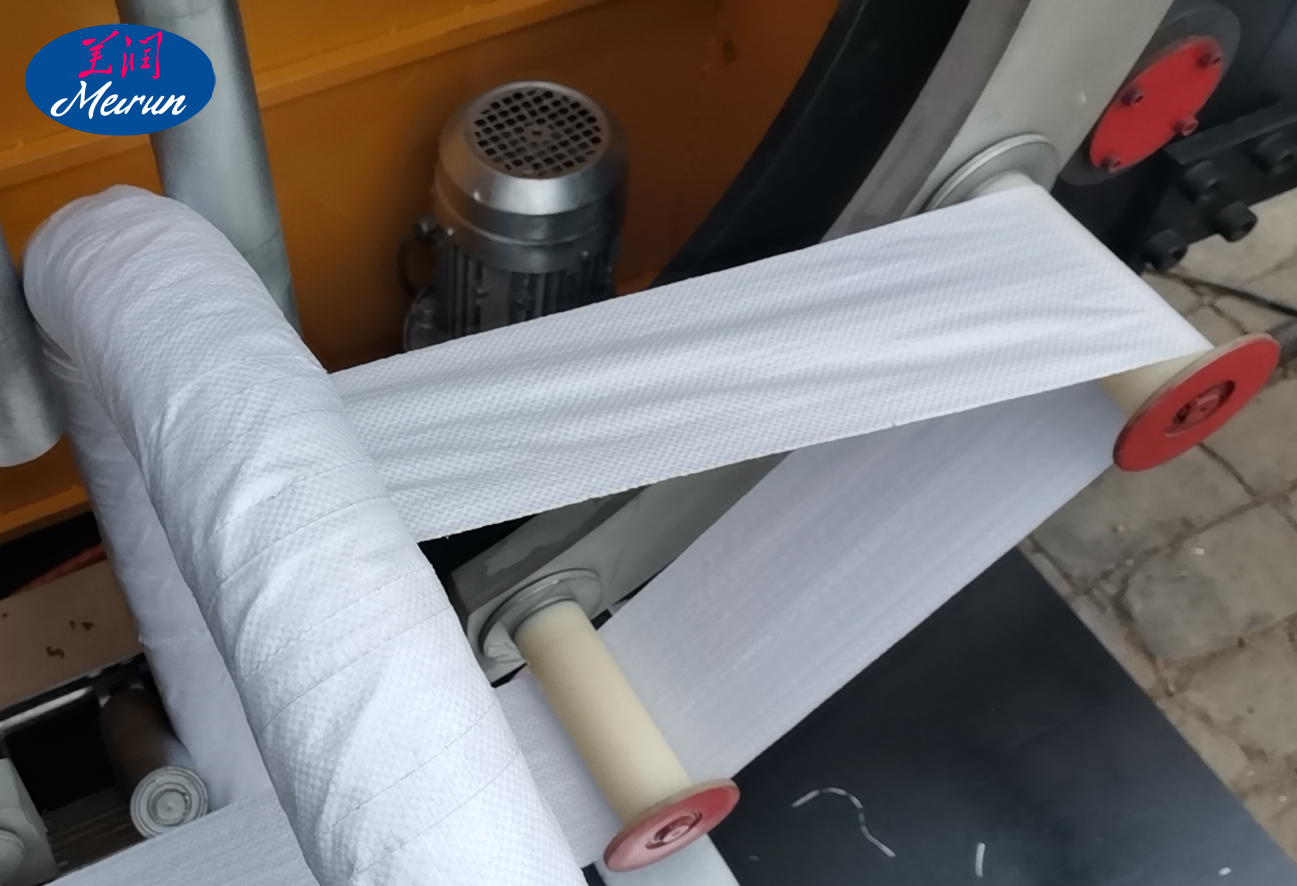

The machine is equipped with a high-speed motor, and each coil wrapping cycle takes only 20 to 35 seconds. The wrapping tape adheres tightly to the razor barbed wire coil, providing excellent protection.

Quick replenishment and replacement of wrapping materials

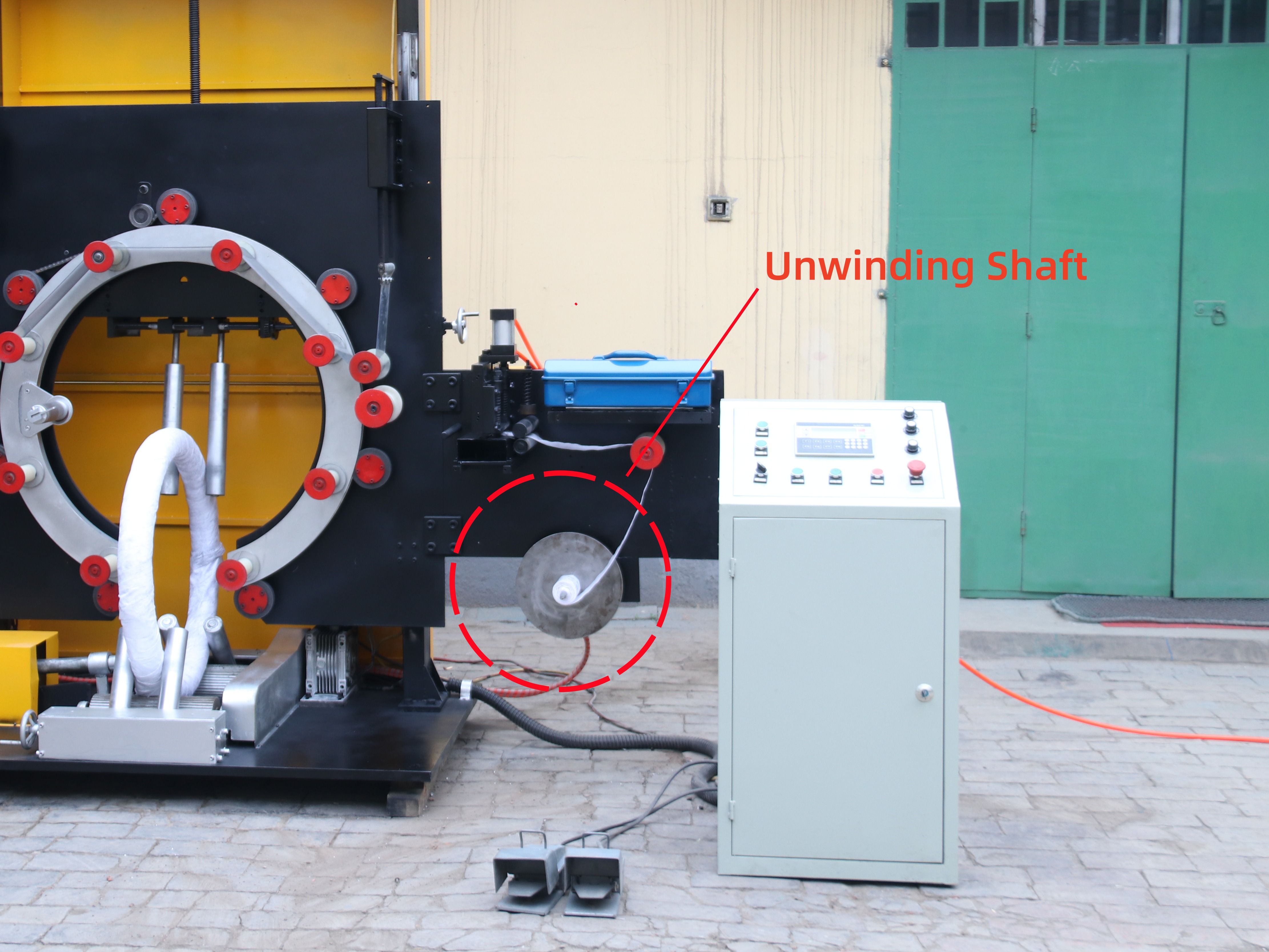

The unwinding shaft allows you to quickly refill or replace the wrapping materials without the need to stop the machine during operation.

Durable components

Compatible with most packaging materials

In addition to commonly used materials such as crepe paper, knitted tape, composite paper, HDPE film, and LLDPE stretch film, this machine also supports kraft paper and nylon woven materials for packaging. If you require special packaging materials, please feel free to consult our staff at MeiRun.

Transportation and installation support

From price inquiry to installation support, MeiRun provides a complete machine solution. We have professional experience in packaging and shipping, and can provide you with export documents and relevant customs clearance certificates. Full machine testing and performance checks are carried out before shipment to ensure proper operation. Upon arrival, you can install the machine with remote guidance and instruction manuals, and we also support dispatching engineers to the site for installation, operation, and training.

Machine Parameters

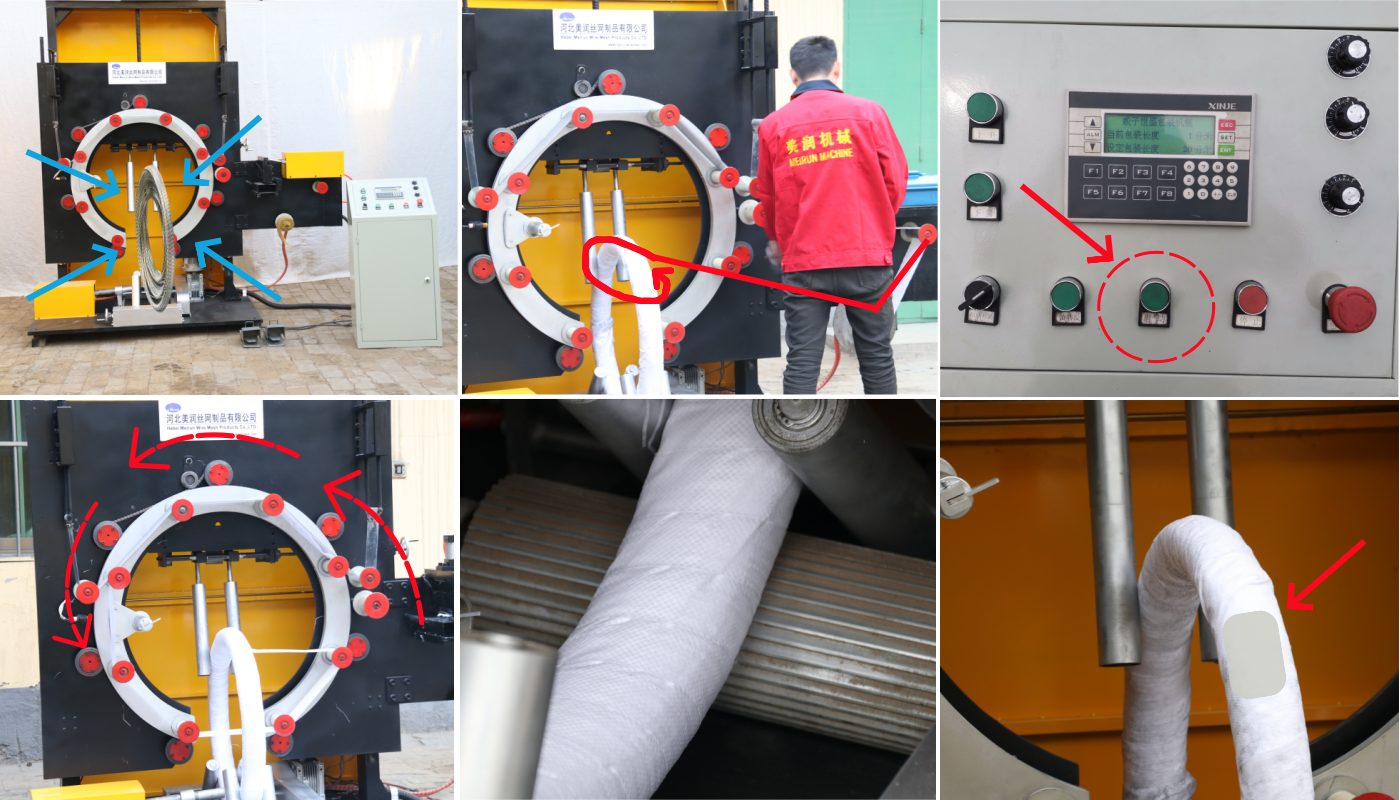

 Razor barbed wire coil wrapping and packing process:

Step 1: The operator places the razor barbed wire coil onto the machine worktable and secures it in place using the protective rollers.

Step 2: The operator manually pulls the wrapping tape from the unwinding shaft and wraps the end of the tape around the razor barbed wire coil.

Step 3: Turn on the machine and set the production parameters.

Step 4: The winding ring automatically takes up the wrapping tape and rotates 360° to evenly wrap the tape around the razor barbed wire coil.

Step 5: The conveyor rollers beneath the razor barbed wire rotate slowly, driving the coil to turn as well.

Step 6: After wrapping is complete, the operator seals the end of the wrapping tape with tape or other suitable tools.

1.Does this machine have shrink wrap packaging capability?

Answer: No. This machine mainly uses a wrapping packaging process and is not designed to handle shrink film or its related packaging materials.

2.How do I refill the wrapping tape if it runs out during operation?

Answer: If the wrapping tape runs out while the winding ring and the rollers beneath the coil are still rotating, you can press the emergency stop button. After the machine comes to a complete stop, refill the wrapping tape on the unwinding shaft. Please do not attempt this while the machine is still running.

3.Is there a limit to the width of the wrapping tape used on this machine?

Answer: Yes, the typical wrapping tape width ranges from 70 mm to 100 mm. The width is limited by the machine's delivery spool, which has a fixed height capacity. If your intended packaging material falls outside this range, please consult our staff separately. Our technical team will provide a custom evaluation based on the machine specifications.

Shrink wrapping VS stretch wrapping: why do razor barbed wire coils favor the latter?

Shrink wrapping and stretch wrapping are two common packaging methods on the market. The former relies on heat to shrink the film and tightly conform it to the product, while the latter uses a machine to stretch the wrapping tape and secure the product with its elastic recovery force. If you have noticed razor barbed wire packaging machines, you will find that most of them use stretch wrapping. Why is that?

First, this has to do with the characteristics of razor barbed wire products. The advantage of shrink wrapping lies in its excellent sealing effect, which creates an isolated space using the film to provide good moisture and dust protection. However, the sharp edges of razor barbed wire can easily puncture the film and compromise the seal. Moreover, shrink wrapping machines are more expensive and have higher packaging costs. In contrast, stretch wrapping is more cost-effective. Stretch wrapping machines are also highly compatible with a wide range of materials, including not only LLDPE stretch film but also crepe paper, knitted tape, composite paper, HDPE film, nylon woven materials, kraft paper, and more. This gives customers more flexibility in material selection. For razor barbed wire products, stretch wrapping provides stronger tension that firmly binds the coils, preventing them from loosening during long-distance transport or over rough roads. In addition, stretch wrapping machines have lower purchase and maintenance costs, and they are easier to operate.

If you would like to learn more about the razor barbed wire wrapping and packing machine,please feel free to visit our official website and online store.MeiRun has a complete "pre-sales support + after-sales service" system. From the moment you make an inquiry, we provide a quotation within 24 hours and offer comprehensive technical guidance during equipment installation. On Alibaba International, we operate one of the top 2 best-selling stores for wire mesh machinery, with a 100% on-time delivery rate. We have carried out over 300 production projects worldwide, and our products have received consistent recognition from customers. Choose MeiRun, and we will become your best project partner.
