MRCSJ
Meirun
8463300000

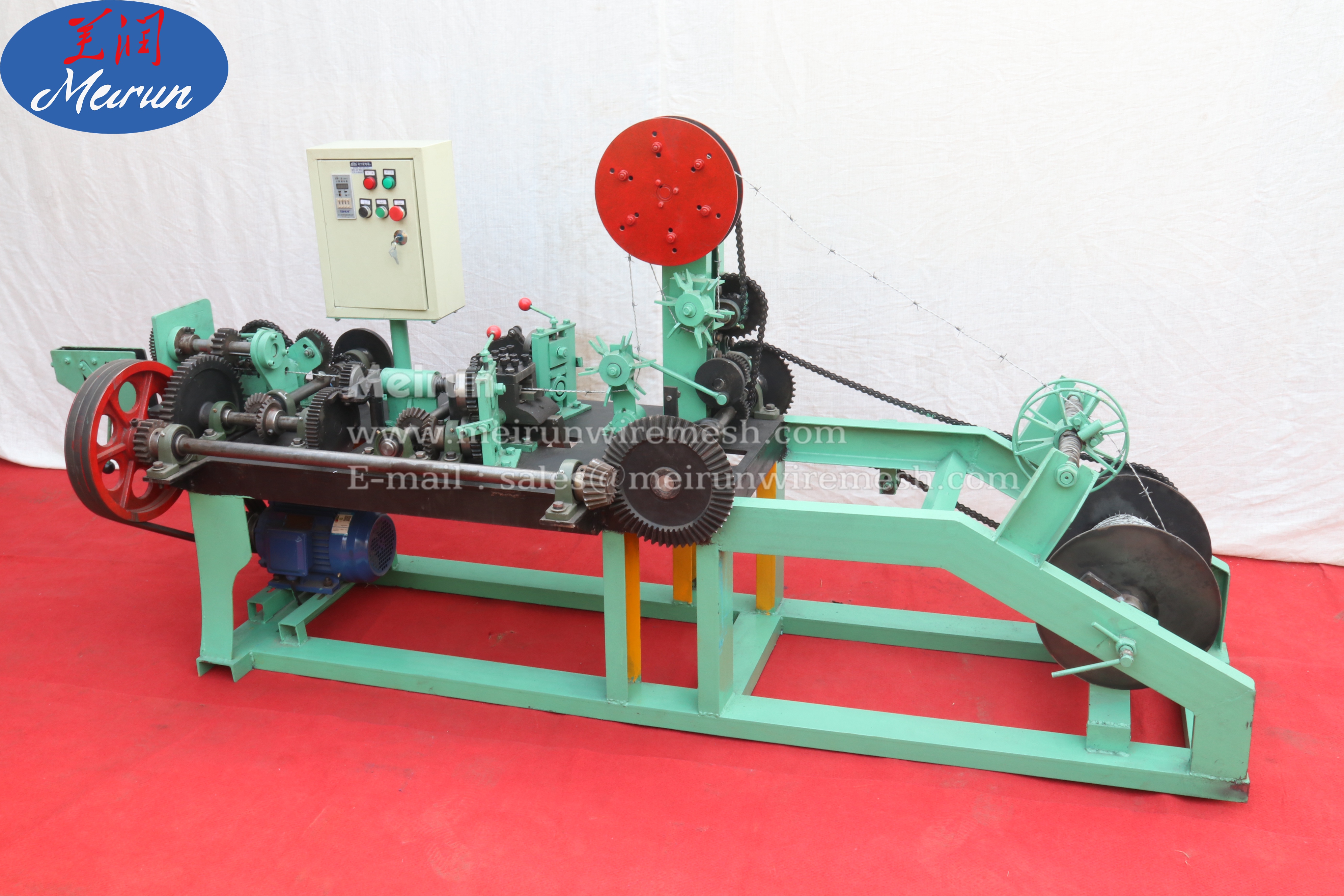

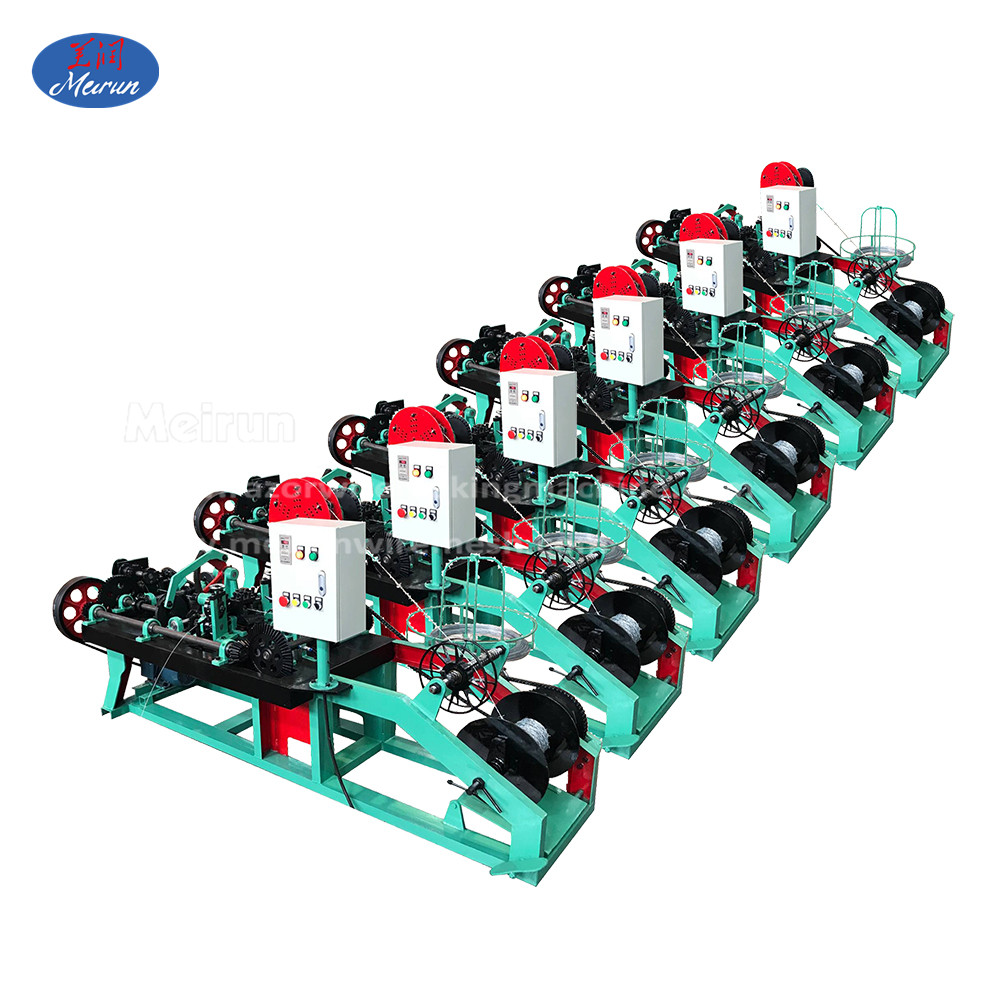

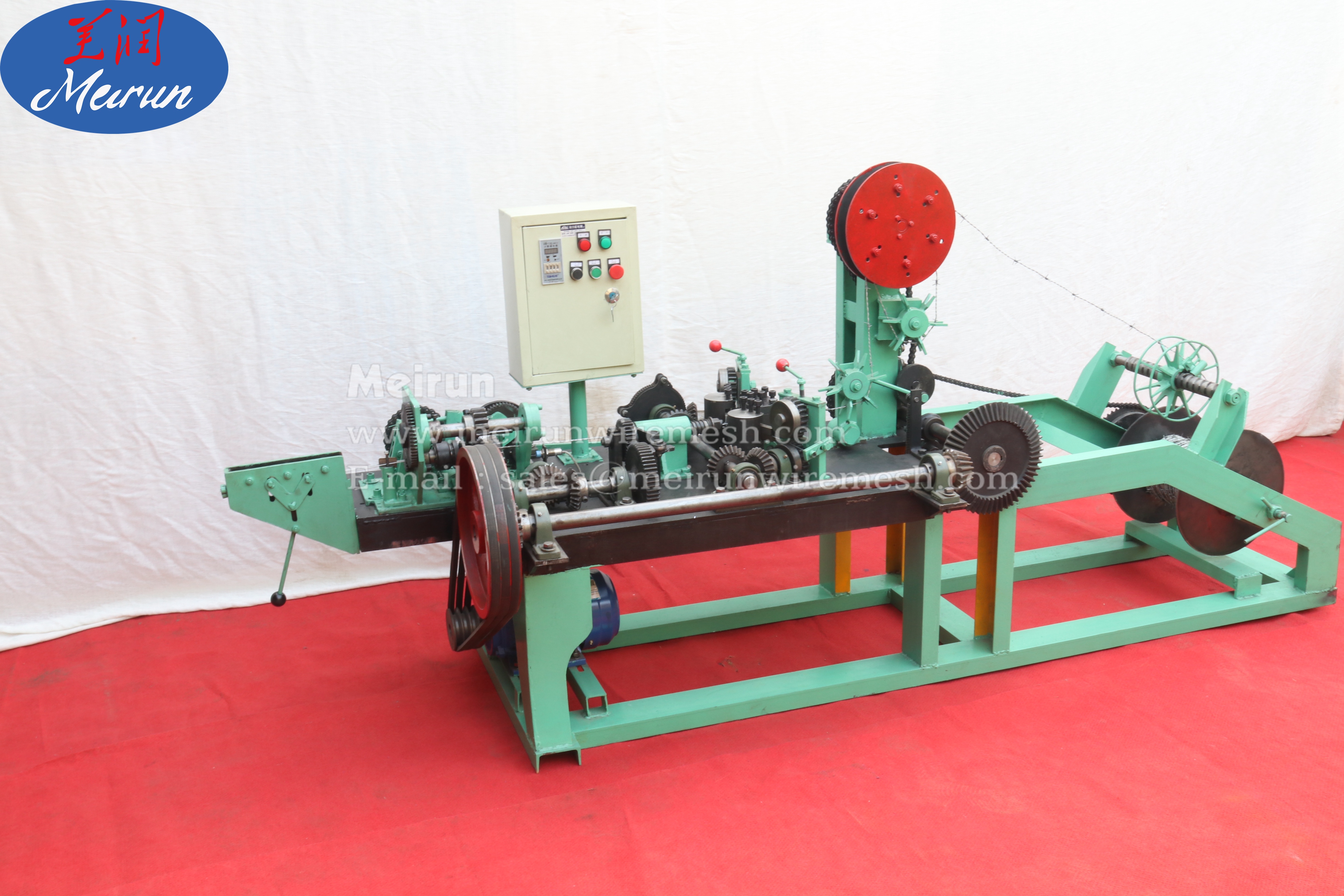

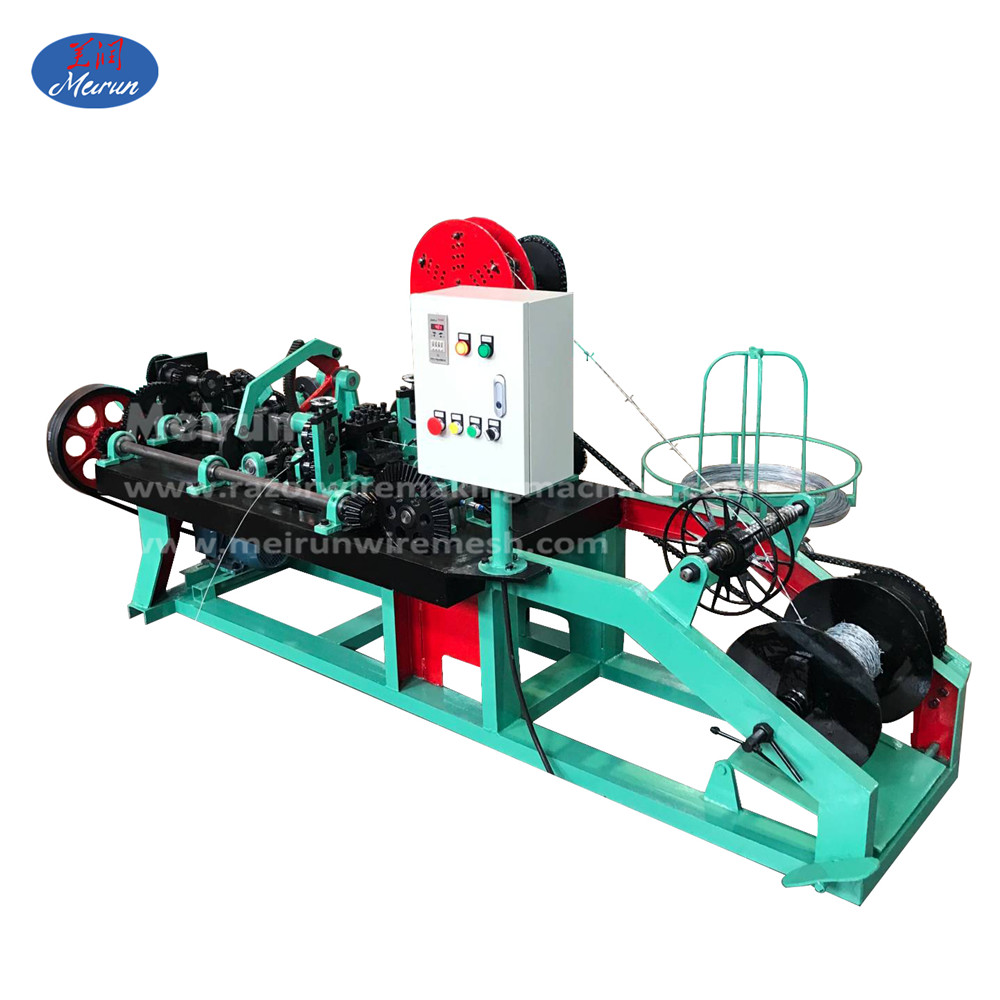

Barbed wire making machine
Twist Barbed Wire Machine provides a high tensile security barbed wire product. This machine can produce up to six barb pitch sizes with production speeds up to 30m per minute. This equipment was built using the most current technology and offers a high level of operator safety while maximizing production rates and efficiencies for barbed wire manufacturers.
Another type machine
Specification
| Model | CS-A | CS-B | CS-C |
| Strand wire diameter | 1.6-3.0mm | 2.0-3.0mm | 1.6-2.8mm |
| Barb diameter | 1.6-2.8mm | 1.6-2.8mm | 1.6-2.8mm |
| Barb pitch | 3/4/5/6 Inch | 3/4/5/6 Inch | 3/4/5/6 Inch |
| Twisted number | 3-5 | 3 | 7 |
| Raw material | Galvanized steel wire or PVC coated wire or black wire etc. | ||
| Productivity | 70kg/h 20meters/minute | 40kg/h 17meters/minute | 40kg/h 17meters/minute |
| Motor power | 2.2/3kw | 2.2/3kw | 2.2/3kw |
| Voltage | 380V 50Hz or 220V 60hZ or 415V 60Hz or customized | ||
| Total weight | 1200kg | 1000kg | 1000kg |
Package and delivery
Our company
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.
Barbed wire making machine
Twist Barbed Wire Machine provides a high tensile security barbed wire product. This machine can produce up to six barb pitch sizes with production speeds up to 30m per minute. This equipment was built using the most current technology and offers a high level of operator safety while maximizing production rates and efficiencies for barbed wire manufacturers.
Another type machine
Specification
| Model | CS-A | CS-B | CS-C |
| Strand wire diameter | 1.6-3.0mm | 2.0-3.0mm | 1.6-2.8mm |
| Barb diameter | 1.6-2.8mm | 1.6-2.8mm | 1.6-2.8mm |
| Barb pitch | 3/4/5/6 Inch | 3/4/5/6 Inch | 3/4/5/6 Inch |
| Twisted number | 3-5 | 3 | 7 |
| Raw material | Galvanized steel wire or PVC coated wire or black wire etc. | ||
| Productivity | 70kg/h 20meters/minute | 40kg/h 17meters/minute | 40kg/h 17meters/minute |
| Motor power | 2.2/3kw | 2.2/3kw | 2.2/3kw |
| Voltage | 380V 50Hz or 220V 60hZ or 415V 60Hz or customized | ||
| Total weight | 1200kg | 1000kg | 1000kg |
Package and delivery
Our company
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.
