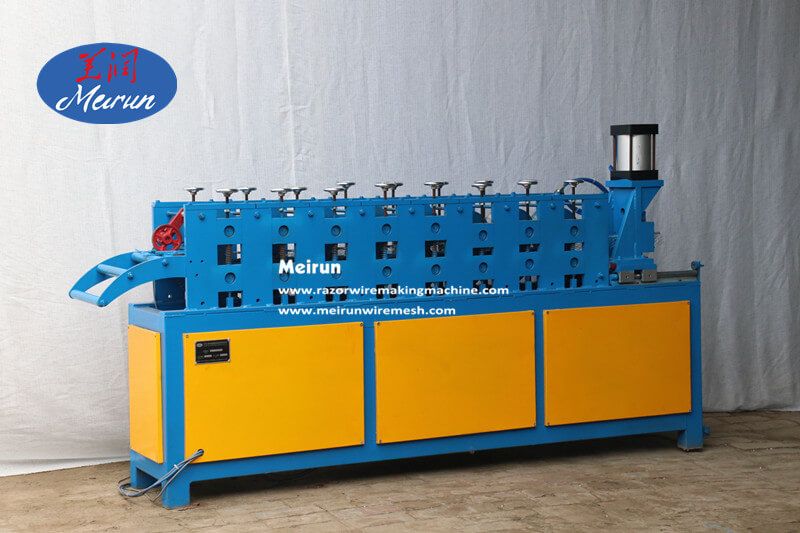

Angle Bead Mesh Machine Used Building Corner Protection

Angle Bead Mesh Machine Used Building Corner Protection also called angle bead angle bead. It is made of zinc coated steel and stainless steel belt. Corner Bead can be against rupture or cracked in plaster of engineering, so that it can help to form straight line on the corner, and to protect and reinforce the most vulnerable parts of the mortar. The wing of the mesh also plays an important role . strengthen the mortar.Angle beads play an important role to the plaster whitewashing. Because the wall corner is always damaged easily in the process of construction. The corner beads can strengthen the wall of firmness. Corner beads operation is convenient,easy and fast, so it can help the project save a lot of time.
Thickness:
Standard Length:
Width of angle:
Dimension:
weight:
Availability:
Quantity:
  • MRHJWJ

  • Meirun

Angle Bead Mesh Machine Used Building Corner Protection

About Angle Bead Mesh Machine Used Building Corner Protection : Angle Bear is also called angle bead angle bead. It is made of zinc coated  steel and stainless steel belt. Corner Bead can be against rupture or cracked in plaster of engineering, so that it can help to form straight line on the corner, and to protect and reinforce  the most vulnerable parts of the mortar. The wing of the mesh also plays an important role to  strengthen the mortar.Angle beads play an important role to the plaster whitewashing. Because the wall corner is always damaged easily in the process of construction. The corner beads can strengthen the wall of firmness. Corner beads operation is convenient,easy and fast, so it can help the project save a lot of time.

Meterial:
Glavanized plate, Aluminum plate, fiberglass mesh.
The angle beads machine can make stainless steel angle beads and galvanized steel angle .

护角网首图

Specification

The Angle Bead Mesh Machine Used Building Corner Protection can produce angle bead, corner bead, plaster stop, corner mesh, mini mesh, etc.

Expanded Metal Mesh Making Machinery is used to produce the angle bead which is mainly used to protect the angle of the wall.

The expanded metal bead machine can produce angle bead, corner bead, plaster stop, corner mesh, mini mesh, etc.

Expanded Metal Mesh Making Machinery line includes:

decoiler----expanded main machine-----profiling machine-----collecting table----- PLC controlling cabinet




Thickness 0.2mm-0.5mm
Standard Length 2000mm-3000mm
Width of angle 50*50mm-70*70mm
Motor 5.5kw
Dimension 8000mm*1500mm*2200mm
Weight 5500kgs
Type Full automatic type

护角网第二张图

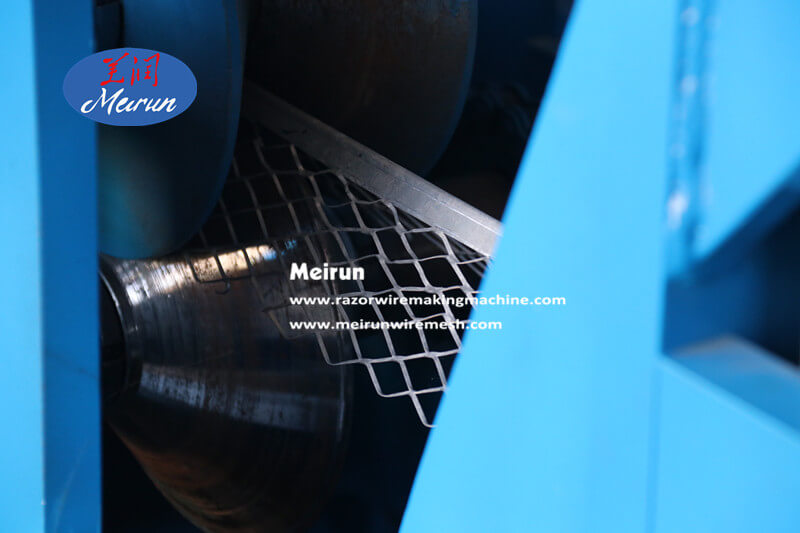

Part of machine


护角网部分图片Products

1.The first step of its installation is measuring and cutting the corner bead to length. The Angle Bead Mesh Machine Used Building Corner Protection although not forced to fit, must span the entire length of the projected corner  less approximately ¼ inch. This gap, small enough to be unnoticed by a stucco mortar applicator,  is an insurance in case the structure settles before mortar application.
2.Since they are produced in maximum lengths of 3 m (10 ft.), any projected corner longer
than 3m(10 ft). require at least two corner beads. The installation of cormer beads to long
corners is made easier through the use of a plumb line.

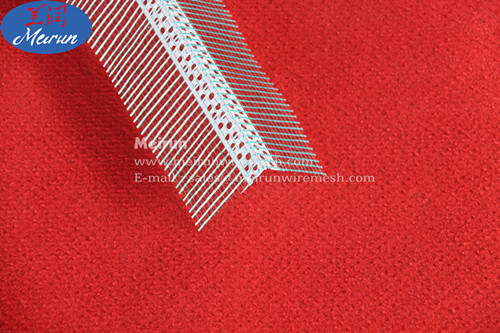

护角网产品图片

Packing & Delivery

护角网装箱图片
