Nail making machine
MR
MR03

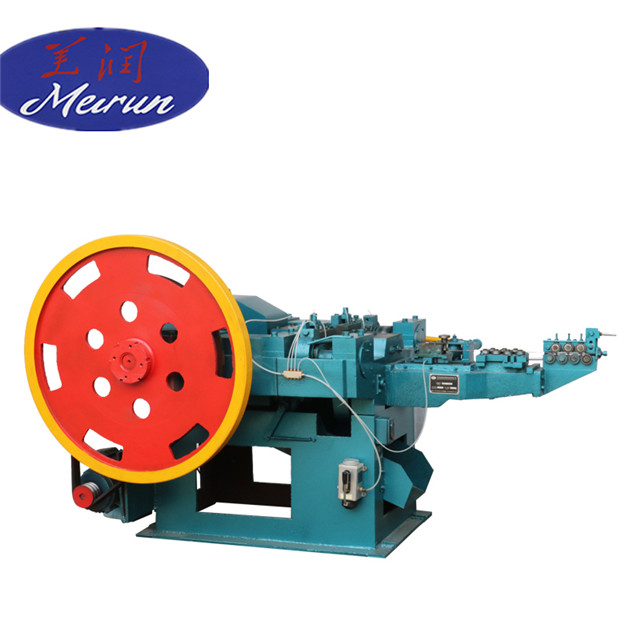

Z94-C Type New Generation, High Speed, Low Noise, Automatic Nutomatic Nail Making Machine. This Z94 series, new type C nail making machine plunger structure and oil pipe lubrication so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of clout nails and other special nails used for high speed coilnail welder and nail gun.
1. The machine is made from bearing, which make the machine less impact and low noise.
2. The machine can feed the raw material automatically.
3. The machine can add lubricating oil automatically.
4. One model nail making machine can make different size of nails.
5. The warranty time of our machines is 1 years.
Model | Z94-1c | Z94-2c | Z94-3c | Z94-4c | Z94-5.5c | Z94-6.5c |
Diameter of nail(mm) | 0.9-1.6 | 1.2-2.8 | 1.8-3.4 | 2.8-4.5 | 3.7-5.5 | 4.6-6.5 |
Length of nail(mm) | 9-25 | 16-50 | 30-75 | 50-100 | 80-150 | 100-200 |
Capacity(Pieces/min) | 450 | 350 | 320 | 280 | 200 | 160 |
Power(Kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 6.5 |
Voltage: | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Weight(kg) | 800 | 1200 | 1400 | 2000 | 2500 | 5000 |
Dimension (m) | 1.4*1*1.2 | 1.6*1.2*1.3 | 1.8*1.2*1.4 | 2.1*1.5*1.5 | 2.3*1.5*1.6 | 3.2*2.2*2.2 |
Model | SD-400 | SD-600 | SD-700 | SD-1000 | SD-2000 |
Capacity (Kg) | 400 | 600 | 700 | 1000 | 2000 |
Power(Kw) | 3-4 | 4.5-5.5 | 5.5-7.5 | 5.5-7.5 | 11-15 |
Dimension (m) | 1.46*0.9*1 | 1.8*1*1.1 | 1.9*1.05*1.2 | 2*1.05*1.4 | 2.5*1.5*1.6 |
Packing:wooden pallet or plastic package in the container or pack per customer's request
Delivery: Delivery within 15 days after receiving 70% of balance payment
Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shipment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!
