MRGHWJ
Meirun
8463300000

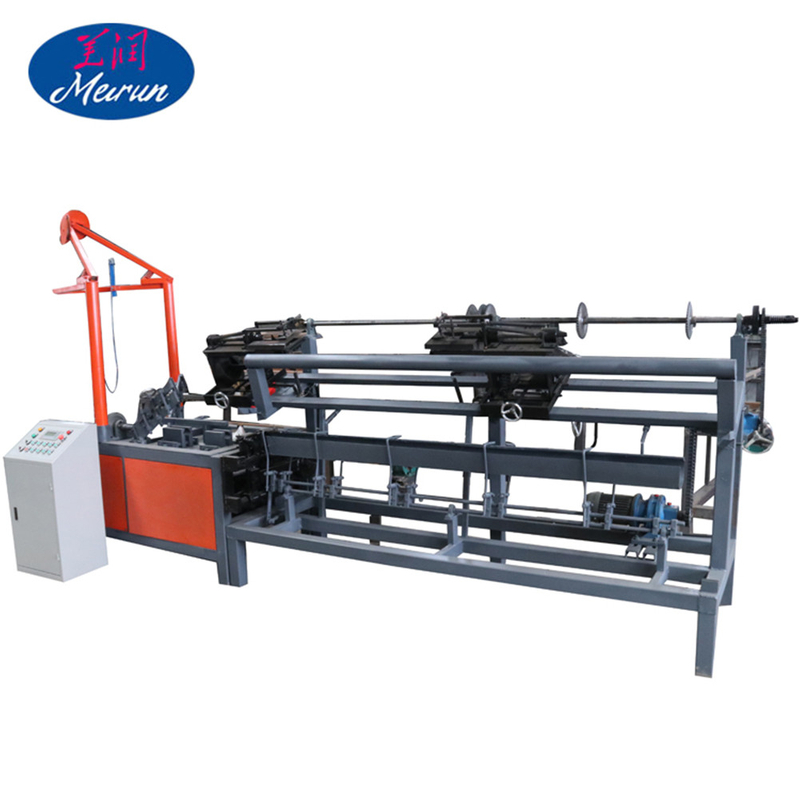

Chain link fence making machine
1. Fully Automatic Chain Link Fence Machine:
can produce many different hole size of the mesh with different molds.The machine is controlled by PLC,we can set the length of the fence by PLC.The machine only need one worker for operating.
Chain link fence machine performance:
1.It could work both of galvanized wire and pvc coated wire.
2.With alarm system for emergency matters occure.
3.Stop automaticlly.
4.With single/double wire feeding system.
5.It could adjust the mesh width automaticlly.
6.With high working efficiency and low noise.
Specification
Item | Single wire Fully automatic chain link fence machine | Double wire Fully automatic chain link fence machine | ||||
Wire Dia. | 1.5-5.0mm | 1.8-5.0mm | ||||
Hole Size | 25*25mm-120*120mm | 30*30mm-120*120mm | ||||
Material | galvanized wire, pvc wire | galvanized wire, pvc wire | ||||
Width | 2m | 3m | 4m | 2m | 3m | 4m |
Capacity | 20-130M2/h | 30-150M2/h | ||||
Power | 3.8kw/h | 5.5kw/h | ||||

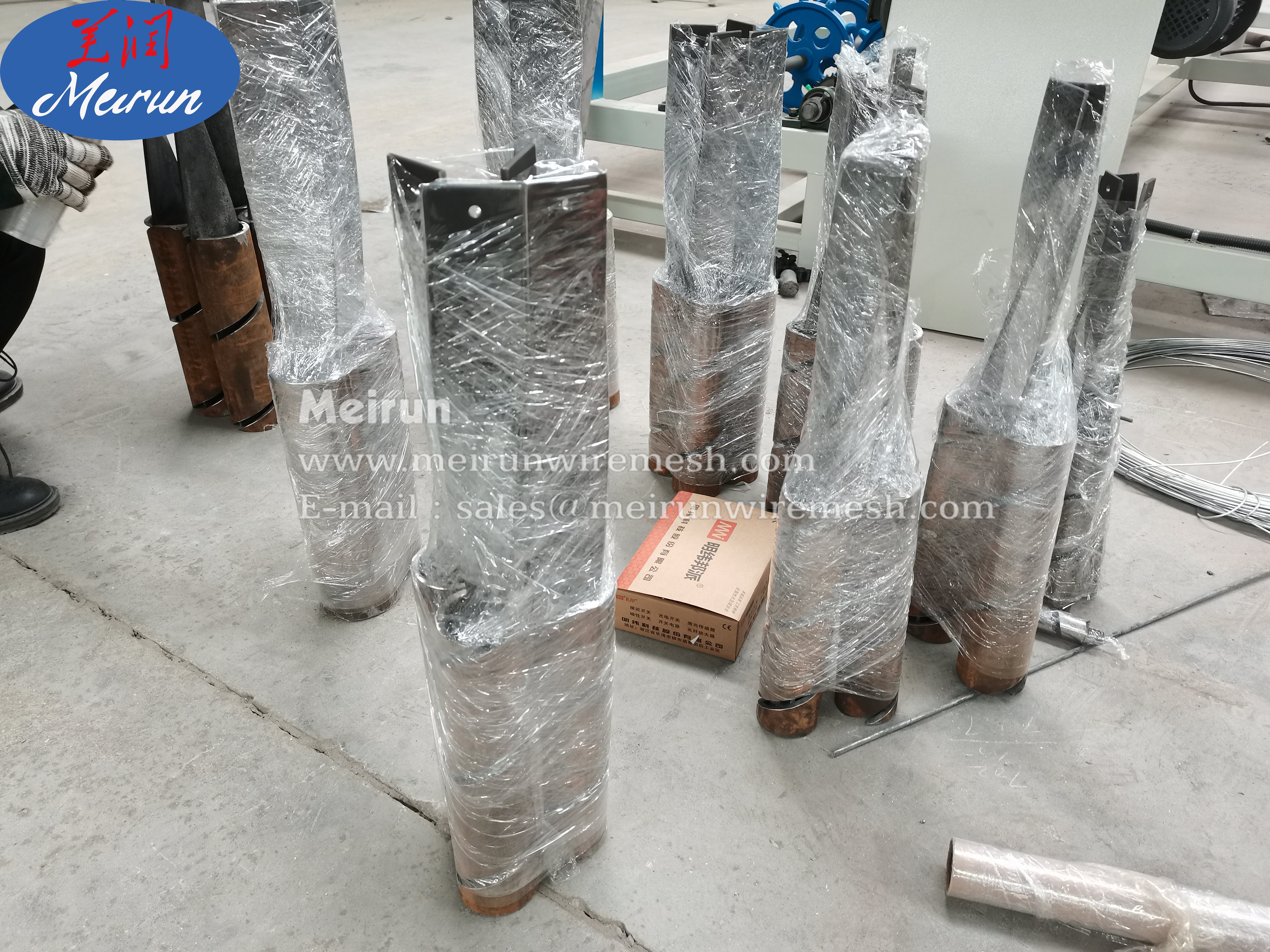

Mould | 4set mould for free | 4set mould for free | ||||
Size(L*W*H) | 3.8*3.2*1.5M | 4.8*3.2*1.5M | 5.8*3.2*1.5M | 5*2.2*1.7M | 6*2.2*1.7M | 7*2.2*1.7M |
Weight | 1.7T | 1.8T | 1.9T | 1.9T | 2.0T | 2.1T |
Warranty | One year | |||||
Operation | one person control 2 machine | |||||

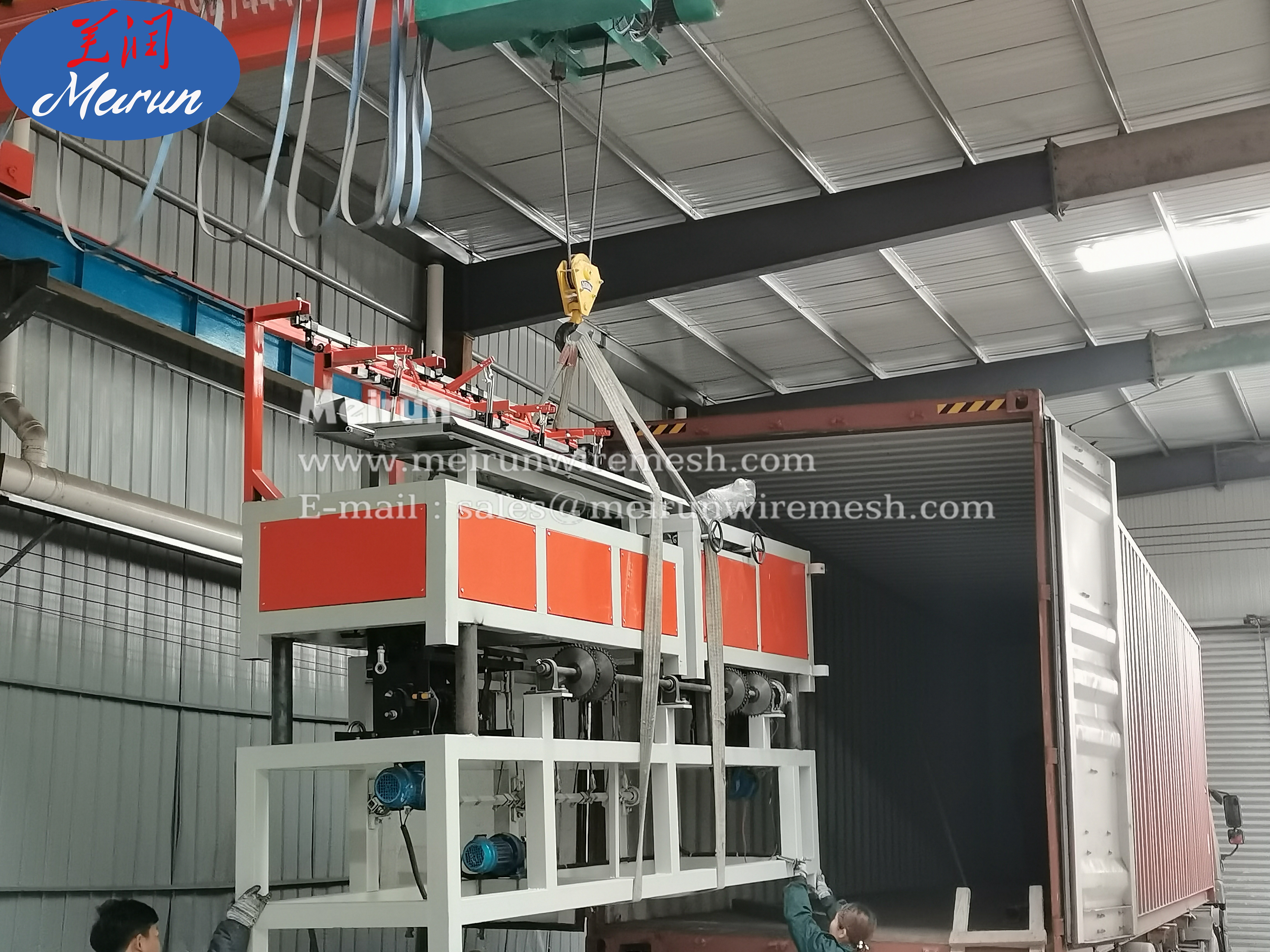

Package and delivery
Our company
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.

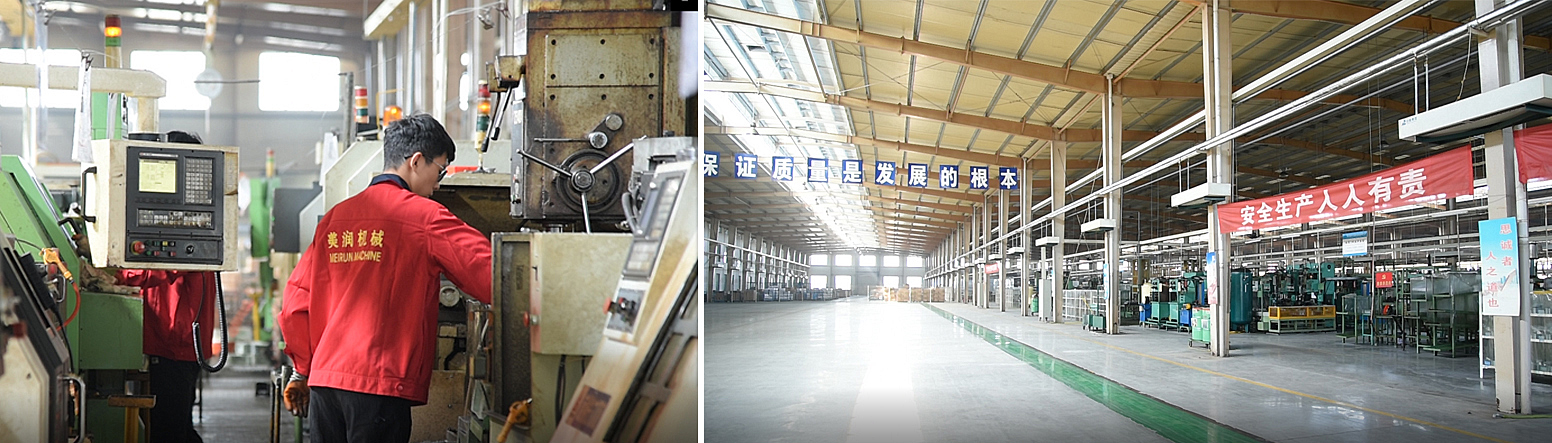

Our factory
