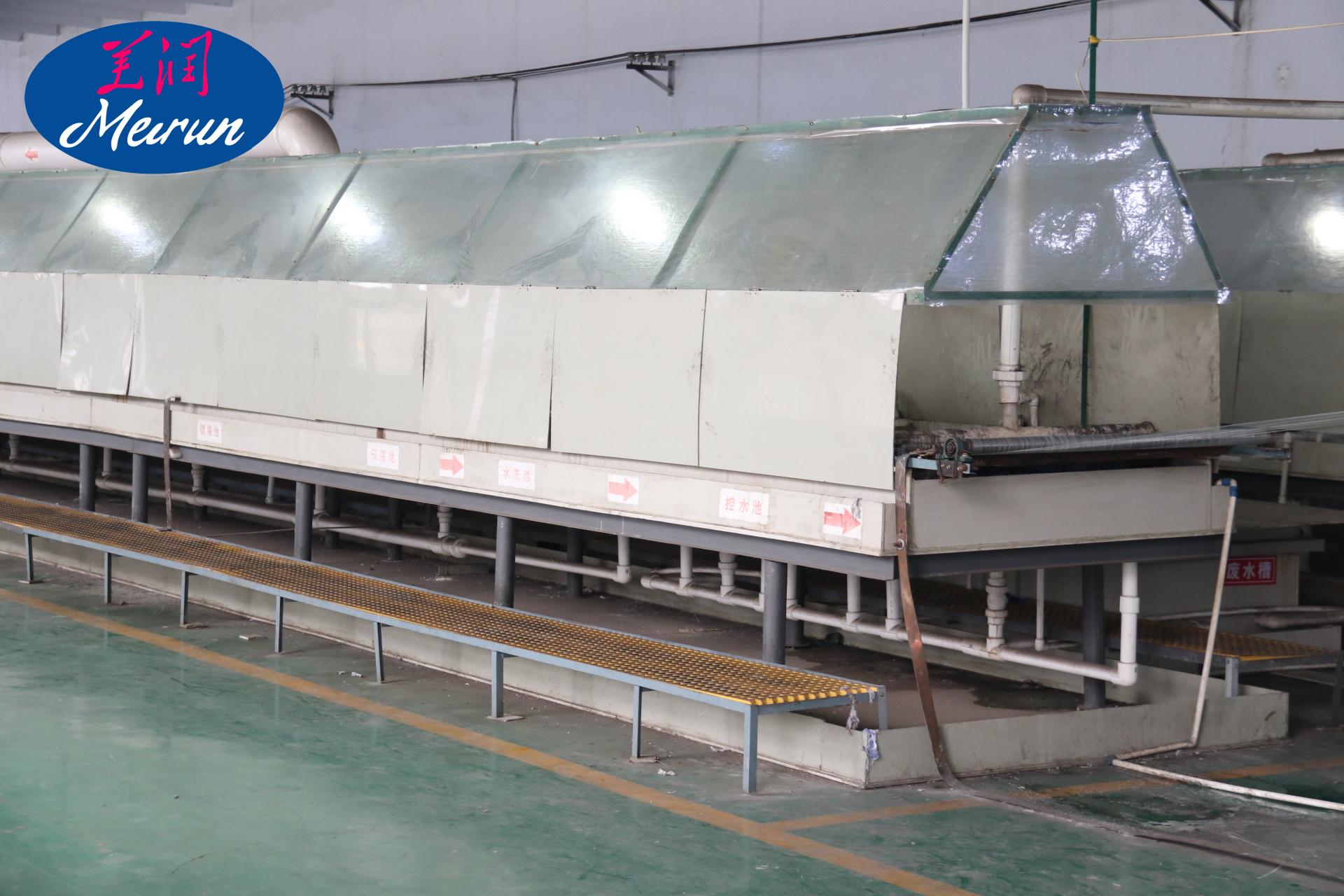

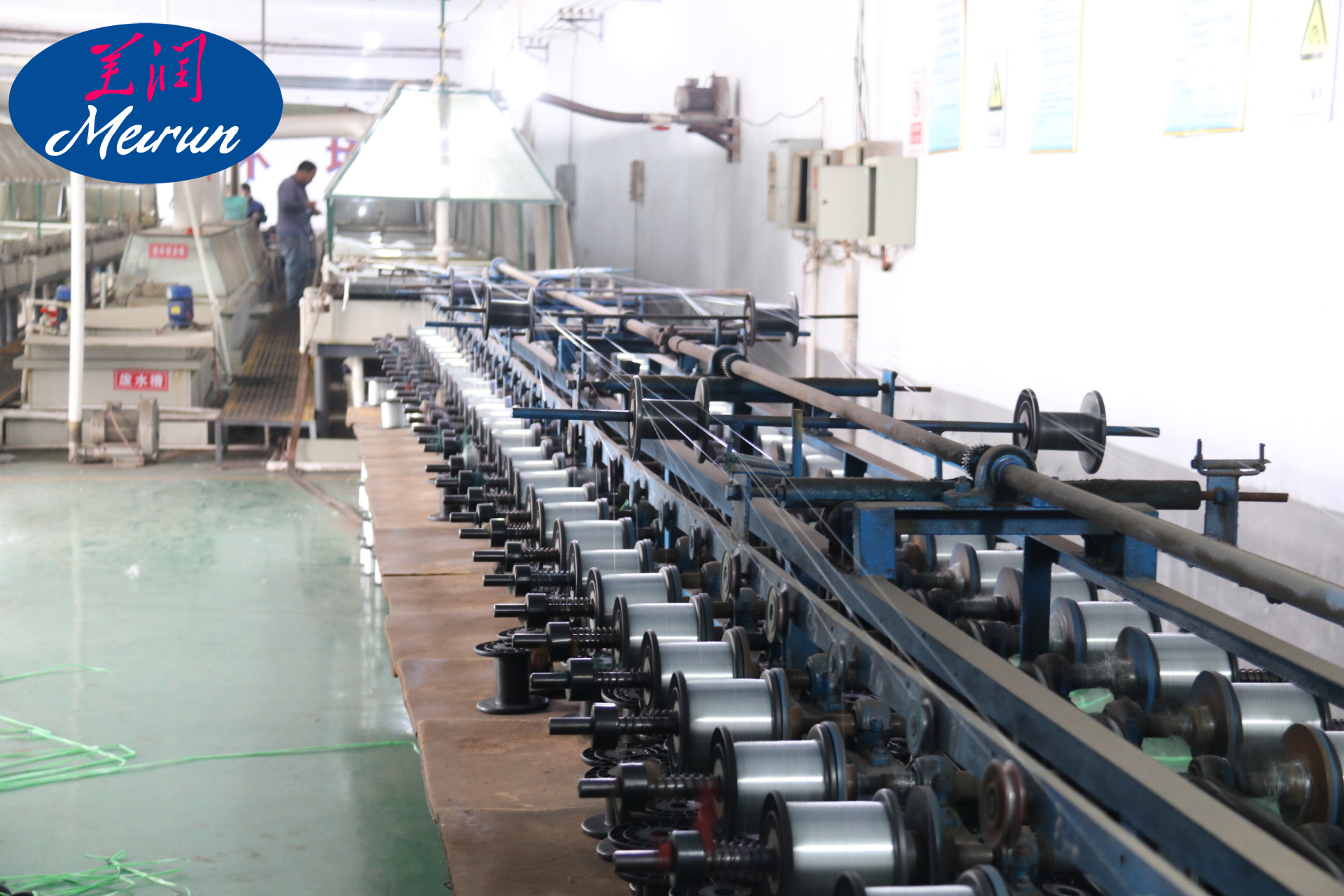

1.9–2.55mm Fully Automatic Electric Galvanizing Wire Production Line / Galvanized Steel Wire Production Line

1.9–2.55mm Electric Galvanizing Wire Production Line / Galvanized Steel Wire Production Line

Galvanization is a common surface treatment technology primarily aimed at preventing rust. After being treated by the galvanizing process, the steel wire takes on a bright silver appearance, offering high toughness and corrosion resistance, and its service life is greatly extended, making it resistant to oxidation and deformation in open-air environments. Galvanized steel wire is strong, durable, and extremely versatile; it can be used to make springs, nails, coat hangers, wire ropes, as well as for weaving fences, wire mesh, floral tying materials, and more, holding high application value in industrial mining, building protection, agricultural planting, and other fields.

Galvanized wire is divided into hot-dip galvanized wire and cold galvanized wire (electric galvanized wire). The hot-dip process involves applying a fluxing agent to the surface of the steel wire, then immersing the wire into molten zinc solution; after cooling, an alloy coating forms on the wire surface. Hot-dip galvanized wire has a thicker zinc layer, offering stronger corrosion resistance, with a maximum zinc content of up to 350 g/m². The cold galvanizing process uses electrolytic equipment, applying positive and negative electrodes to the steel sheet and the plating solution respectively, causing zinc atoms to deposit onto the steel surface and form an alloy coating. Electric galvanized wire has a thinner zinc layer, typically only 10 to 50 g/m². However, the strength and performance of electric galvanized wire are not affected by heat treatment, and the process is relatively simpler with lower production costs. Both hot-dip galvanizing and electric galvanizing have their respective advantages.

(Note: We also supply equipment for hot-dip galvanized steel wire production lines. You can search for "Galvanized Wire Production Line" on our website to view related links, or contact our customer service team.)

1.9–2.55mm Electric Galvanized Wire – Product Introduction

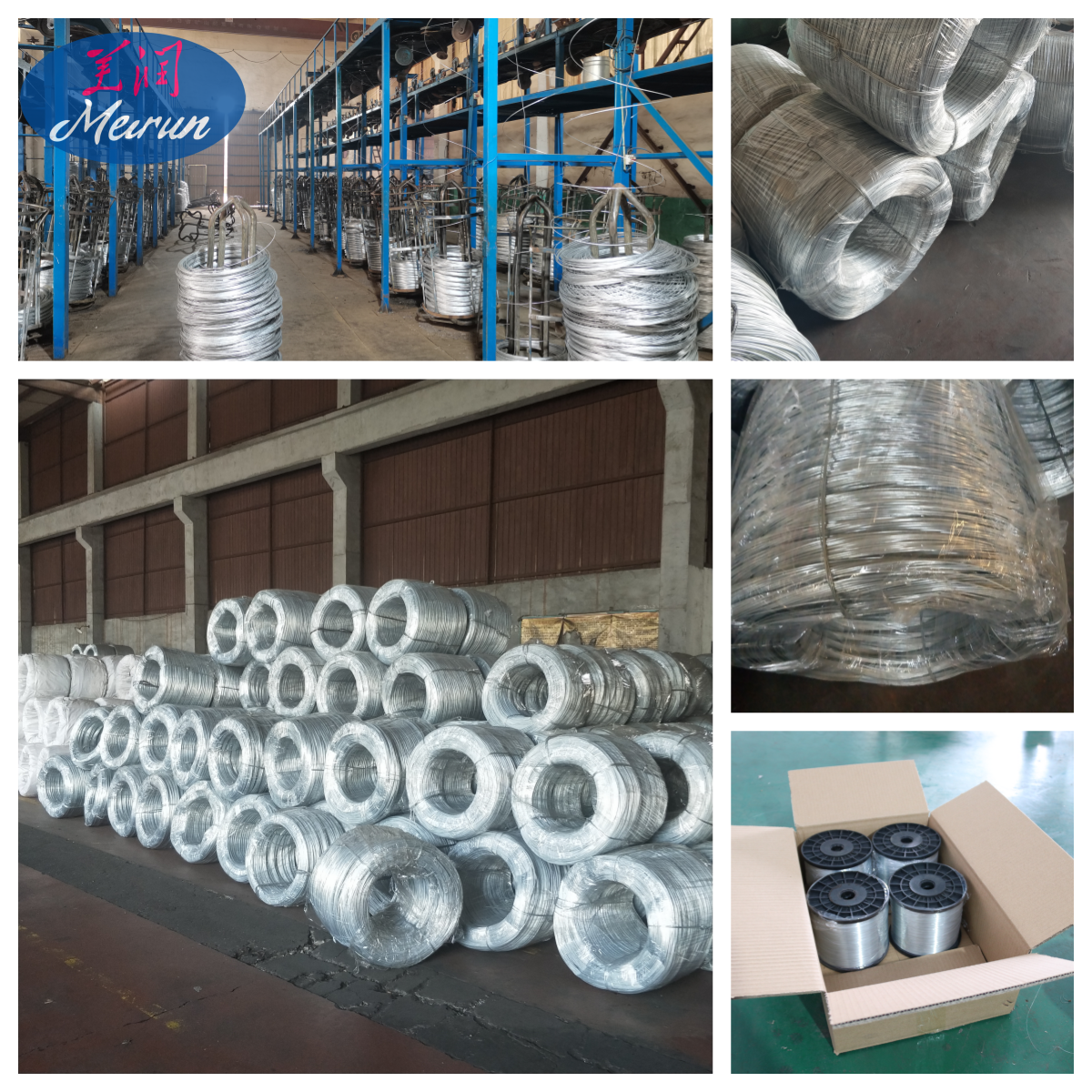

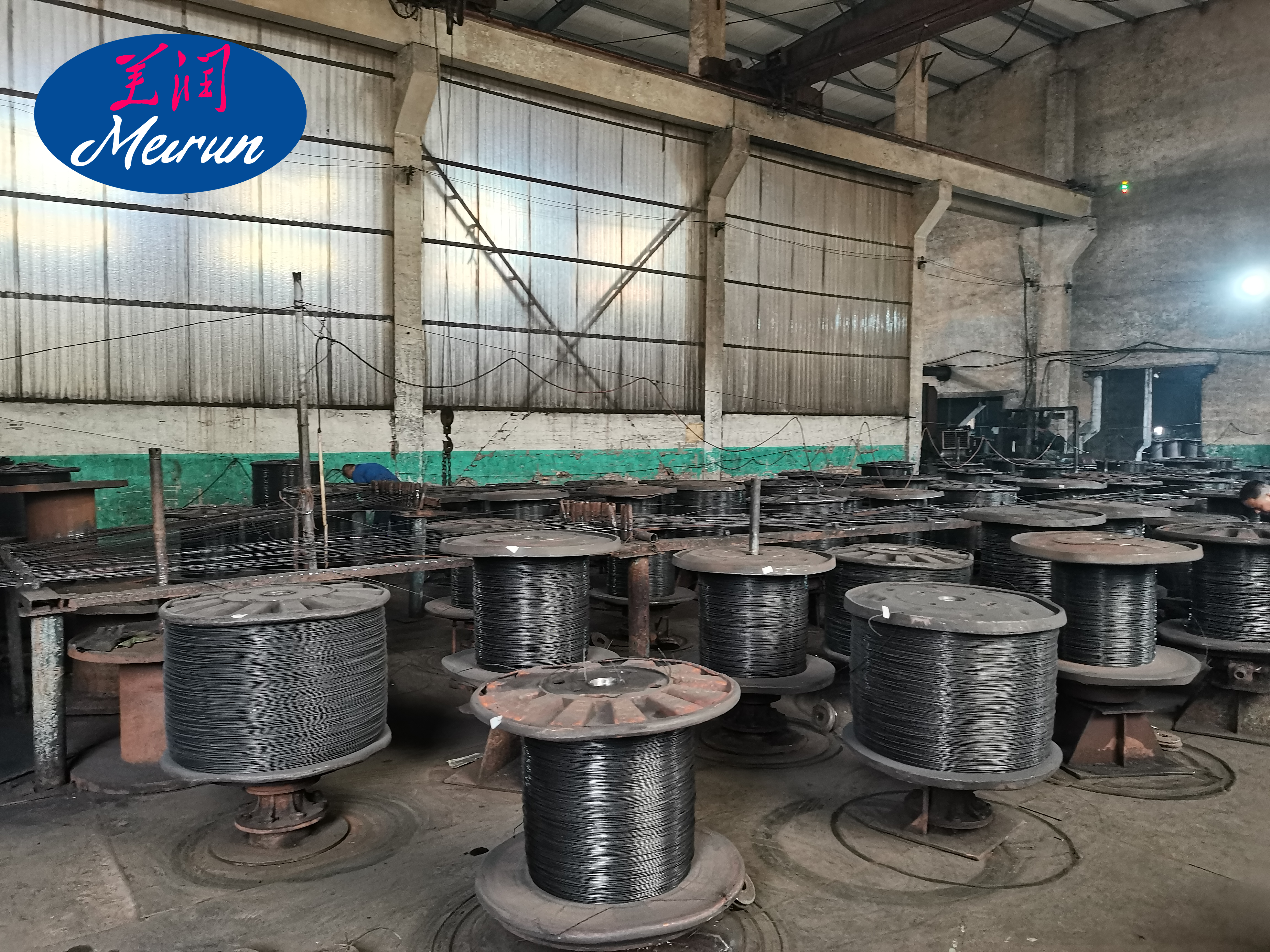

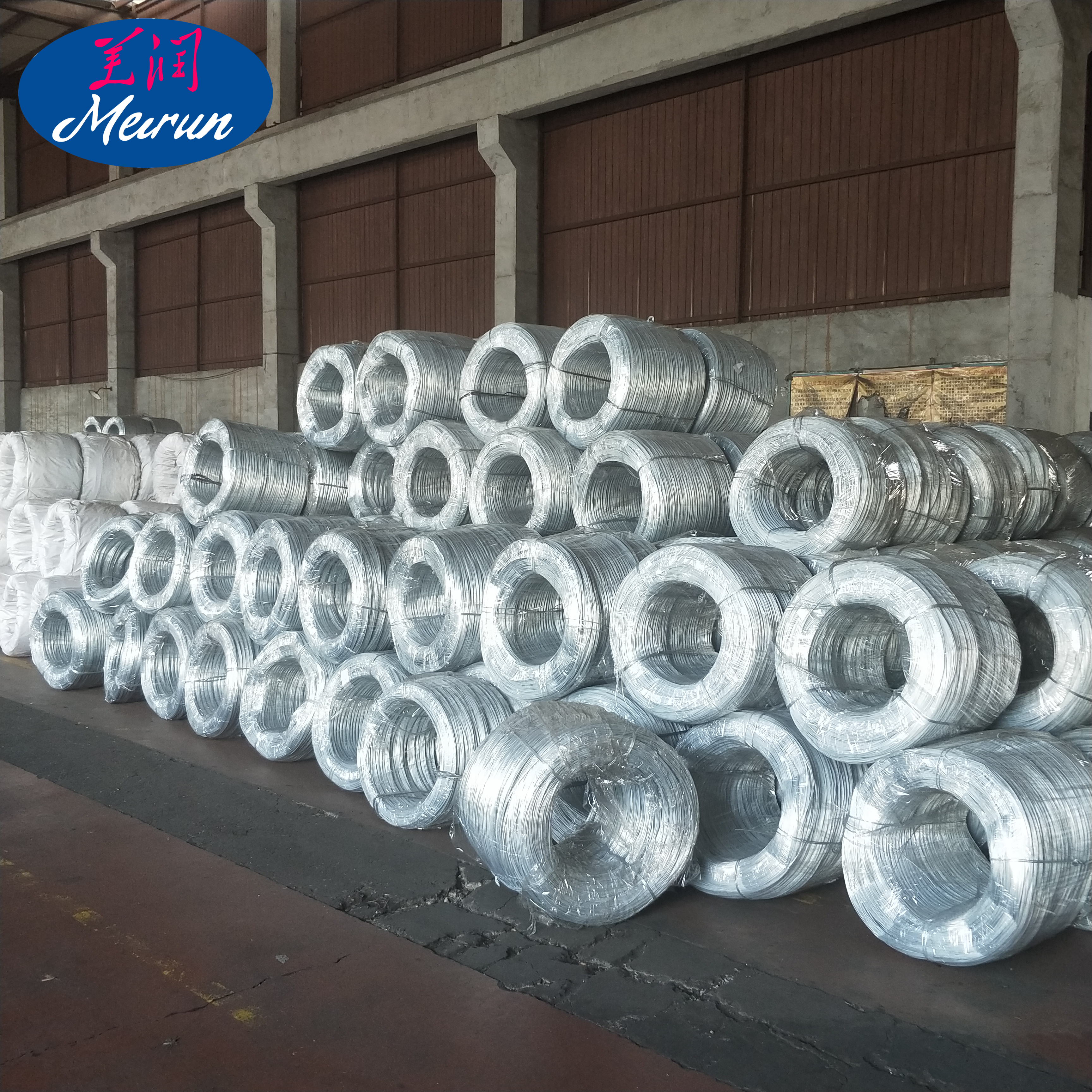

Product Display

Industry Outlook

Driven by the wave of globalization, infrastructure construction in towns and cities around the world continues to accelerate, leading to a significant increase in demand for galvanized steel wire. Its application in areas such as highway guardrails, railway fencing, and building safety mesh continues to expand. Taking China alone as an example, the market size for galvanized steel wire reached 3.252 billion RMB in 2024. At the same time, the application prospects for galvanized steel wire are becoming increasingly broad. In addition to traditional industries such as construction and transportation, emerging sectors like new energy and environmental engineering are also beginning to show demand for galvanized steel wire. Against this backdrop, manufacturers of galvanized steel wire must consider how to expand their market advantages and make their products more competitive through technological upgrades and intelligent transformation.

Faced with this challenge, Hebei Meirun Machinery Manufacturing Co., Ltd. is committed to providing you with an integrated galvanized steel wire production solution. This includes all the necessary equipment for galvanized steel wire production, such as annealing furnaces, washing tanks, electroplating tanks, as well as electric drying units and wire take-up devices. The entire production line features a high level of automation, requiring no manual intervention in processes such as coil pay-off, steel wire heat treatment, pickling, and electroplating. The 24-hour output of galvanized steel wire can reach up to 21.7 tons. Whether you intend to build a hot-dip galvanized wire production line or an electric galvanizing wire production line, Meirun can meet your needs, offering specific recommendations based on your production plan and budget, as well as providing detailed installation guidance.

On the other hand, the traditional galvanizing process has long faced serious environmental pollution issues. The waste gas, wastewater, and solid waste generated during production place enormous pressure on local ecosystems. As global environmental awareness rises and environmental regulations become increasingly stringent, the galvanizing industry is undergoing a profound green transformation. On top of the basic galvanized steel wire production line, Meirun has added optional electroplating wastewater treatment equipment and electroplating exhaust gas treatment equipment, and adopts a closed-loop production model to reduce the escape of harmful gases. The wastewater treatment system applies membrane separation technology and advanced oxidation processes, achieving a water reuse rate of over 80% and significantly reducing the enterprise’s water consumption. These technological innovations help minimize the negative environmental impact of galvanizing production and bring new development opportunities and vitality to your business. Choose Meirun, and we will provide you with the highest quality and most professional galvanized steel wire production experience！

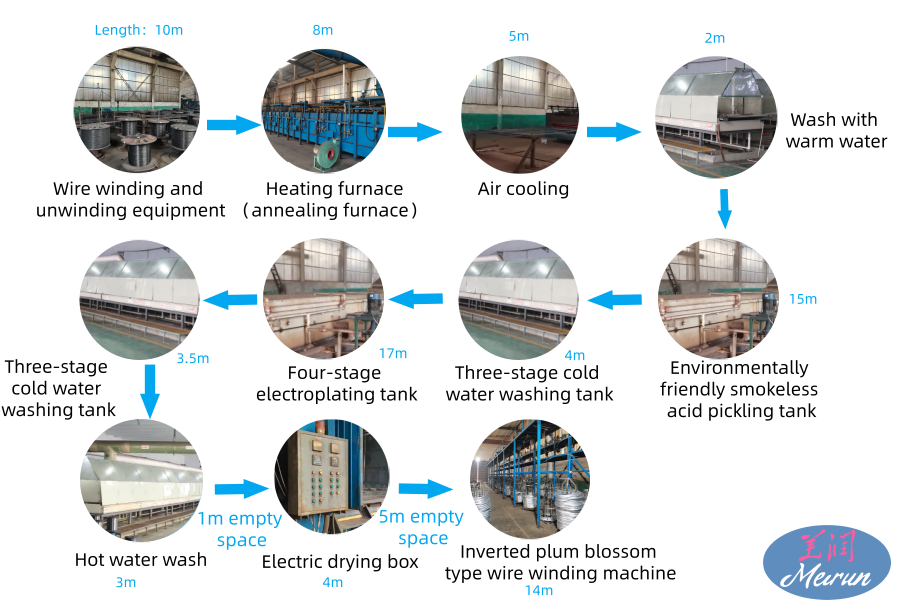

Electric Galvanized Wire Production Process

Note: Total length of the production line: approx 91.5m

Introduction to the Electric Galvanizing Production Line Equipment

1.Passive Coil Pay-off Equipment

Due to regional differences and varying production requirements, the specifications of passive coil pay-off equipment needed by different regions and factories are not uniform. You can either purchase this equipment yourself or have it customized by us according to your specific needs.

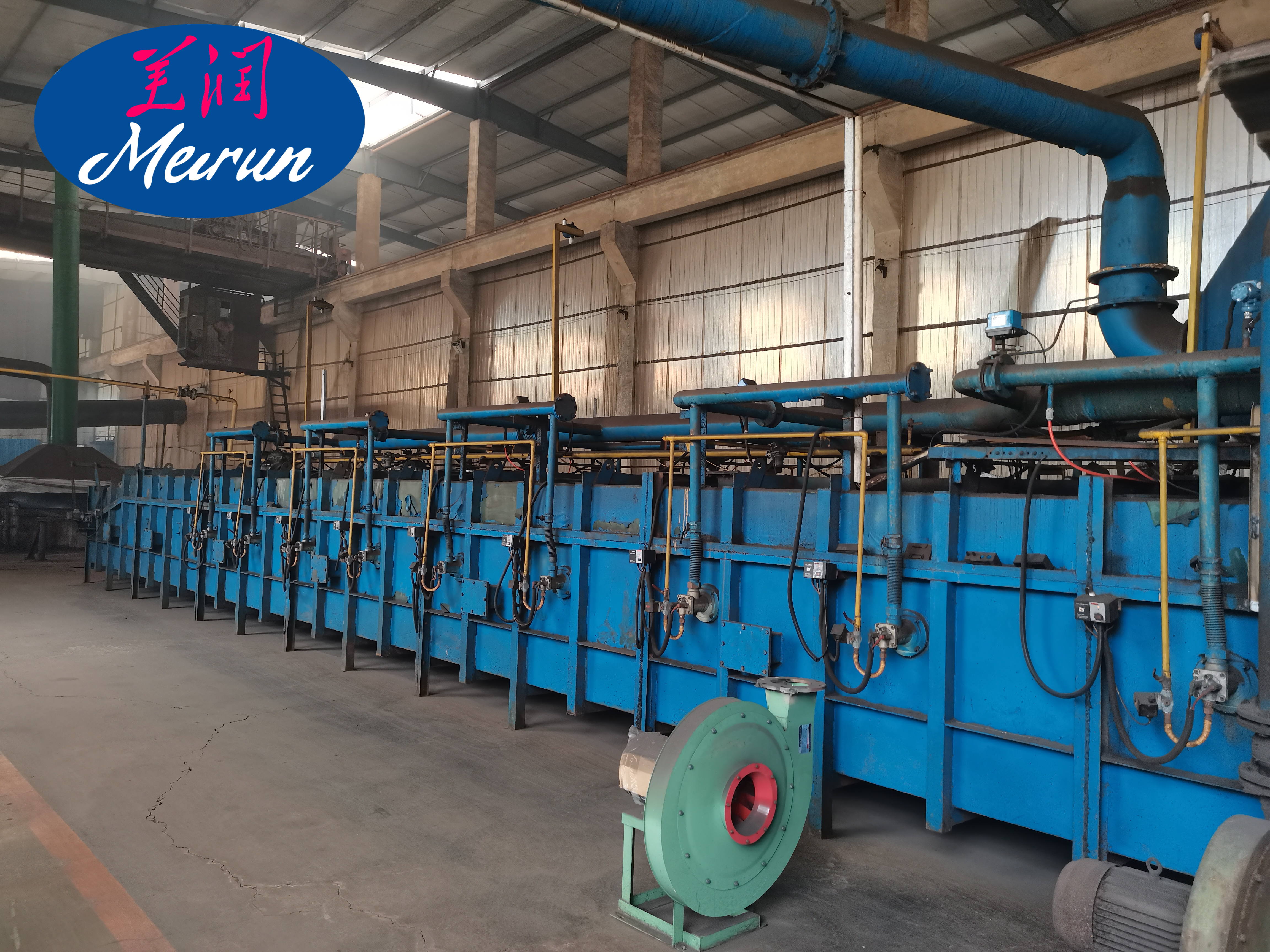

2. Steel Wire Heat Treatment Furnace (one set)

The steel wire heat treatment furnace modifies the internal structure of the wire by precisely controlling the heating and cooling processes, thereby enhancing its toughness, strength, and corrosion resistance. The furnace is equipped with high-efficiency heating elements and a temperature control system, ensuring that every wire undergoes heat treatment in a uniform temperature environment.

3.Temperature-controlled Water Washing Tank

4.Environmentally Friendly Turbulent Fume-free Pickling Tank

The pickling tank efficiently removes scale, rust, and impurities from the steel wire surface through an electrochemical reaction, ensuring a clean and highly active substrate surface in preparation for the subsequent galvanizing process. Pre-pickling the wire significantly improves zinc layer adhesion and overall coating quality. The environmentally friendly turbulent fume-free pickling tank produced by our factory features a closed design that minimizes the escape of harmful gases, ensuring an environmentally safe production process.

5.Three-stage Cold Water Washing Tank

The water washing tank is responsible for repeatedly cleaning the iron wire during the electroplating process, effectively removing residual acidic and alkaline solutions, electrolytes, and other impurities from the surface. This prevents contamination of the solutions in subsequent treatment tanks and ensures coating adhesion and surface quality. It is a critical step in guaranteeing the uniformity and corrosion resistance of the galvanized layer.

6.Four-stage Electroplating Tank

The electroplating tank acts as a container for the electrochemical reaction. Under the action of direct current, zinc ions are uniformly deposited onto the steel wire surface, forming a corrosion-resistant, aesthetically pleasing, and functional zinc coating. It is the most critical process unit in the galvanizing production line.

7.Three-stage Cold Water Washing Tank

8.Hot Water Washing Tank

9.Electric Drying Oven for 20 Wires (1 Set)

During the electroplating process, the electric drying oven quickly removes surface moisture from the iron wire by heating, preventing rust, damage to the passivation film, or coating defects caused by residual water film, and ensuring the quality stability of the galvanized wire during subsequent storage,transportation, and use.

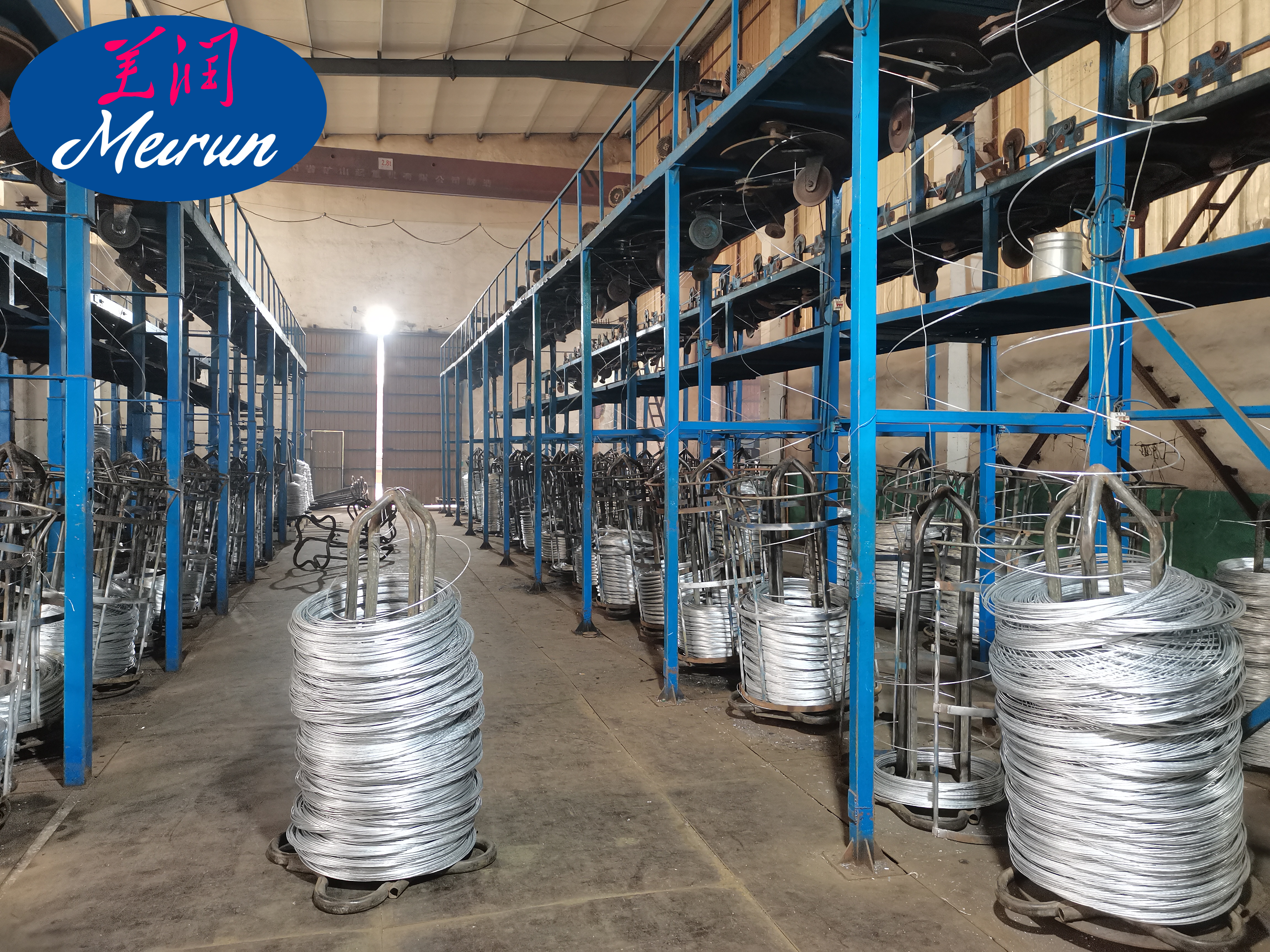

10. Inverted Coil Take-up Machine for 20 Wires

The inverted coil take-up machine is responsible for collecting and arranging the finished galvanized steel wire. Under automatic control, the dried galvanized wire is gently lowered from a height and wound layer by layer onto the coiling frames, requiring no manual collection, thus effectively saving labor costs.

11.Electrical Control Cabinet (1 Set)

12. Auxiliary Components

Notes:

1.Workshop length: 100 m, width: 10 m, installed power capacity: 230 kW.

2.The budget price excludes taxes, shipping costs, and on-site installation and commissioning fees.

3.The equipment does not include workshop water pipes or electrical wiring, nor does it include zinc ingots or chemical materials.

4.The items listed above are the basic production configuration and do not include spare parts or wear parts.

5.The copper busbars and lead plates include pre-installation work such as bending and punching.

6.Exhaust gas treatment equipment and wastewater treatment equipment are available as options and are not included in the production line equipment list.

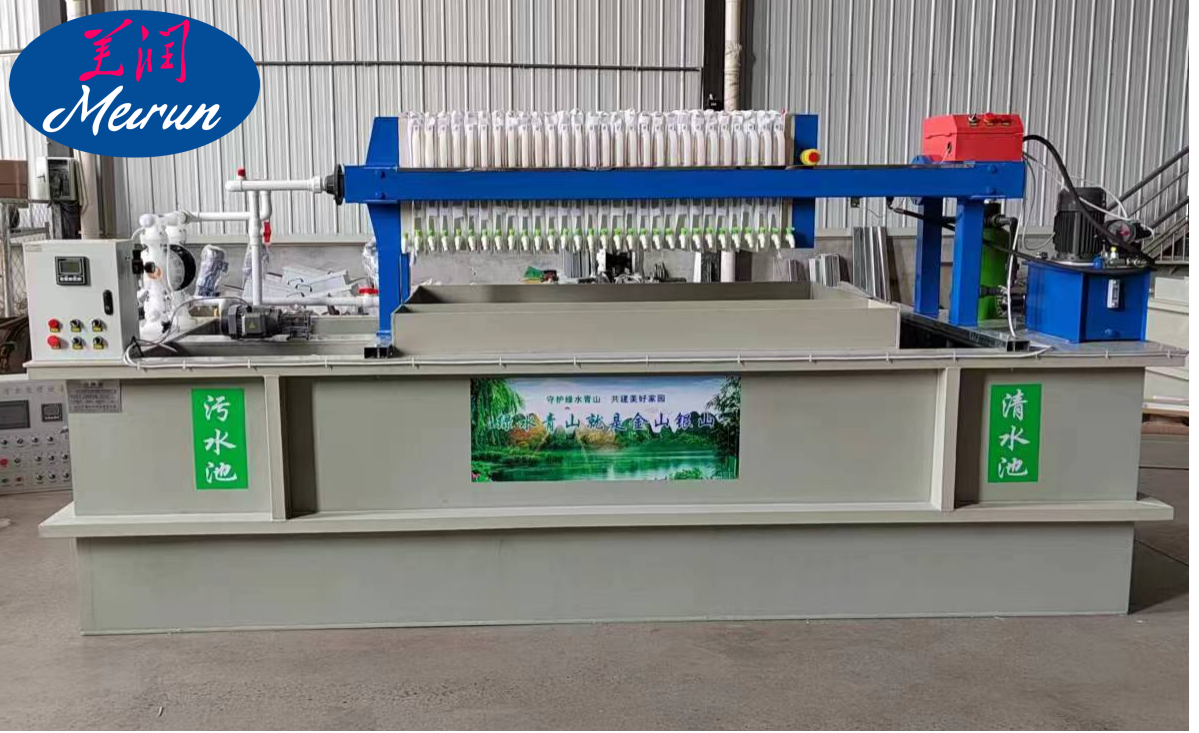

Electroplating Wastewater Treatment Equipment (Optional)

The operation of an electric galvanizing wire production line generates a large amount of wastewater, which is laden with heavy metal ions such as zinc, iron, nickel, chromium, as well as oil and impurities left over from wire cleaning. This wastewater is harmful to the environment and must be filtered and purified in appropriate equipment before discharge.

The integrated wastewater treatment equipment produced by our factory measures 4000mm in length, 1400mm in width, and 2000mm in height, and is made of PP environmental engineering sheets. The equipment mainly uses pressure filtration, sand filtration, and carbon filtration to separate harmful substances from the wastewater. Through processes such as homogenization, neutralization reaction, and solid-liquid separation, the system removes cake-like impurities, ensuring that the treated effluent meets environmental discharge standards. Using electroplating wastewater treatment equipment is an important guarantee for achieving green production.

Technical Parameters of Electroplating Wastewater Treatment Equipment

Filter press filtration area：15 m²

Treatment capacity：3-5T/8h

Filtration method：Pressure filtration, sand filtration, carbon filtration

Drive：Electric / Pneumatic (air compressor to be provided by customer)

Motor power：0.37KW 415V

Hydraulic pump station power：1.5KW 415V

Jet pump power：0.37KW 415V

Liquid discharge mode：Open flow

Pressing method：Electric pressing

Feed method：Center feed

Cake discharge method：Manual plate pulling

Feed temperature：≤80°C

Diaphragm pump head：0–50 m

Diaphragm pump suction lift：7 m

Electroplating Exhaust Gas Treatment Equipment (Optional)

The core objective of the exhaust gas treatment equipment is to capture and purify various gaseous pollutants generated during production, especially the "acid mist" produced in the galvanizing process. The electroplating exhaust gas treatment equipment manufactured by our factory adopts an enclosed collection method to capture acidic exhaust gases in real time, and is equipped with a PP spray tower that uses alkaline liquid spray as a neutralization method. After spray treatment, the gas passes through an activated carbon adsorption device to further remove trace residual harmful components, ensuring that the final emissions meet environmental standards.

Equipment Advantages:

☑ Equipped with a 7.5 kW variable frequency motor, air flow rate up to 9,497–15,367 m³/h, air pressure up to 1,391–1,760 Pa

☑ Dual-layer spray design with a demister, effectively neutralizing exhaust gases

☑ Equipped with an automatic chemical dosing device, reducing manual intervention and preventing chemical waste、

Equipment List:

Company Profile

Hebei Meirun Machinery Manufacturing Co., Ltd. was founded in 2013 and has been focusing on the manufacturing and sales of wire mesh machinery for many years.The company is located in Anping County, Hengshui City, Hebei Province -- an area known as the “Wire Mesh Capital of China.”By taking advantage of the local industrial cluster, we have continuously expanded our production scale and enhanced our trade competitiveness, achieving a market share of over 90% in some product categories.Today, we have our own factory and professional R&D team, and have applied for multiple invention patents. Our products are exported to many countries across Europe, the Middle East, South Africa, and beyond, with our quality widely recognized by customers.Choose Meirun, and we will become your loyal partner, providing you with the highest quality products and services.Hebei Meirun Machinery,  you are always welcome!

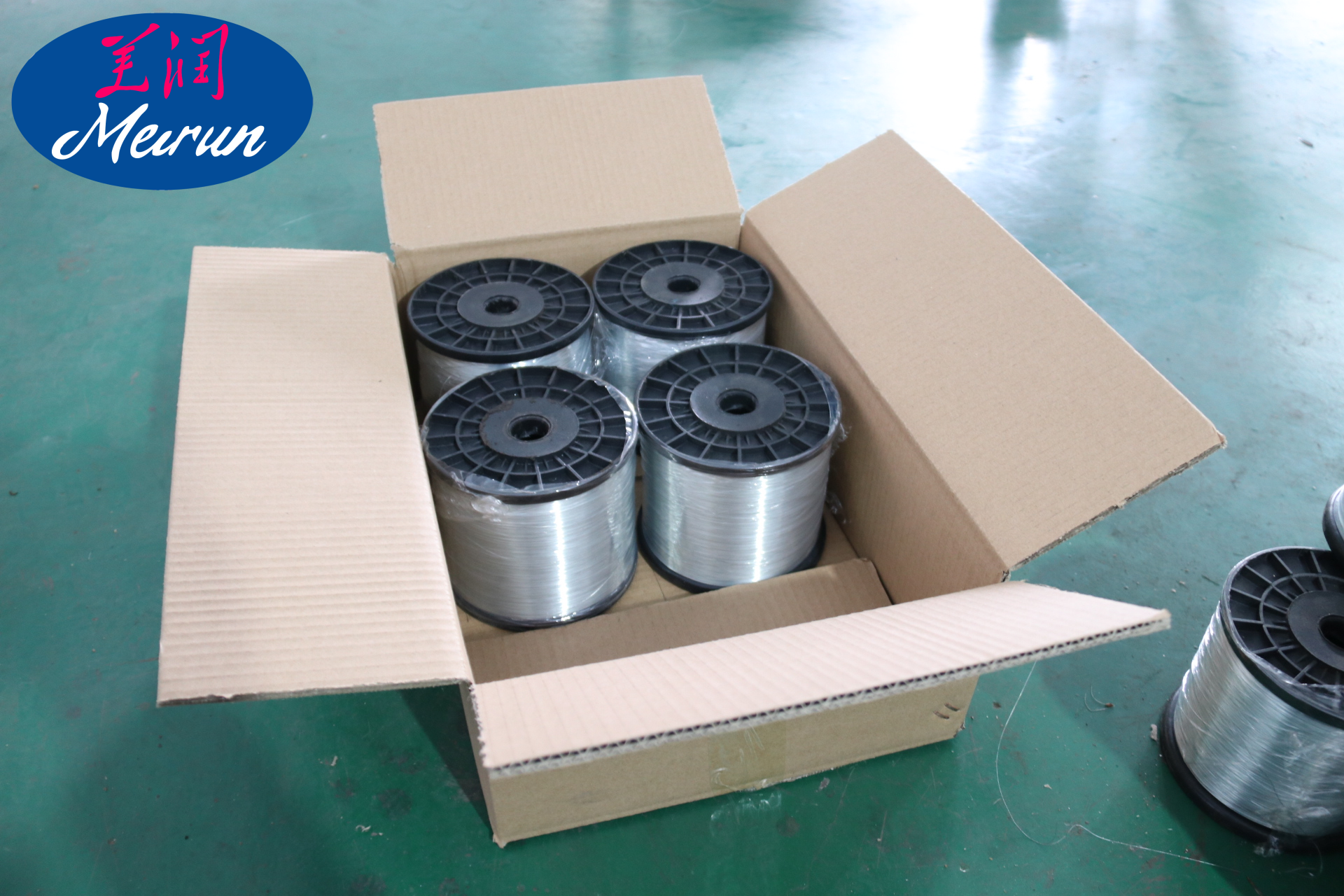

Package and delivery
