Wire straightening and cutting machine
Wire straightening and cutting machine description:

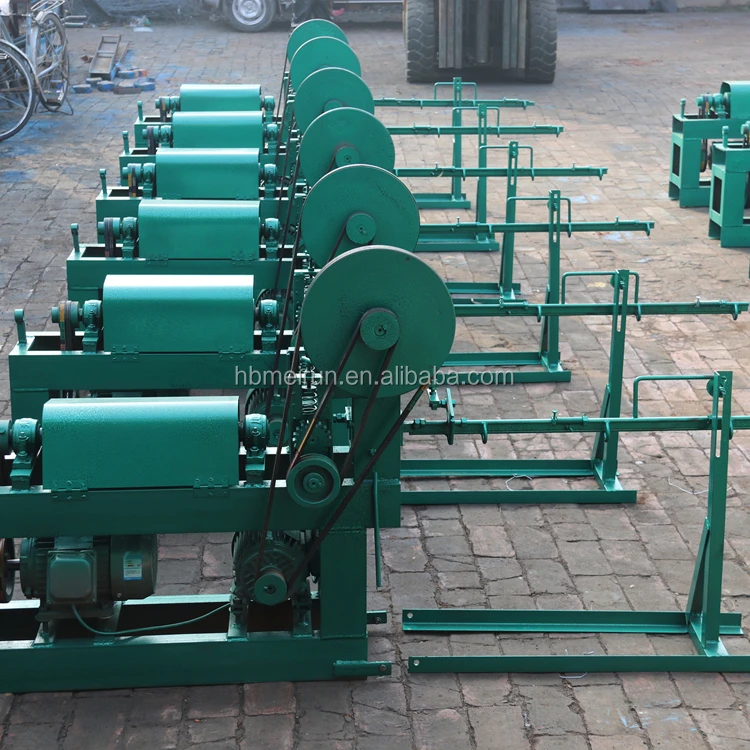

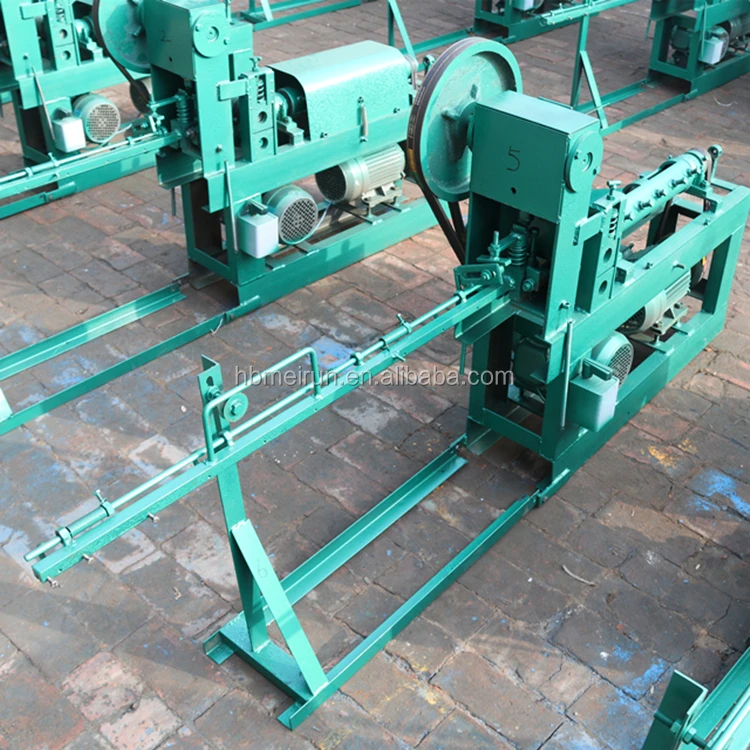

This machine mainly consists of tray bar rack, straightening rack,tractor cutting device, base support, and motor rotation facility. This machine is applicable to straighten and cut all types of metal steel wire, stainless steel wire, aluminum wire, and cold-drawing wire.
Wire straightening and cutting machine features:
1) Simple structure in linear type ,easy in installation and maintain.
2) The length could adjust according to customers demand.
3) This machine has many advantages, such as neat cutting mouth, less error and good functions.

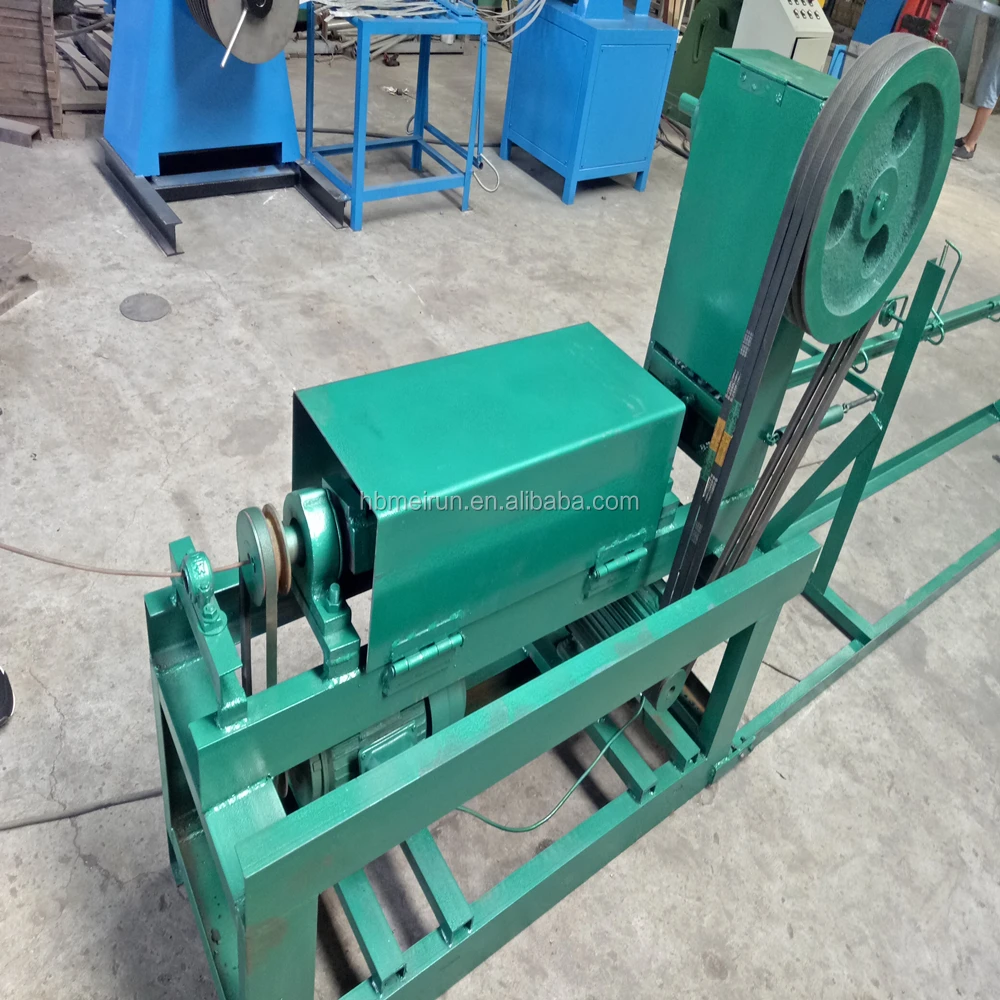

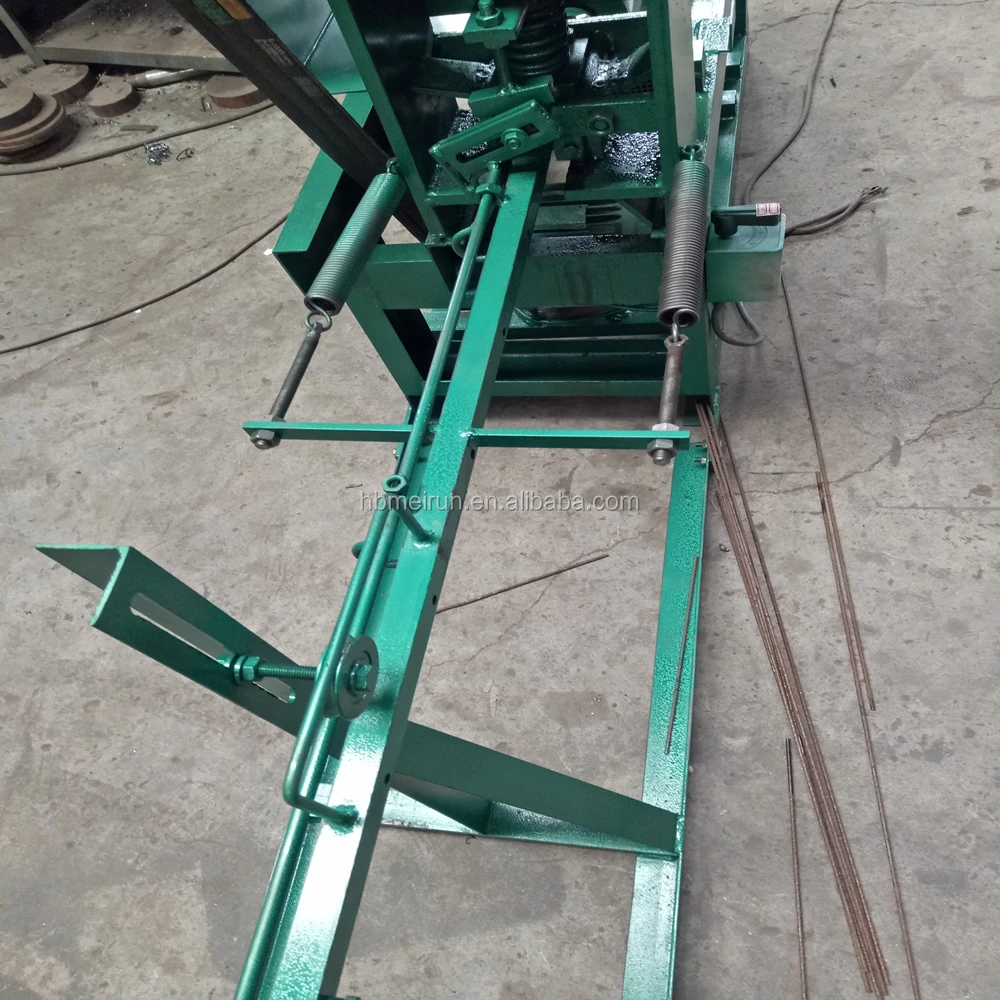

Main machine: Steel wire track:
The part is main machine.which is in Adjust the wheel to the length which you
charge of the ength of feeding steel wire want to cut,but it needs to be adjusted
and cutting wire includino feeding motor, manually operated,and you need
guiding wire wheels and cutting motor. measuring the length.
Wire straightening machine parameter:
| 2 -5 || 3- 6 || 4- 8 || 4 -12 || 5- 12 |
| Cutting length(mm) || 500-2000 || 500-6000 || 500-6000 || 200-6000 || 200-6000 || 1000-12000 |
| Cut error +/- (mm) || 1 ||1 ||1 ||1 ||1 ||1 |
| Speed(m/min) || 60 ||60 ||60 ||60 ||60 ||60 |
| Voltage || 380V/50HZ || 380V/50HZ || 380V/50HZ || 380V/50HZ || 380V/50HZ || 380V/50HZ |
| 0.75kw || 0.75kw || |
| 4kw || 4kw |
|Straight motor || |
| 2.2kw || 4kw || 7.5kw || 7.5kw |
| Weight(kg) || 130 ||150 ||180 ||650 ||1000 || |
Packing:wooden pallet and plastic package in the container or pack per customer's request.
Delivery: Delivery within 15 days after receiving 70% of balance payment.
