MRTZJ
Meirun

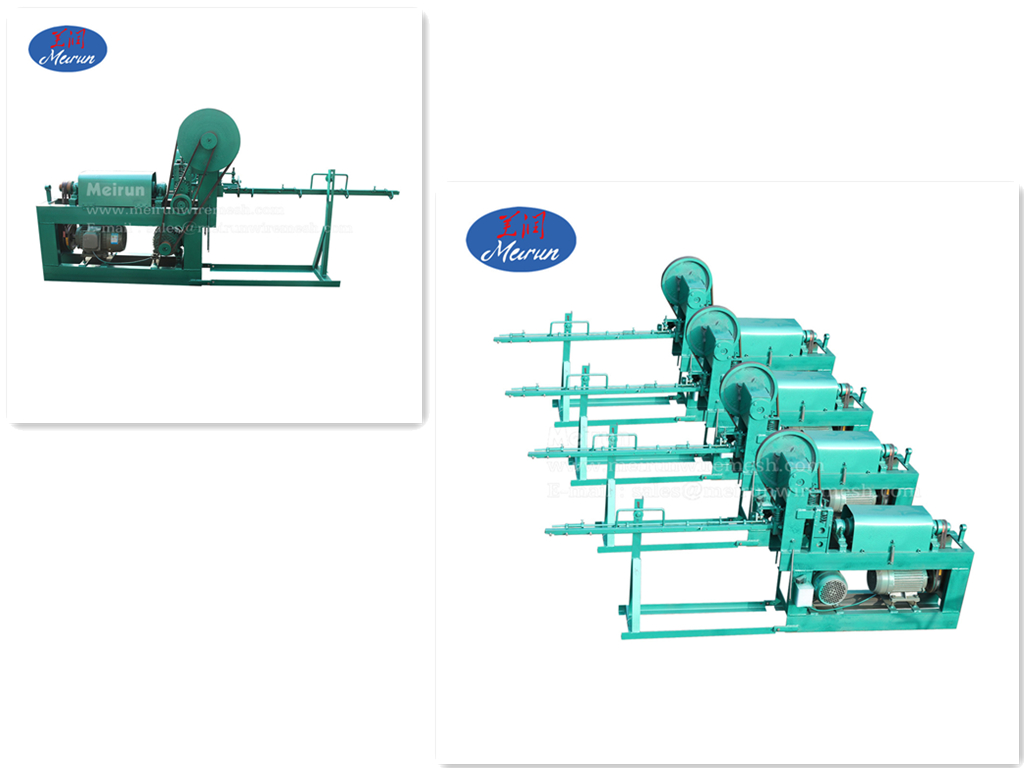

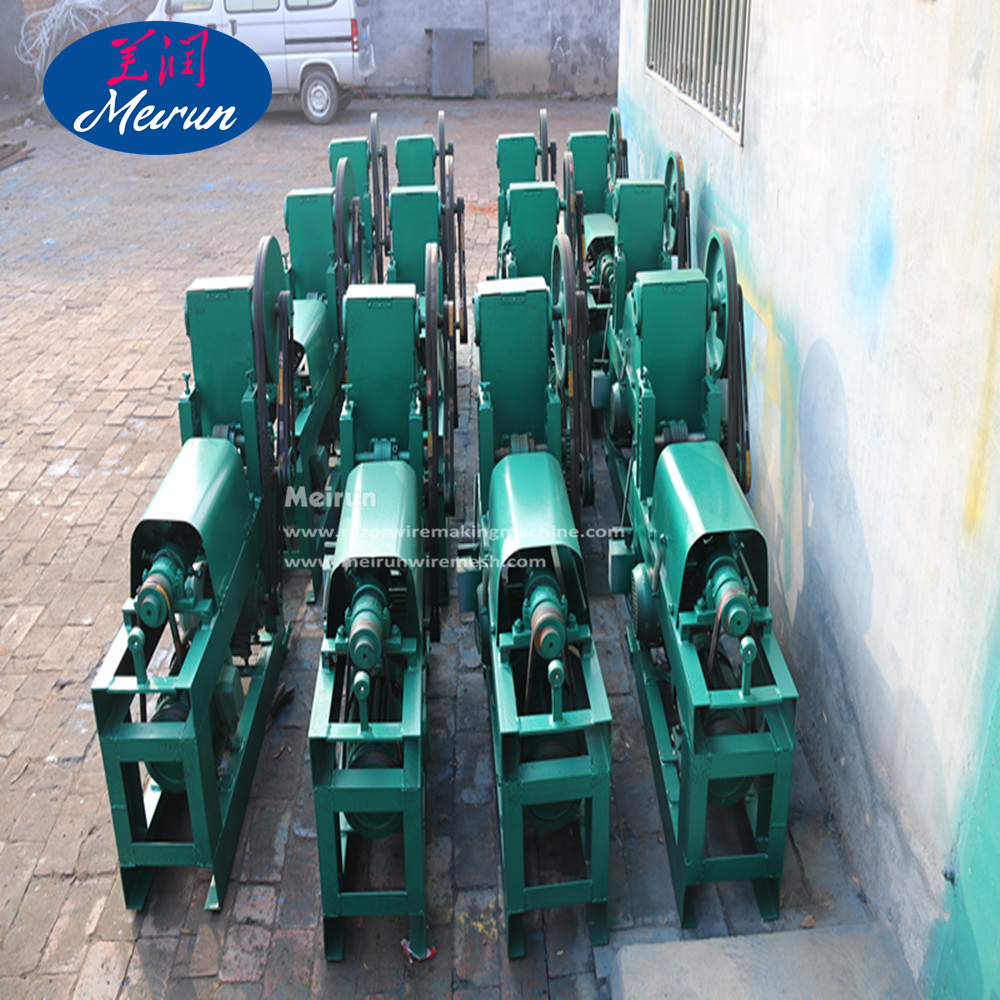

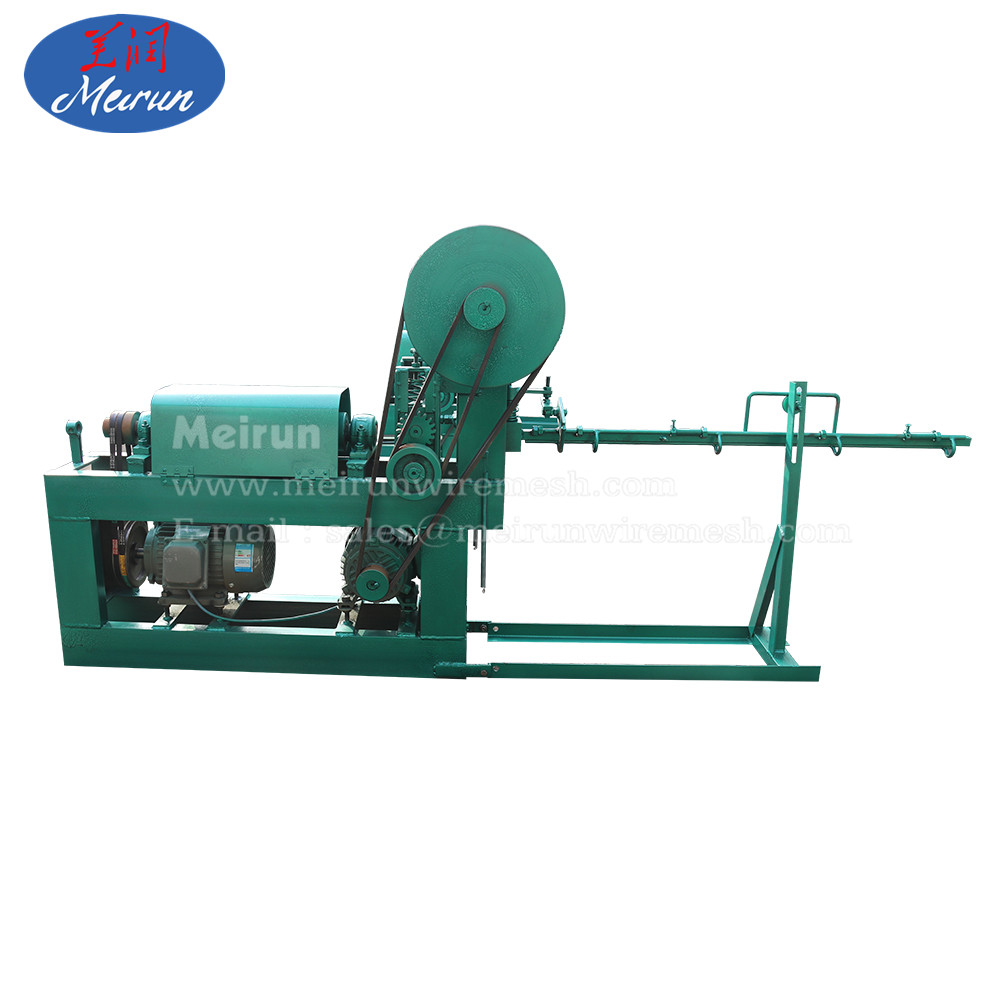

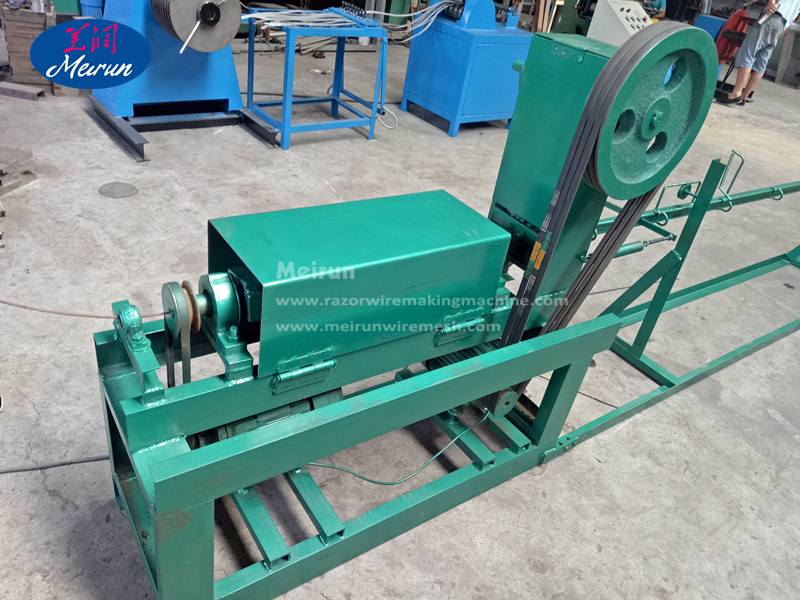

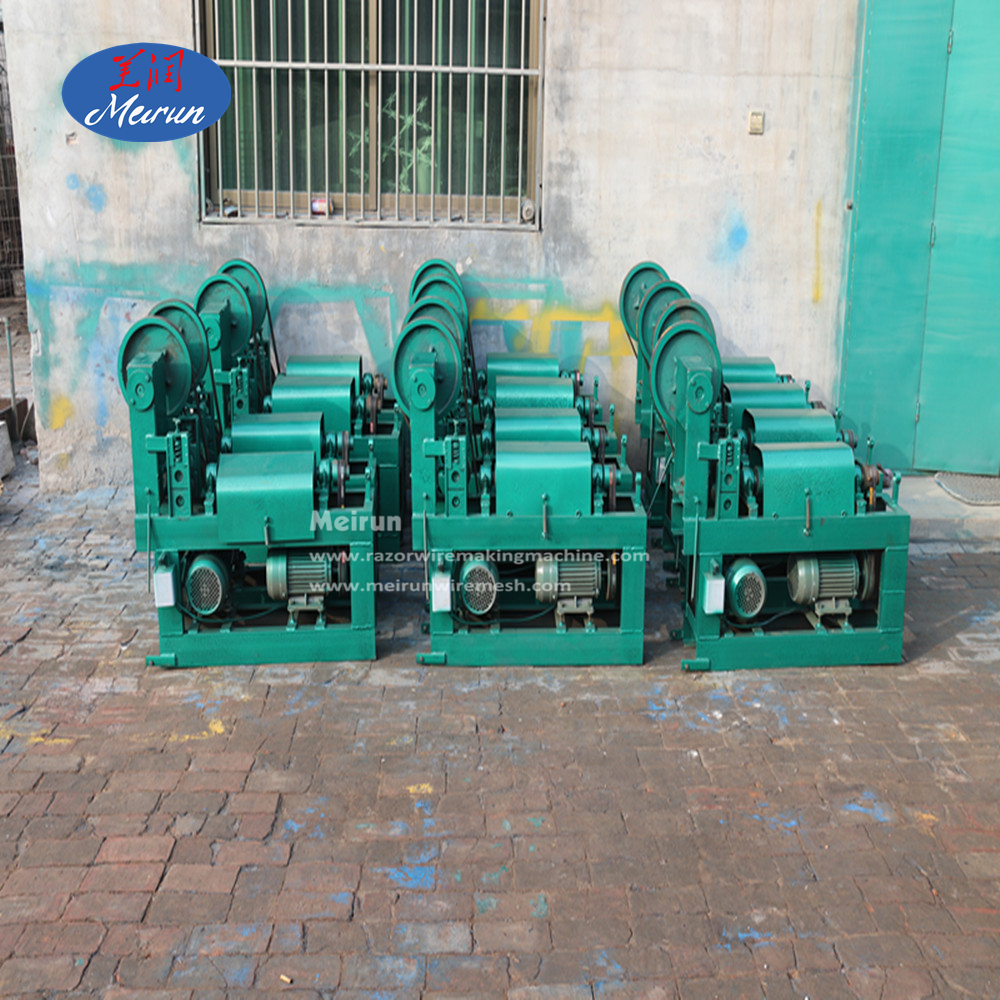

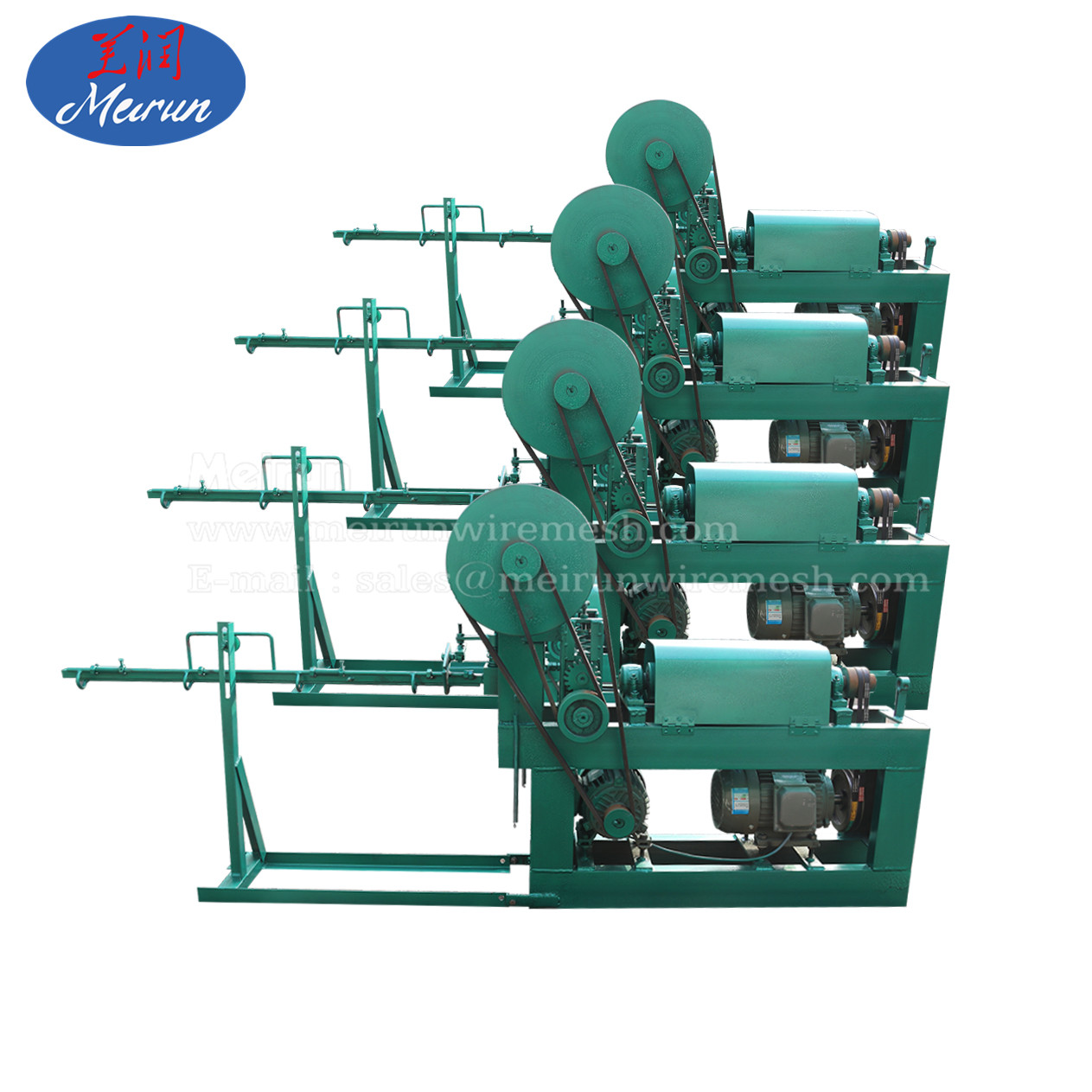

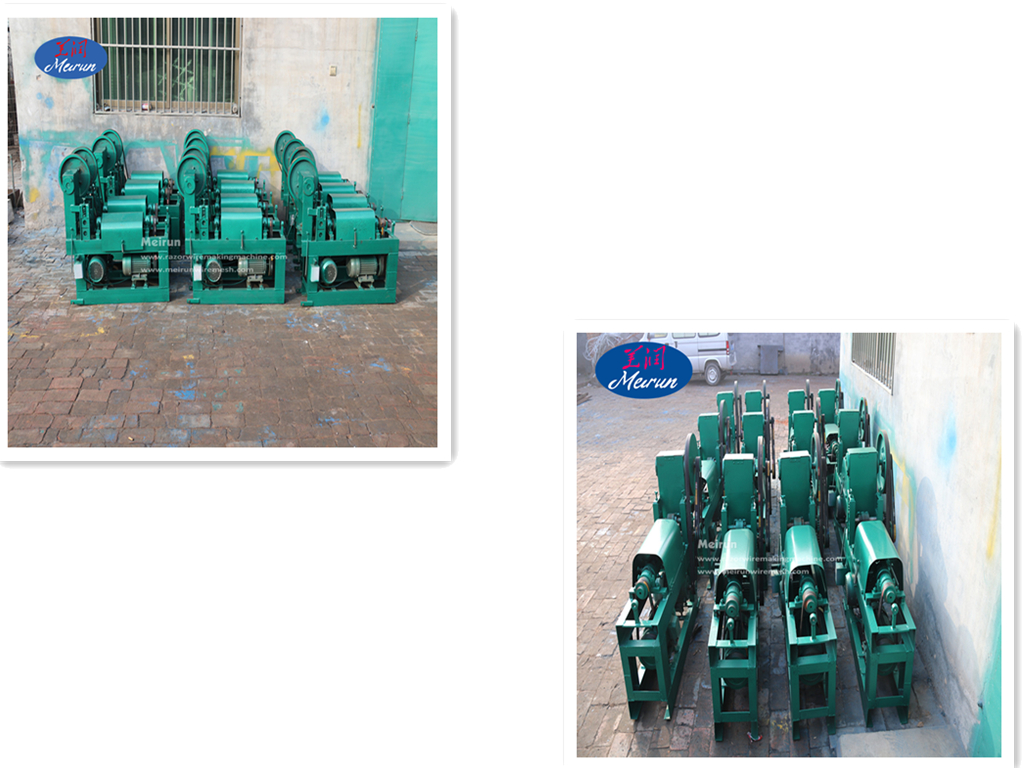

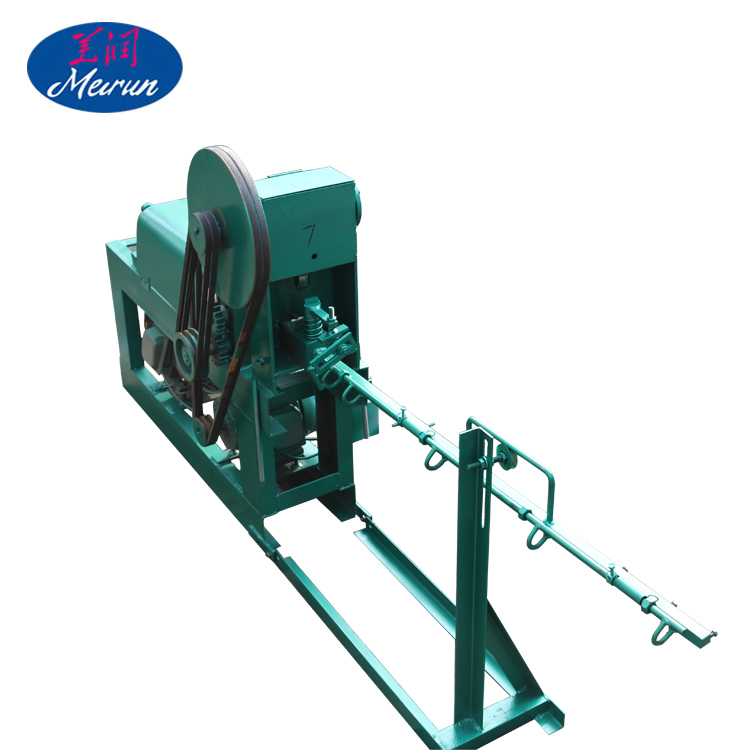

Wire straightening and cutting machine
1.automatic steel wire straightening and cutting machine can straighten and cut stainless steel wire,
aluminum wire,cold-drawing wire and steel wire.
2.The wire diameter of this kind of machine is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire,
cold-drawing wire,and steel wire with plastics.
4.This machine has many advantages,such as neat cutting mouth, less error and good functions.
Specification
Model | MR 1.5-3.5 | MR2-5 | MR3-6 | MR4-8 | MR 4-12 |
Wire diameter | 1.5-3.5 | 2.0-5.0 | 3.0-6.0 | 4.0-8.0 | 4.0-12.0 |
Cutting length | 30-2000 | 30-6000 | 30-6000 | 200-6000 | 200-6000 |
Cut error | +/-1 | +/-2 | +/-3 | +/-4 | +/-5 |
Speed | 25 | 30 | 30 | 35 | 30 |
Straight motor | 1.5 | 1.5 | 2.2 | 4.0 | 7.5 |
Cut motor | 0.75 | 0.75 | 0.75 | 3 | 4 |
Dimension | 1.7x0.4x0.8 | 1.2x0.4x0.9 | 1.2x0.5x1.1 | 7.3x0.6x1.2 | 8x0.8x1.3 |
Weight | 130 | 150 | 180 | 650 | 1000 |

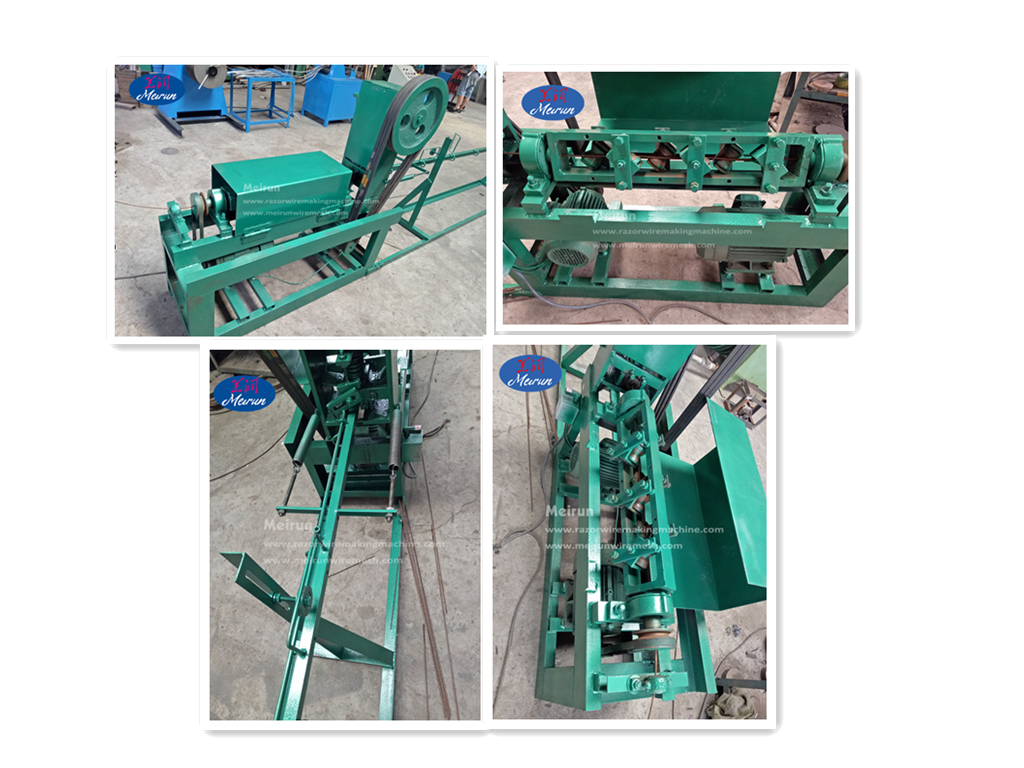

Details
Packing and delivery
Our customers
