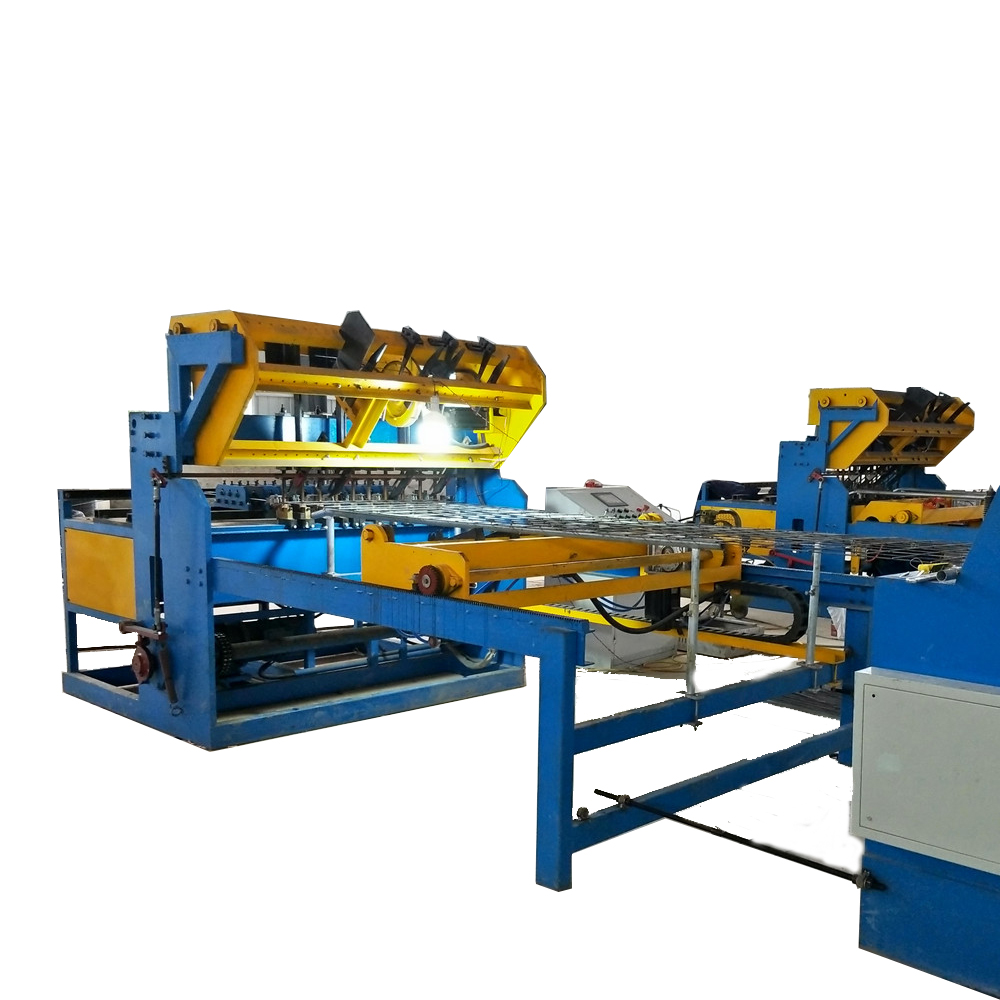

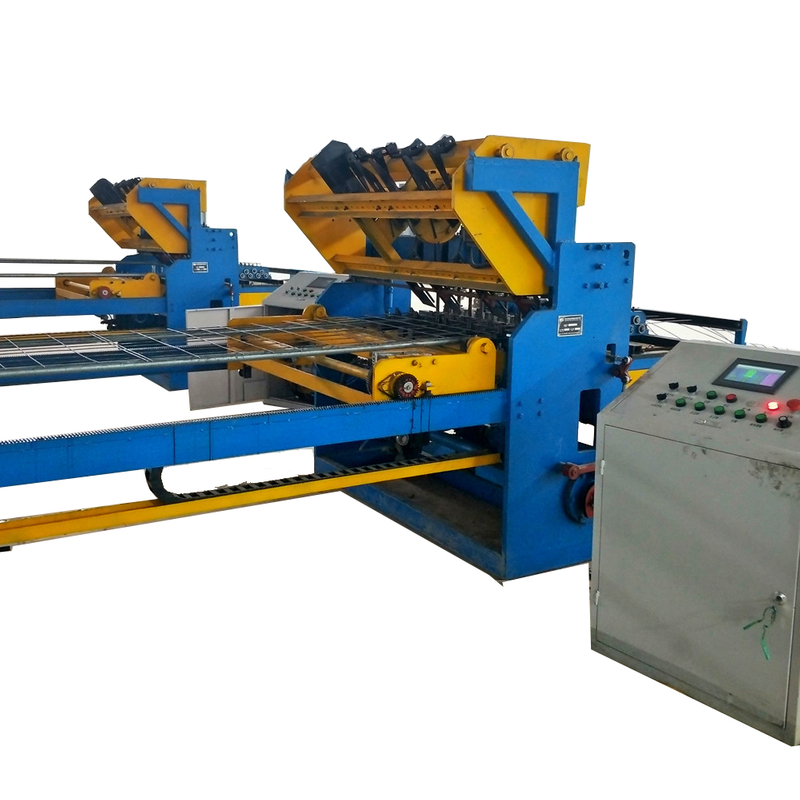

Welding equipment for industrial and fencing mesh / mesh welding machine

The HLHJ-1800, HLHJ-2000 and HLHJ-2500 together with the CNC systems have been developed for the efficient pro-duction of industrial and fencing mesh in small and large batch sizes.
The systems are distinguished by high profitability, productivity and easy maintenance. A large selection of extra modules means they can be adapted to different requirements, while allowing a modular setup of the automation level.

Quantity:
  • Welding wire mesh machine
  • MR
  • MR08
Product Description

Welding systems for industrial and fencing mesh

The HLHJ-1800, HLHJ-2000 and HLHJ-2500 together with the CNC systems have been developed for the efficient pro-duction of industrial and fencing mesh in small and large batch sizes.
The systems are distinguished by high profitability, productivity and easy maintenance. A large selection of extra modules means they can be adapted to different requirements, while allowing a modular setup of the automation level.

Model
HLHJ--1800
HLHJ--2000
HLHJ--2500
Mesh width
1500-1800mm
1500-2000mm
1500-2500mm
Mesh opening size
50-200mm
50-200mm
50-200mm
Wire Dia.
2.5-5mm
2.5-5mm
2.5-5mm
Welding Speed
(Mesh/min)
50--60
50--60
50--60
Welding length
1000mm-3000mm
1000mm-3000mm
1000mm-3000mm
Outside transformer
80KVA--200KVA
80KVA--200KVA
80KVA--200KVA
Motor power
4KW
4.5KW
5KW
Voltage
380V 50HZ
380V 50HZ
380V 50HZ
Machine size
5800*2300*1700mm
5800*2600*1700mm
5800*3100*1700mm
Machine weight
2500kg
2800kg
3200kg

Main Features

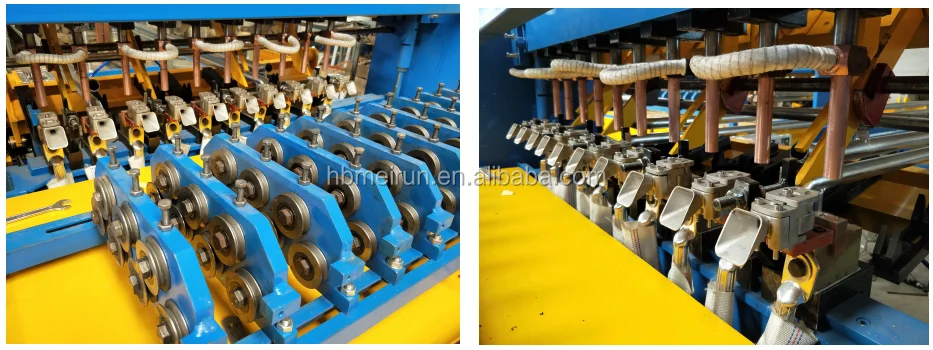

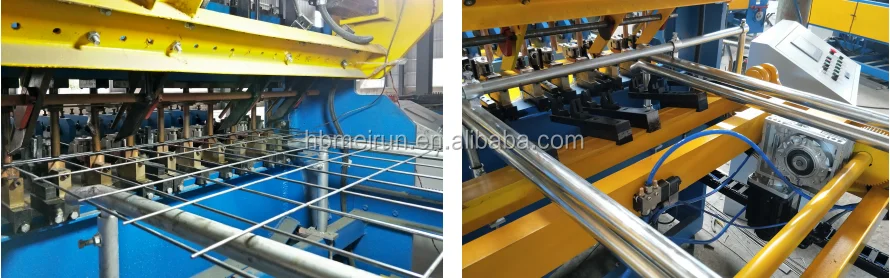

1) Highest quality :The positioning of the very stable line wire feeds is supported by a very precise measurement system. The

operating software determines the correct welding parameters. In this way the necessary quality for sale of the mesh is attained as soon as the first mesh produced following conversion.

2) This kind of machine is expert to produce mesh sheet. The finished mesh is much smoother than mechanical machines products.

3) PLC control. Easy to set and control. It makes this machine more intelligent and reasonable.
4) The weft wire supply is automatic.
5) The greatest advantage is possible to adjust the distance of wefts at random on the same mesh sheet

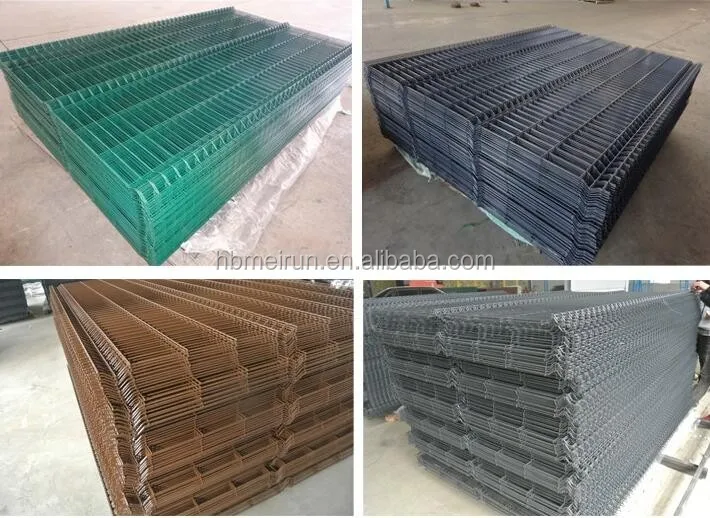

6) the finished produce welded wire mesh are for fence, construction, poultry cage etc
Products Usage
Packing & Delivery

Packing:1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.

                 2. The main machine will be fixed in the container by steel wire rope to make it stable.
                 3. It needs one 20 feet or 40 feet container for shipment.

Delivery: Delivery within 15 days after receiving 70% of balance payment

Our Service

Pre-Sales Service

* provide technical assistance for free

* Guarantee Period: 1 year

*24 hours online after-sale service

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
