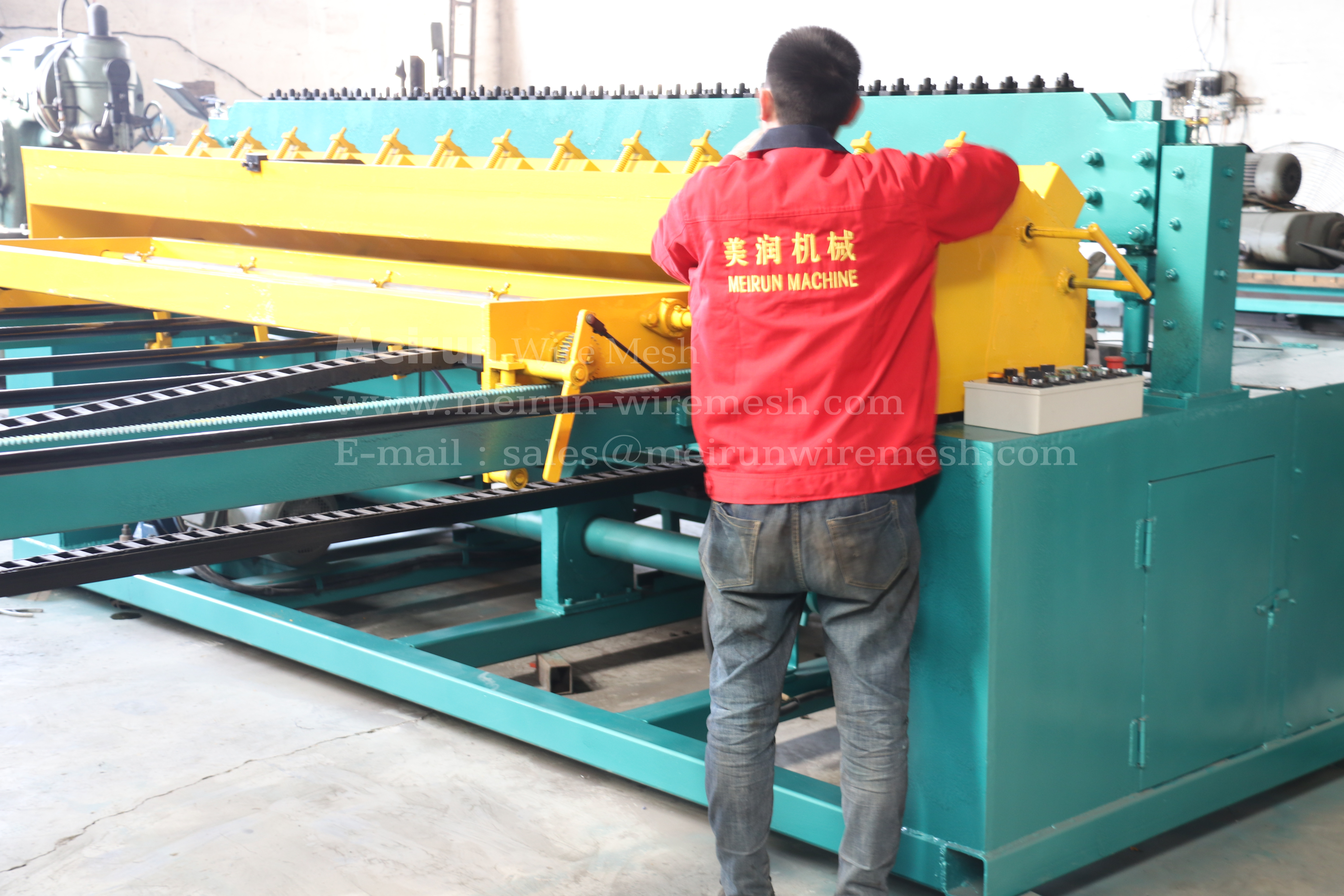

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine

1) This machine is our latest development, which adopts mechanism pressing principle with low cost , not cylinder.
2) This machine adopts synchronous control technique.
The cent-control and welding time are composed of PLC program system .
The input front-panel has two forms, touch screen and keyboard
That makes the machine more intelligent and reasonable and it could press at one time, times welding .
3) Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate.
The hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor .
4) The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.

Quantity:
  • MRMW-1
  • Meirun
  • MRMW-1

real factory security fence / high security fence for garden fence / welded wire mesh machine china supplier



product descirption

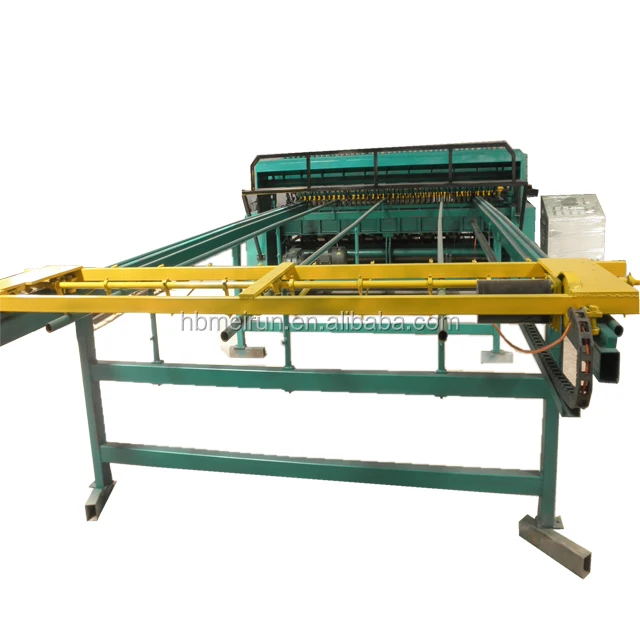

 358 wire mesh fence high security machine

1) This machine is our latest development, which adopts mechanism pressing principle with low cost , not cylinder.


2) This machine adopts synchronous control technique.
The cent-control and welding time are composed of PLC program system .
The input front-panel has two forms, touch screen and keyboard
That makes the machine more intelligent and reasonable and it could press at one time, times welding .

3) Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate.
The hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor .

4) The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.



Anti-climb fence making machine specification:



Model
MW - 358
Width
1m-3.1m
Wire diameter
3mm-4mm
Mesh size
75.6 mm x 12.7 mm
Length
2000mm -4000mm
Dimension
7300mm x 3500mm x 1600mm
Capacity
40-55 times /min
Voltage
380V 50HZ
Power
5KW
Weight
5T
Drive type
PLC
Corollary equipment
Straightening Machines x2

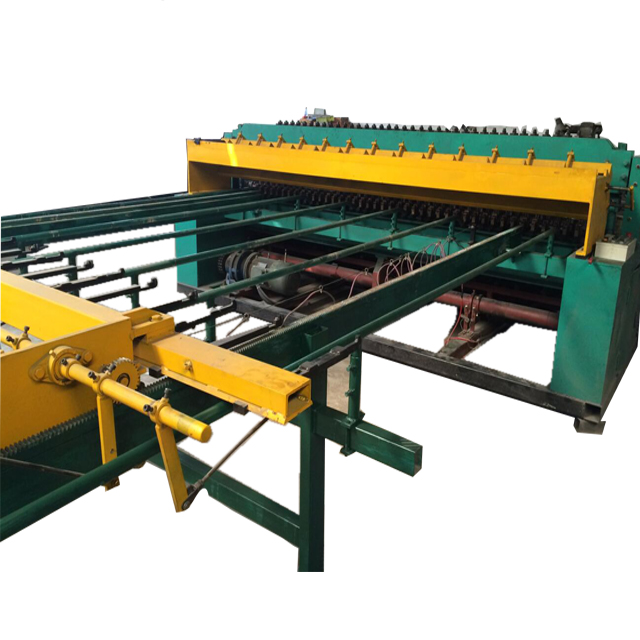

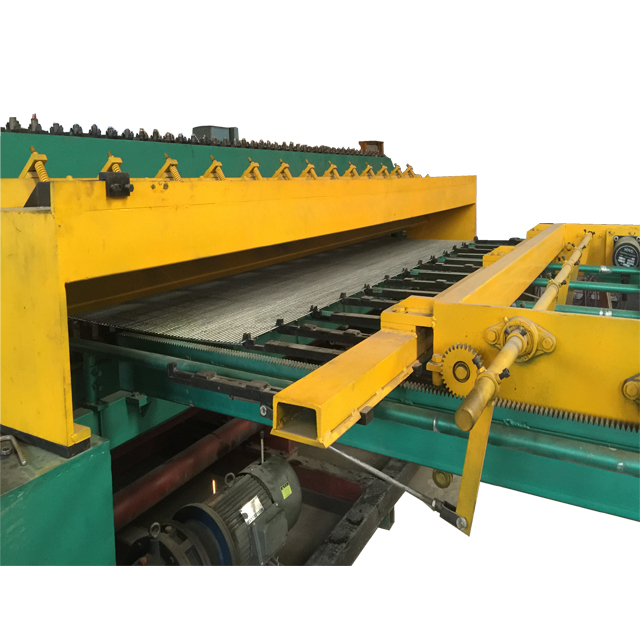

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine



Welding Fence Anti Climb Machine /CNC fence welded wire mesh machineWelding Fence Anti Climb Machine /CNC fence welded wire mesh machine

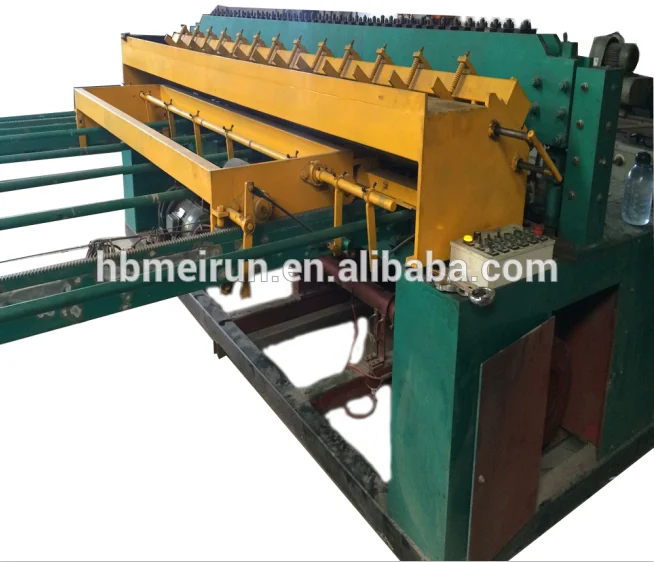

Characteristics of the 358 wire mesh fence high security machine:



Easy to operate



High performance



Adjustable speed adjustable different fence



Adjustable welding current to adjust different wire diameter



NC programmingdrag fence device



Small diagonal error

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine

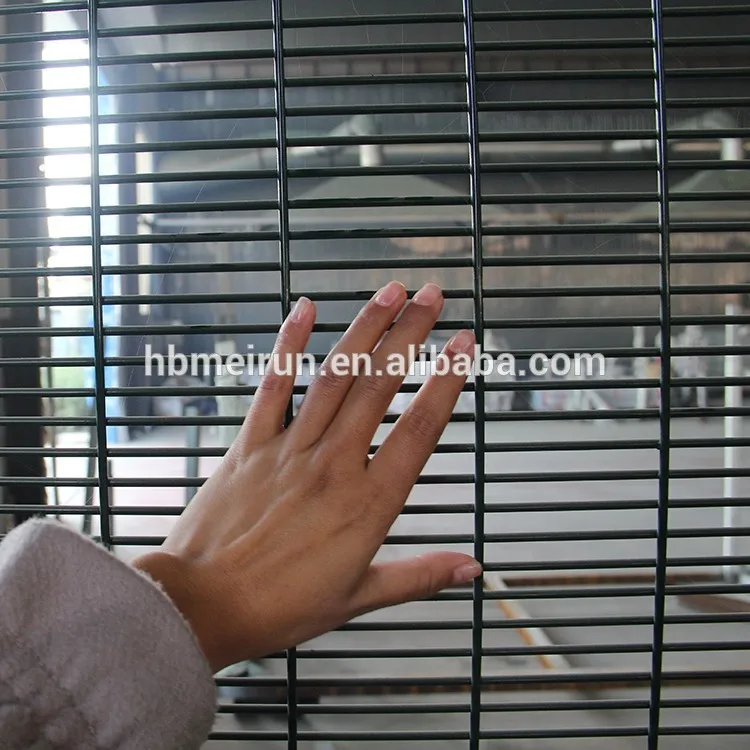

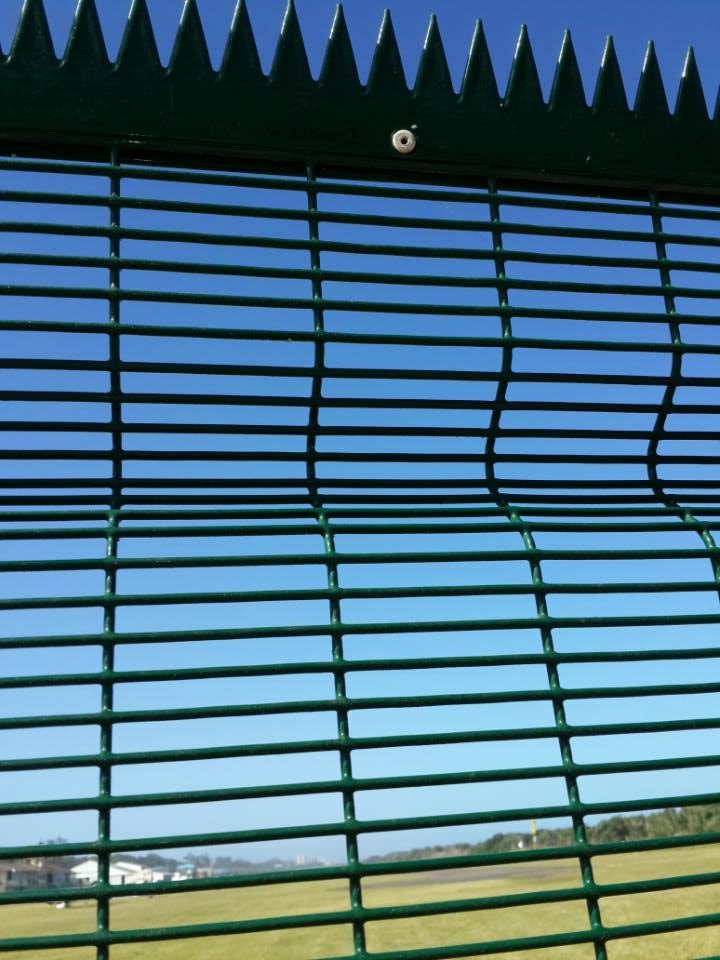

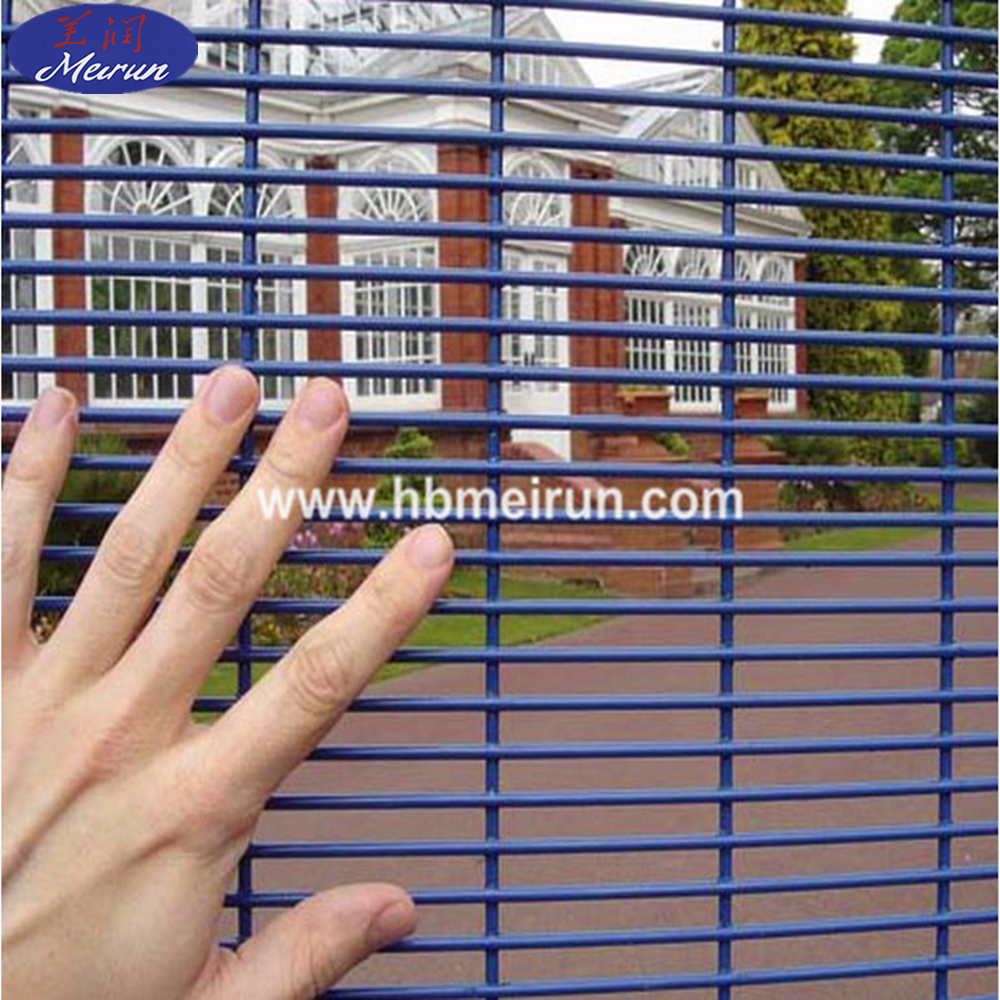

Anti climb fence/358 fence/ prison fence specification:



Height of security fence

1.8m-5.2m

Width of security fence

2.0m, 2.2m, 2.5m, 3.0m

Mesh opening

12.5mmx75mm(1/2''x3'')

wire diameter

3mm, 4mm, 5mm

material

low carbon steel wire,

galvanized wire

finished

hot dipped galvanized,

polyester painting

polyester painting color

any RAL color

(dark green, black,ect.)

curves

As you required


   Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine

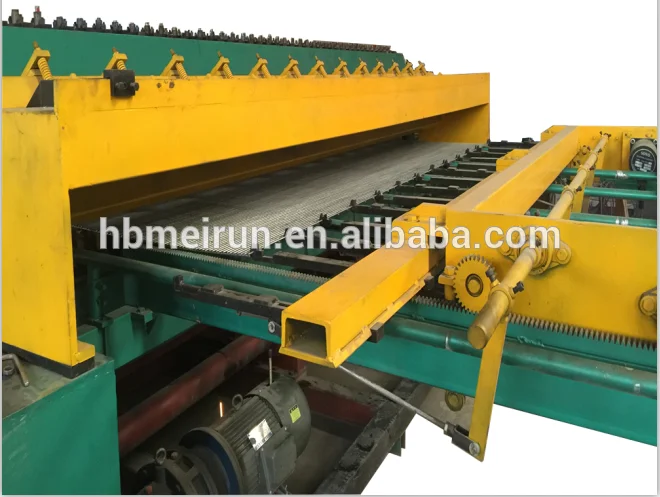

Characteristics of the 358 wire mesh fence high security machine:



Easy to operate



High performance



Adjustable speed adjustable different fence



Adjustable welding current to adjust different wire diameter



NC programmingdrag fence device



Small diagonal error



Applications:

Materials :  welding machine is good at welding various metal wire : stainless steel wire , low carbon steel

wire , round steel bar, ribbed steel bar.

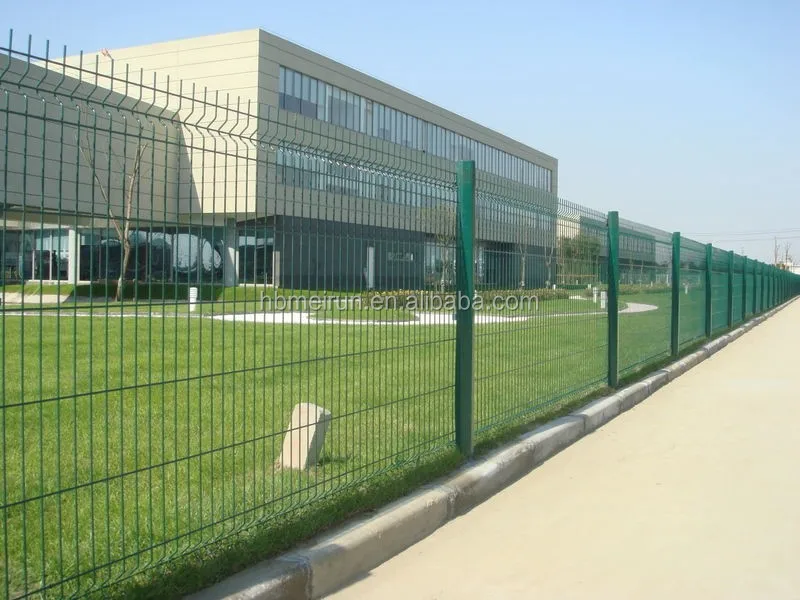

Mesh Panel : welded mesh panel widely used as welded wire mesh fence panel,school playground fence ,

3D wire mesh fence, welded garden fence curve welded fence and construction mesh panels.

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine



Auxiliary Machines:

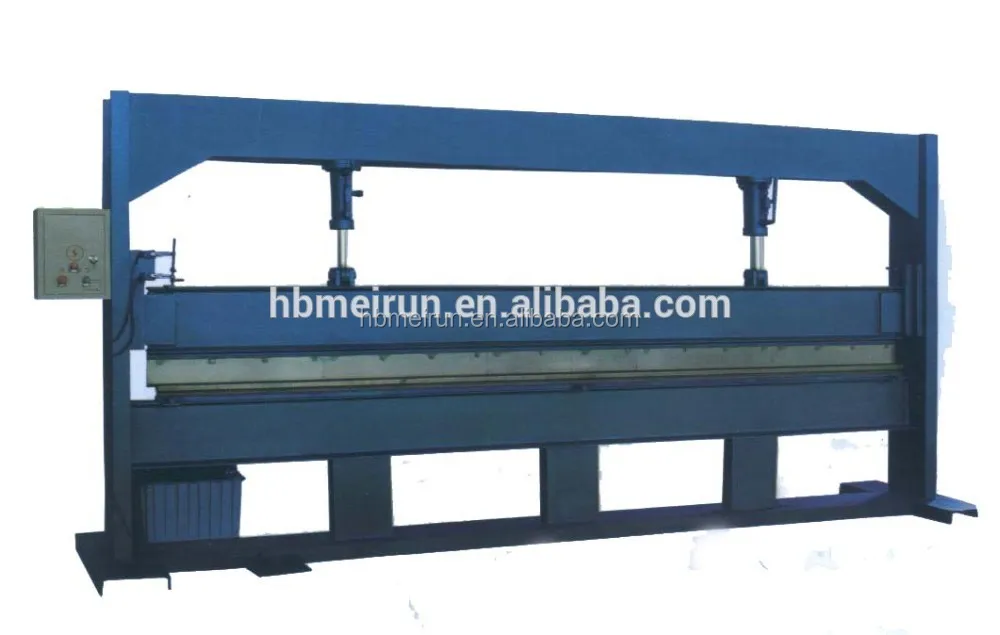

1. Mesh Fence Bending Machine

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine



2. Wire Straightening and Cutting Machine

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine

Packaging & Shipping



wooden pallet and plastic package in the container.



30 days more or less According to the actual conditions after receiving the prepayment.

Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine



Our Services

NO.1 provide technical assistance for free



NO.2 Guarantee Period: 1 year



NO.3 24 hours online after-sale service



FAQ





Good professional service is always our goal!



Feeling satisfaction is our motive metal force!



Choose us and believe us , you do the right choice!



R&D team



High quality products



Real factory trustworthy



Payment terms usually T/T as you like



Come and Visit us!



Company Information

 Welding Fence Anti Climb Machine /CNC fence welded wire mesh machine

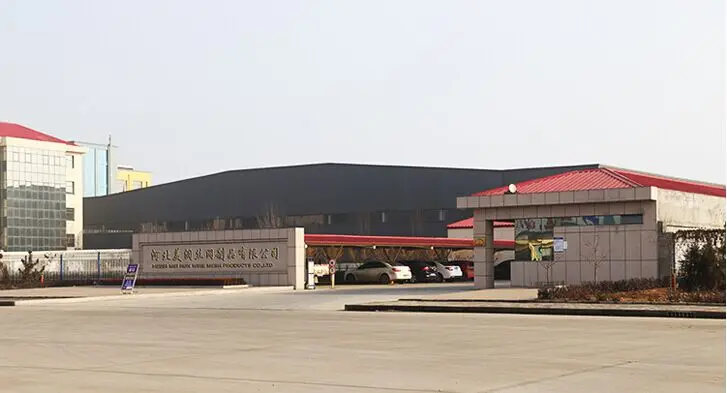

Hebei Meirun Wire Mesh CO,LTD is located in the Anping county, Hengshui,Hebei.



Anping County is the hometown of the wire mesh having hundreds of years history



and in the international screen production it occupies an important position. And our



company produce , research and develop kinds of wire mesh making machine and



we have our own factory. About some of machines our market share is about 70%.



Welcome to visit our company!
