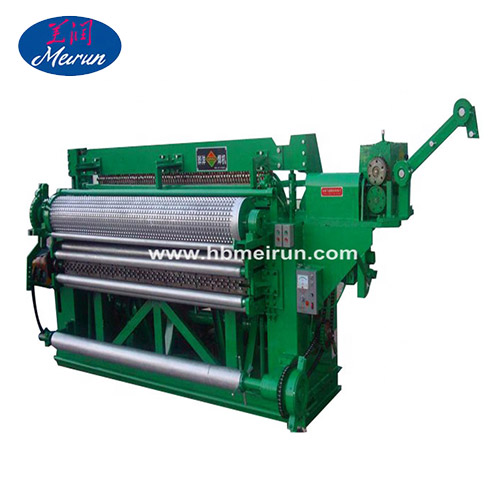

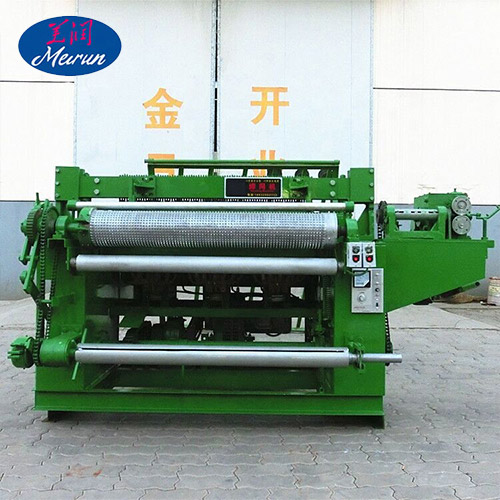

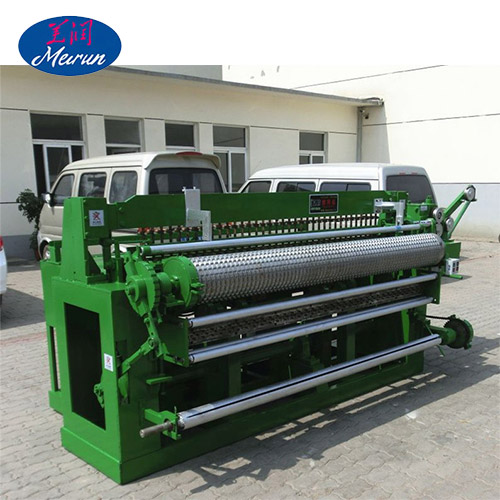

Welded Wire Mesh Machine

Production Capacity:60-100times/min
Place of Origin:Hebei, China (Mainland)
Brand Name:MR
Model Number:MR07
Product name:
Welded Wire Mesh Netting Machine
Application:Protect
Type:Welding Wire Machine

Quantity:

This machine adopts electrical synchronous control technique, both welding time and cent-control welding is composed of digital and integrated electric circuit. this operation is accurate, it has stable function, and without welded tracks. not only welding speed is fast but also it is easy to learn and operate, Step motor controls fallen wefts atructure and drawing materials are automatic, so it is even and accurate the edge of mesh is regular, it is unnecessary to slice the side. Drawing mesh adopts the device with the elastic tension link and fixing mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within range.

Model
HLHJ--1800
HLHJ--2000
HLHJ--2500
Mesh width
1500-1800mm
1500-2000mm
1500-2500mm
Mesh opening size
50-200mm
50-200mm
50-200mm
Wire Dia.
2.5-5mm
2.5-5mm
2.5-5mm
Welding Speed(Mesh/min)
50--60
50--60
50--60
Welding length
1000mm-3000mm
1000mm-3000mm
1000mm-3000mm
Outside transformer
80KVA--200KVA
80KVA--200KVA
80KVA--200KVA
Motor power
4KW
4.5KW
5KW
Voltage
380V 50HZ
380V 50HZ
380V 50HZ
Machine size
5800*2300*1700mm
5800*2600*1700mm
5800*3100*1700mm
