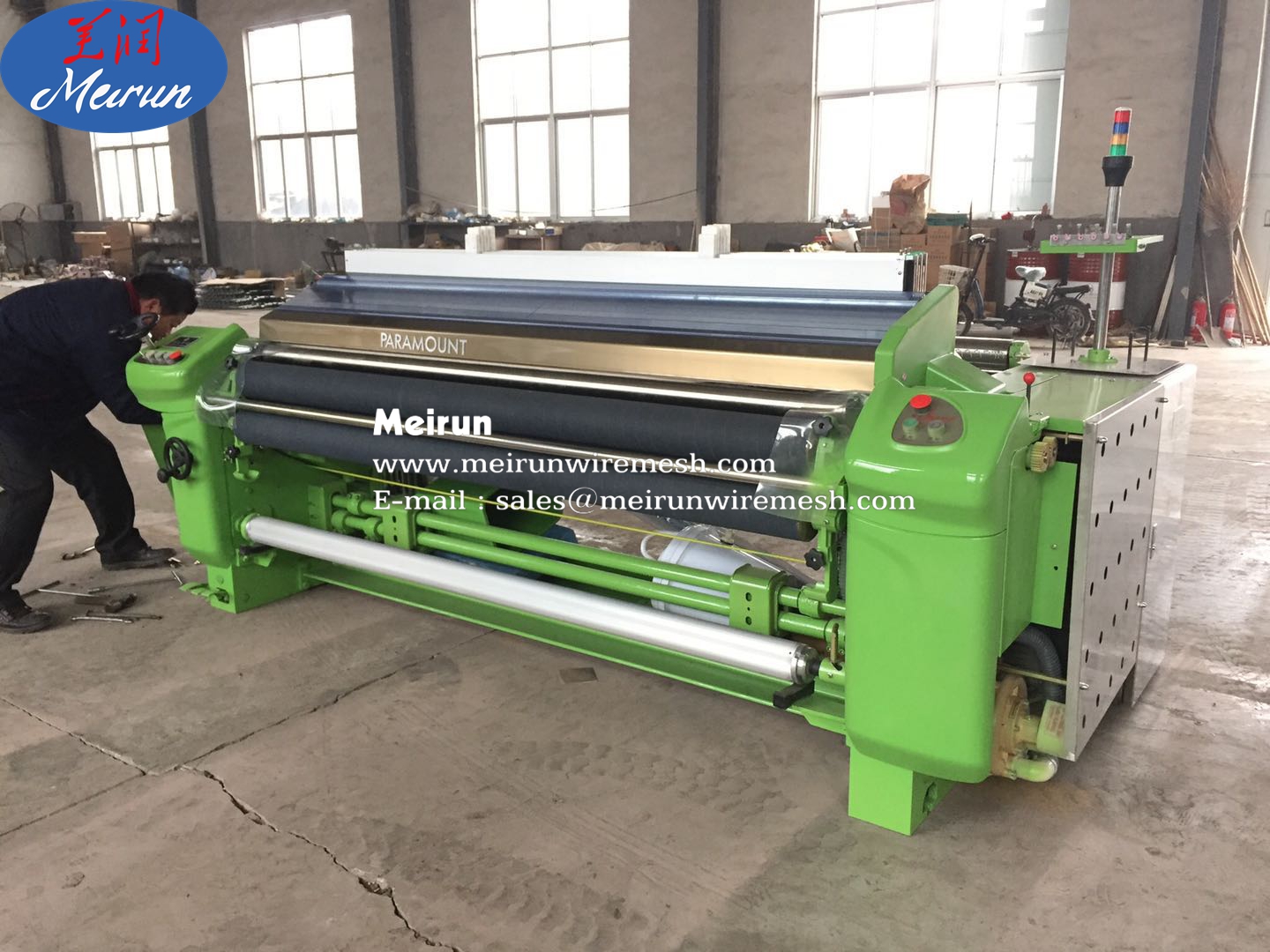

Water jet wire mesh weaving machine

Air-jet loom is a shuttle-less loom which uses jet air to draw the weft yarn through the shed. The working principle is to use air as the weft insertion medium, to produce friction traction on the weft yarn with the compressed air jet, the weft belt through the shed, through the jet produced by air jet to achieve the purpose of weft insertion.

Dimension(L*W*H):
Power:
weight:
Speed:
Quantity:
  • MRWSZWJ
  • Meirun

                                                          water jet loom weaving machine


Air-jet loom is a shuttle-less loom which uses jet air to draw the weft yarn through the shed. The working principle is to use air as the weft insertion medium, to produce friction traction on the weft yarn with the compressed air jet, the weft belt through the shed, through the jet produced by air jet to achieve the purpose of weft insertion.

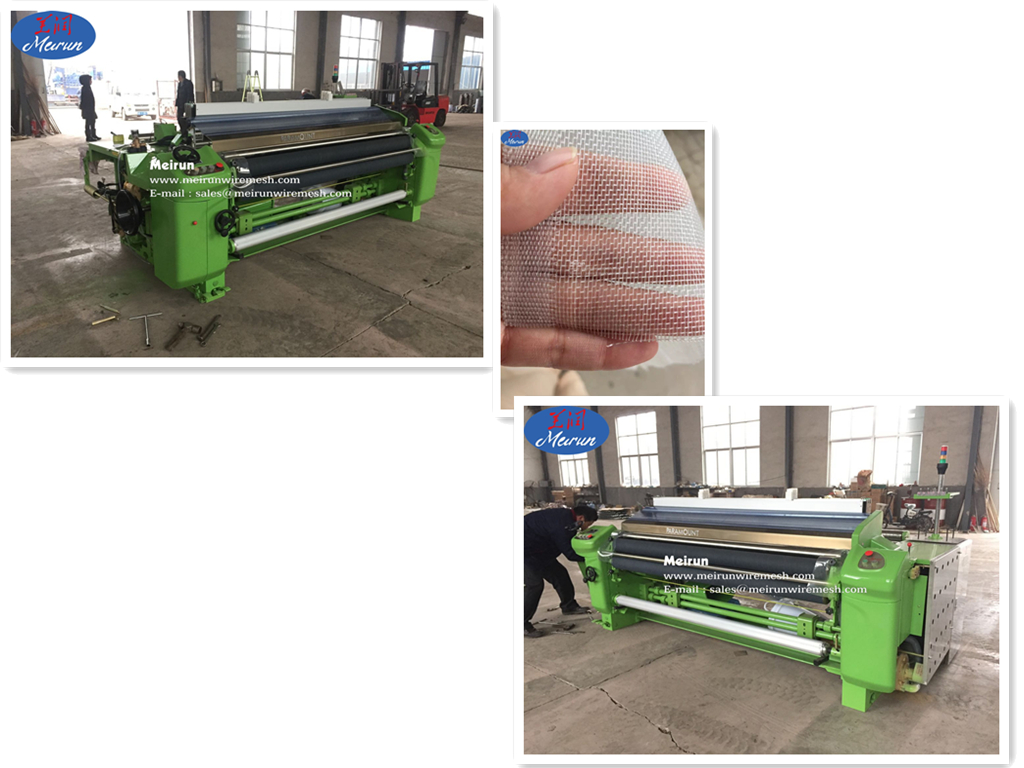

喷水式编织机






1. Optional breadth

 120,150, 170, 190, 210, 230, 260, 280, 340, 380, 420, 450cm

2. Weft insertion rate

 2,280m/min max.

3.Speed

max 1200rpm(the actual speed depend on the species of the fabric)

4.the number of heddle2,4,6,8pieces


5. Let off/take up

 Electronic or mechanical

6. Shedding

 plain or cam

7. Power

 2.2kw  3.8kw

8. Weft density

 5~60picks/cm

9.Feeder type

  Electronic or mechanical

10. Brand of pump, plunger, bush, transmission etc are optional.

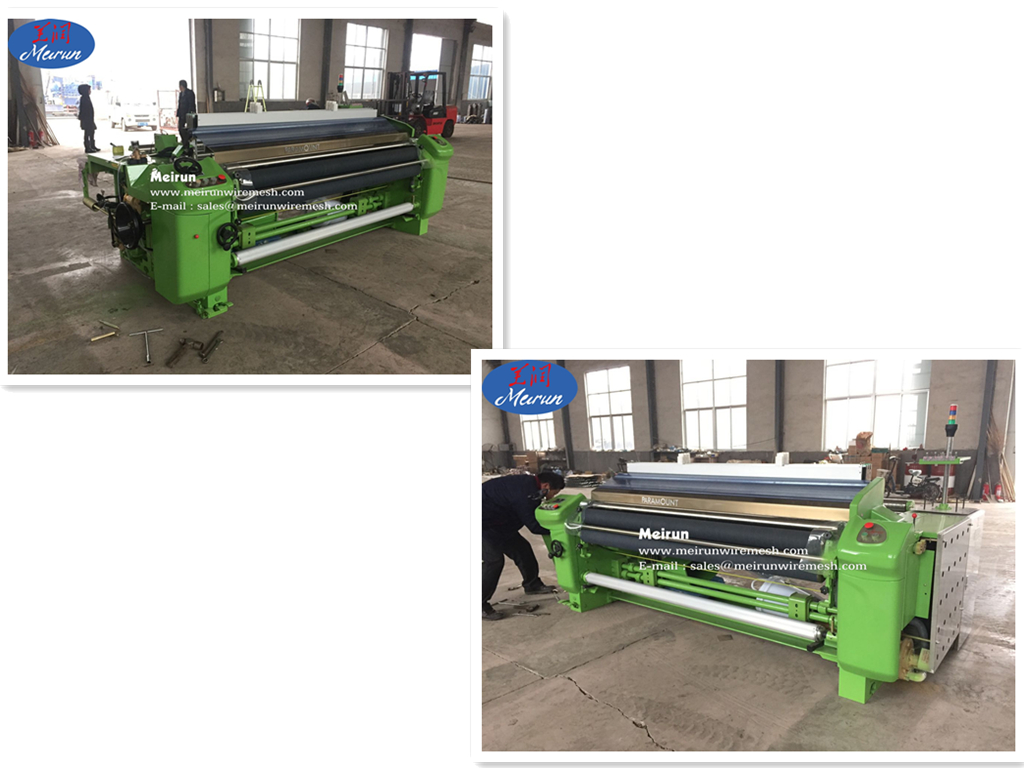

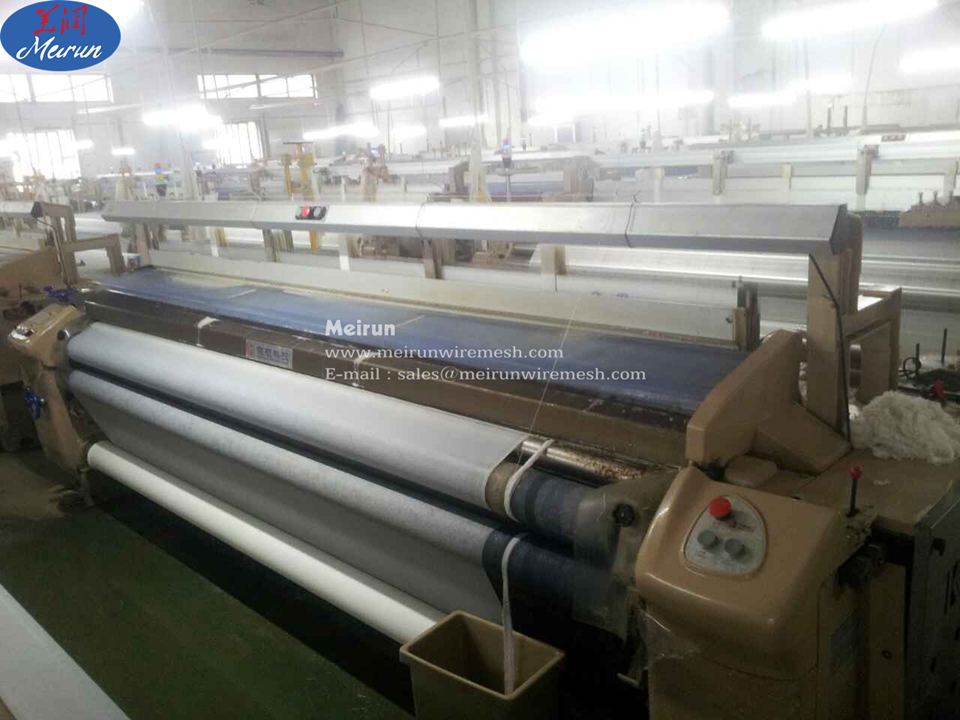

喷水式编织机机器图片

Application


1. High speed--New weft insertion, new frame structure and high speed CPU, ensure the running speed Max. 1200rpm.
2. Low energy consumption---New weft insertion and main nozzle energy saving optimal design realize less air consumption.

3. Low vibration---Using 3D design and computer analysis to optimize the frame structure, including the cross rail connections, and to realize lightening design and optimum balance of the beating motion. These improvements ensure lower vibration with high-speed operation.
4. Flexibility and wide applicability---A full range of standard equipment and a variety of options can weave fabrics that were previously mostly woven by rapier looms, including wide home furnishings fabric, stretch fabric, fabric of different yarn types and counts, airbags, seersucker and fabric with tuck-in selvages.
5. Easy operation and new electronics---Relatively lower machine, upper temple are both good for the operater; a new internet-ready color function panel with enhanced communication capability and a new faster CPU.

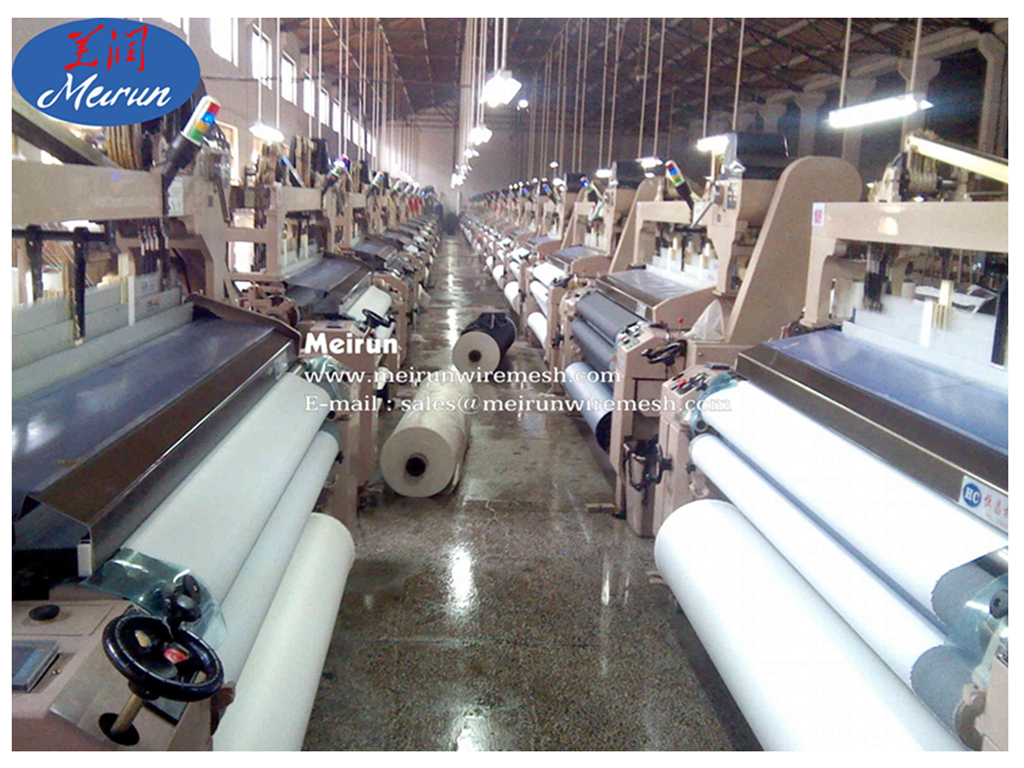

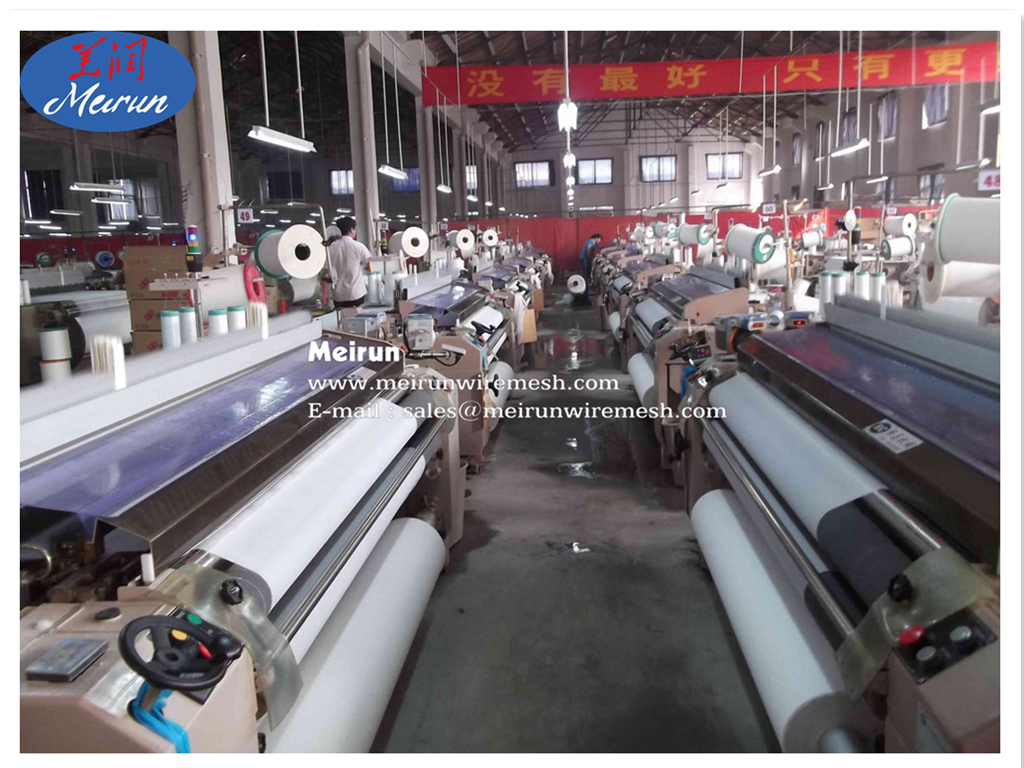

厂房图片

厂房图片111

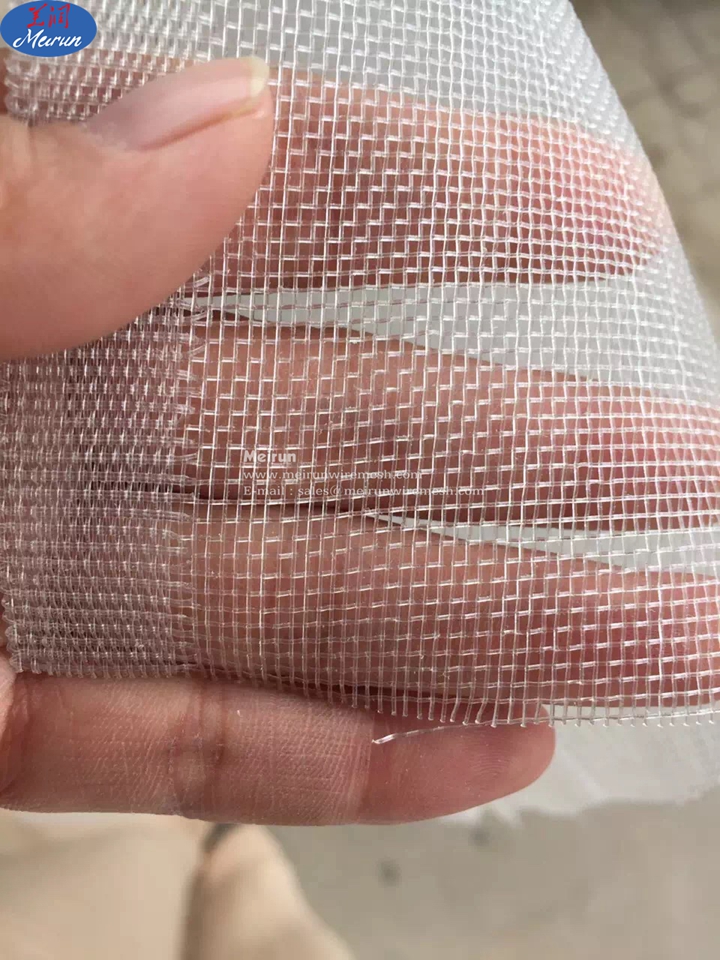

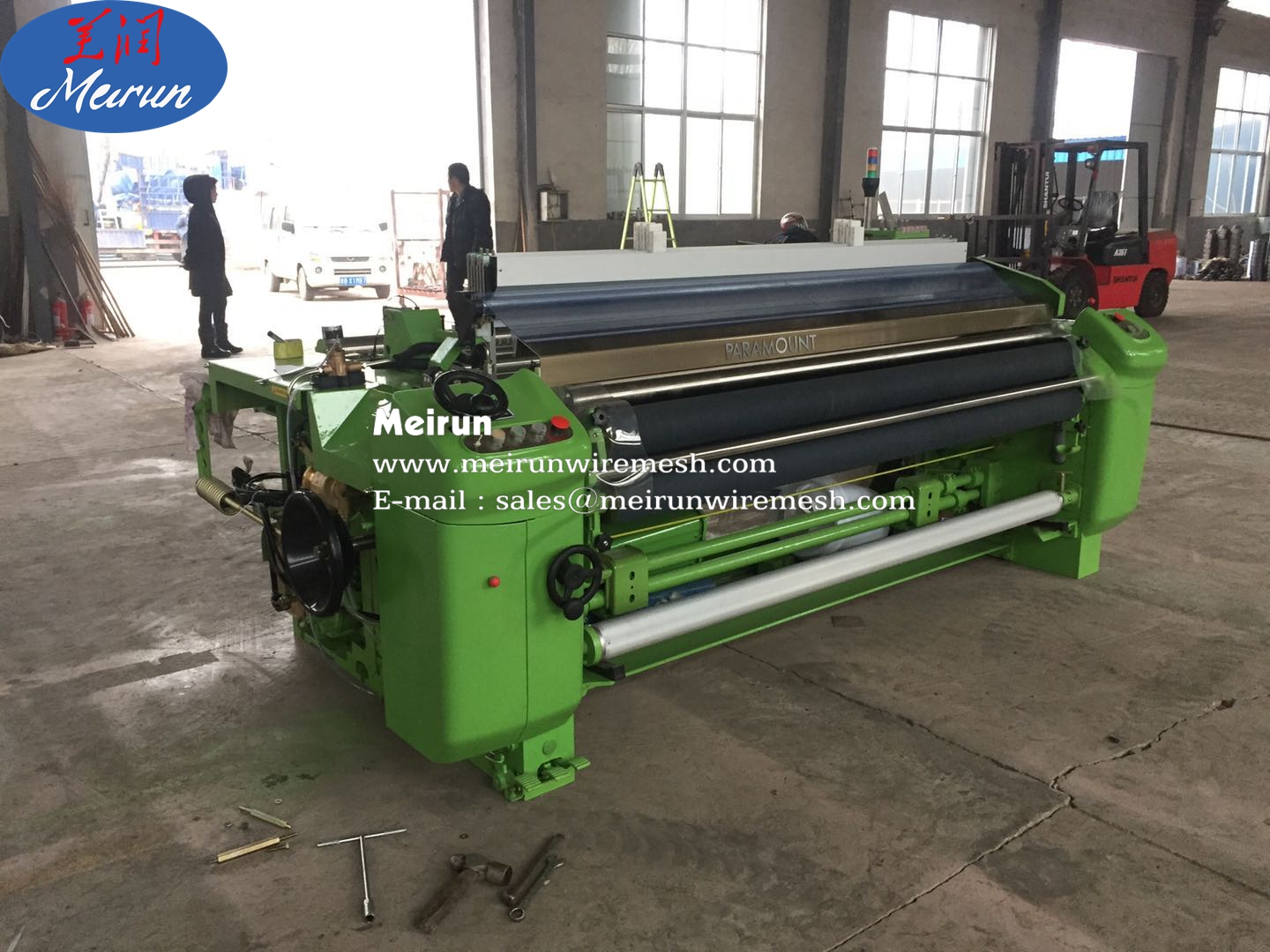

Products

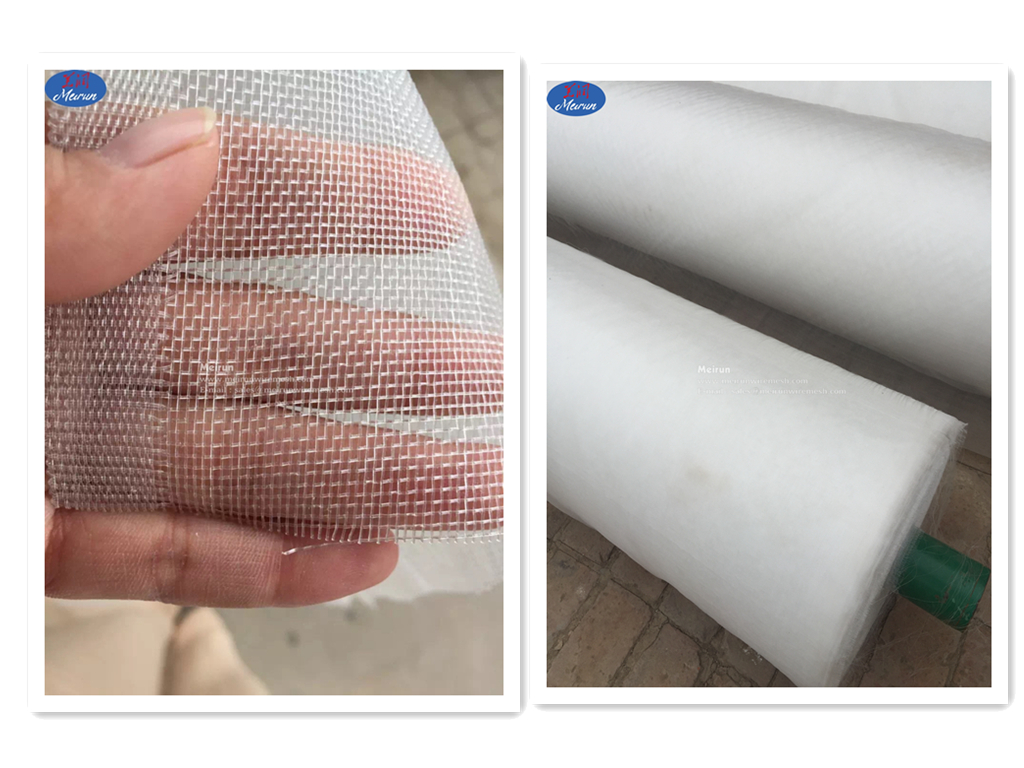

喷水式编织机产品图片11

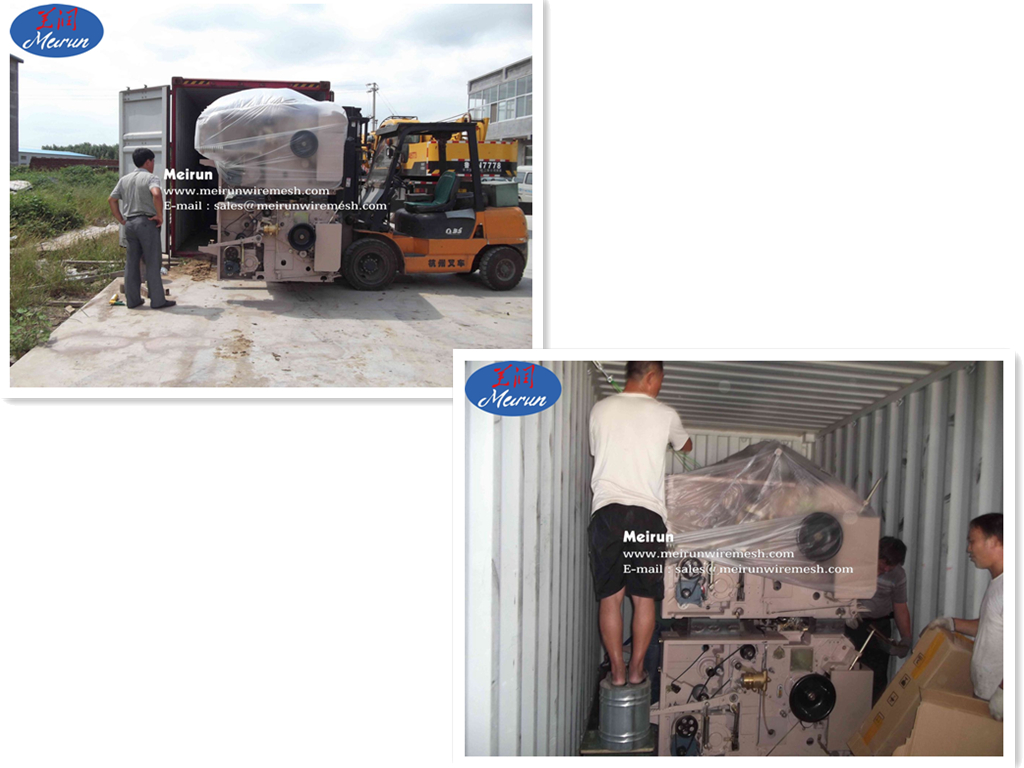

Packing and delivery

喷水式编织机123


Our company

证书11

Our customers
