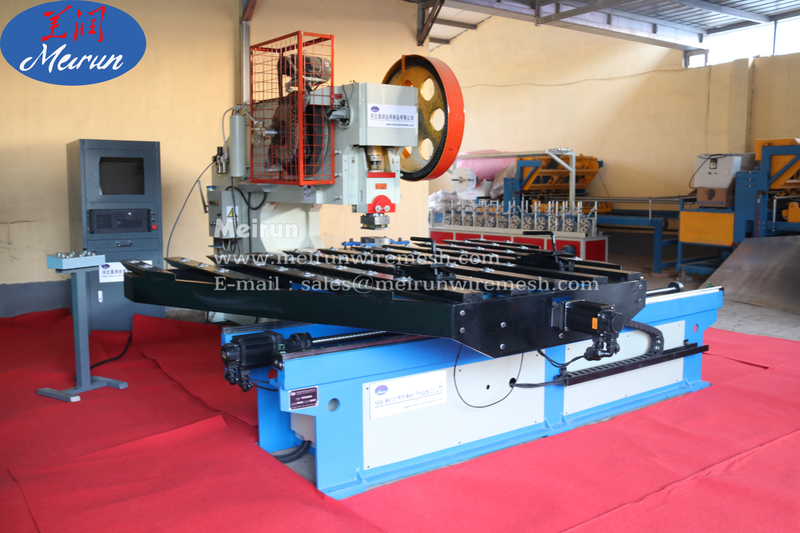

The Best Price Perforated Metal Sheet Machine

1.Perforated metal mesh machine includes punching machine, auto-feeder platform, CNC control electric cabinet. The machine is with high quality and most parts are from chinese famous brand and some are from Taiwan.
2.Suitable material to the perforated metal mesh machine: 304 stainless steel sheet low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet,hot-rolled sheet, aluminum sheet, copper sheet .
3.The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.
4.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.
Machine name :
Thickness of the worktable panel(mm:
Max. die set height(mm):
Worktable dimension(L x W) (mm):
Overall dimension(L x W x H) (mm):
Availability:
Quantity:
  • MRCKJ

  • Meirun

  • 8463300000



                                                             Punching Hole Metal Sheet Machine

冲孔网机

1.Perforated metal mesh machine includes punching machine, auto-feeder platform, CNC control electric cabinet. The machine is with high quality and most parts are from chinese famous brand and some are from Taiwan.
2.Suitable material to the perforated metal mesh machine: 304 stainless steel sheet low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet,hot-rolled sheet, aluminum sheet, copper sheet .

3.The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.
4.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.

5.The machine is automatic and pneumatic and it is very during and stable.
6.It is easy to use, usually 2 men are enough to operate 4 or 6 sets of this type of machine. 6.According to the sheet the customer produce, some other small equipment is need, such as coiler, decoiler and leveling machine. Customers can choose to buy it or make it by themselves.
7.one is weleded by steel plate with different specifications of mold plus the rack type feeder or roller type feeder.



Specification


Specification

JH21-100

JH21-125

JH21-160

JH21-200

Nominal pressure(KN)

1000

1250

1600

2000

Nominal force stroke(mm)

5

5

6

6

Slider stroke(mm)

150

160

180

200

Number of slider stroke(s.p.m)

50

50

45

40

Max. die set height(mm)

320

370

400

450

Die set height adjustment(mm)

80

100

110

110

Distance from slider center to frame(mm)

300

360

390

430

Worktable dimension(L x W)

(mm)

580X1000

700X1100

760X1200

840X1400

Workbench plate hole size(mm)

180

160

180

200

Thickness of the worktable panel(mm)

120

120

150

180

Slider ground size (L x W)

(mm)

420X560

520X620

580X700

650X880

Size of the handle hole(mm)

60X80

70X80

70X100

70X100

Vertical columns distance(mm)

640

640

660

820

Overall dimension(L x W x H)

(mm)

1820X1350X2800

1900X1300X3300

2040X1360X3300

2370X1600X3900

Motor

Model

Y132M-4

Y160L-6

Y180L-6

Y200L-6


Power(kw)

7.5

11

15

18.5

Total Weight(kg)

8500

9800

13200

19500

Punching part

3456064

Auto-feeder platform

3456050


 Pounding plate: 1.25*2.50

Pounding thickness: 0.1-6mm

Mesh size: according the mold, ( mold price: USD1000)
Times of pounding:60-90/min
Pressure: 250KN
Power: 7.5KW

Space requirement: 6*3m

Weight: 8T

Parts including: pressure machine, feeding system, control system
Operation: computer control, software: Chinese--English
Please Provide Following Information If you want to got quotation immediately.
1. Plate Mateial
2. Thickness
3. Hole Size
4. Hole Distance
5. Hole Central distance
6. Stem Width

Machine component

机器组成

Hole type

11


Package and delivery

装箱图片
