Screws Wire Nail Making Machine

This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

wire diameter:
length:
Working Speed:
Dimension:
Quantity:
  • MRZDJ
  • Meirun

                                                              Screws Wire Nail Making Machine

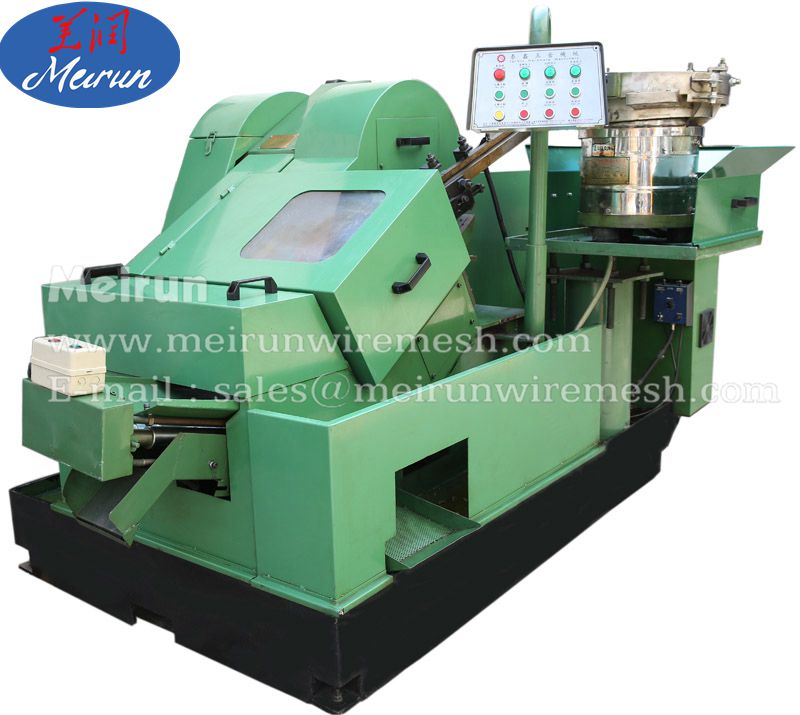

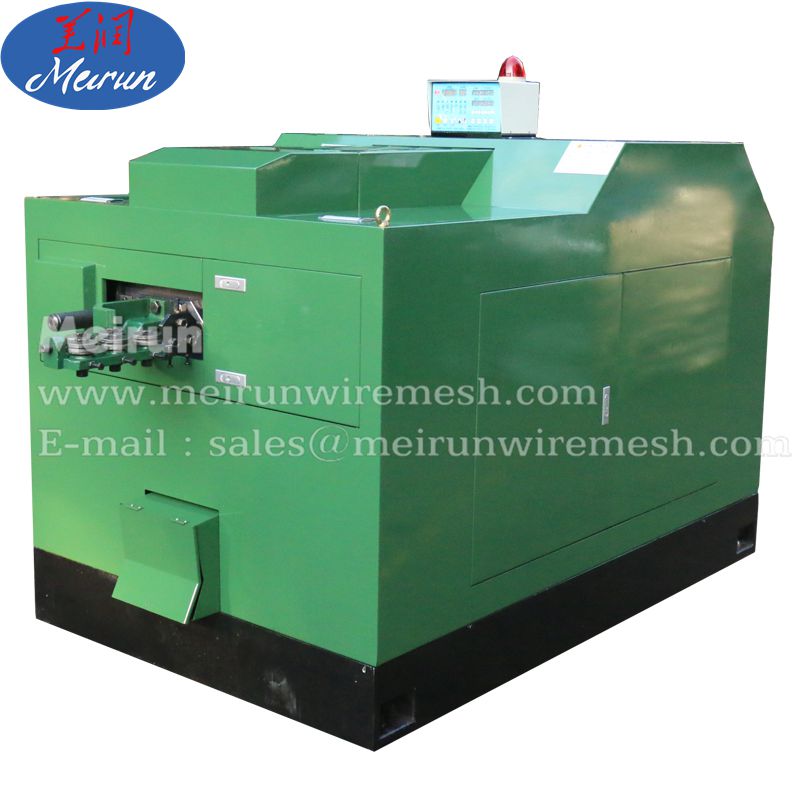

1.Cold heading machine(drywall screw making machine)

   This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.

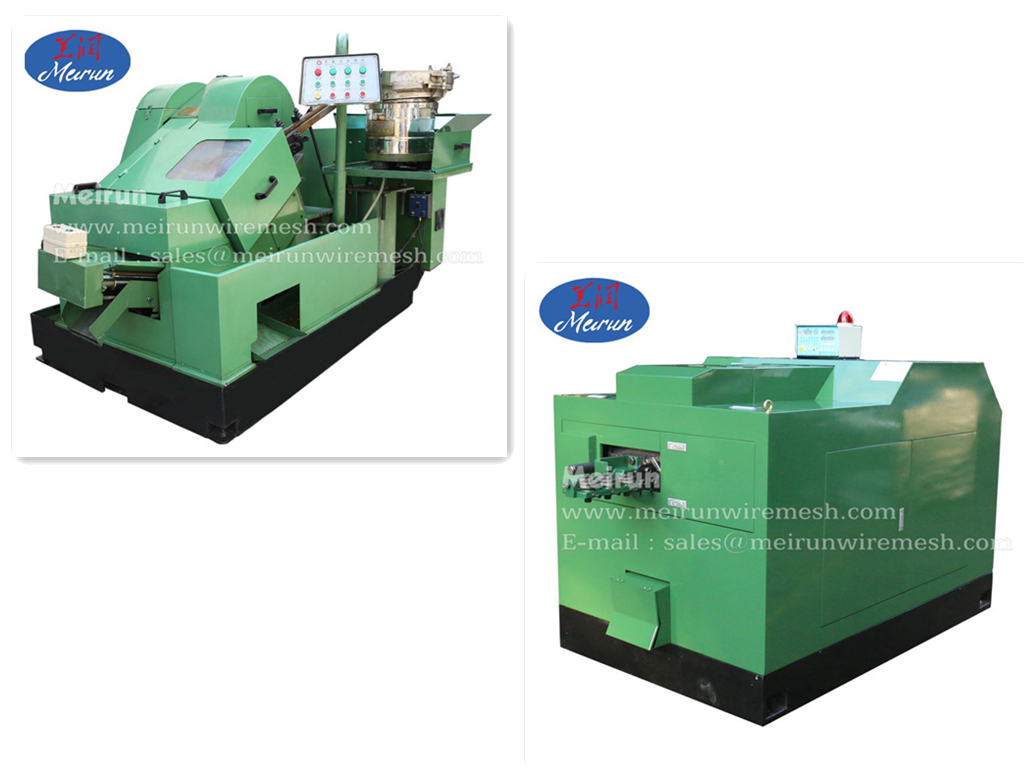

螺旋钉机器图片

SPECIFICATION
Wire Diameter
2.6-6.0mm
Length
15-60mm
Working Speed
180-200pcs/min.
Output
10-30 kg/h
Motor Power
4.0 KW
Dimension
2100X1000X1200mm
Weight
2000 kgs
2.Thread rolling machine

This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.

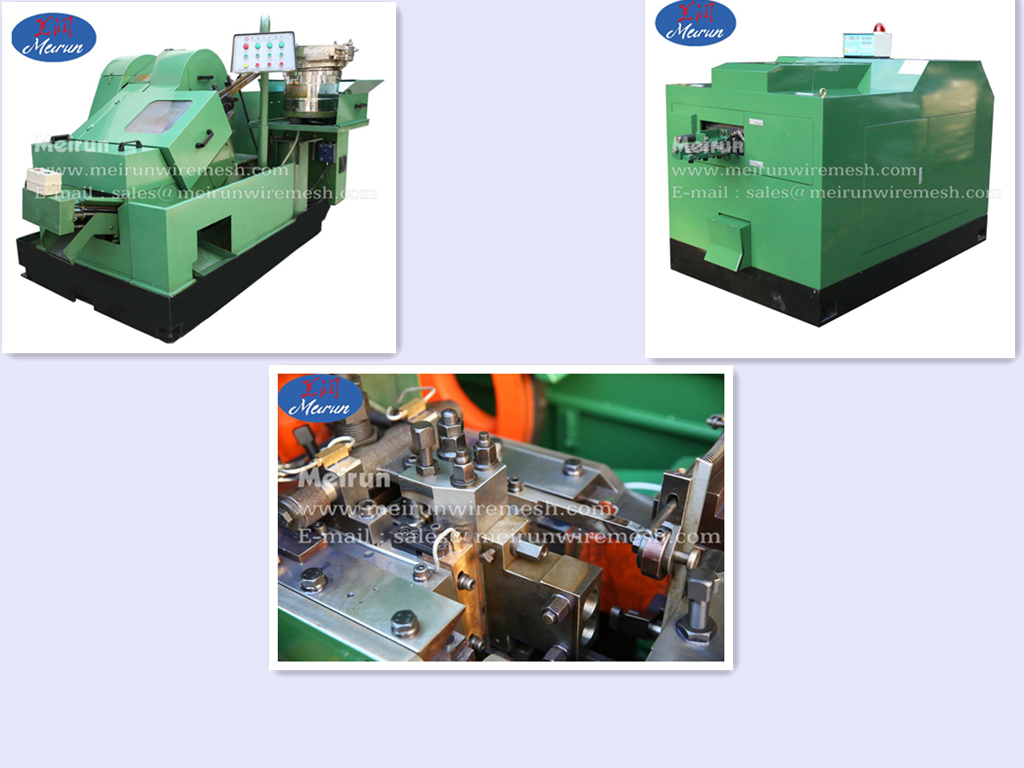

螺旋钉图片1111

SPECIFICATION
Diameter
2.2-5.0mm
Length
15-50mm
Working Speed
250-320pcs/min(usually 260pcs)
Output
10-30 kg/h
Motor Power
5.5 KW
Dimension
2000X1200X1550mm
Weight
1300 kgs

3.Drying machine

Motor Power
2.2KW
Capacity
20 kgs/time

4.Furnace

Motor Power
2.2KW
Heating Power
45 KW
Temperature
0-900°
Dimension
2100X2340X2100mm
Weight
3600kg

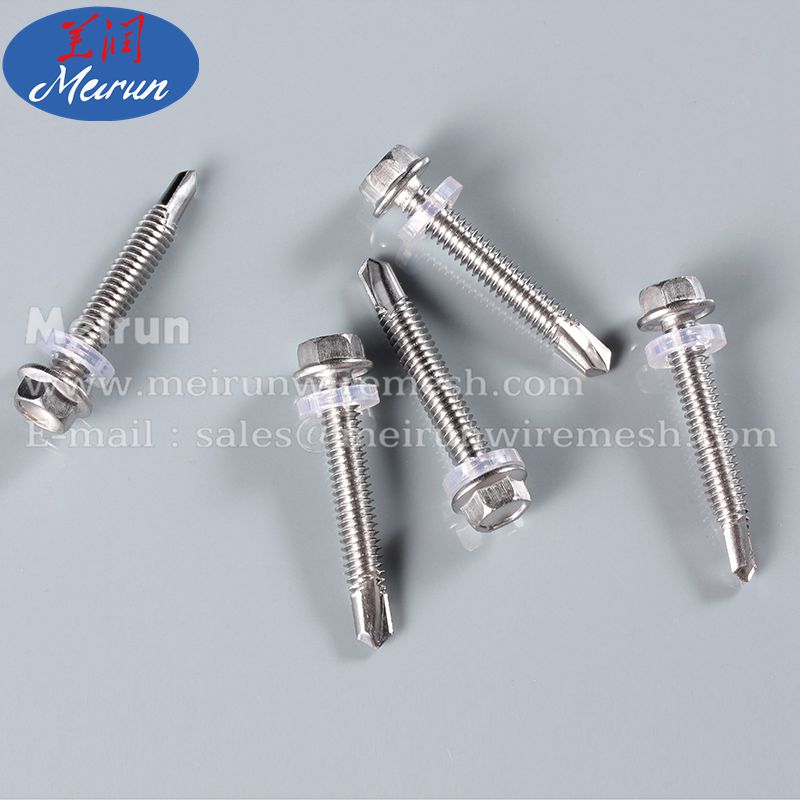

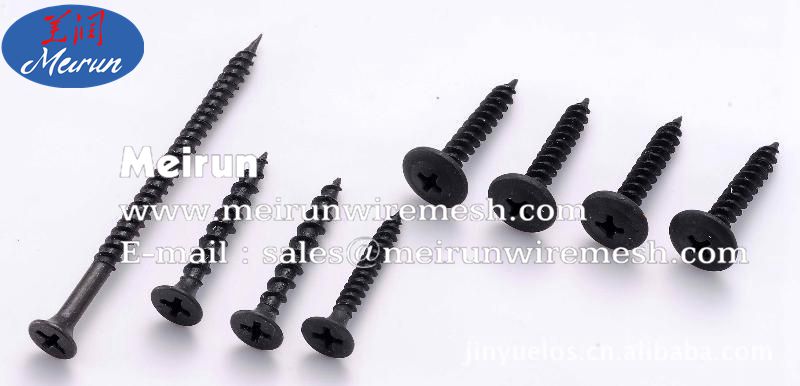

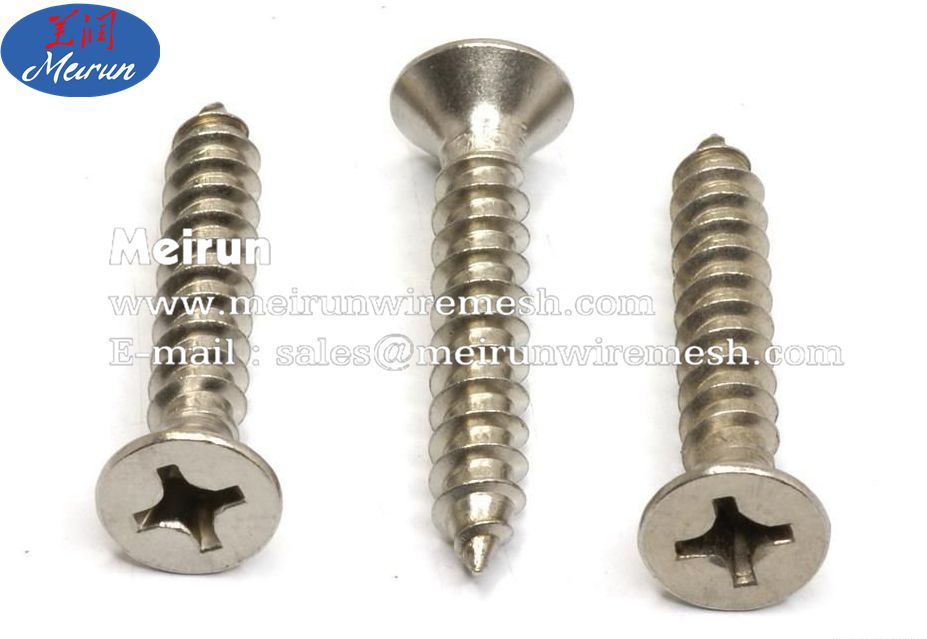

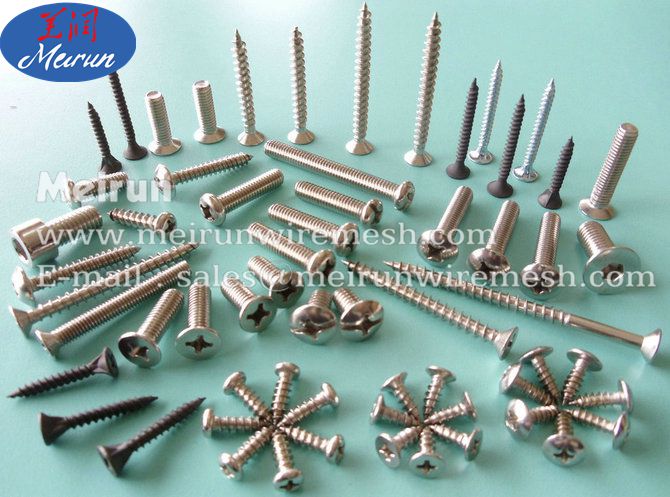

Products

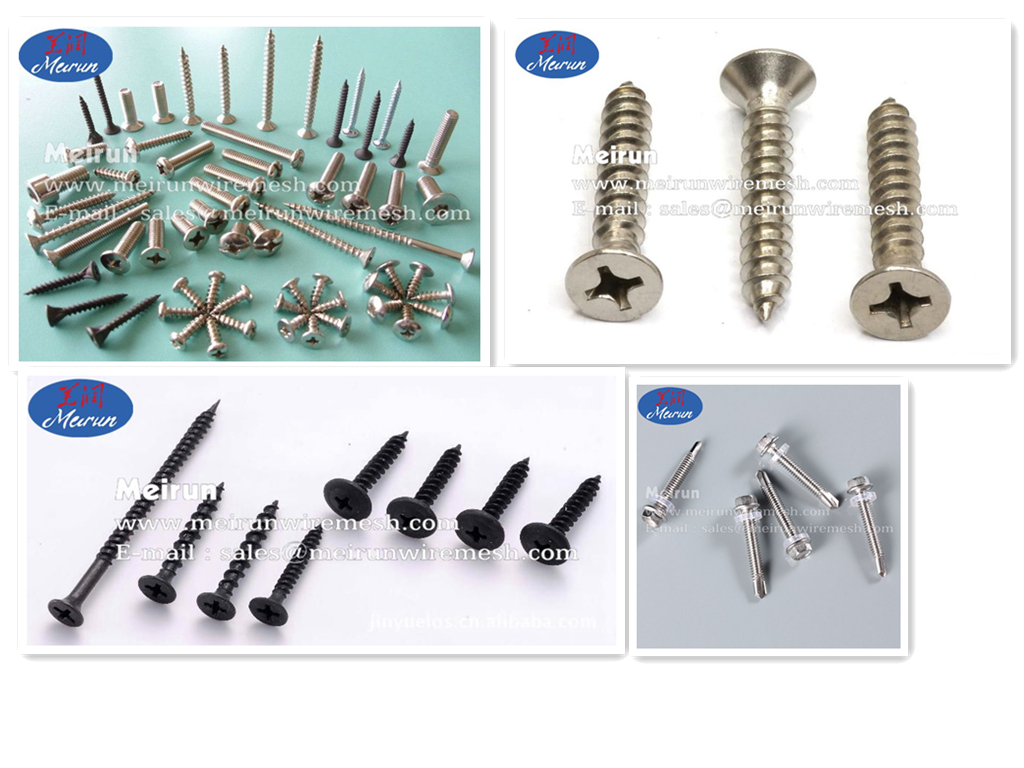

螺旋钉图片

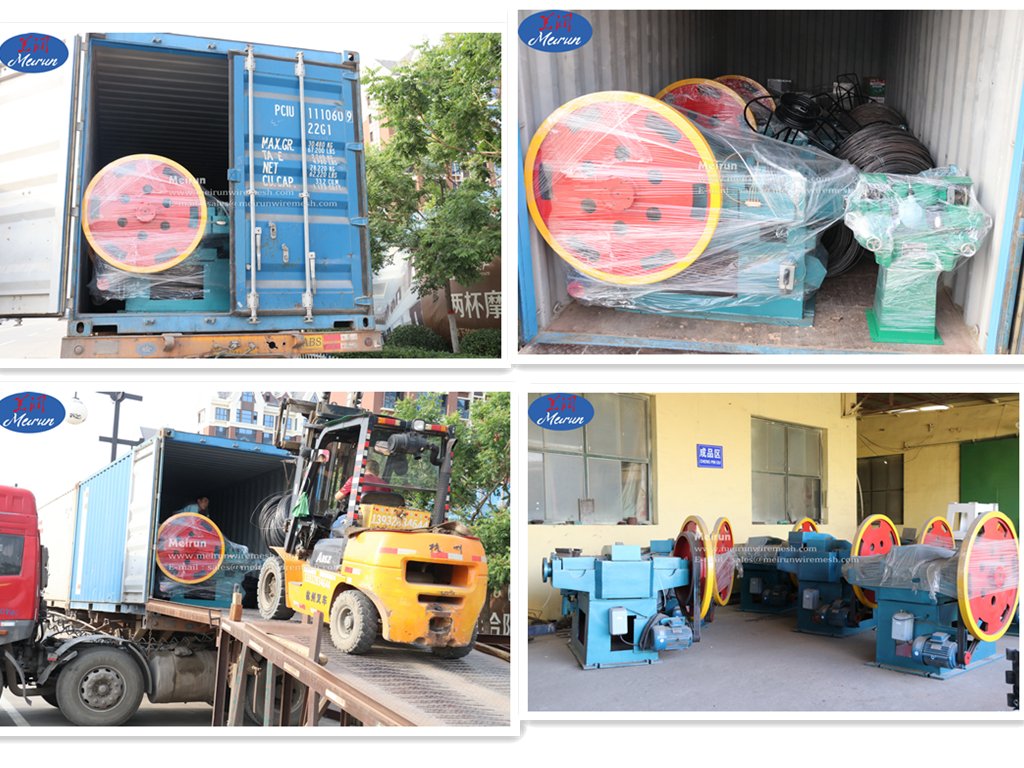

Packing and delivery
