Razor Fence Mesh Panel Welding Machine

Razor Fence Mesh Panel Welding Machineis a machine independently developed by our factory, mainly for the production of razor
barbed wire fence. Suitable for welding galvanized and stainless steel razor barbed wire fence.

weight:
width:
Dimensions:
length:
Control System:
Quantity:
  • MRDPCJHWJ
  • MR

Razor Fence Mesh Panel Welding Machine

The Razor Fence Mesh Panel Welding Machine Welded Machine  is a machine independently developed by our factory, mainly for the production of razor barbed wire fence. Suitable for welding galvanized and stainless steel razor barbed wire fence.

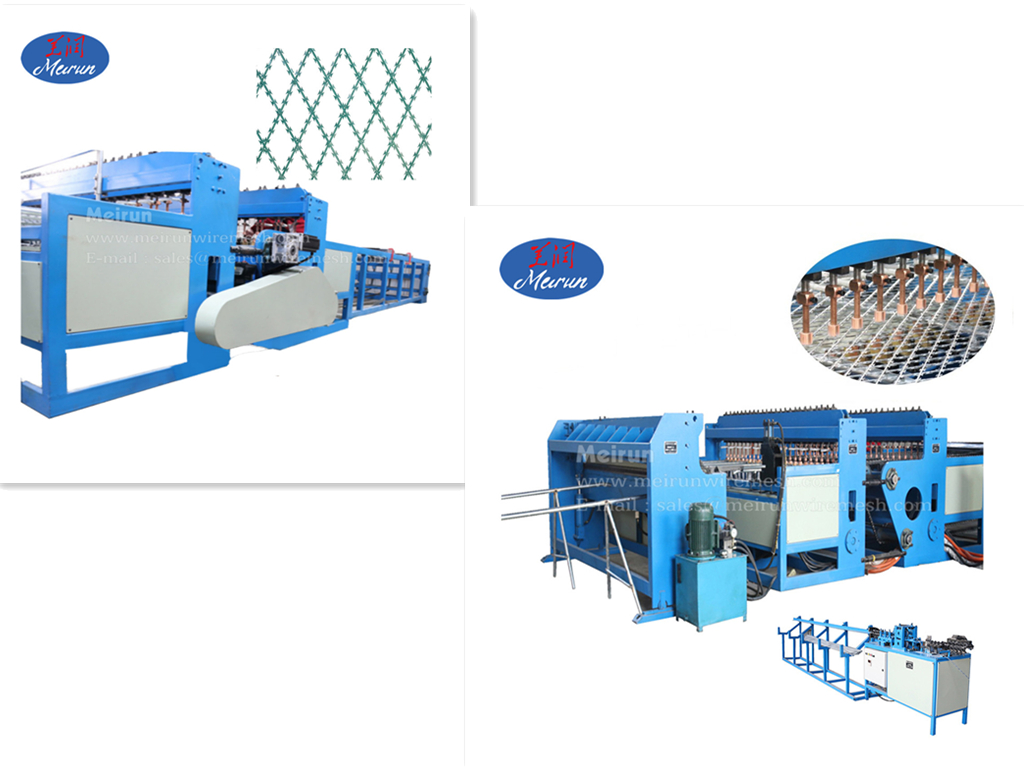

焊接刀片刺绳机

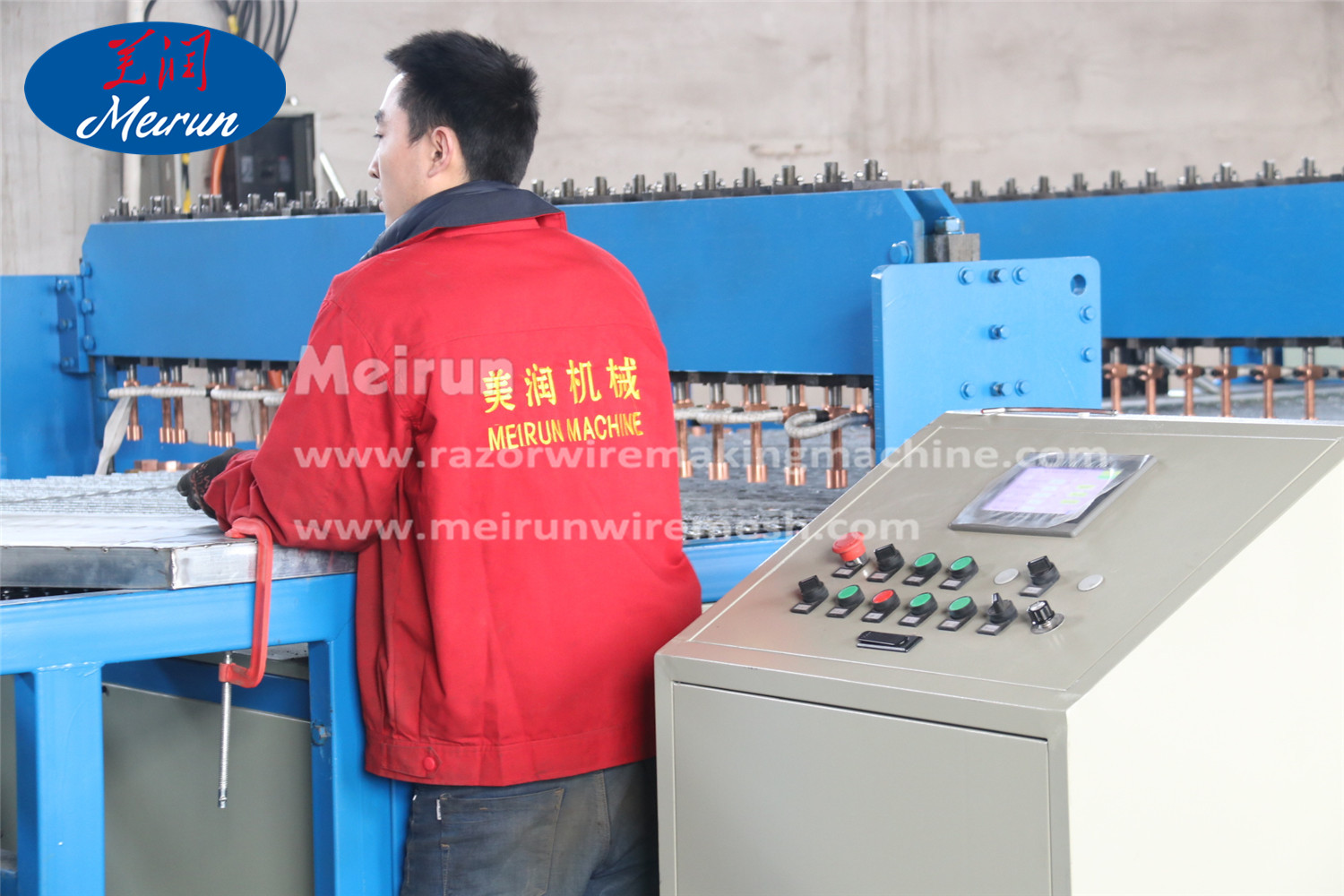

1.Razor Fence Mesh Panel Welding Machine  are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .

2.Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.

3.Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.

4.The greatest advantage is that  you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.

5.Equipped with fence bending machine can produce 3D fence panel,this fence quality is best fence products in the markets.

Parameter

Name razor barbed wire welding machine
Width 0.5-2.5m
Length 0.5-100m
Control System PLC
Drive mode Hydraulic motor
Total power 250KW
Voltage 380V 50HZ
Dimensions 15*8*1.8m
Weight 4T

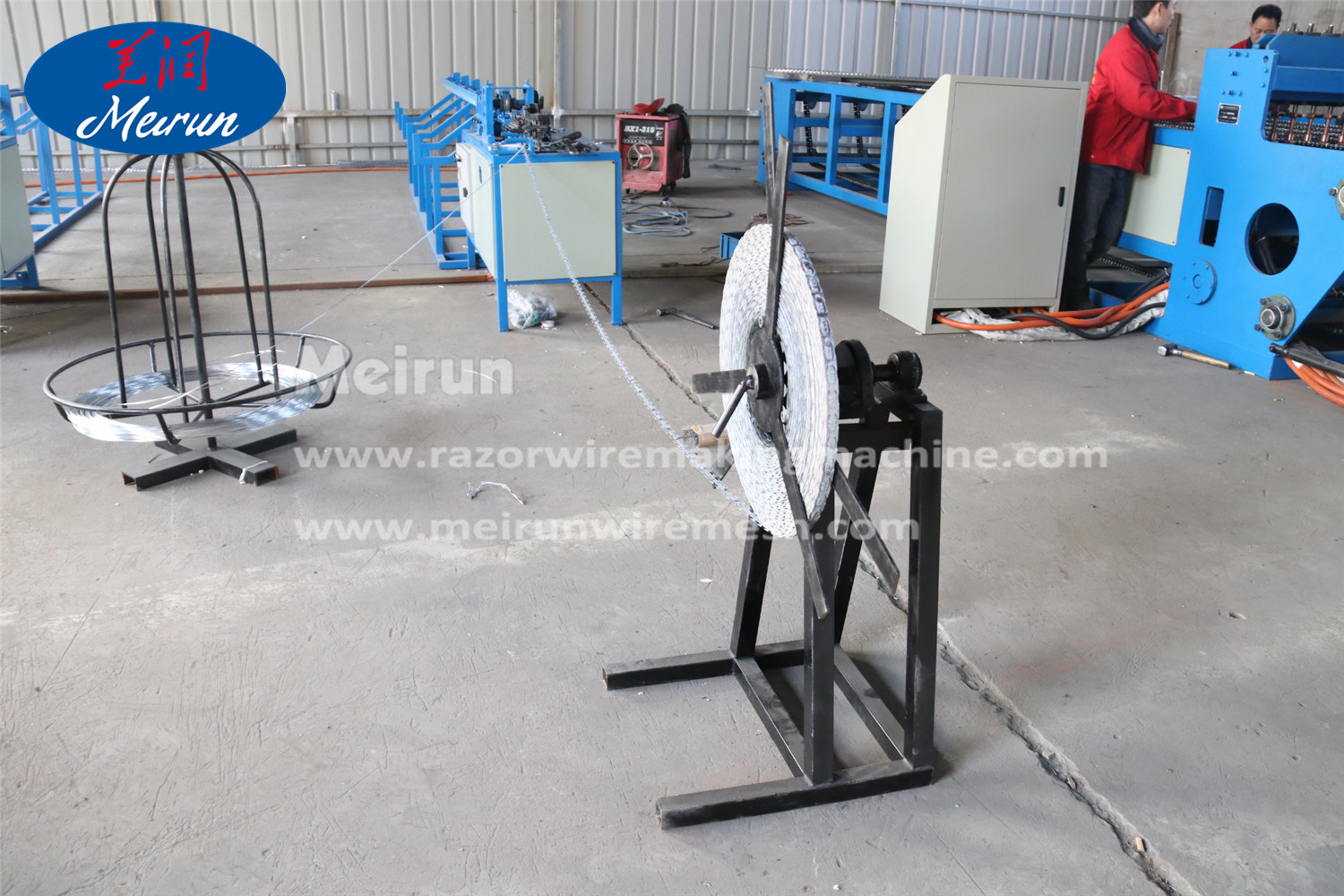

Assembly line of machine

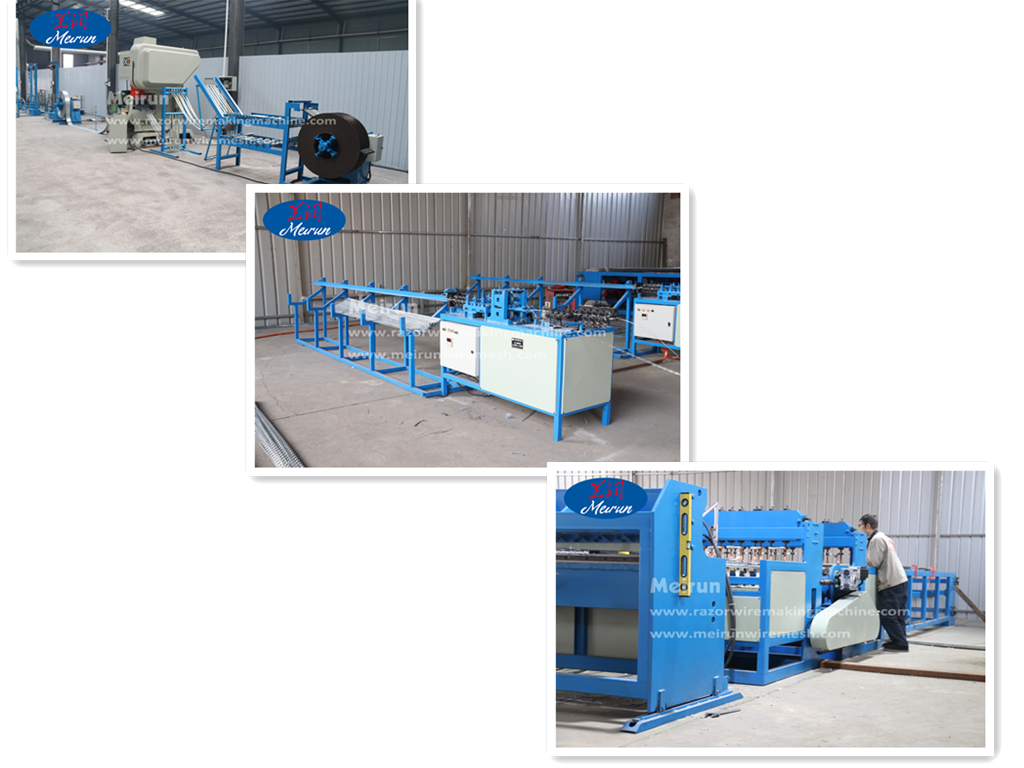

焊接流水线 (2)


Razor Fence Mesh Panel Welding Machine  produce line include three steps:


First step

Using punching machine to produce razor barbed.

Second step

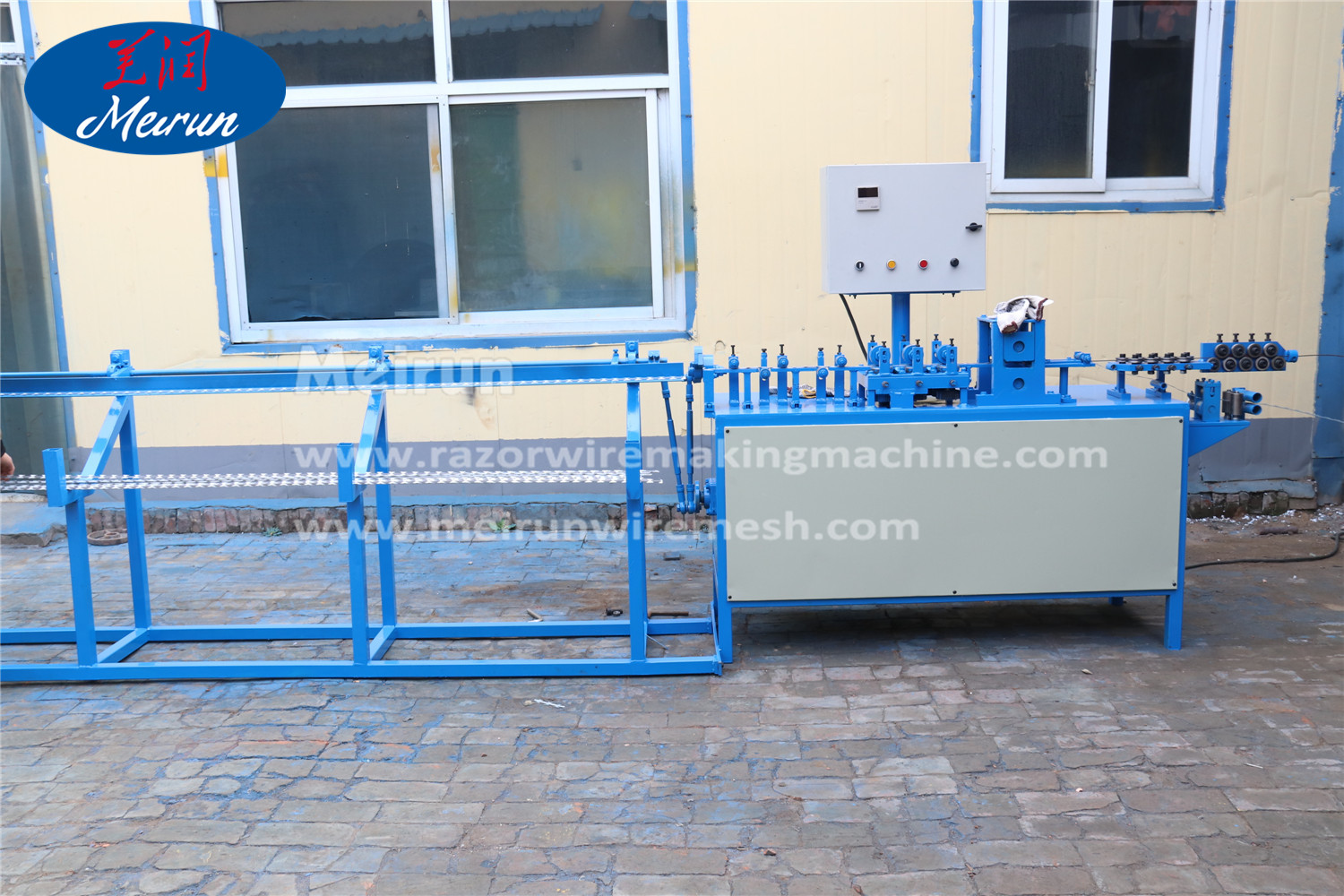

Using warp wire and straightening machine to products straight razor barbed wires.

Third step
Using welding machine to products razor barbed wire fence.

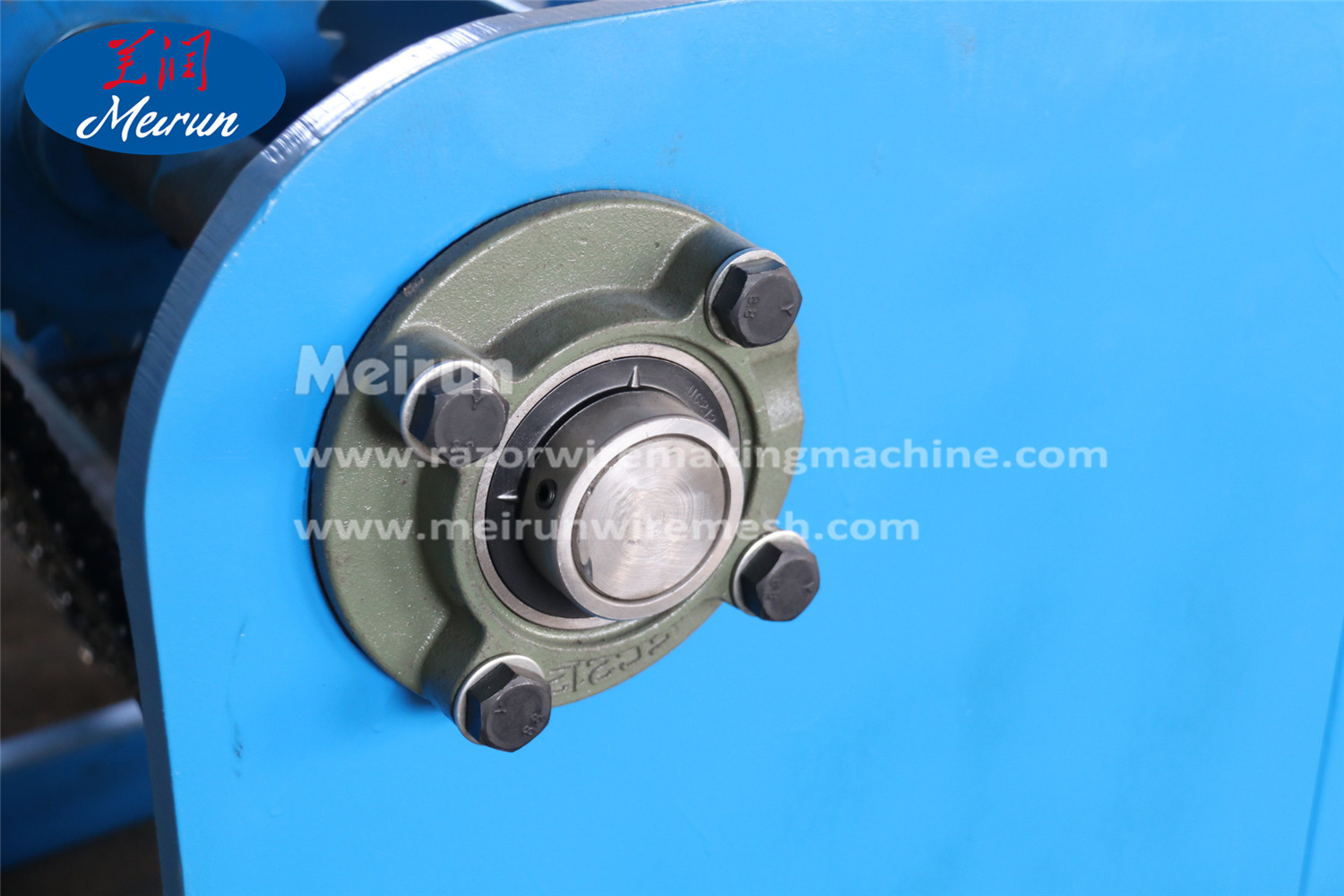

Details of machine

Razor Wire Mesh Welded Machine is a blade gill net that welds the blade barbed wire into a diamond hole or a square hole. If you want to climb over, the mesh blade is sharp.

The protective wall has strong intimidation and blocking effect, which is both beautiful and practical. It is Normally used by prisons, military and government facilities.

The Usage of  Razor Panel: garden apartments, institutions, prisons, posts, border guards, etc. The blade gill net is made of sharp pointed galvanized steel plate or stainless steel thin plate as the blade, and the high tension steel wire is used as the resistance device for the combination of the core wire

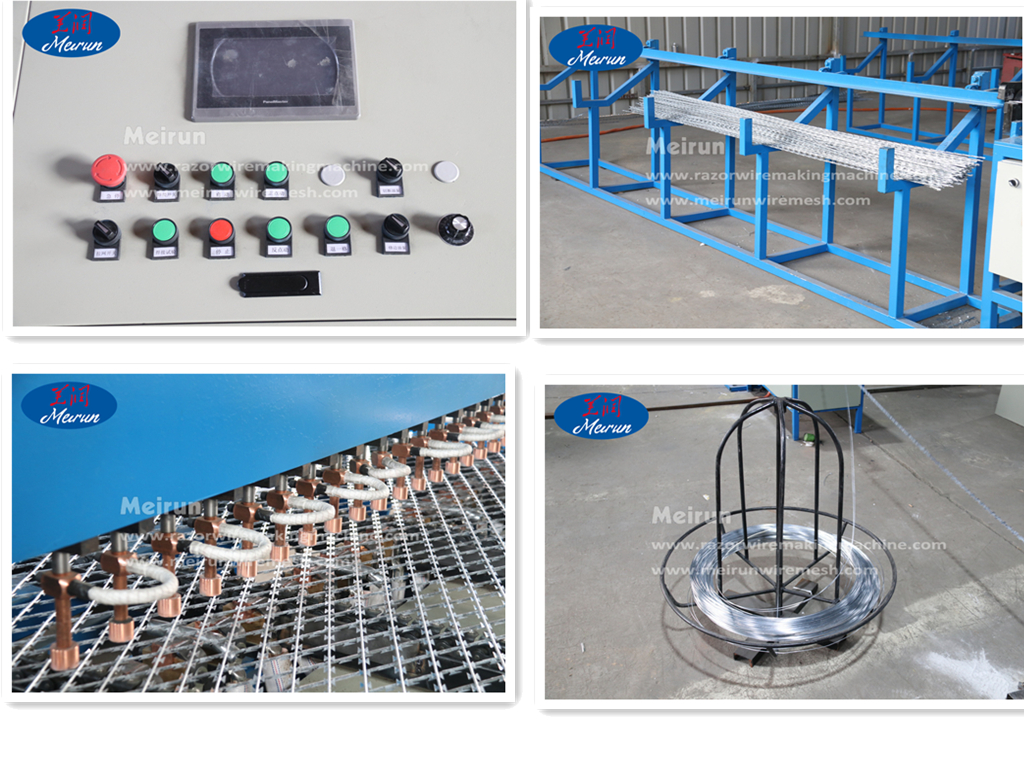

焊接机器部分图片

Products

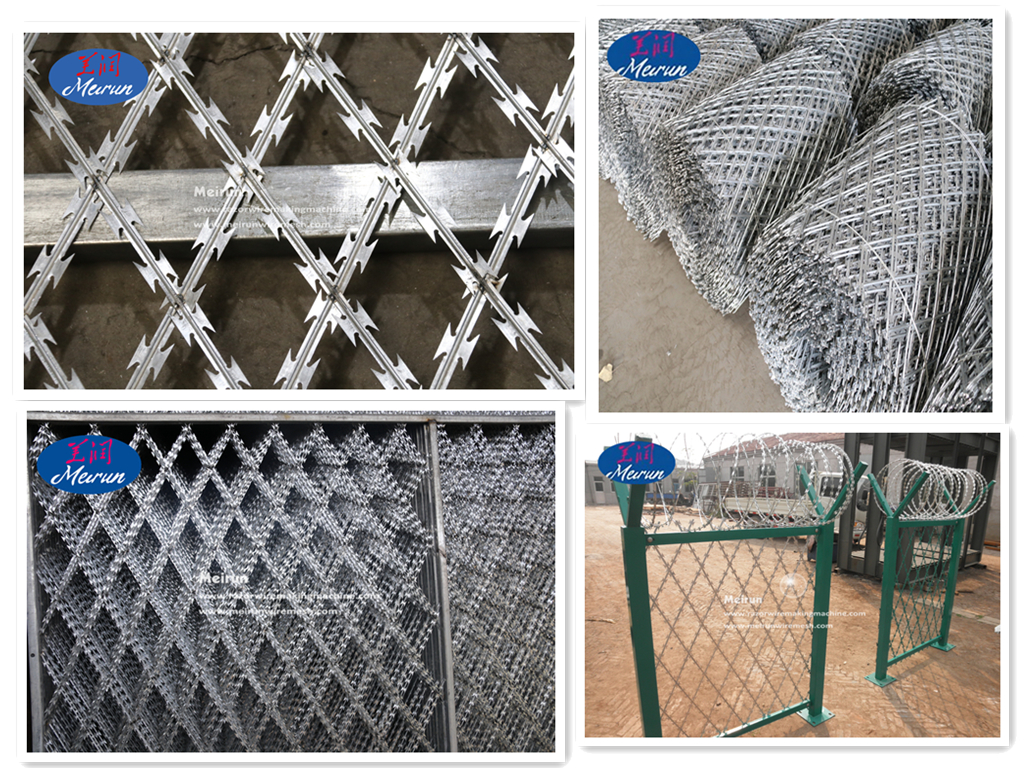

焊网刀片刺绳产品图


Mainly used for garden apartments, institutions, prisons, posts, border guards, etc. The blade gill net is made of sharp pointed galvanized steel plate or stainless steel thin plate as the blade, and the high tension steel wire is used as the resistance device for the combination of the core wire. Because the gill net shape is unique and difficult to touch, it can achieve excellent protection and isolation.
