| Quantity: | |
|---|---|

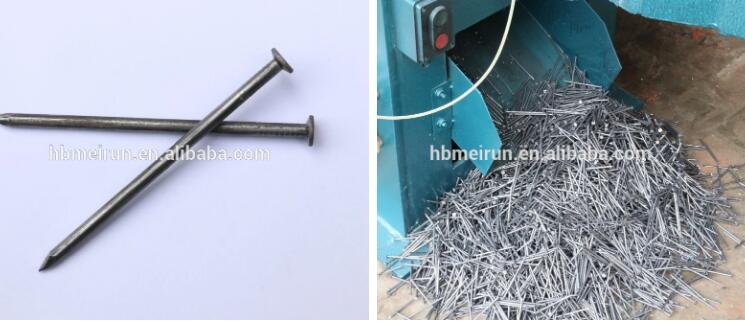

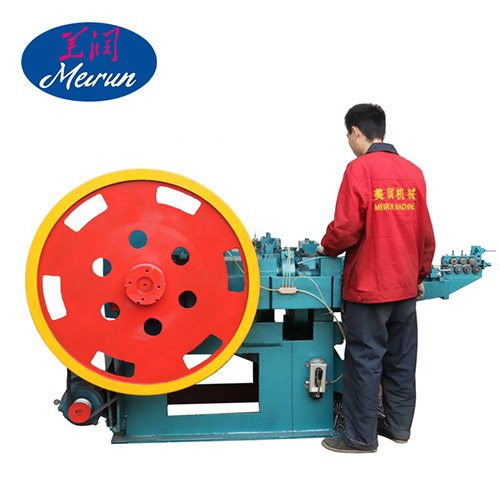

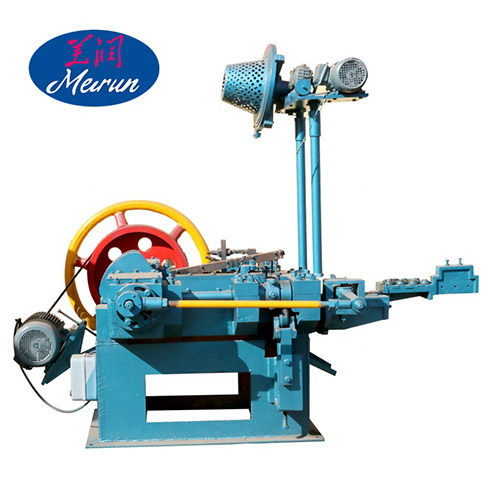

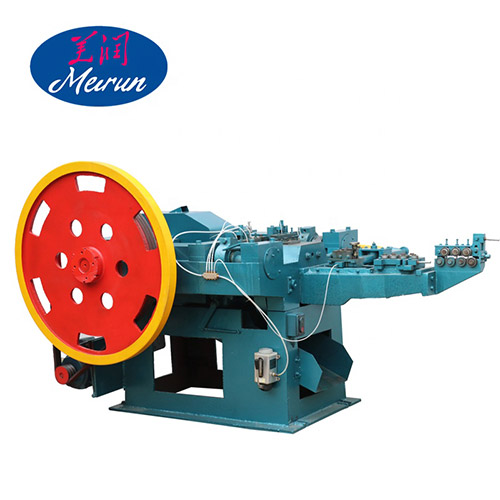

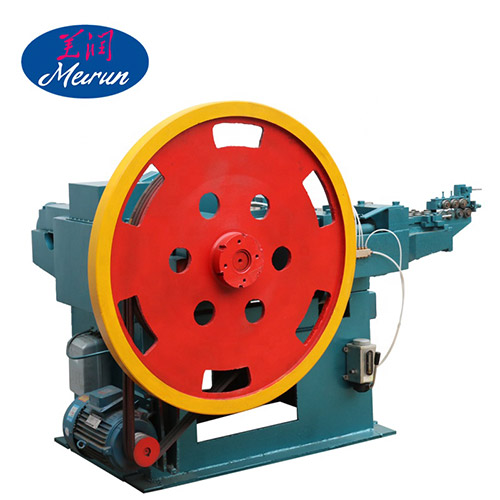

1.Nail making machine are mainly used for manufacturing all kinds of nails.
2.Nail making machine operation is convenient, it has low power, energy saving, stable and reliable performance.The quality meets the standard, the equipment has small volume, flexible movement, low noise, low power consumption, easy to install and so on.
| Technica | Unit | Z94-4C | Z94-3C | Z94-2C | Z94-1C | Z94-5.5C | Z94-6.5C |
| Max diam | mm | 4.5 | 3.4 | 2.8 | 1.6 | 5.5 | 6.5 |
| Min diam | mm | 2.8 | 1.8 | 1.2 | 0.9 | 4.1 | 4.5 |
| Max length | mm | 100 | 75 | 50 | 25 | 150 | 200 |
| Min length | mm | 50 | 25 | 16 | 9 | 100 | 100 |
| Desiged output | psc/min | 260 | 280 | 300 | 450 | 220 | 160 |
| Motor power | kw | 4 | 3 | 2.2 | 1.5 | 5.5 | 11 |
| Weight | kg | 1900 | 1200 | 950 | 750 | 2500 | 5000 |
1.Nail making machine are mainly used for manufacturing all kinds of nails.
2.Nail making machine operation is convenient, it has low power, energy saving, stable and reliable performance.The quality meets the standard, the equipment has small volume, flexible movement, low noise, low power consumption, easy to install and so on.
| Technica | Unit | Z94-4C | Z94-3C | Z94-2C | Z94-1C | Z94-5.5C | Z94-6.5C |
| Max diam | mm | 4.5 | 3.4 | 2.8 | 1.6 | 5.5 | 6.5 |
| Min diam | mm | 2.8 | 1.8 | 1.2 | 0.9 | 4.1 | 4.5 |
| Max length | mm | 100 | 75 | 50 | 25 | 150 | 200 |
| Min length | mm | 50 | 25 | 16 | 9 | 100 | 100 |
| Desiged output | psc/min | 260 | 280 | 300 | 450 | 220 | 160 |
| Motor power | kw | 4 | 3 | 2.2 | 1.5 | 5.5 | 11 |
| Weight | kg | 1900 | 1200 | 950 | 750 | 2500 | 5000 |
