Hole Punching Machine

Place of Origin:Hebei, China (Mainland)
Brand Name:Meirun
Warranty:1 Year, One Year
Product name:Perforated mesh making machine
Voltage:380V
Power:4kw
Weight:4.5T

Quantity:

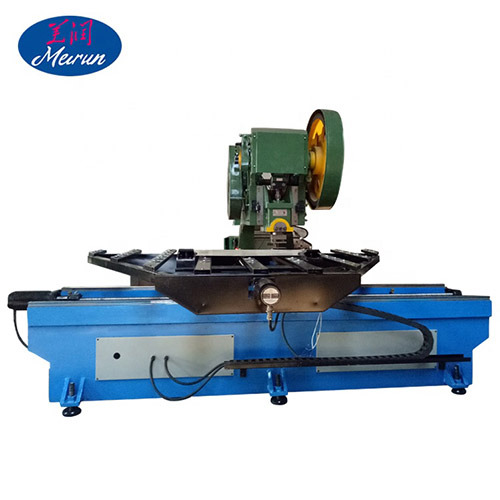

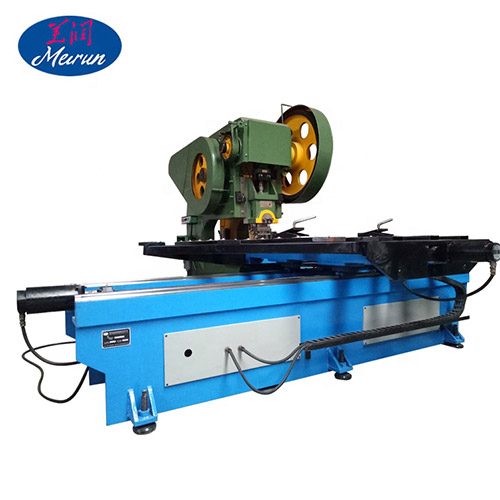

1.Perforated metal mesh machine includes punching machine, auto-feeder platform, CNC control electric cabinet. The machine is with high quality and most parts are from chinese famous brand and some are from Taiwan.
2.Suitable material to the perforated metal mesh machine: 304 stainless steel sheet low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet,hot-rolled sheet, aluminum sheet, copper sheet .

3.The machine is welded by steel plate. Equipped with system of double-roller automatic feeding, compulsory and automatic lubricating, low pressure protection for stopping and pneumatic clutch, this machine can meet various requirements from customers.
4.The machine can be used for producing round hole sheet, wind and dust suppression mesh, square hole mesh, decoration sheet, polygon mesh and other strange shape of mesh.

5.The machine is automatic and pneumatic and it is very during and stable.
6.It is easy to use, usually 2 men are enough to operate 4 or 6 sets of this type of machine. 6.According to the sheet the customer produce, some other small equipment is need, such as coiler, decoiler and leveling machine. Customers can choose to buy it or make it by themselves.

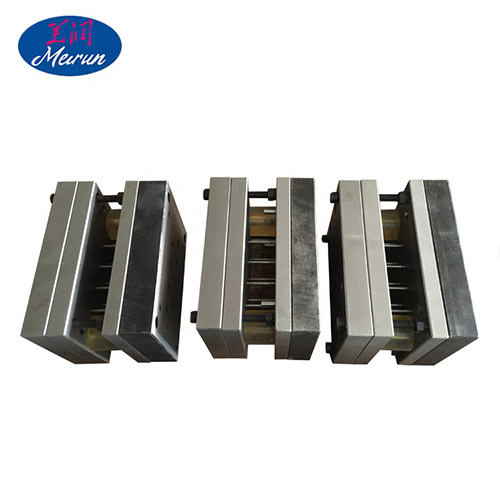

7.one is weleded by steel plate with different specifications of mold plus the rack type feeder or roller type feeder.

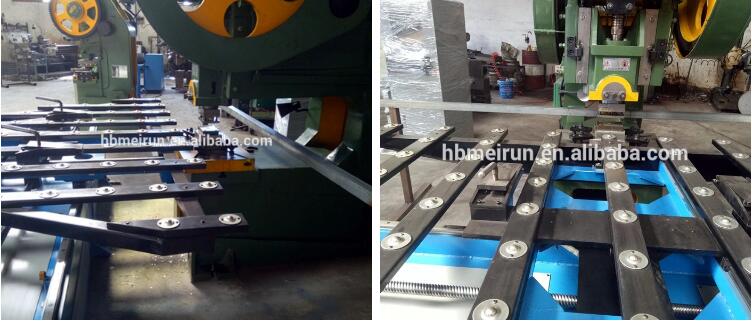

products

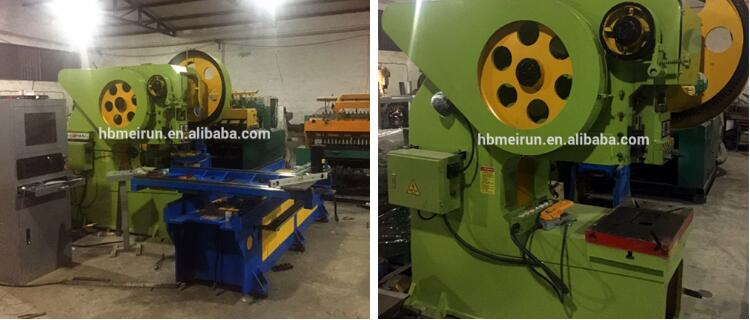

product

Specification
JH21-100
JH21-125
JH21-160
JH21-200
Nominal pressure(KN)
1000
1250
1600
2000
Nominal force stroke(mm)
5
5
6
6
Slider stroke(mm)
150
160
180
200
Number of slider stroke(s.p.m)
50
50
45
40
Max. die set height(mm)
320
370
400
450
Die set height adjustment(mm)
80
100
110
110
Distance from slider center to frame(mm)
300
360
390
430
Worktable dimension(L x W)
(mm)
580X1000
700X1100
760X1200
840X1400
Workbench plate hole size(mm)
180
160
180
200
Thickness of the worktable panel(mm)
120
120
150
180
Slider ground size (L x W)
(mm)
420X560
520X620
580X700
650X880
Size of the handle hole(mm)
60X80
70X80
70X100
70X100
Vertical columns distance(mm)
640
640
660
820
Overall dimension(L x W x H)
(mm)
1820X1350X2800
1900X1300X3300
2040X1360X3300
2370X1600X3900
Motor
Model
Y132M-4
Y160L-6
Y180L-6
Y200L-6
Power(kw)
7.5
11
15
18.5
Total Weight(kg)
8500
9800
13200
19500

Features:
1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.
2. J23 series shut type list orders the pressure machine fuselage of airplane srtaight line form design, well balanced to be subjected to dint, constant form, rigid and strong.
3. Extemely high closing height, pack the mould space big, slippery piece the piece six noodles direction, the accurancy is high, stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type, oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard.

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training: we will send one engineer to install and training the machine for the customer, and need you pay the engineer the salary usd100/day, and the tickets and hotel and food ,if the machine price including the install salary the customer just pay for the tickets, hotel and
foods.
Delivery time: 20days after advance payment some times we have stock ,then can load container when we get the advance
Payment terms: T/T, 30% in advance, and the balance before delivery.
