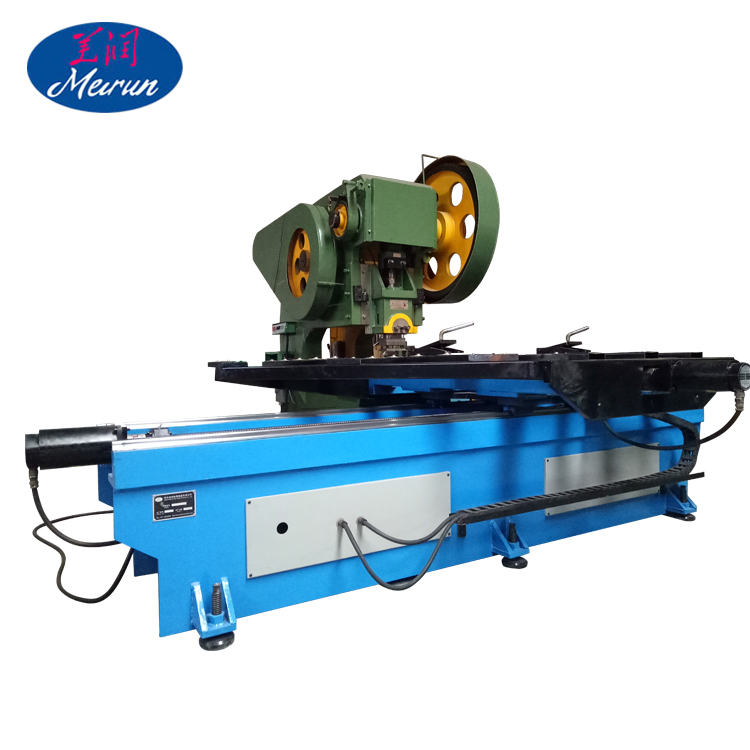

High speed meirun punching machine in factory

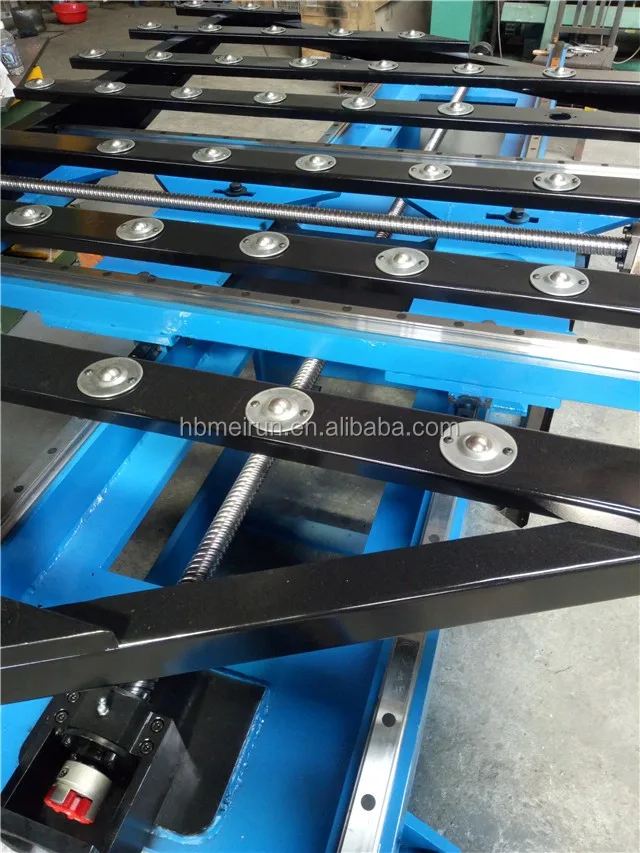

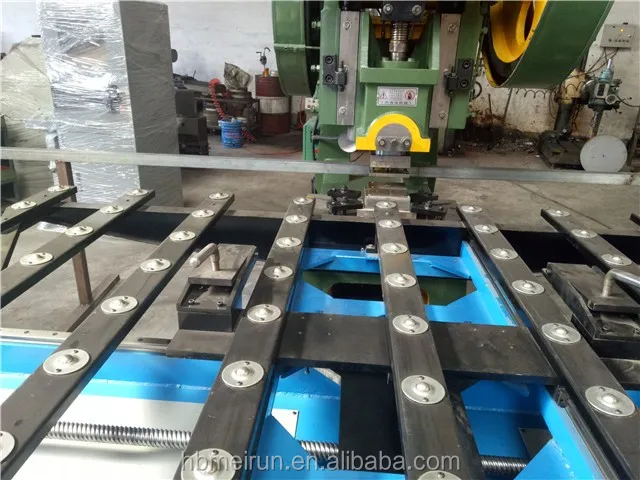

1.Perforated metal machine includes punching machine, auto-feeder platform, CNC control electric cabinet.

2.Suitable material to the machine: stainless steel sheet:304 and 316 most popular, low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet, hot-rolled sheet, aluminum sheet, copper sheet .

Quantity:
  • sheet metal punching machine
  • MR
  • MR18
Product Description

                 Anping Perforated Metal Mesh Making Machine With Good Price


1.Perforated metal machine includes punching machine, auto-feeder platform, CNC control electric cabinet.


2.Suitable material to the machine: stainless steel sheet:304 and 316 most popular, low carbon steel sheet,galvanized sheet, PVC sheet, cold-rolled sheet, hot-rolled sheet, aluminum sheet, copper sheet .

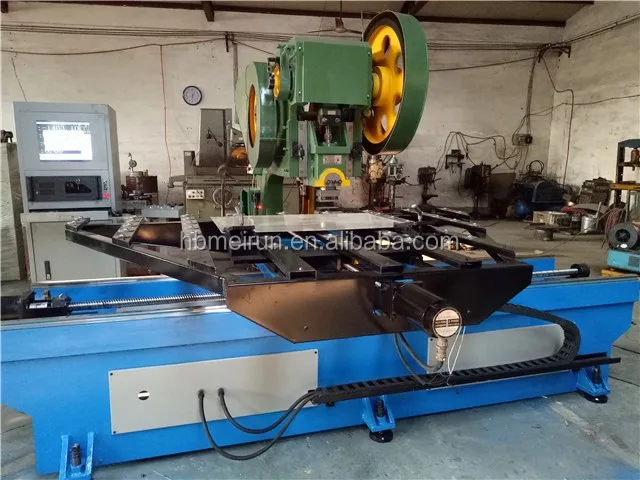

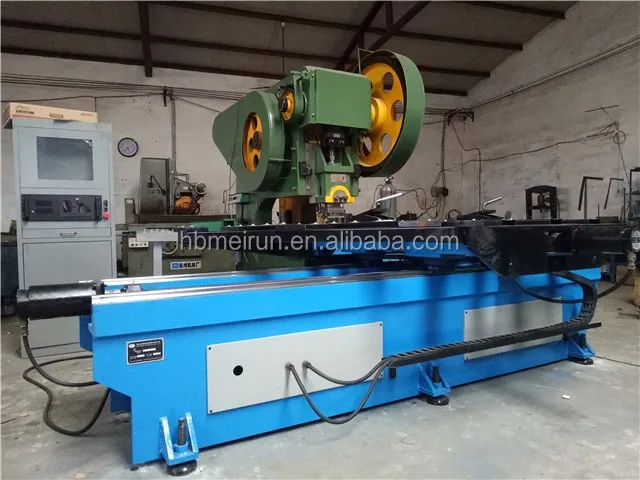

Detailed Images

Transmission control and brake systems
(1). Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance
(2).Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
(3).Use double safety valve to ensure the accurate implementation of the clutch instruction.

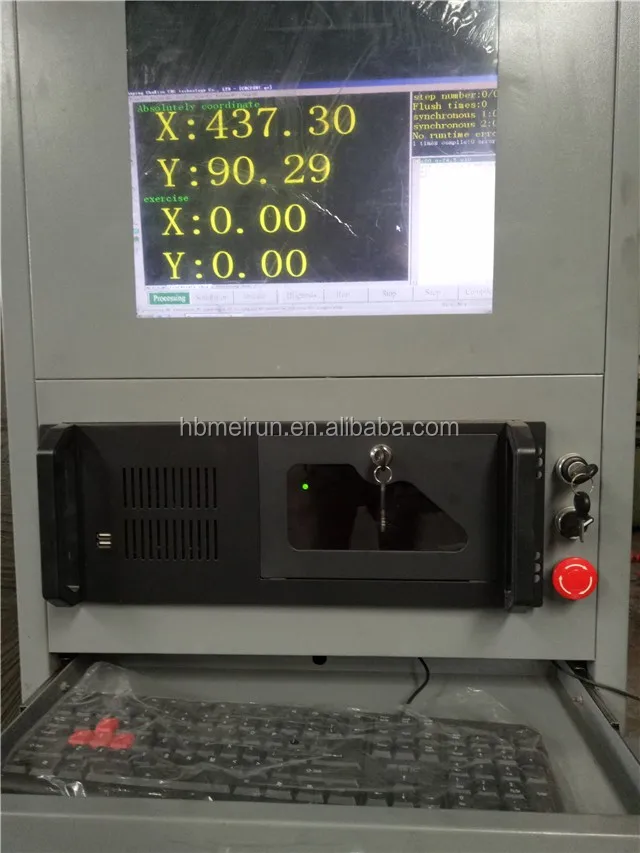

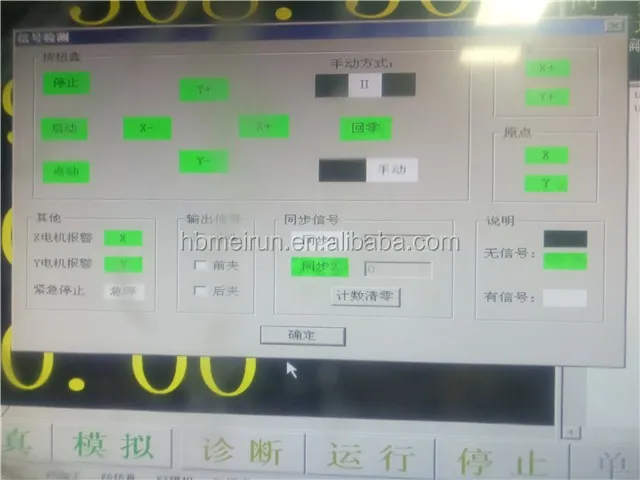

(4).Electrical control is installed PLC, 8 group cam controller, reliable action.
(5).Electrical control adopts Omron PLC for centralized control, improved machine reliability
(6).Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.
(7).Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
(8).Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.


RAM adjustment and Structure
(1).Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
(2).Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload protection device, simple structure, if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.


Electrical system and the safety interlock
(1).Electrical components are imported or fromSinoforeign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
(2).Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

Perforated metal mesh machine specification:

Type
CKWJ-25
CKWJ-40
CKWJ-63
CKWJ-80
CKWJ-100
Stamping tonnage
25T
40T
63T
80T
100T
Thickness
0.1mm-2mm
0.5mm-3mm
0.5mm-3mm
0.5mm-10mm
0.5mm-12mm
Width of steel
1.25m-2.5m
1.25m-2.5m
1.25m-2.5m
1.25m-2.5m
1.25m-2.5m
Output
85/min
70/min
60/min
45/min
40/min
Voltage
380v/50HZ
380V/50HZ
380v/50HZ
380v/50HZ
380v/50HZ
Motor
3KW
4KW
4KW
5KW
7KW
Dimension
3.5m*3.5m*2m
3.6m*3.5m*2.1m
3.7m*3.5m*2.2m
3.8m*3.5m*2.25m
3.9m*3.5m*2.3m
Weight
3.5T
4.5T
5.5T
8T
10T

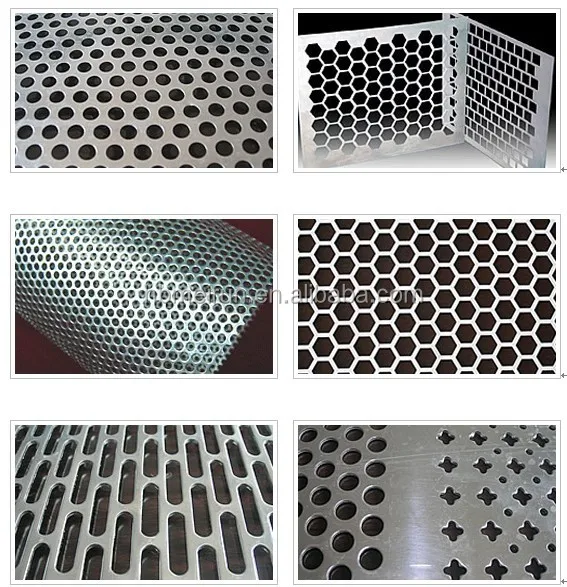

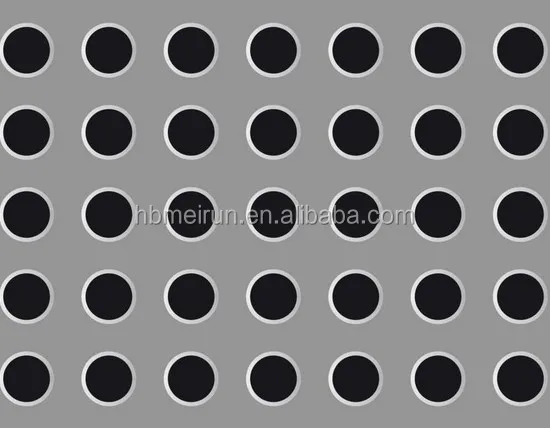

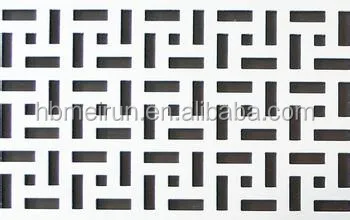

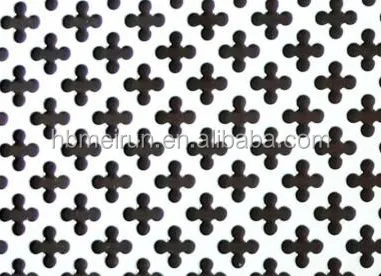

Perforated metal mesh diaplay:

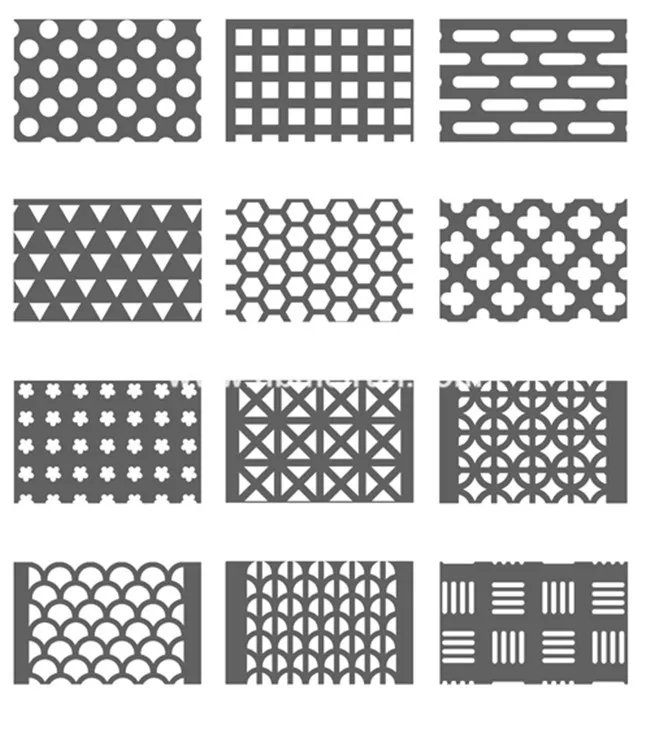

Our factory can produce patterns of various shapes, as long as you can imagine, we can do it.
Packing & Delivery

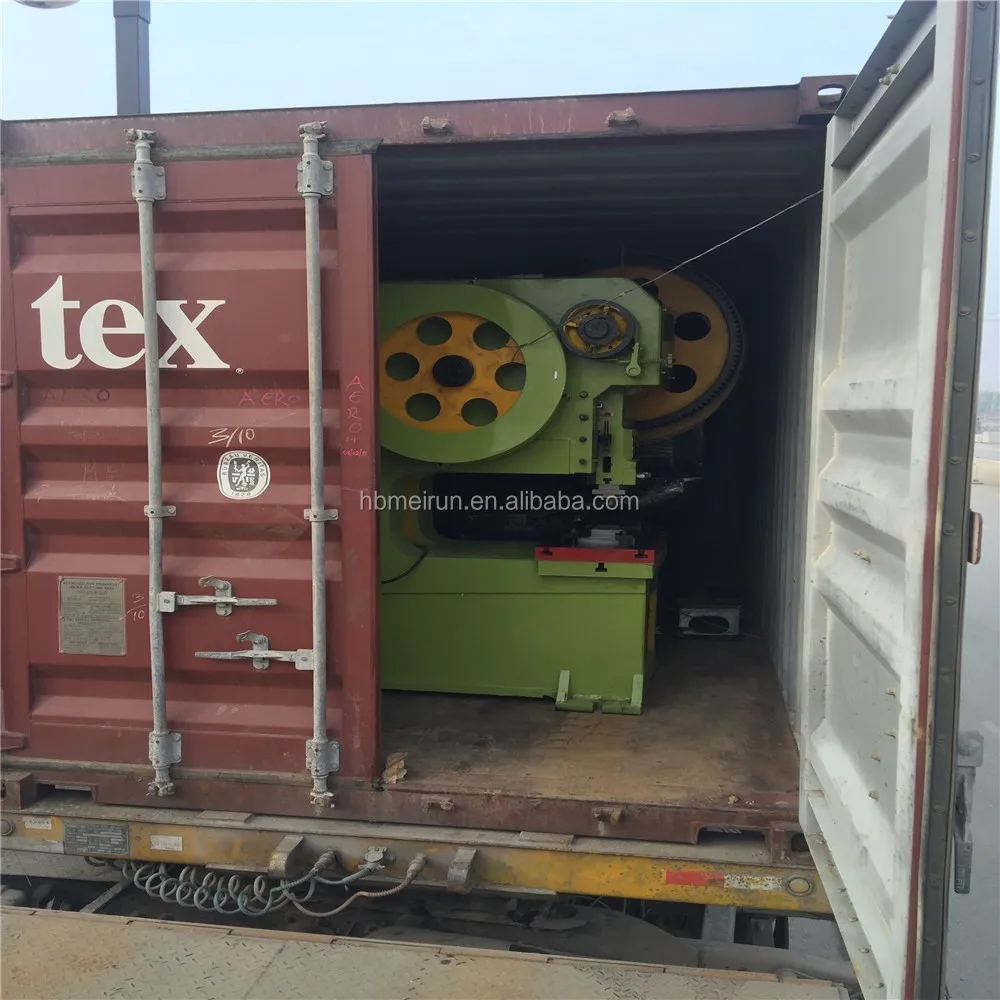

Packing: Wooden pallet and plastic package in the container.


Delivery:30 days more or less According to the actual conditions after receiving the prepayment.

Our Service

Pre-Sales Service

* provide technical assistance for free
* Guarantee Period: 1 year
*24 hours online after-sale service

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
