Heat Treatment Annealing Furnace Production Line

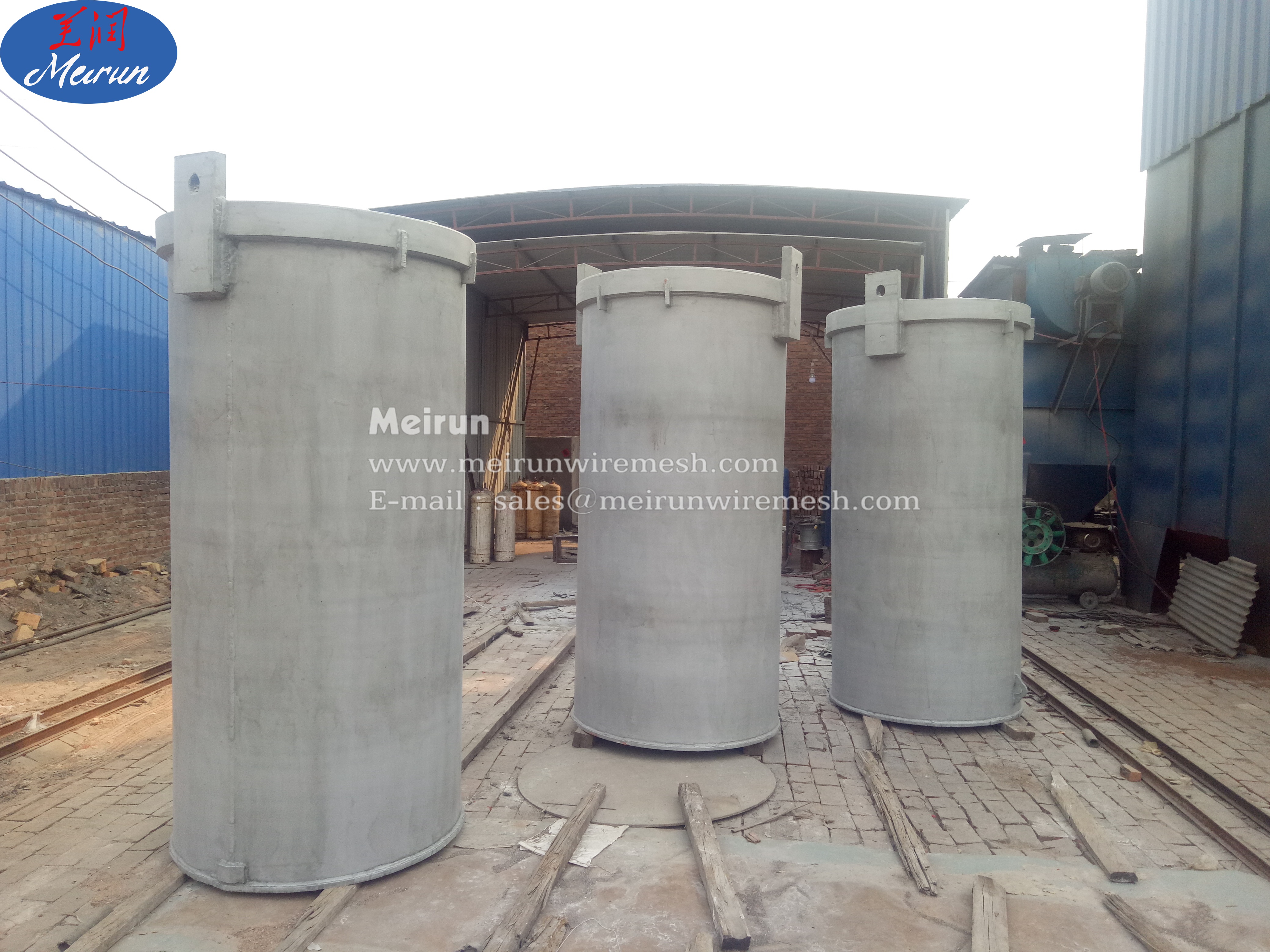

304 stainless steel annealing furnace liner is welded with 10mm thick stainless steel plate, the bottom is welded with 20mm stainless steel plate, and the furnace liner cover is stamped with stainless steel plate one times.The inner diameter is 1 meter, the service height is 2.29 meters, the total height is 2.5 meters, the total weight of a single furnace is 710Kg. The wire weight of each furnace is about 5 tons.

Machine name :	Annealing Furnace Production Line
Power:	0-270KW
Working electricity:	0-400 Thyristor control current adjustable
Availability:

Quantity:



Inquire Add to Basket

Model:
MRTHL
Brand:
Meirun
Code:
8463300000

Product Description

Industrial Furnace Heat Treatment Production Line

304 stainless steel annealing furnace liner is welded with 10mm thick stainless steel plate, the bottom is welded with 20mm stainless steel plate, and the furnace liner cover is stamped with stainless steel plate one times.The inner diameter is 1 meter, the service height is 2.29 meters, the total height is 2.5 meters, the total weight of a single furnace is 710Kg. The wire weight of each furnace is about 5 tons.

Specification

Power	0-270KW
Supply Voltage	380V-440V
Working electricity	0-400 Thyristor control current adjustable
Three zone temperature independent control, touch screen in Chinese and English , can be timed, can set the temperature curve

Machine Use process

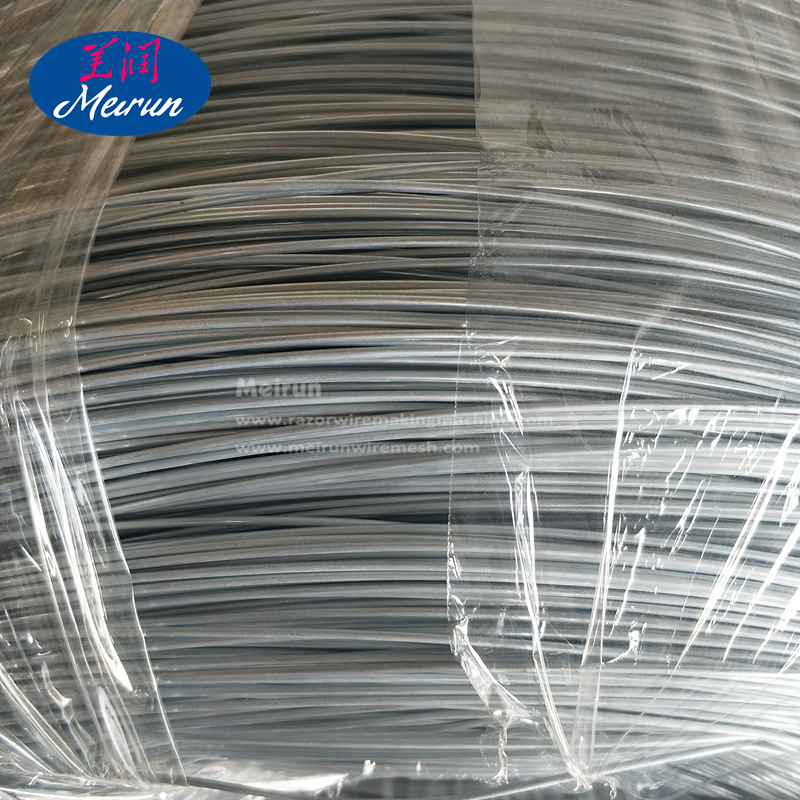

Annealing process, heat up 3 hours to 850 degrees, the temperature for 3 hours 850 degrees.Automatic power cut for 2 hours, temperature drops to 600 to 700 degrees. Take the furnace liner out, put it in an insulated pit and cool it for 10 hours. Open the lid of the furnace, drop the temperature to less than 100 degrees, and pull out the finished annealing wire.
