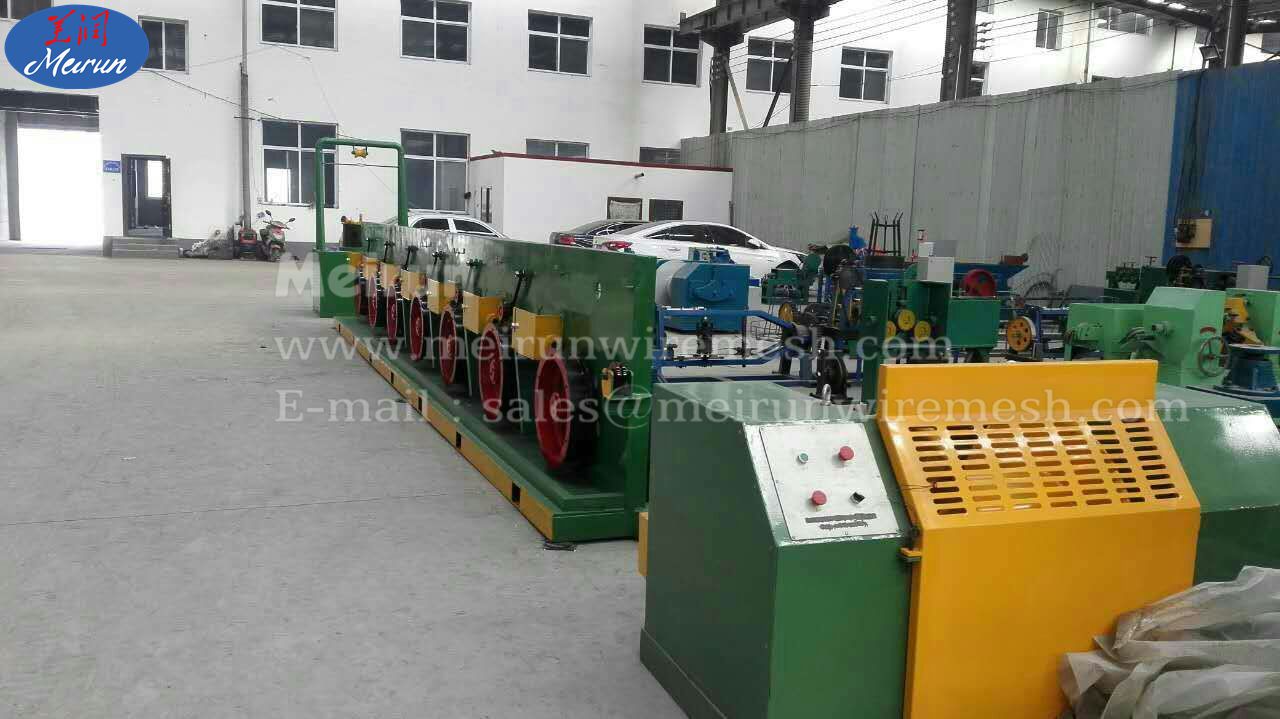

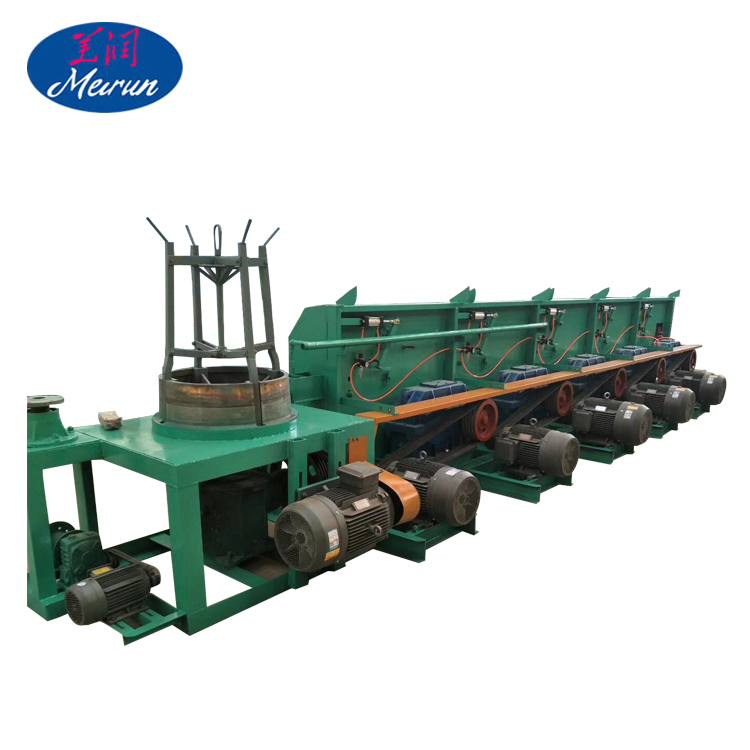

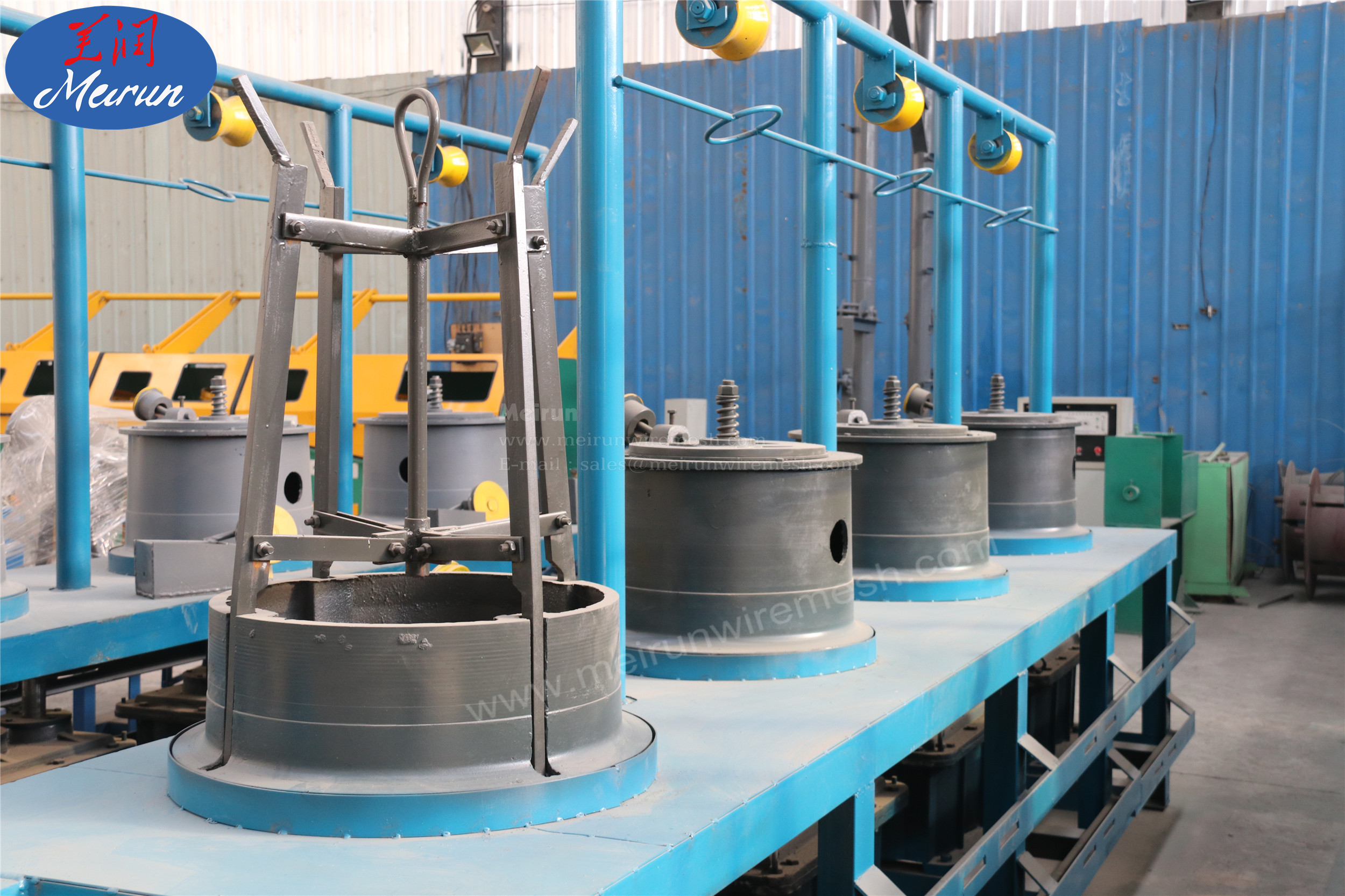

Good Quality Straight Line Steel Wire Rod Wire Drawing Machine

It is composed of AC frequency converter, contactor and operation panel. This system uses AC frequency converters to control asynchronous motors. The inverter changes the frequency of the input power of the three-phase AC motor, which enables the AC motor to realize stepless speed regulation. Its speed regulation features are good, the scope is wide, the protection function is all, the volume is small, the weight is light, the structure is simple, and the installation and maintenance are convenient

Quantity:
  • MRLGLSJ
  • Meirun

Wire drawing machine

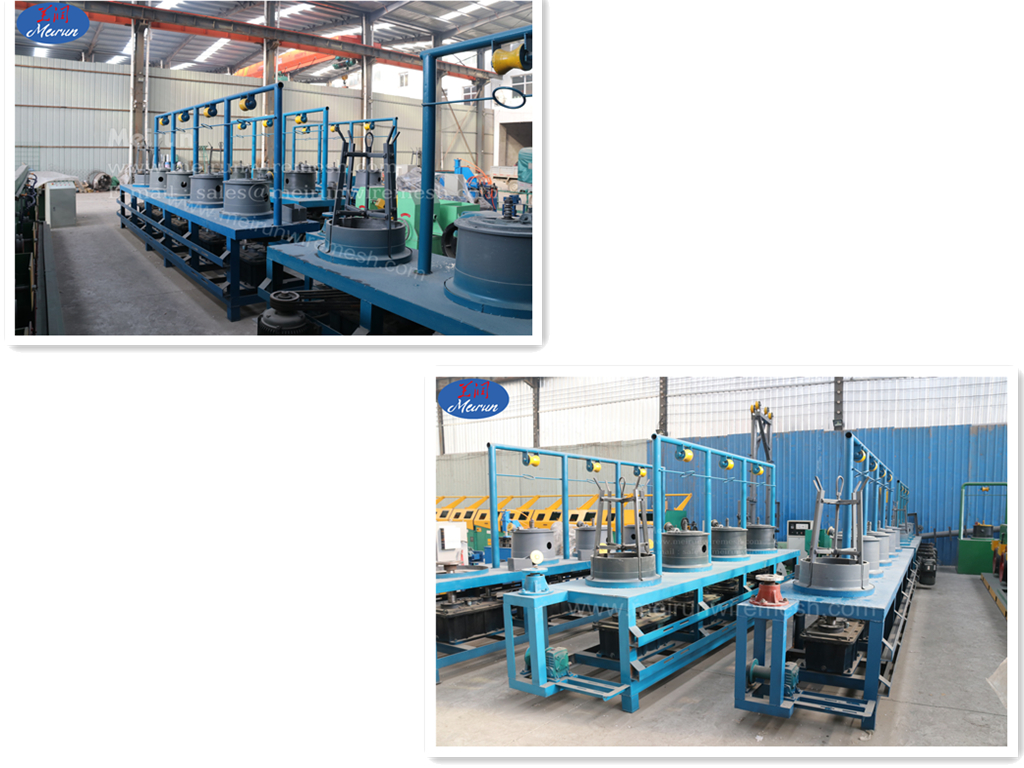

连贯拉丝机首图11

Wire drawing machine is composed with electrical machine, reducer, wire rod rack, wire drawing mold box, drawing case and electronic control system.High/Low carbon steel/ straight line Wire drawing machine
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It's kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range
of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.


Specification


model
LSLG-60
LSDS-28
LS-TS250
LS-BX250
number of mould pieces
6
5-11
9-12
9-12
input diameter mm
6.0-5.5
3.5
2.8-2.5
2.5
Output diameter mm
3-2.5
3.0-1.2
2.5-0.5
2.3-0.7
Speed m/min
280-300
160-350
500-1200
500-1200
motor kw
120KW
30KW
17KW
17KW
Voltage:
380V 50HZ
380V 50HZ
380V 50HZ
380V 50HZ
dimension mm
8000*1300*1100
2400*1400*1200
2000*1500*1800
2000*1500*1800
weight T
4.2T
2.5T
1.8T
1.8

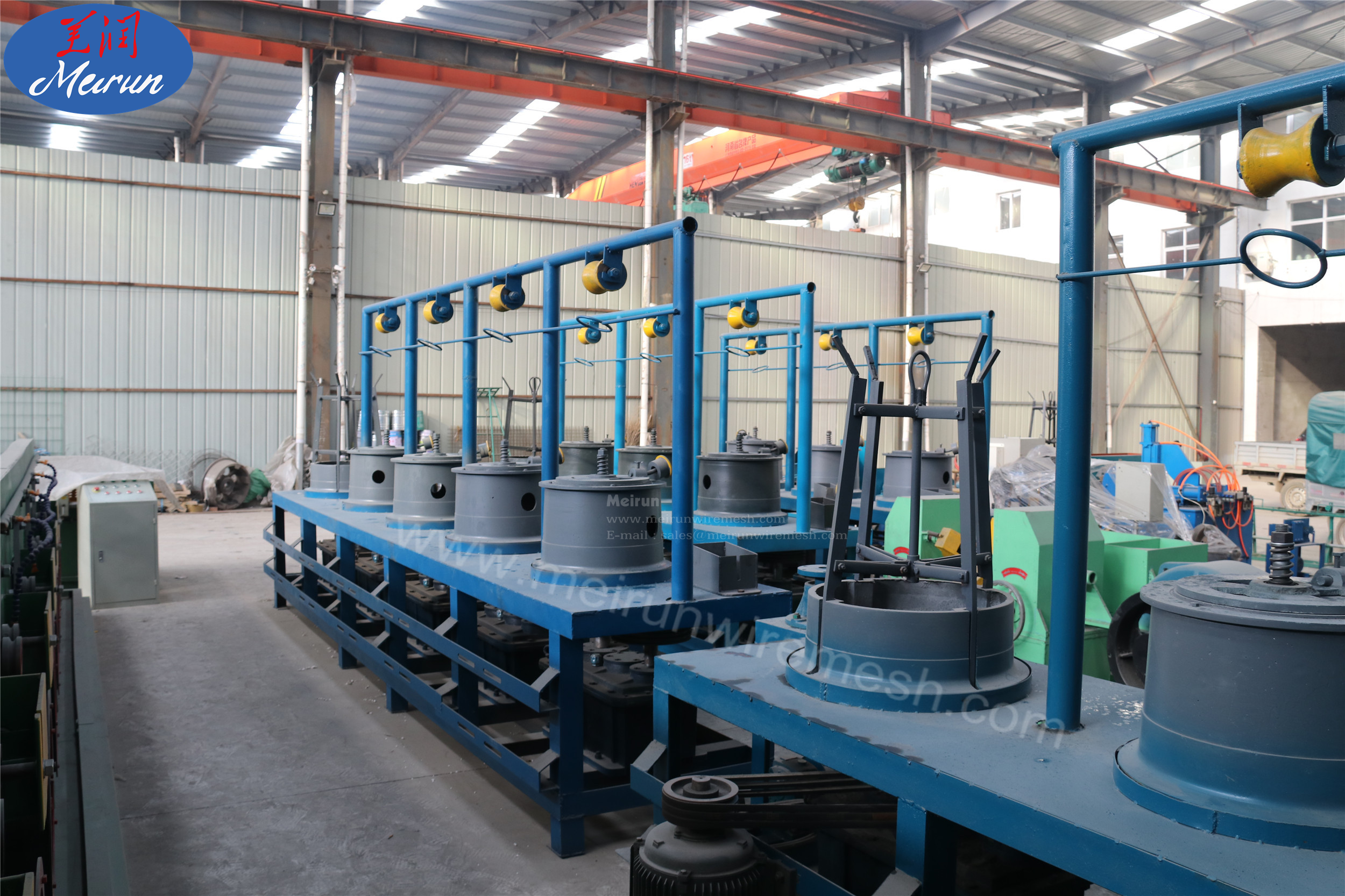

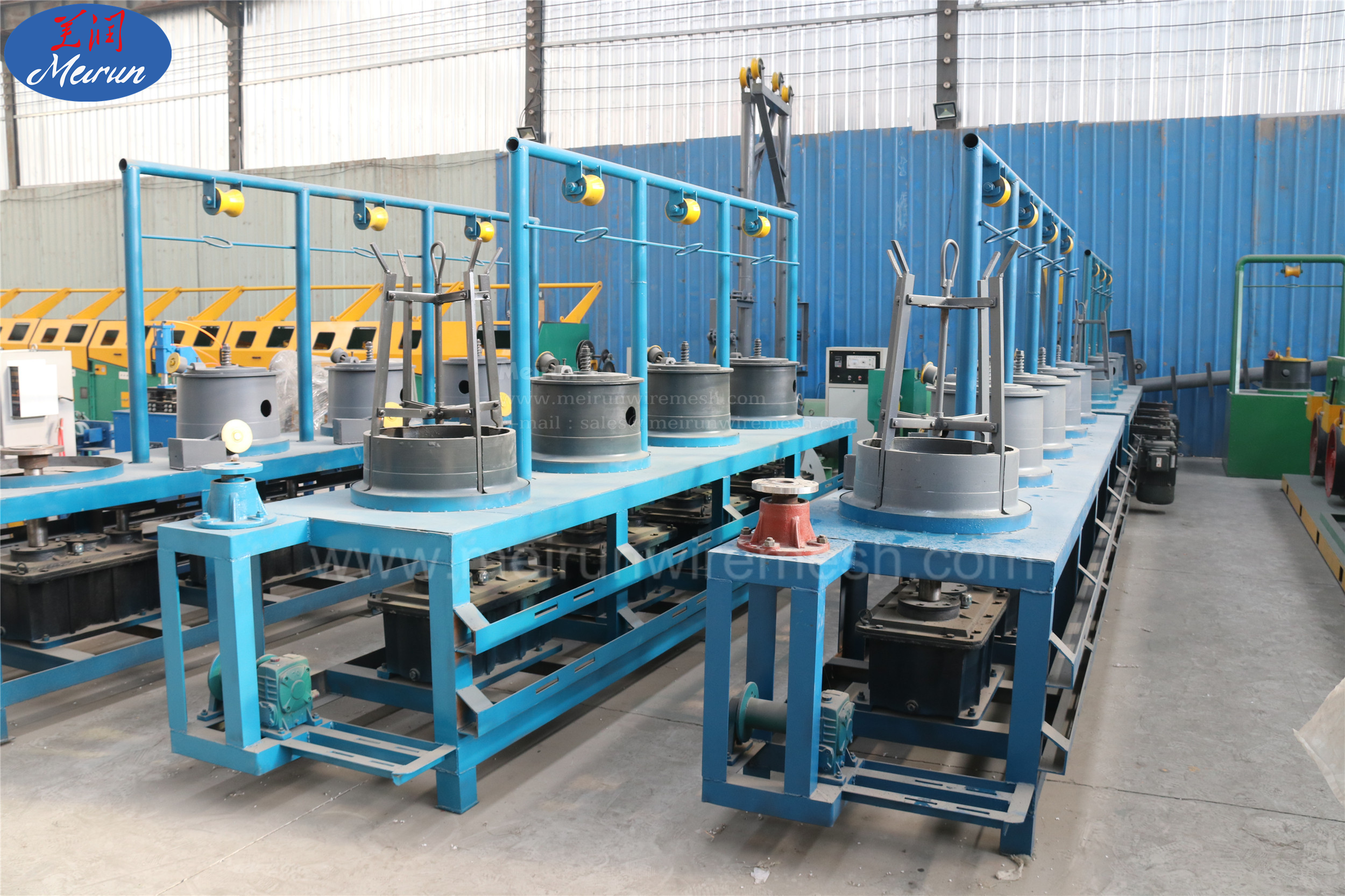

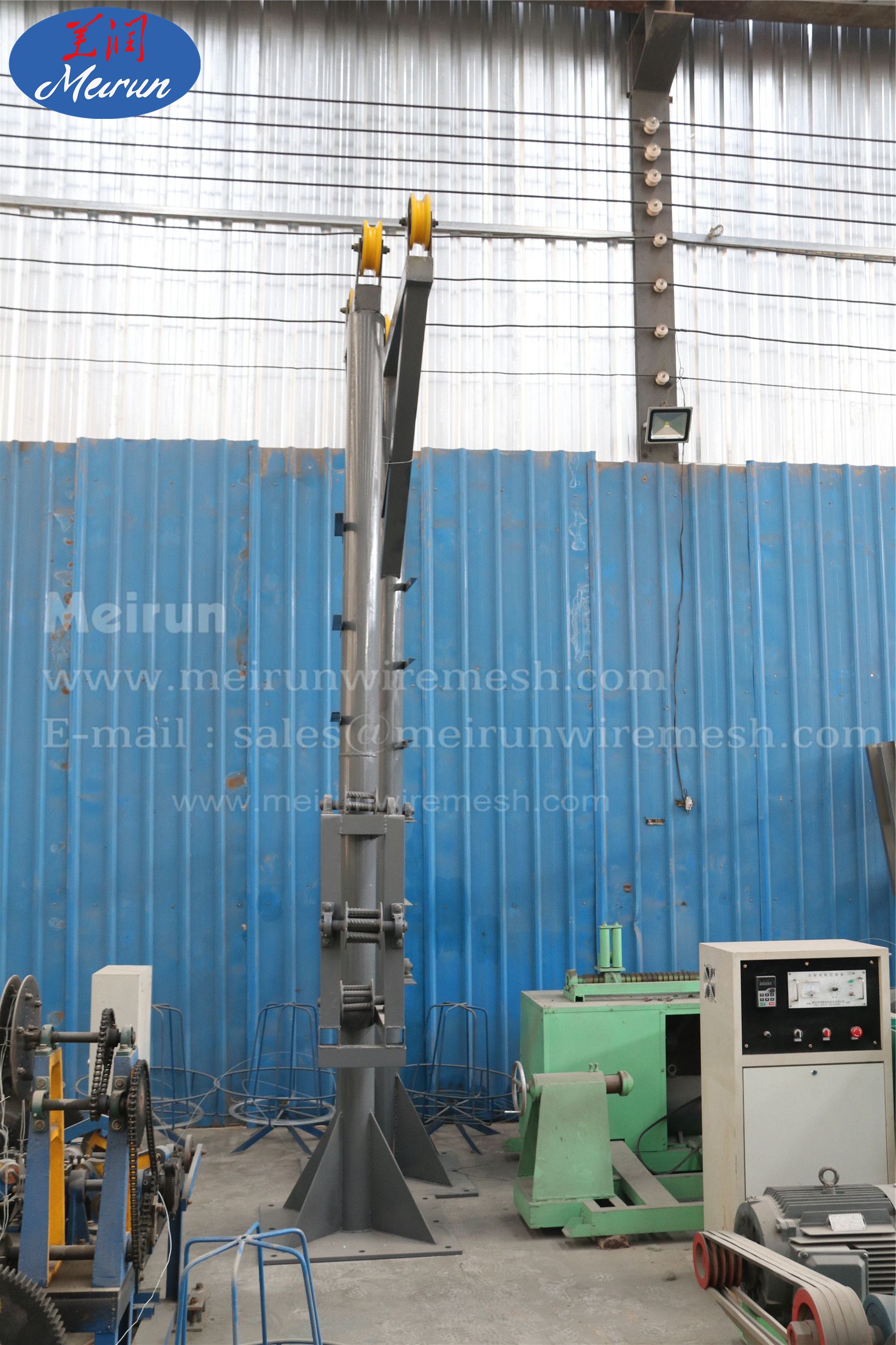

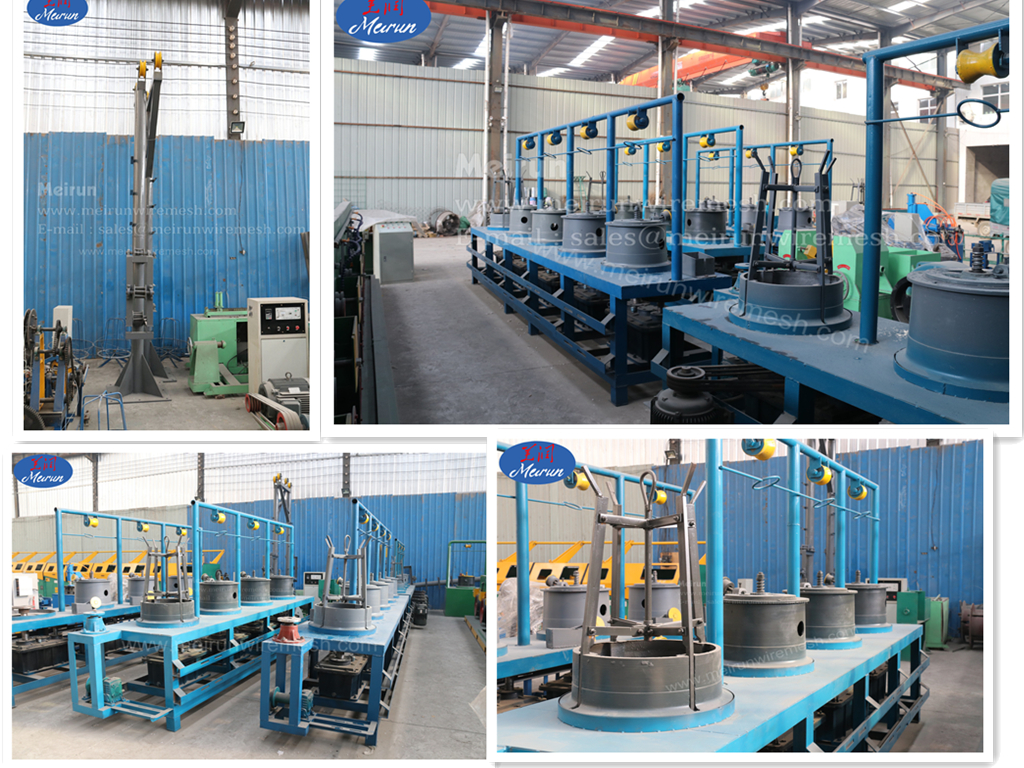

Part of machine

连贯拉丝机图片11

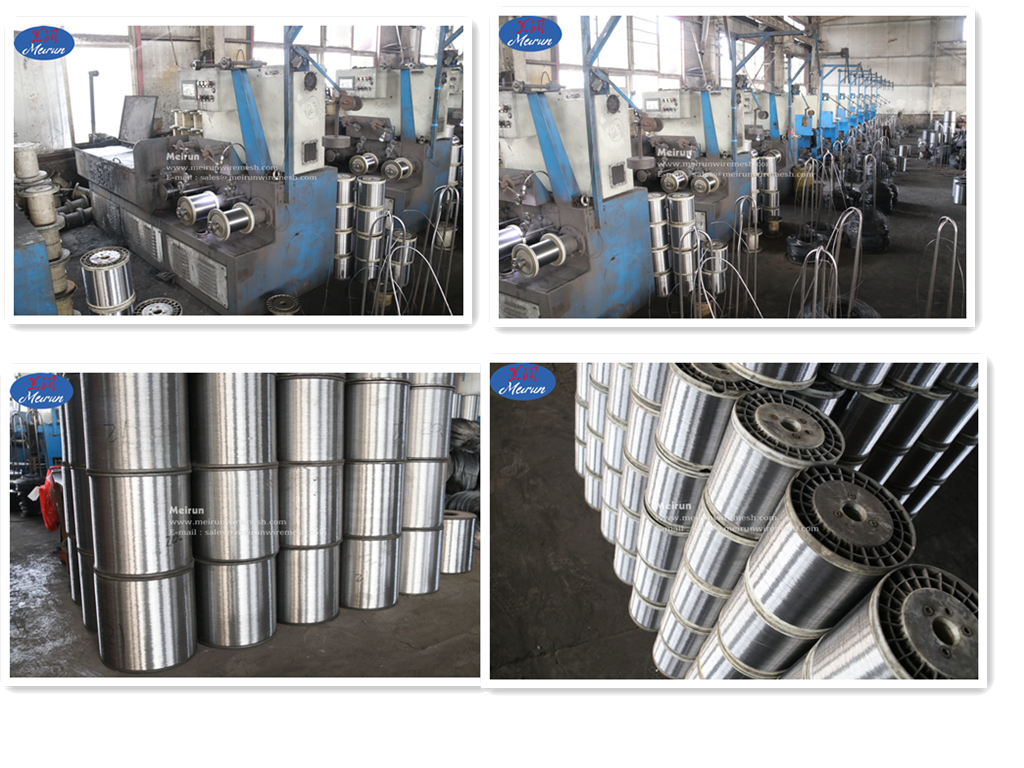

Products

连贯拉丝机产品图片Packing and delivery

拉丝机装箱图片
