Gabion Wire Netting Machine

Gabion Wire Netting Machine is a special equipment for producing the hexagonal metal mesh, which is designed and produced independently by our own factory, Hebei meirun. It is the first choice of weaving large size, wide and thick wire hexagonal wire mesh. And it has characteristics of stable performance, low noice and high effiency.
weight:
Power (kW):
Production capacity:
Core Components:
Applicable Industries:
Availability:
Quantity:
  • MRSLWJ

  • Meirun

                                                                 Gabion Wire Netting Machine

Gabion Wire Netting Machine :

1. Raw material of the machine is galvanized wire or pvc coated wire.

2. The wire is feeding from spools automatically.

3. The tension device is used to make the wire more straighten so the wire can feeding more easily and the      mesh will be more flatten.

4. The wire will be twisted by twisted gear for hexagonal type.

5. Hexagonal wire mesh is widely used in fences of farmland and grazing land, chicken husbandry, reinforced ribs of building walls etc.




小六角网机首图111

Gabion Wire Netting Machine  is a special equipment for producing the hexagonal metal mesh, which is designed and produced independently by our own factory, Hebei meirun. It is the first choice of weaving large size, wide and thick wire hexagonal wire mesh. And it has characteristics of stable performance, low noice and high effiency.

  Gabion Wire Netting Machine stone cage net, by the high quality steel wire netting machine twisted .Our type gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth. A full set of gabion mesh machine include main machine, spring winding machine, mesh coiling machine and wire tension machine.

小六角网产品图片



Specification

Mesh size(mm)
Max width(mm)
Max wire diameter(mm)
Capacity (kw)
Weaving speed
(m/hour)
Opening size (mm)
Weight (T)


60x80
2400
3.2
15

165
165
5200*1400*2400
13.5
3300
3.2
18
6200*1400*2400
15
4300
3
22
7200*1400*2400
16


80x100
2400
3.2
15
200

200
5200*1400*2400
13.5
3300
3.2
18
6200*1400*2400
15
4300
3
22
7200*1400*2400
15.5

100x120
2400
3.2
15

220
5200*1400*2400
13.5
3300
2.8
18
6200*1400*2400
16
4300
2.8
22
7200*1400*2400
15.5

120x150
2400
3.2
15

230
5200*1400*2400
13.5
3300
2.8
18
6200*1400*2400
15

Gabion Wire Netting Machine  have the following characteristics :

1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
5.Good permeation can prevent the damage by hydrostatic.

小六角网机器部分图片


Our products

石笼网产品图片

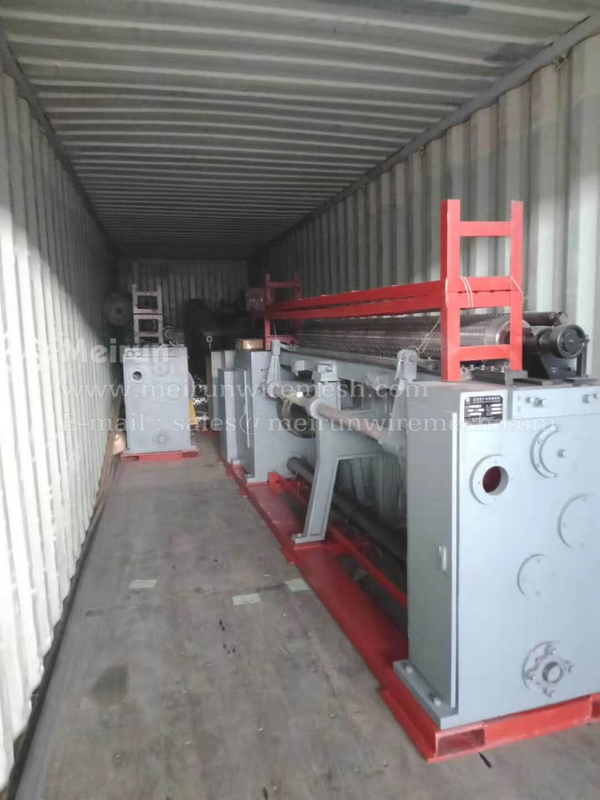

Packing

小六角网装箱图片111

Our company

Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!

证书11

Our customers

公司图片
