MR03
MR
03

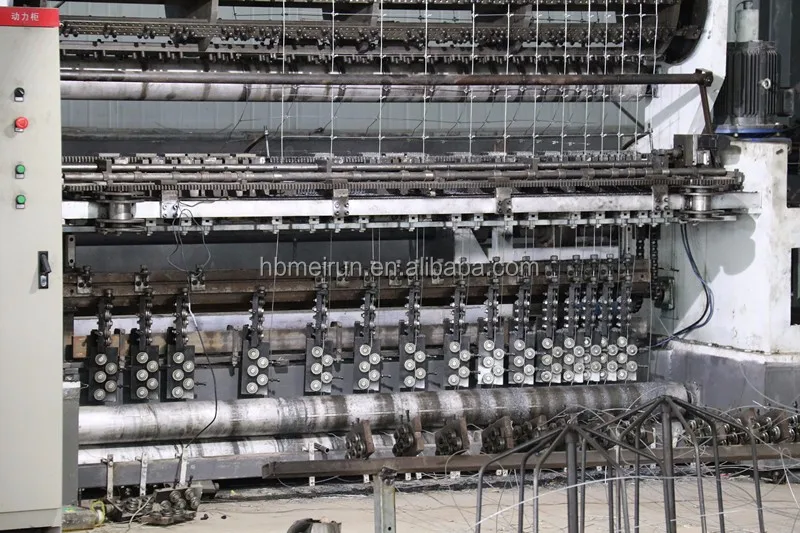

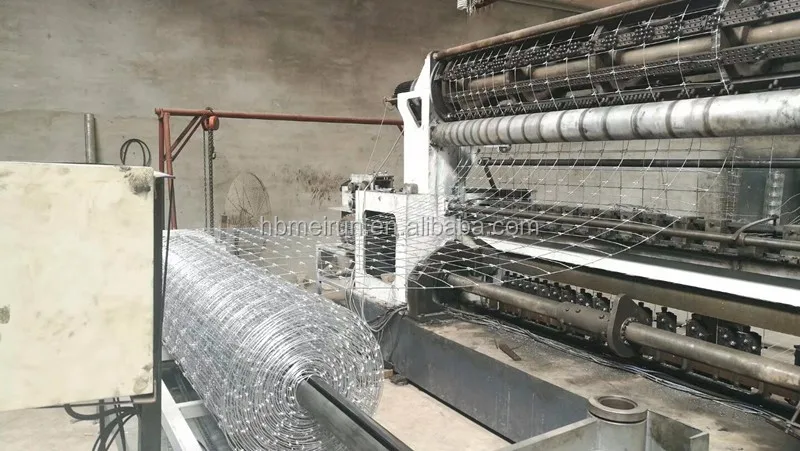

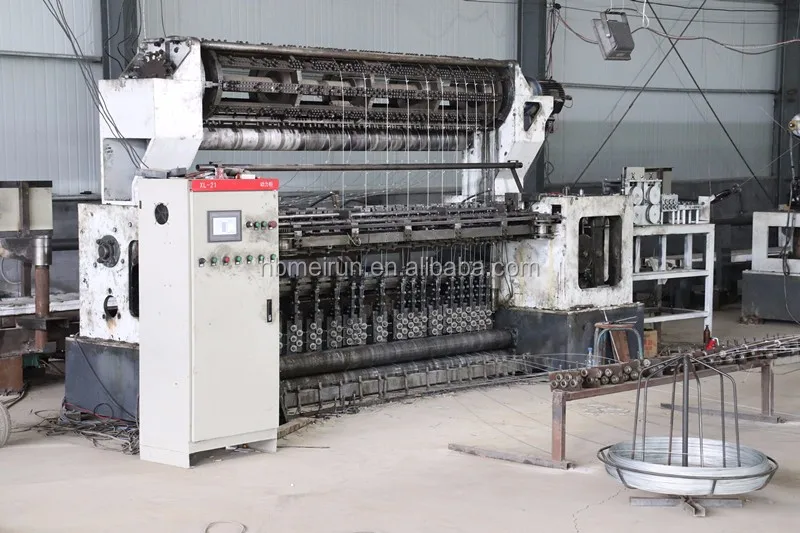

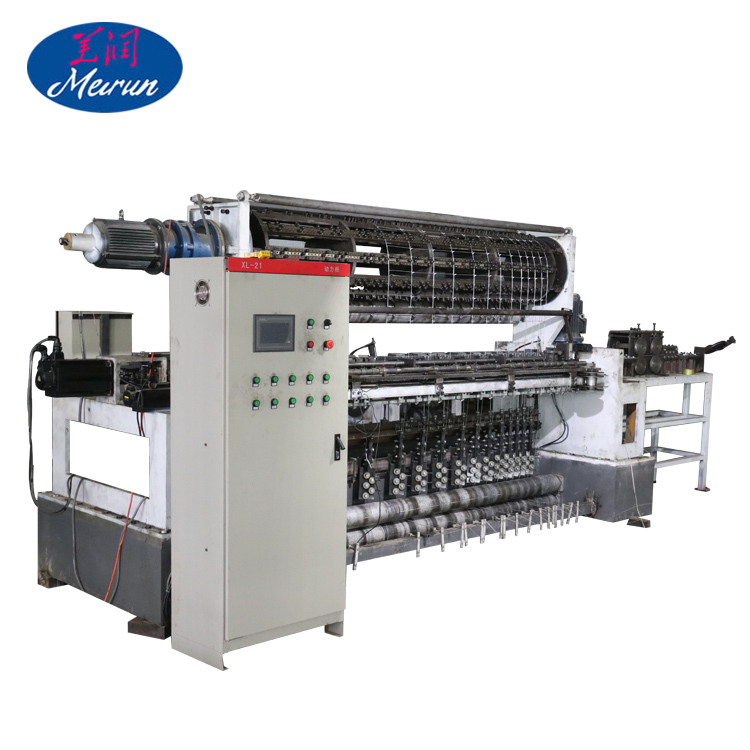

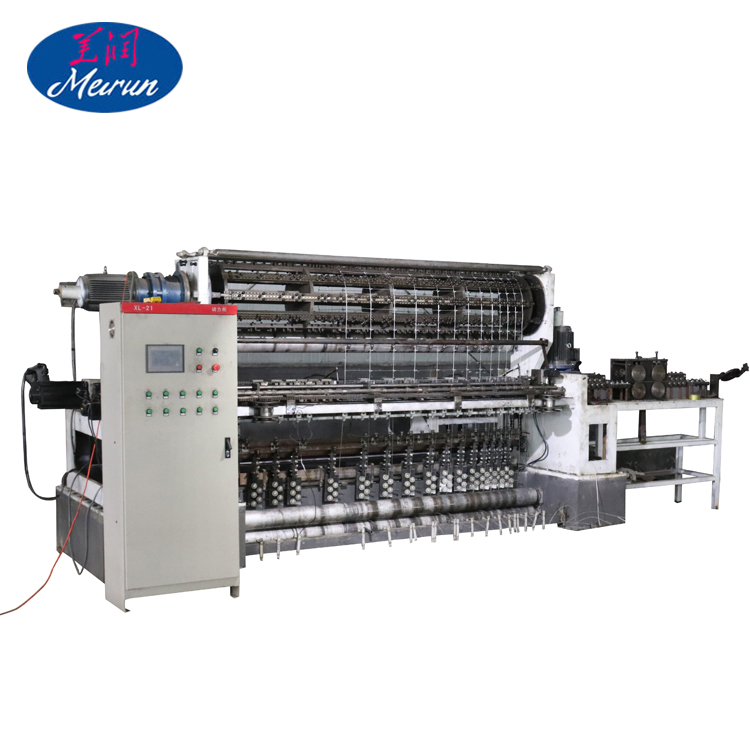

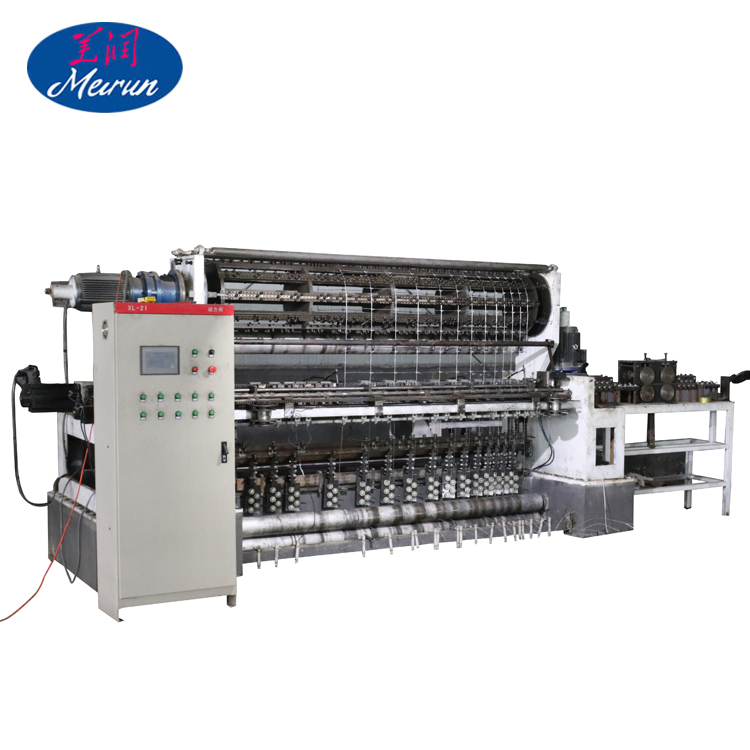

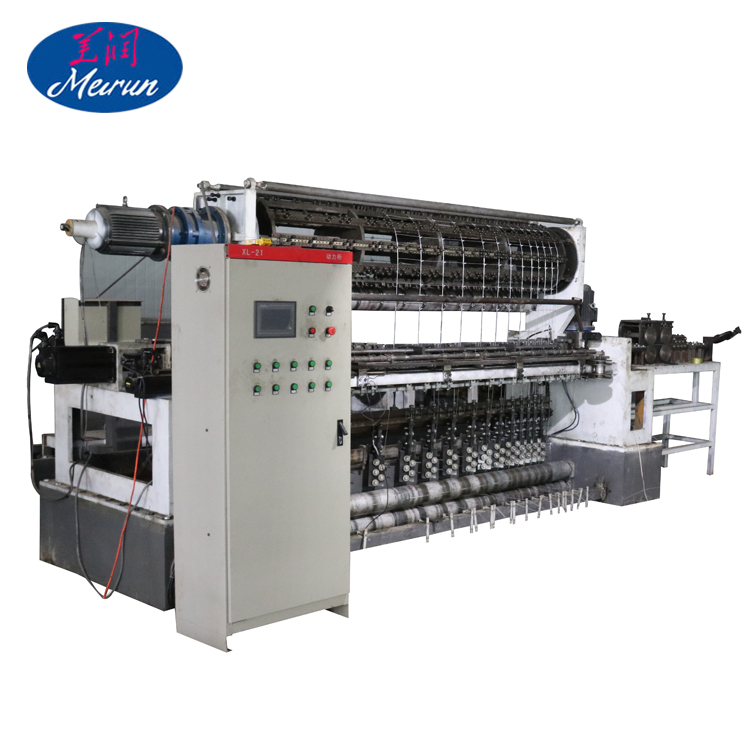

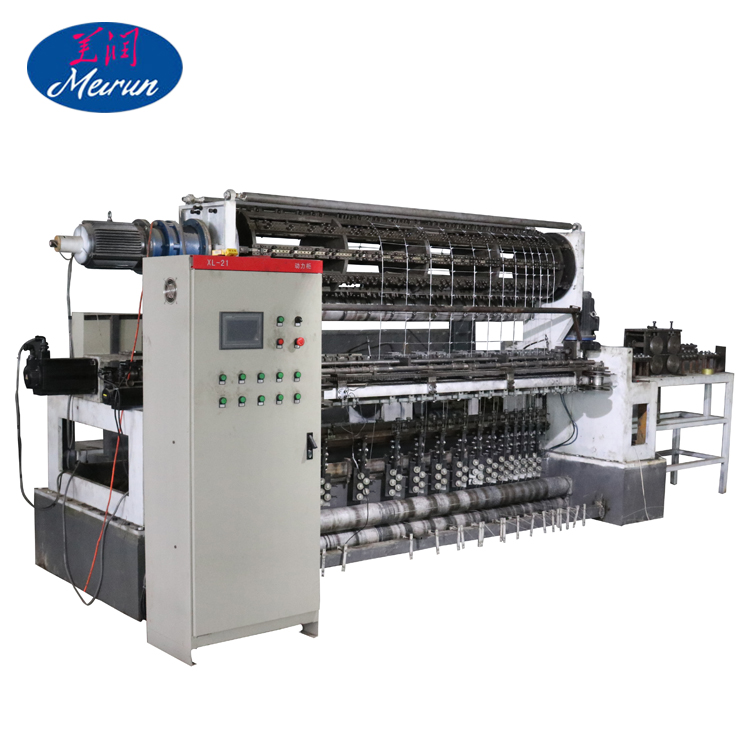

1.This is a new model machine developed by this company. It can weave the weft and warp wire automatically together to form the ranch fences. The end products enjoy innovative structure, firm and precise weaving. The production capacity is 150m/h. This machine offers reliable property.

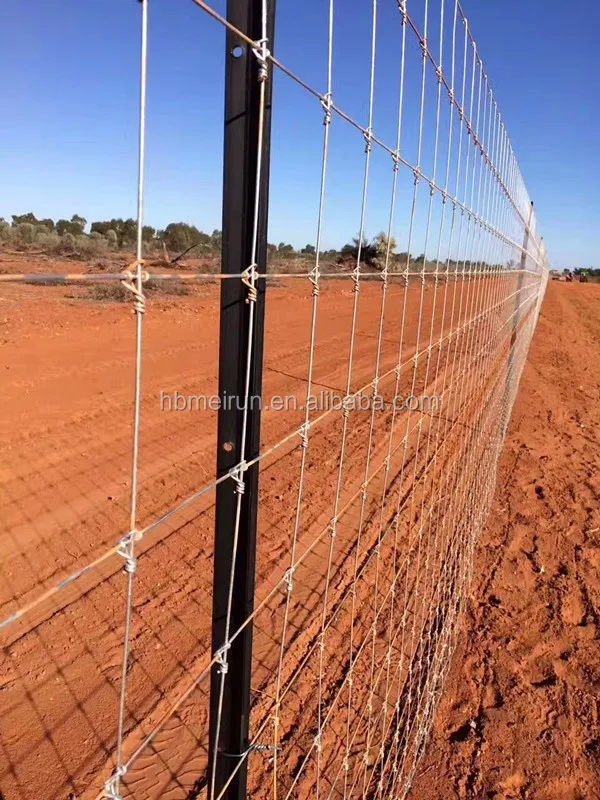

2.Hinge joint knot weaving field fence machine can weave the weft and warp wire automatically together to form the field fences.
3.The finished products enjoy innovative structure, firm and precise weaving.
4.Hinge joint knot weaving field fence machine offers reliable property, high efficient, sample operation, low-cost maintenance.
Model | LW-1500 | LW-2100 | LW-2440 |
Width | 1.5m | 2.0m | 2.44m |
Wire number | 16pieces | 18pieces | 20pieces |
Twine diameter | 2.4mm-2.6mm | 2.4mm-2.6mm | 2.4mm-2.6mm |
Side wire diameter | 2.6mm-3.0mm | 2.6mm-3.0mm | 2.6mm-3.0mm |
Knotted wire diameter | 2.0mm-2.2mm | 2.0mm-2.2mm | 2.0mm-2.2mm |
Mesh size | 100mm-400mm | 100mm-400mm | 100mm-400mm |
Weft spacing | 75mm-450mm | 75mm-450mm | 75mm-450mm |
Speed | 40pieces/minute | 40pieces/minute | 40pieces/minute |
Voltage | 380V | 380V | 380V |
Power | 3KW | 4KW | 5KW |
Weight | 5500kg | 6000kg | 6500kg |
Dimension | 3900*3500*2250mm | 4450*3500*2250mm | 4800*3500*2250mm |
It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive. Products are neat and beautiful, diverse specifications.
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
Our company:
Our company is a professional screen machinery manufacturing company with many years of experience in China. Our company focuses on the manufacturing and trading of various screen products and related machines.We have our own factory and professional r&d team to ensure the quality and strict testing of the products.For some machines, our market share is as high as 70%.All of our machines are in line with international quality standards and customers' needs and have been greatly appreciated in various markets around the world.So we are your wise choice and best friend.
Our service:
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the
machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
5.During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
