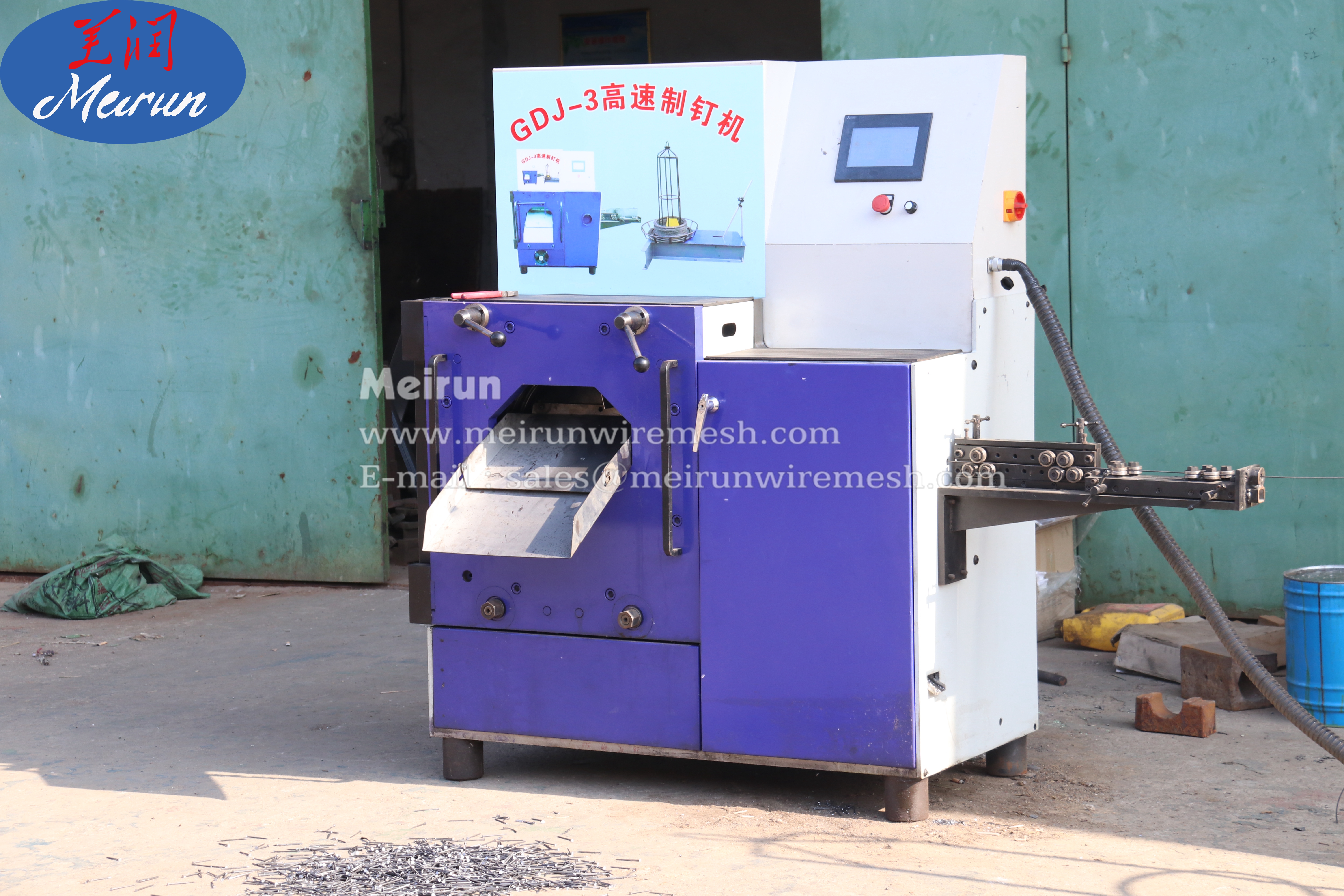

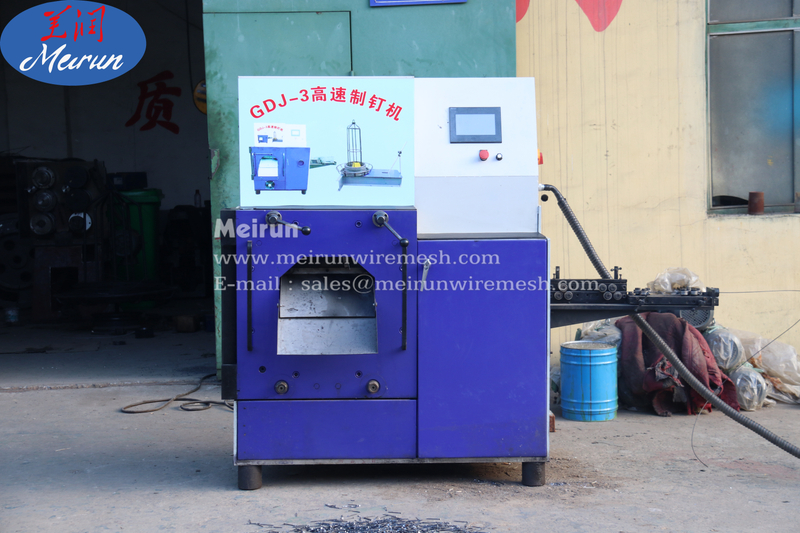

Automatic High Speed Nail Making Machine

The machine's main characteristics are as following:
1.Shorter stroke (12mm), traditional machine around 100mm

a.Stable performance, defective rate less than 1/100000

b.Lower mechanical wear

c.Gripping dies and punches are more durable.

2.The nail length can be well controlled.

a.The machine equipped with sensor for detecting longer or shorter nails

b.Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.

3.Metal scraps can be separated with nails very well

a.Effectively protect the nail conveying belt

b.Ensure the good shape nail head

Nail Diameter:
Nail length:
Speed:
Power:
Dimensions (mm):
Quantity:
  • MRHSZDJ
  • meirun

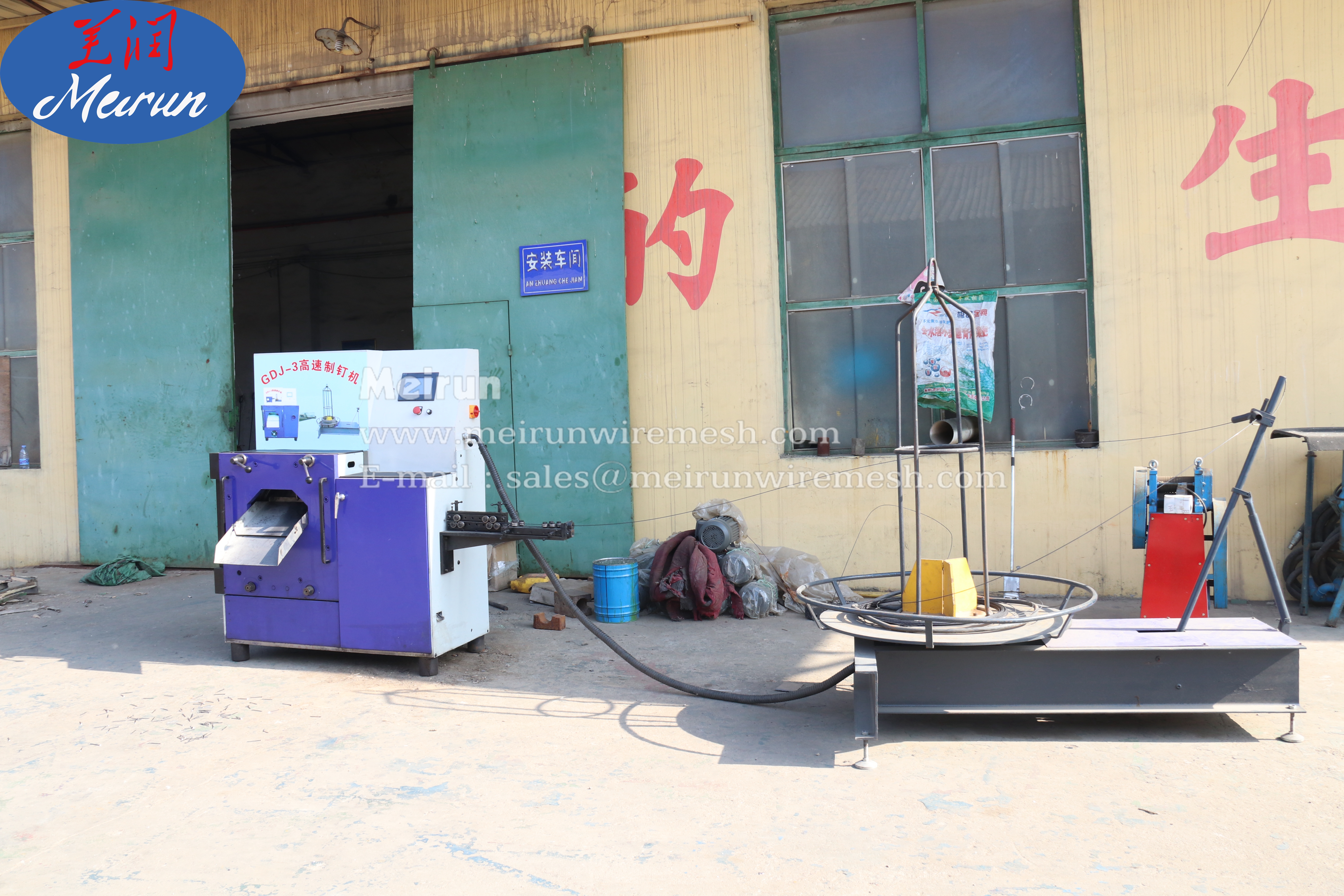

High Speed Nail making machine

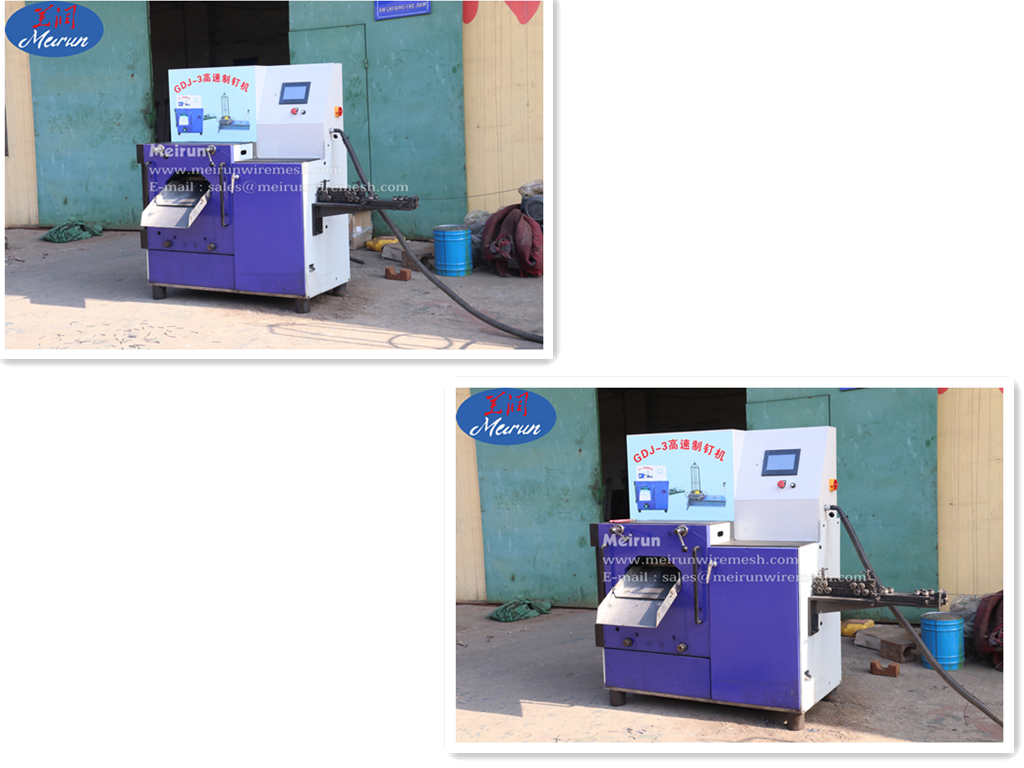

高速钉机首图图片



The machine's main characteristics are as following:

1.Shorter stroke (12mm), traditional machine around 100mm

a.Stable performance, defective rate less than 1/100000

b.Lower mechanical wear

c.Gripping dies and punches are more durable.

2.The nail length can be well controlled.

a.The machine equipped with sensor for detecting longer or shorter nails

b.Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.

3.Metal scraps can be separated with nails very well

a.Effectively protect the nail conveying belt

b.Ensure the good shape nail head

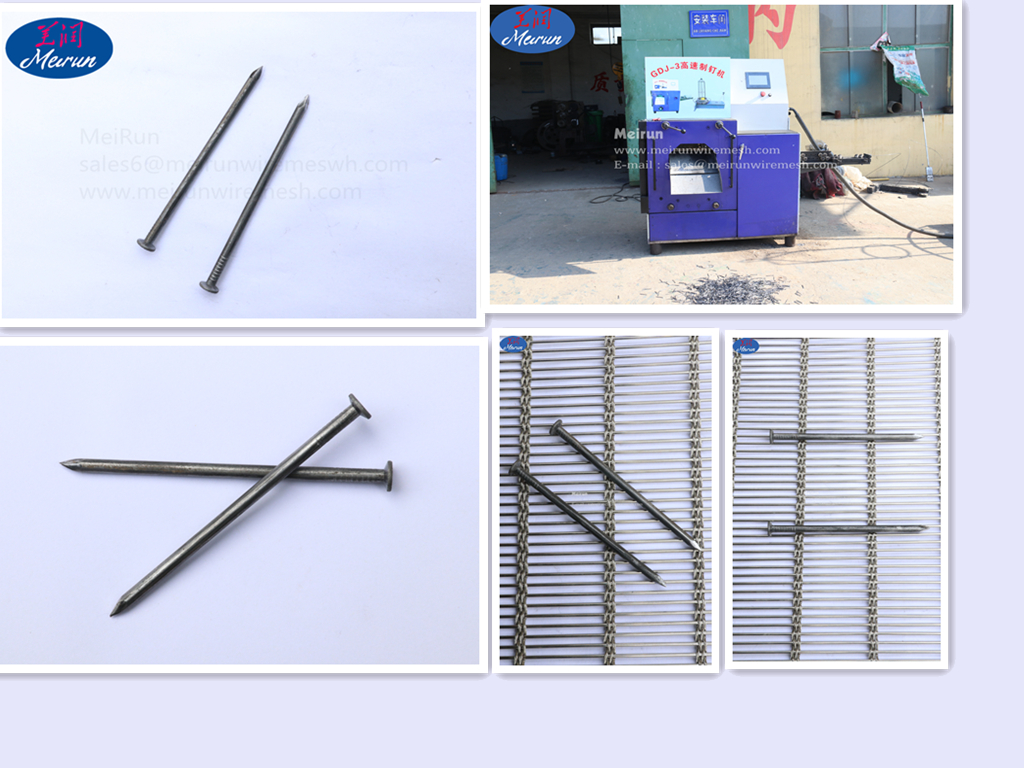

高速钉机产品图片


Parameter

MODEL

SSS-ZDJ-X50

SSS-ZDJ-X90

SSS-ZDJ-X130

SSS-ZDJ-X150

Nail Diameter

1.8-3.0 mm

2.0-3.5 mm

2..4-4.0 mm

2.5-5.0 mm

Nail Length

32- 55mm

45-90 mm

70-130 mm

70-150 mm

Speed

≤ 800pcs/min

≤760pcs/min

≤680pcs/min

≤700pcs/min

Power

7kw

7kw

7kw

14kw

Dimensions (mm)

1350*850*1170

1500*850*1600

1350*1220*1050

1500*800*1600

1350*1220*1050

1500*800*1600

1650*1250*1300

1500*800*1600

Weight

2200 kg

2800 kg

3000 kg

4500 kg

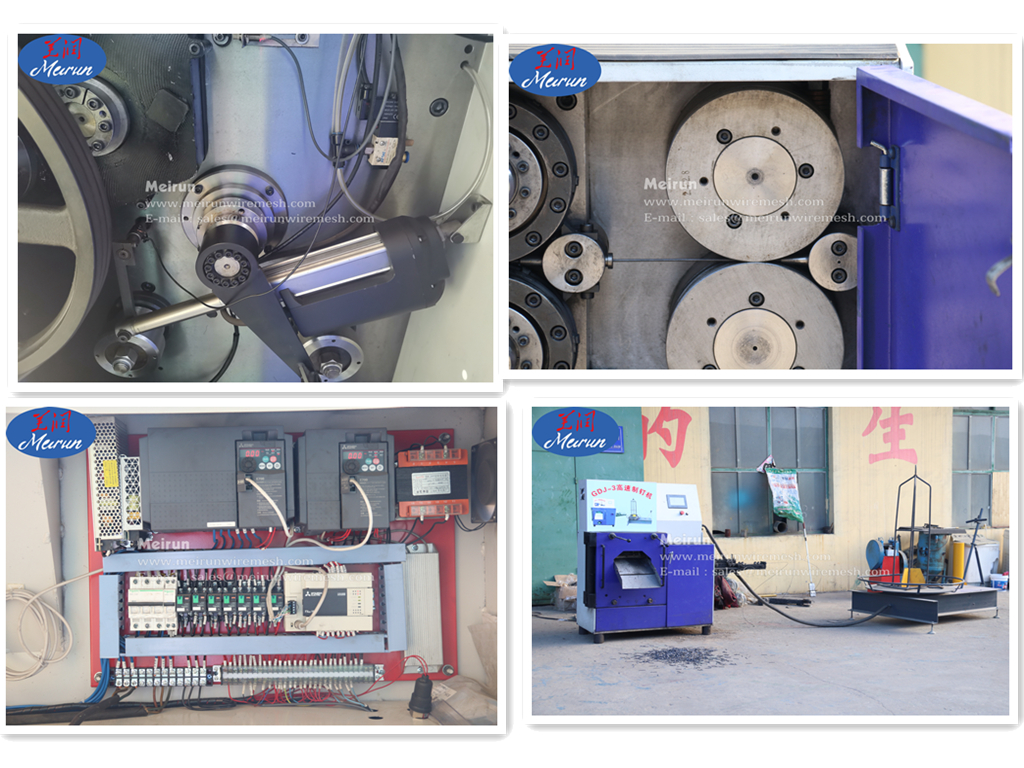

高速部分图片

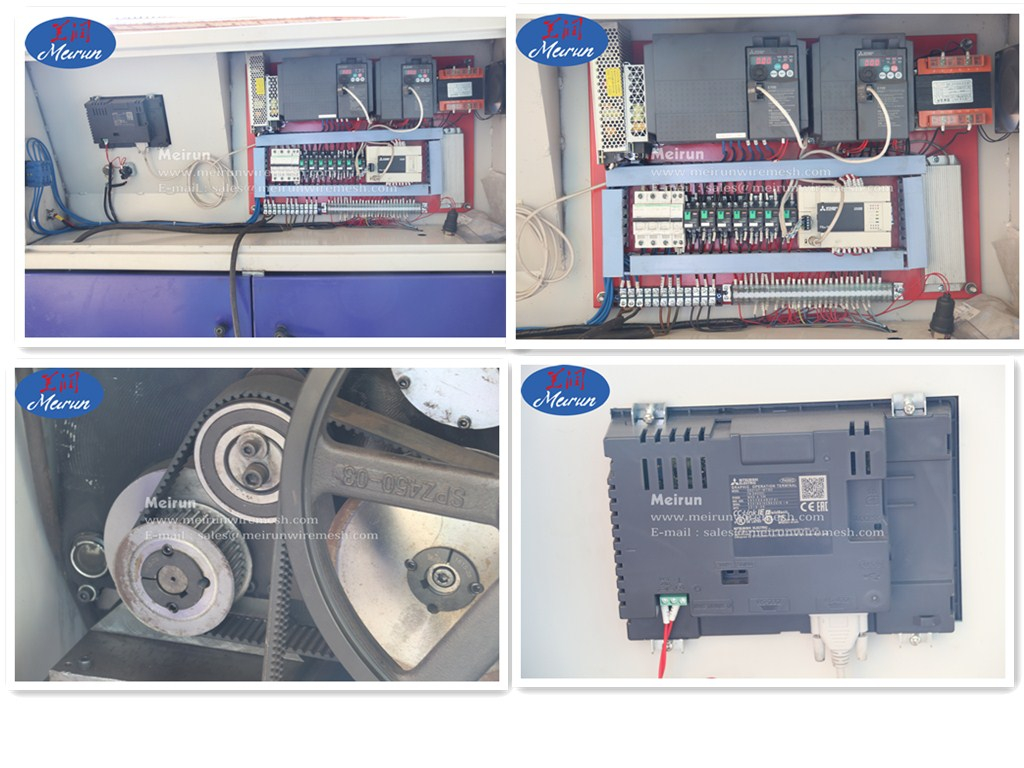

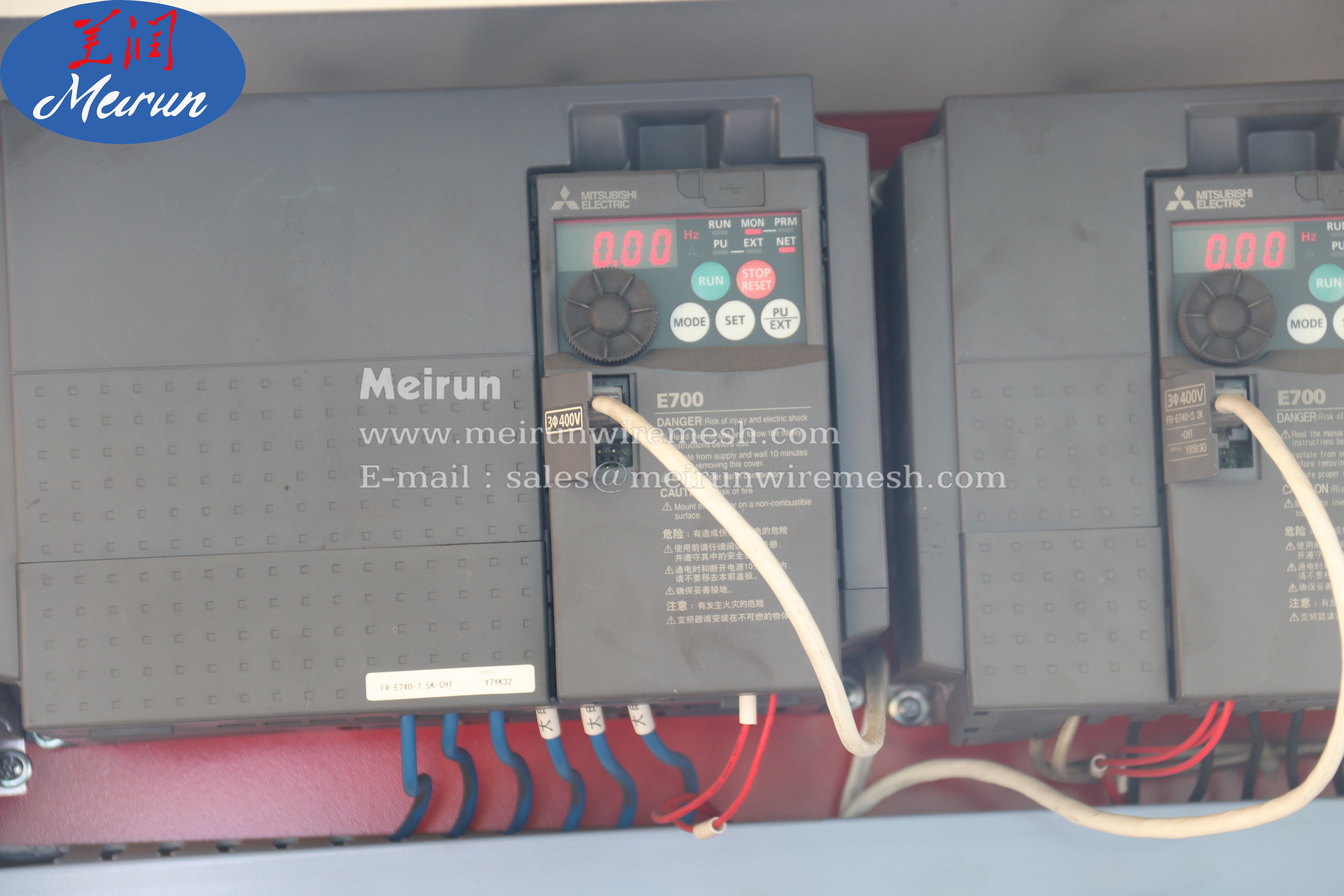

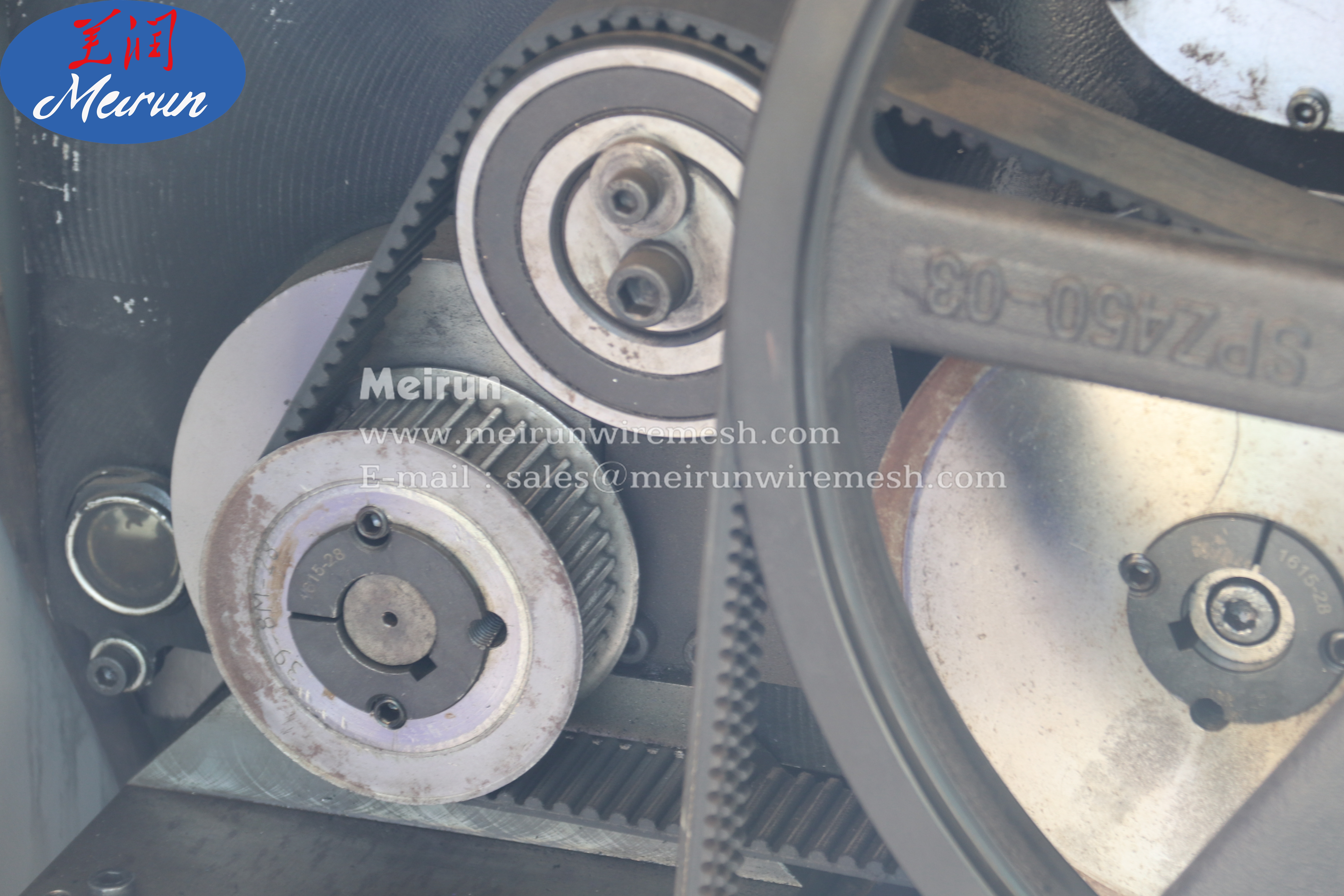

Part of machine


高速钉机部分图片

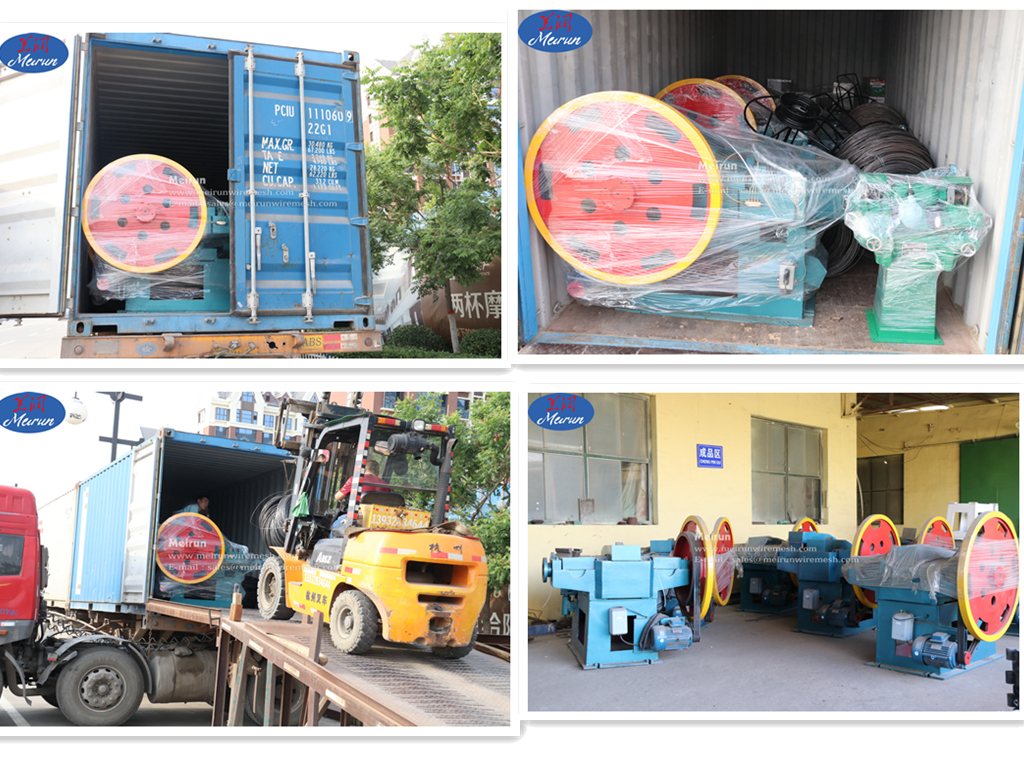

Delivery and packing

装箱图片11

Our company

证书11

Our customers

公司图片
