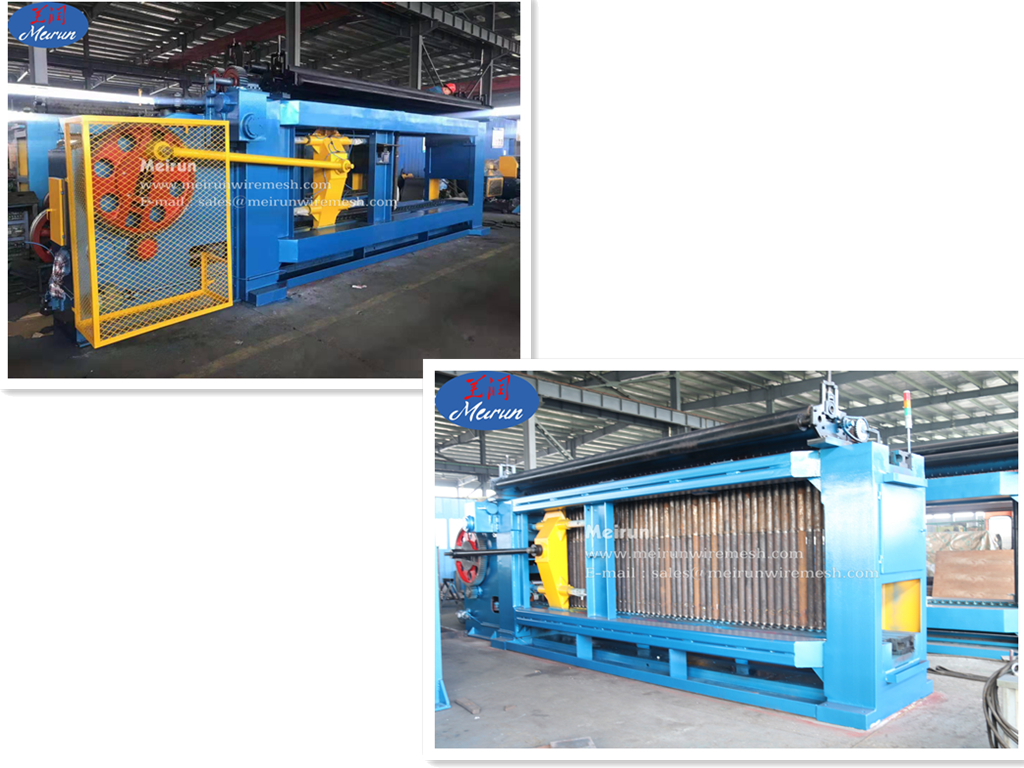

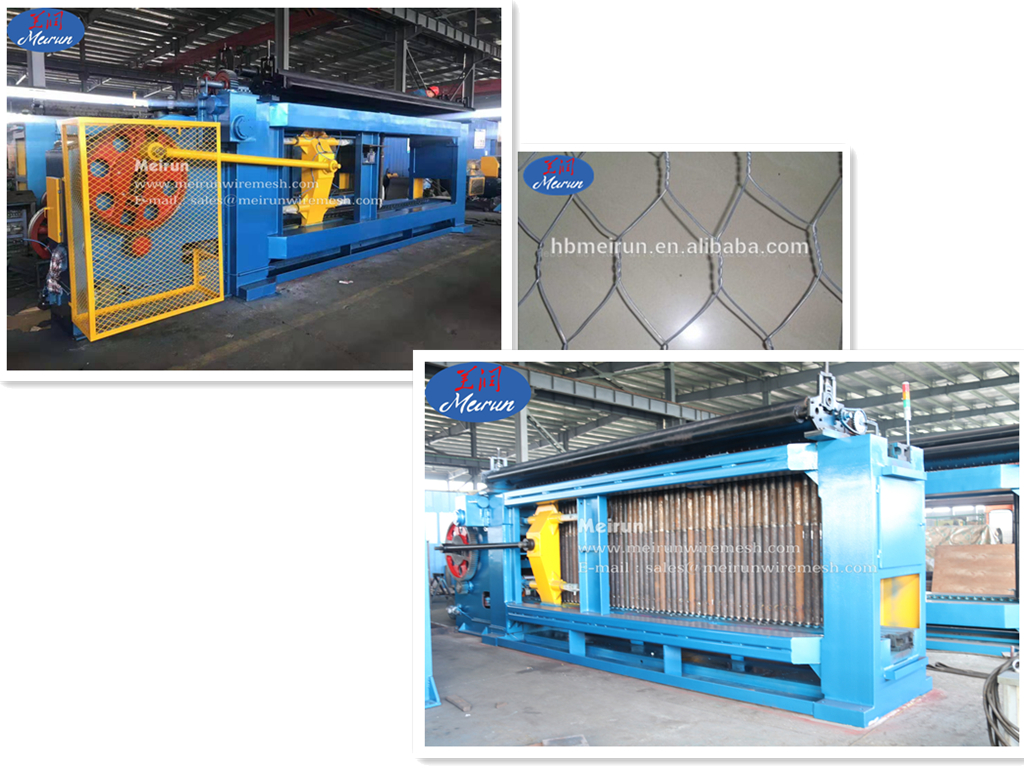

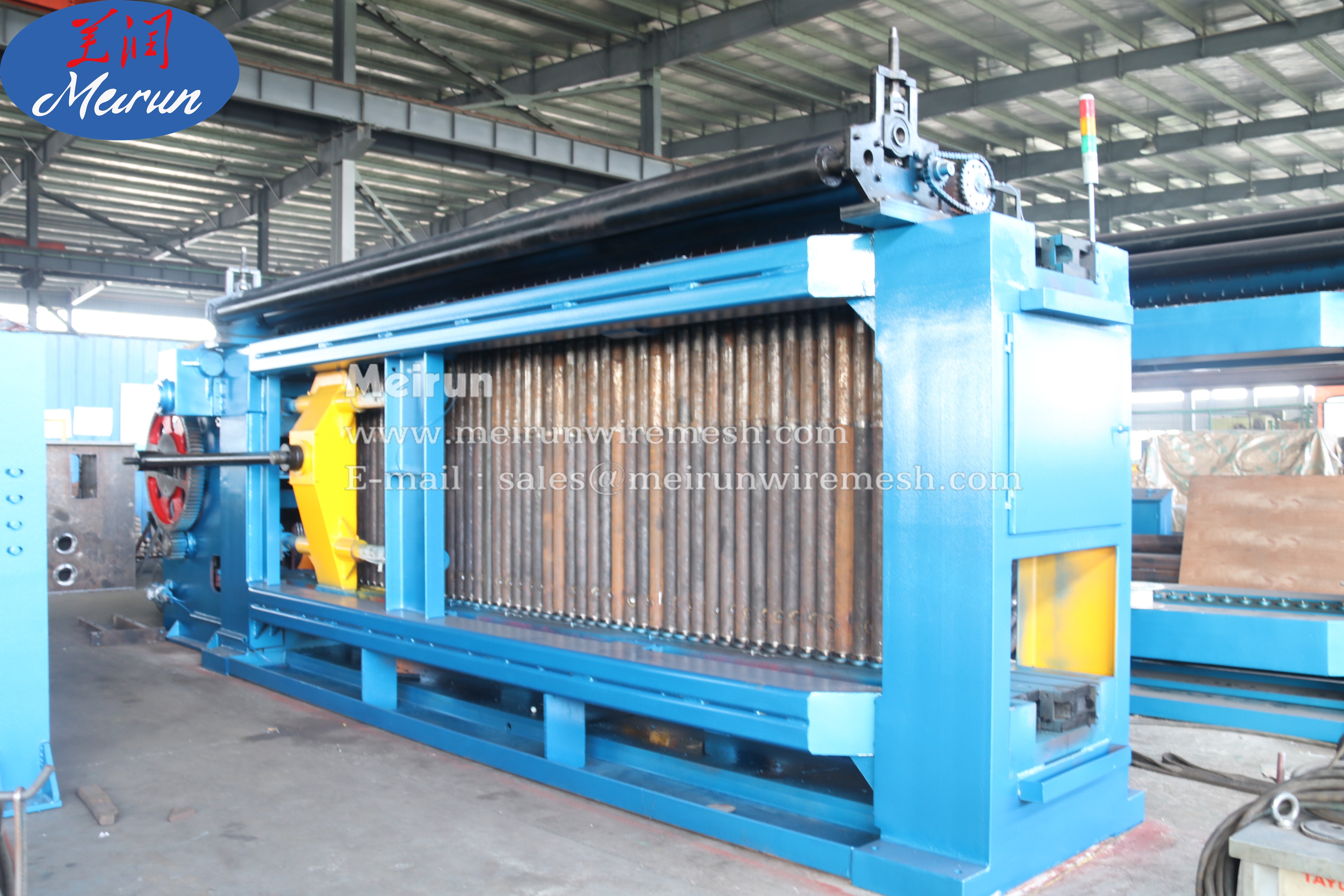

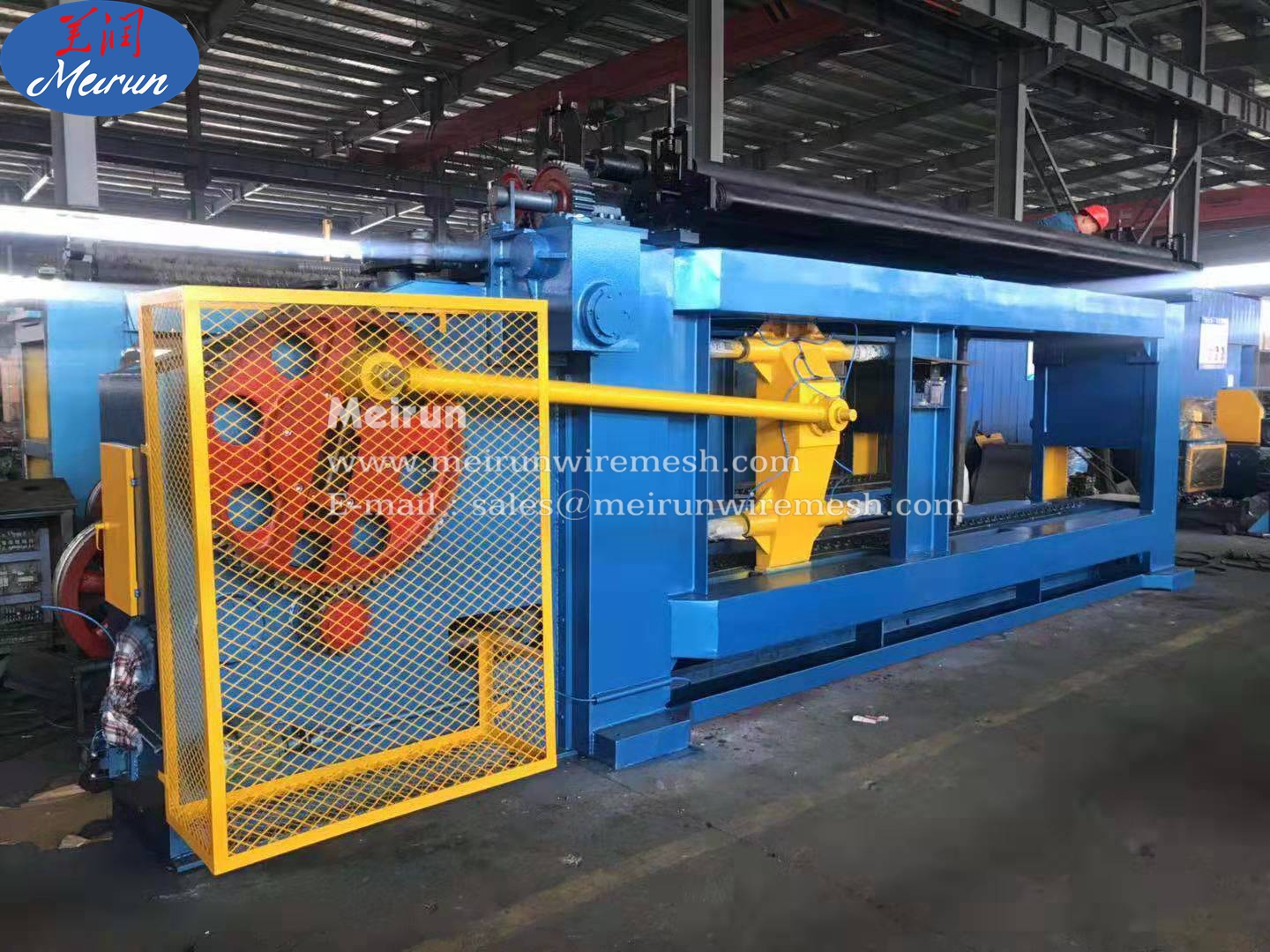

Wire mesh netting machine for gabion mesh cage and stone box
Gabion mesh machine, also called heavy duty hexagonal wire mesh machine or gabion basket machine, Stone cage machine, Gabion box machine, is to produce the hexagonal wire mesh for reinforcement stone box use.
Gabion basket machine is automatically controlled by international famous PLC and Touch screen, which have smooth operation, low noise and high efficiency characteristics.
Parameter
| Model | Mesh Size | Max Width | Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity | Theoretical Speed |
| / | mm | mm | mm | r/min | kw | m/h | |
| MRSLWJ1 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| MRSLWJ2 | 80*100 | 1.6-3.0 | 195 | ||||
| MRSLWJ3 | 100*120 | 1.6-3.5 | 225 | ||||
| MRSLWJ4 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| MRSLWJ5 | 60*80 | 3300 | 1.6-2.8 | 25 | 15 | 165 | |
| MRSLWJ6 | 80*100 | 1.6-3.0 | 195 | ||||
| MRSLWJ7 | 100*120 | 1.6-3.2 | 225 | ||||
| MRSLWJ8 | 120*150 | 1.6-3.5 | 20 | 255 | |||
| MRSLWJ9 | 60*80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | |
| MRSLWJ10 | 80*100 | 1.6-3.0 | 195 | ||||
| MRSLWJ11 | 100*120 | 1.6-3.0 | 225 | ||||
| MRSLWJ12 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| MRSLWJ13 | 60*80 | 4300 | 1.6-2.8 | 5 | 25 | 22 | 165 |
| MRSLWJ14 | 80*100 | 1.6-3.0 | 195 | ||||
| MRSLWJ15 | 100*120 | 1.6-3.0 | 225 | ||||
| MRSLWJ16 | 100*150 | 1.6-3.2 | 20 | 255 | |||
| Dimension | 8*2.2*2.1m;Weight:67 ton | ||||||
1. High production, 840 square meters per hour.

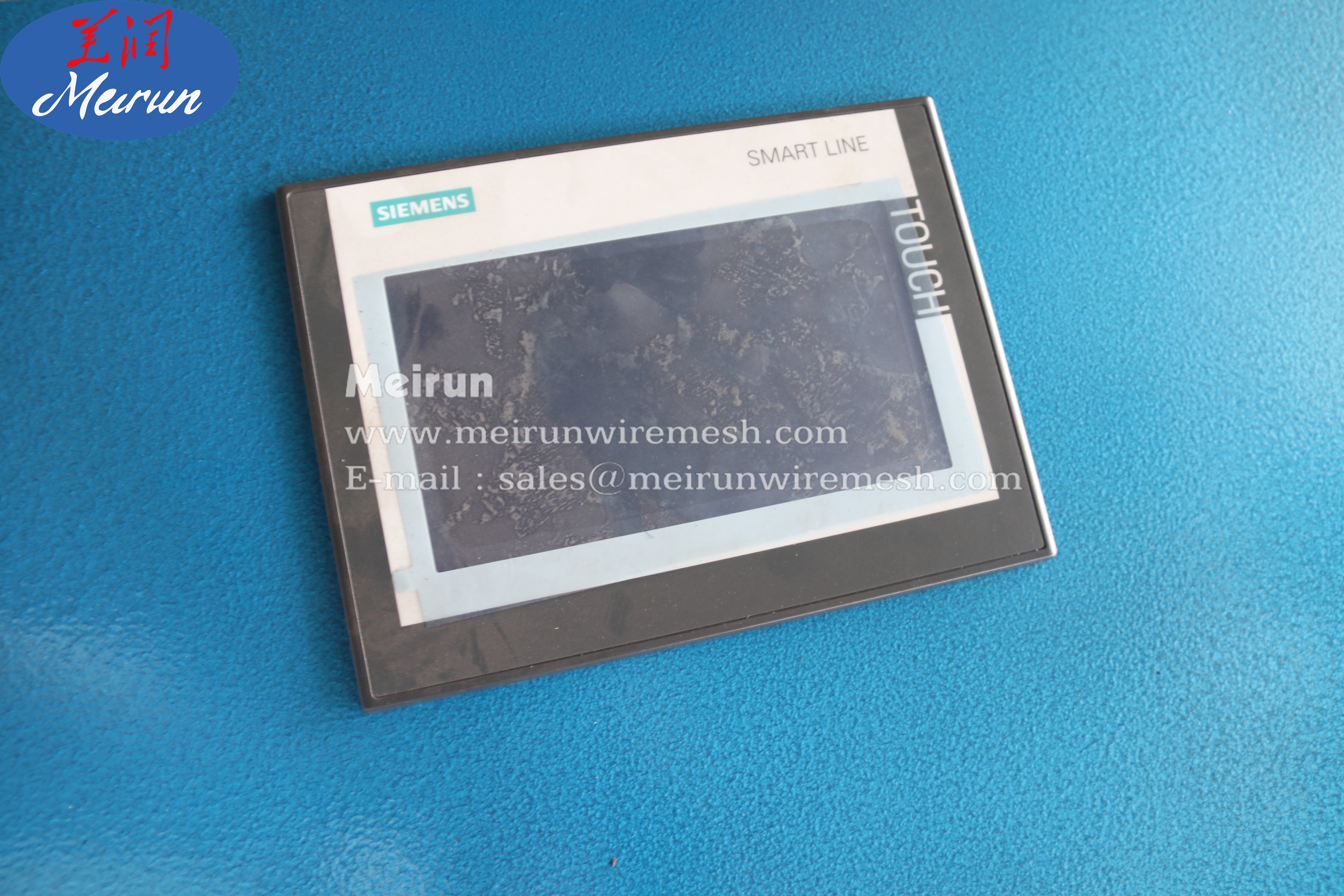

2. International famous PLC and touch screen control panel .
3. Imported Electronics.
4. Welding crossbeam for stronger construction.
5. Frequency adjustable motor.
6. Weaving one net or several net with the same machine.
7. Complete line of gabion mesh production.

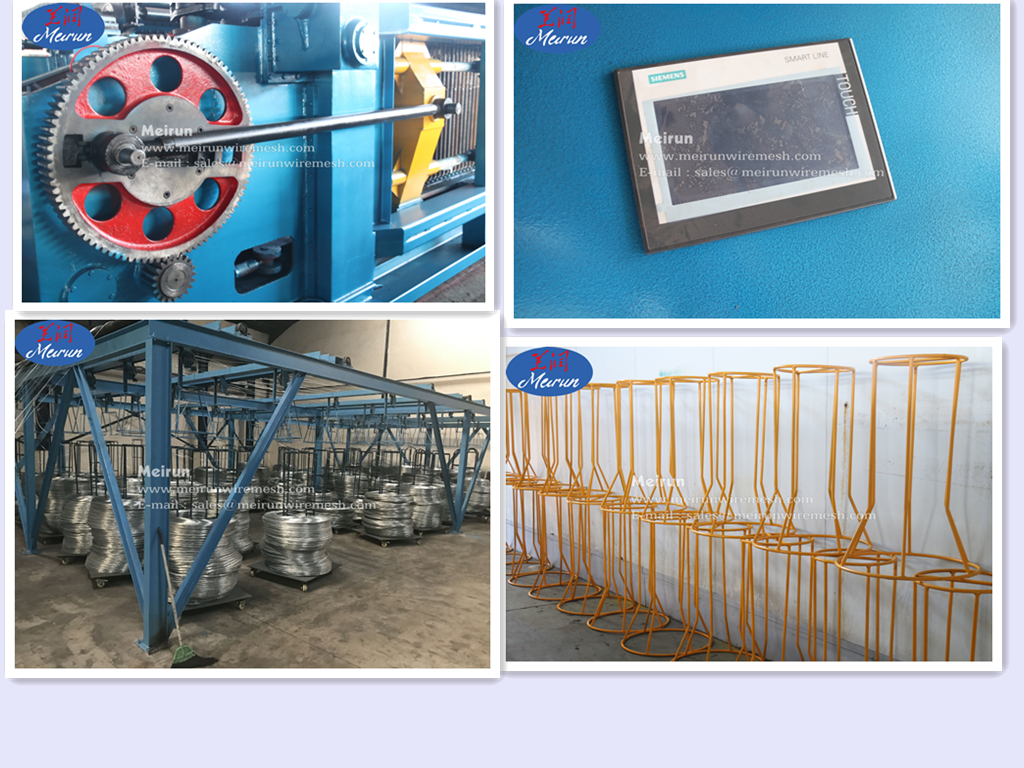

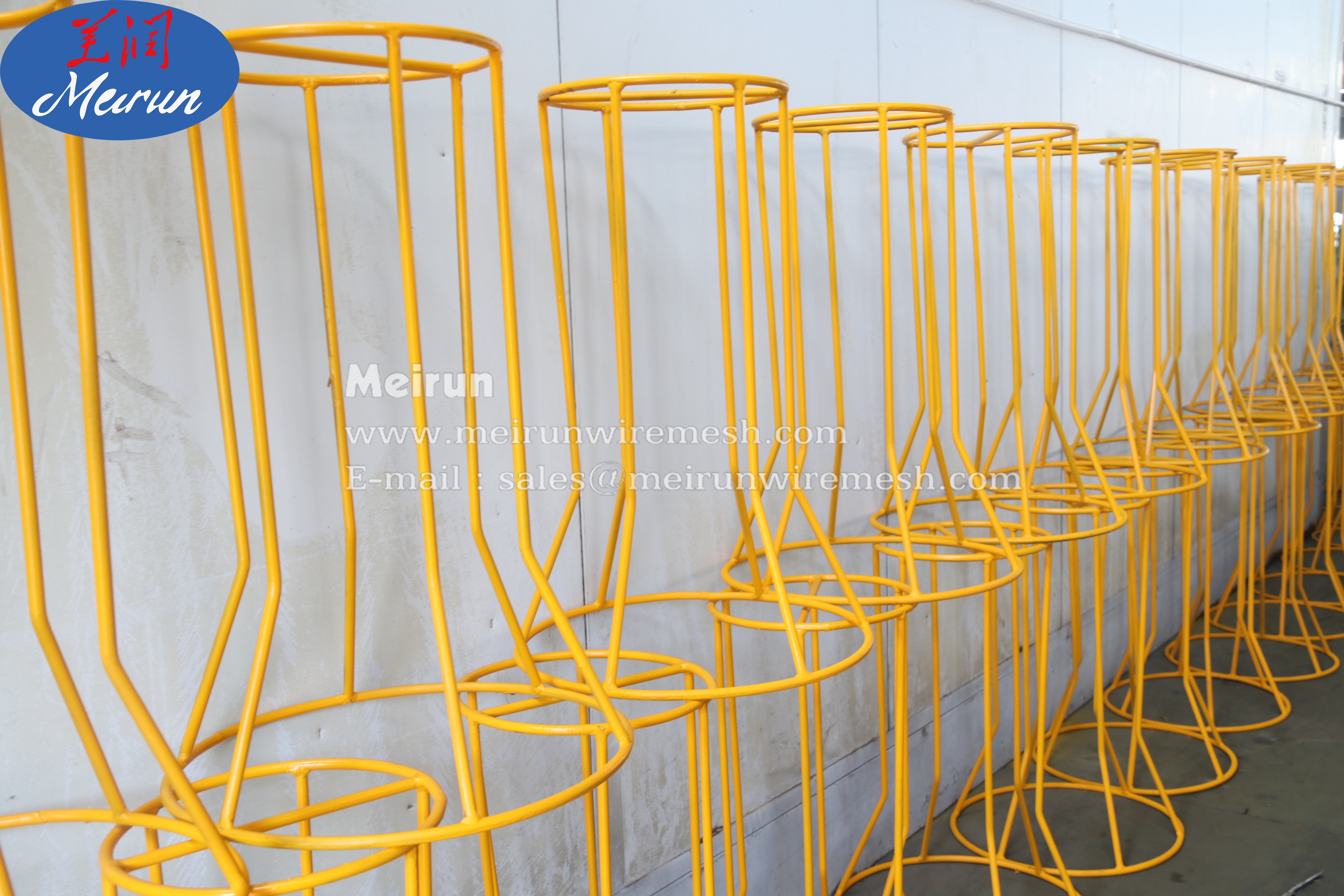

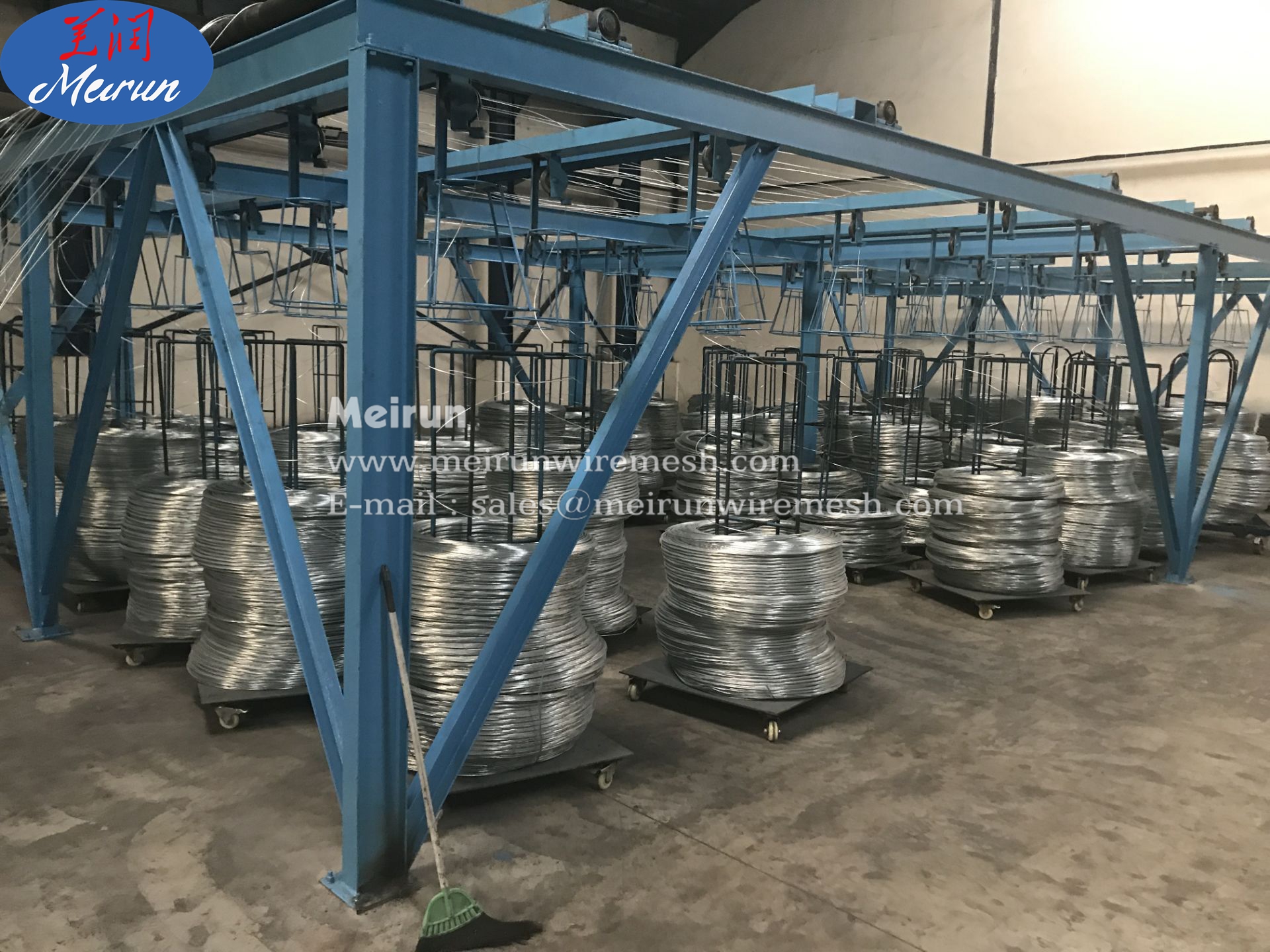

Part of machine

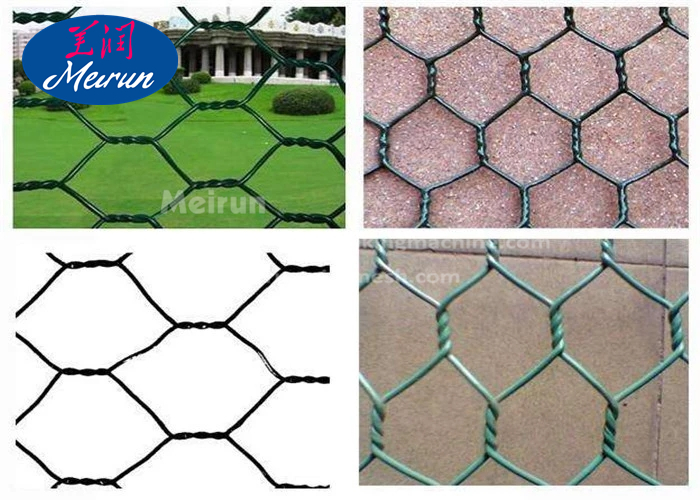

Products
Stone cage net / Gabion mesh can be used in the slope support, mountain rockface net-suspended spray, slope vegetative guarding block (green), railway highway isolation, it can also make luggage, gauze pad, used in rivers, DAMS and scour prevention of seawall protection reservoir, river closure with a box.The most serious hazard of the river is that the water runs along the river bank to destroy it, causing flooding, causing a lot of loss of life and property and a lot of soil erosion.Therefore, the application of grid structure is one of the best solutions when dealing with the above problems, which can make the riverbed Bankpermanently protected.
Our company
Our customers
