Automatic Brick Force Wire Mesh Welding Machine

Brick force mesh making machine is mainly used to produce brick force meshes. Brick force mesh is widely used in construction,hollow wall reinforcement, increase the elasticity, to prevent wall cracks, is a good building auxiliary material.
Machine name :
Automatic brick force welded wire machine
Wire diameter:
1.6mm -3.5mm
Controller:
PLC with touch panel
Availability:
Quantity:
Inquire Add to Basket

  • MRHWJ

  • Meirun

  • 8463300000



                                                    Brick force wire welded mesh making machine

Brick force mesh making machine is mainly used to produce brick force meshes. Brick force mesh is widely used in construction,hollow wall reinforcement, increase the elasticity, to prevent wall cracks, is a good building auxiliary material.

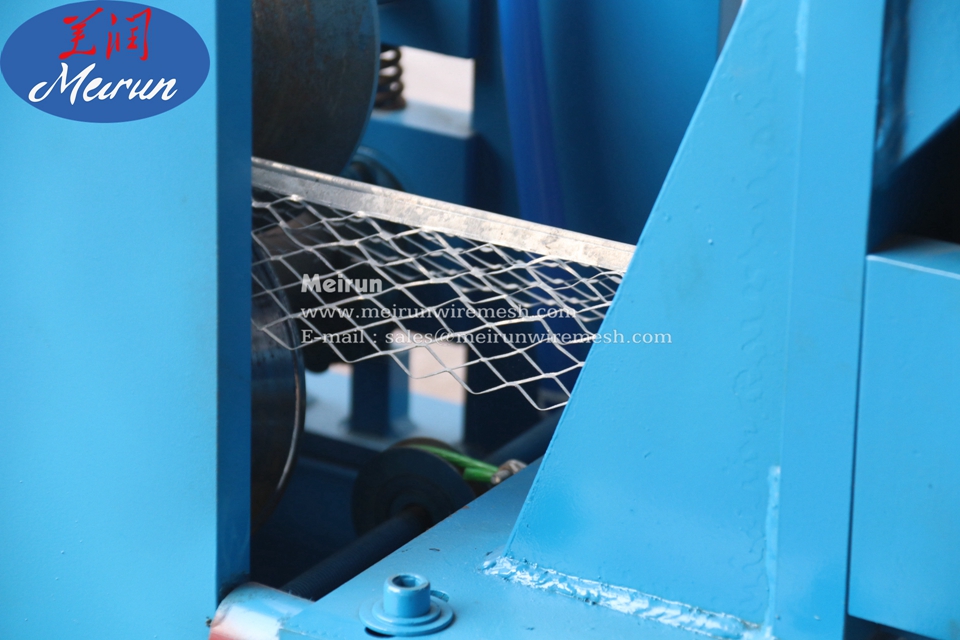

Produce line Welded part

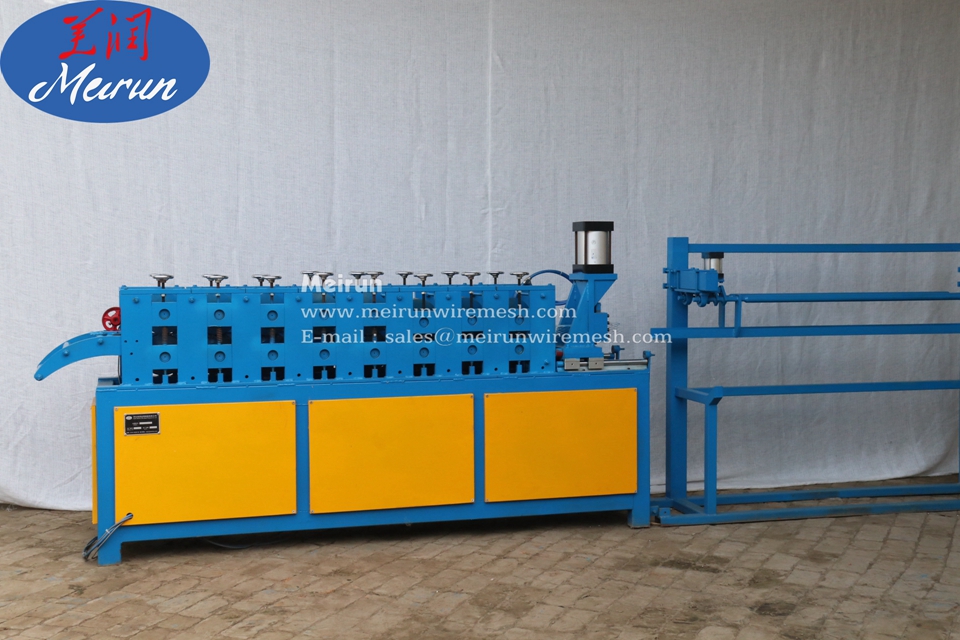

Machine produce line cutting part
Product Description
This machine is used to produce the brickforce mesh roll from 1.6-3.5mm wire . This brickforce mesh is very popular in Africa,South Africa, Malawi,Zamiba
1.Taiwan famous brand PLC and touching screen
2.pneumatic testing, servo alarm
3.mesh size is set from PLC , welding current and welding time is also set from PLC
 Machine Specification
Items
Parameter
Mesh width
75mm, 115mm, 230mm (50-230mm adjustable )
Electrode no.
4
Wire diameter
1.6-3.5mm
Cross wire space
≥20mm
Material
Low carbon wire ( carbon contains ≤0.2%,tensile strength ≤550MPa
Welding speed
60-90 times/min.
Transformer
36KVA×1set
Line wire feeding
Coils wire feed from coil by servo motor
Cross wire feeding
Coils wire feed from coil by servo motor
Welding pressure
Pneumatic
Welding method
Controlled by SCR
Mesh pulling
Automatic rolling machine, one time making two coils
Controller
PLC with touch panel
Mesh length setting
Automatic cut
Machine products
Two type products  can produce . If possible , please send product picture , confirm with technical staff .
