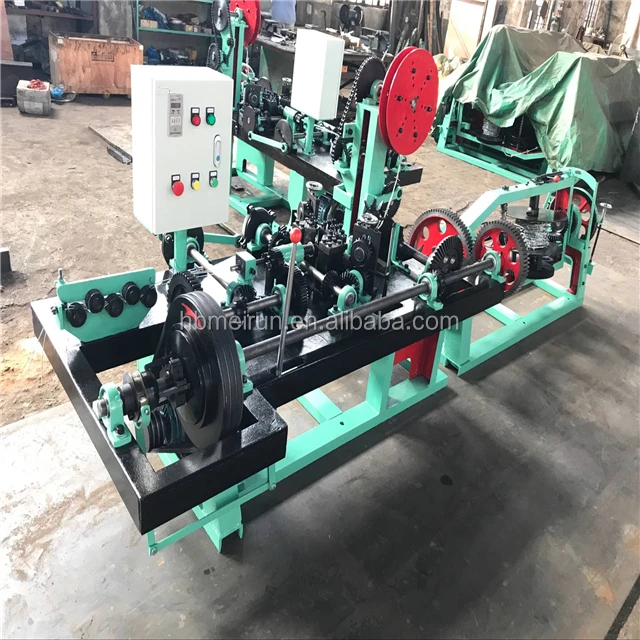

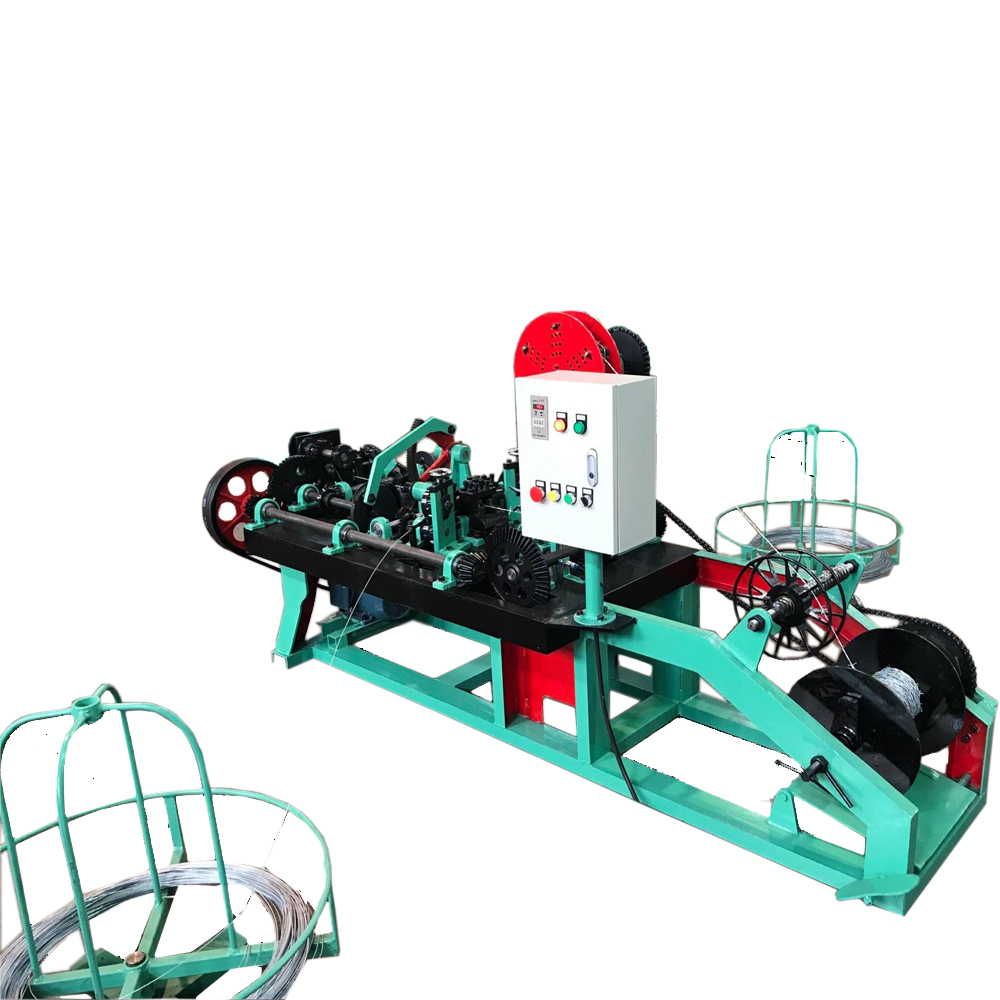

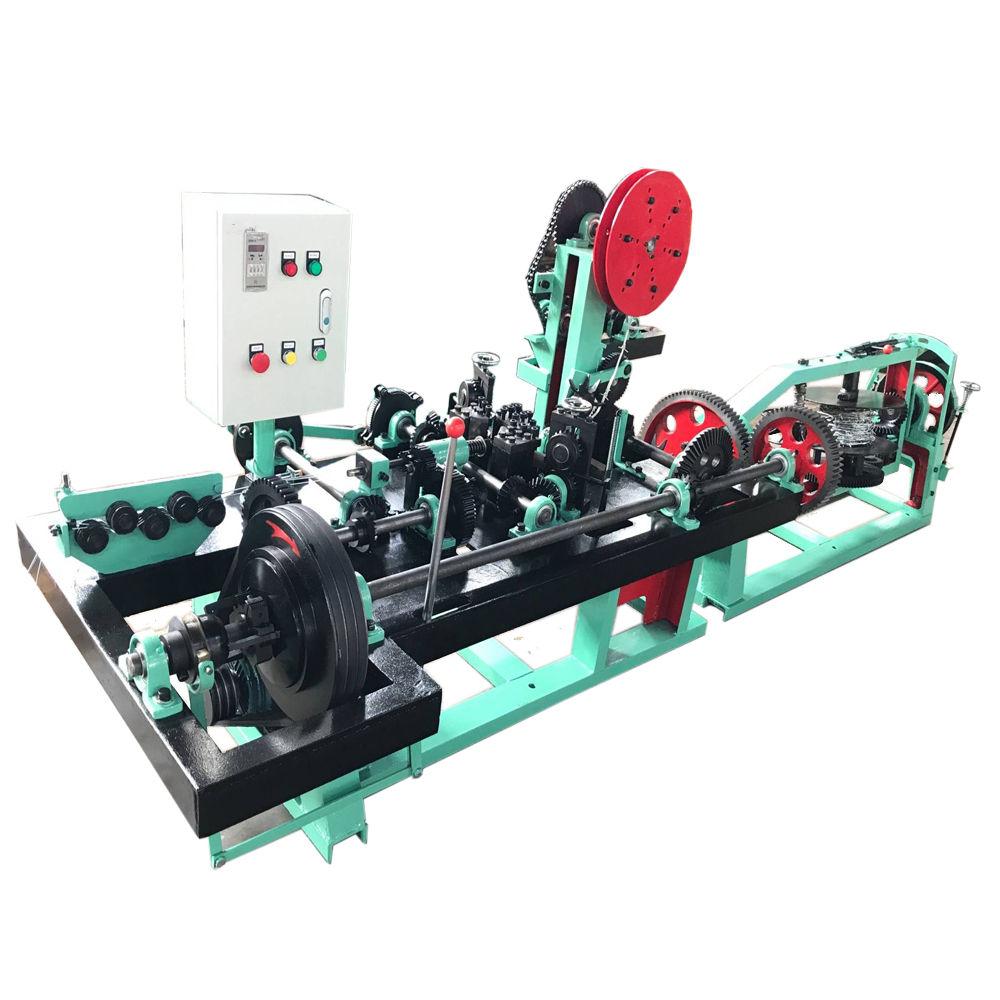

Automatic Barbed Wire Fencing Making Machine

The machine is of horizontal design, double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, assembled together at the middle. And supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.
The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.

Size:
Quantity:
  • Barbed wire machine
  • MR
  • MR04

 Barbed wire making machine description:



The machine is of horizontal design, double-strand barbed wire machine and received by wire twisted around the wire connecting two parts of the composition, assembled together at the middle. And supporting four wire tray to put the machine to work to coordinate the various components, the action level machine is mainly used for the production of a variety of multi-strand barbed wire mesh machine, the use of the material should be consistent with stable, flexible and reliable operation.
The materials of barbed wire usually hot dipped galvanized wire, electric galvanized wire and PVC coated wire etc.

 Automatic Barbed Wire Fencing Making Machine

 Features of the barbed wire making machine:
1. It is of low-noise, high-safety and high-efficiency.
2. It is easy to operate and of high-capacity.
3. Twisted number and barbed space can be customized according to customer's requirement.
4. It is inexpensive.

 Automatic Barbed Wire Fencing Making Machine

Automatic Barbed Wire Fencing Making Machine               Automatic Barbed Wire Fencing Making Machine



Barbed wire making machine specification :

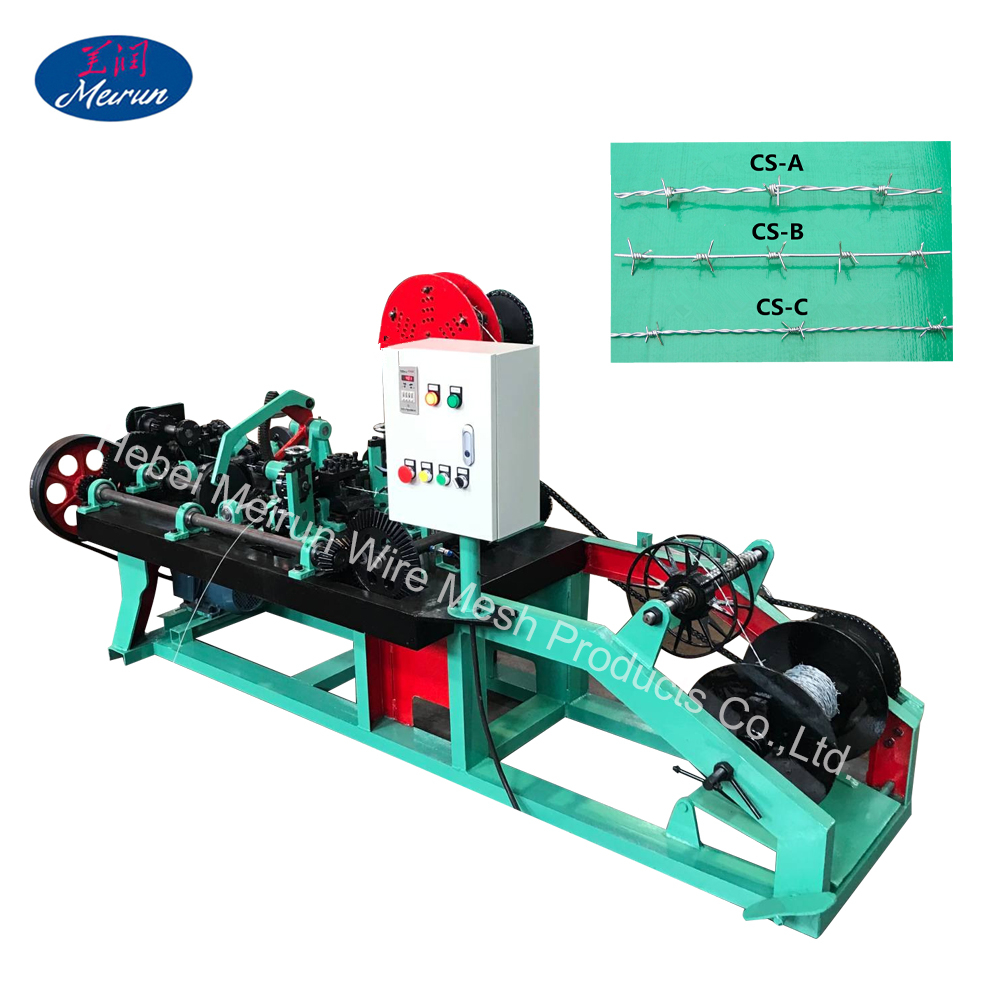

Model CS-A CS-B CS-C


Barb pitch spacing



76mm-152mm



76mm-150mm



100mm-120mm



Strand diameter



1.8-3.0mm



1.6-2.8mm



2.2-2.8mm



Barbed wire diameter



1.8-2.8mm



1.6-2.3mm



1.8-2.2mm



Motor



3KW



2.2KW



2.2KW



Voltage



380V/50HZ



380V/50HZ



380V/50HZ



Rated output



80-120kg/h



50-60kg/h



40kg/h



Size of the host



1.8*0.75*1.1m



3.5*0.8*1.1m



3.5*0.8*1.1m



Vice machine size



1.9*0.75*0.90m



Machine weight



1500kg



1200kg



1000kg



Barbed wire usage:

Barbed wire with strong anticorrosion performance, long service life, good defense, and other characteristics, suitable for factory, private villas, residential buildings on the ground floor, construction site, Banks, prisons, print works, military machine, bungalow.

Automatic Barbed Wire Fencing Making Machine   Automatic Barbed Wire Fencing Making Machine



Automatic Barbed Wire Fencing Making Machine  Automatic Barbed Wire Fencing Making Machine
