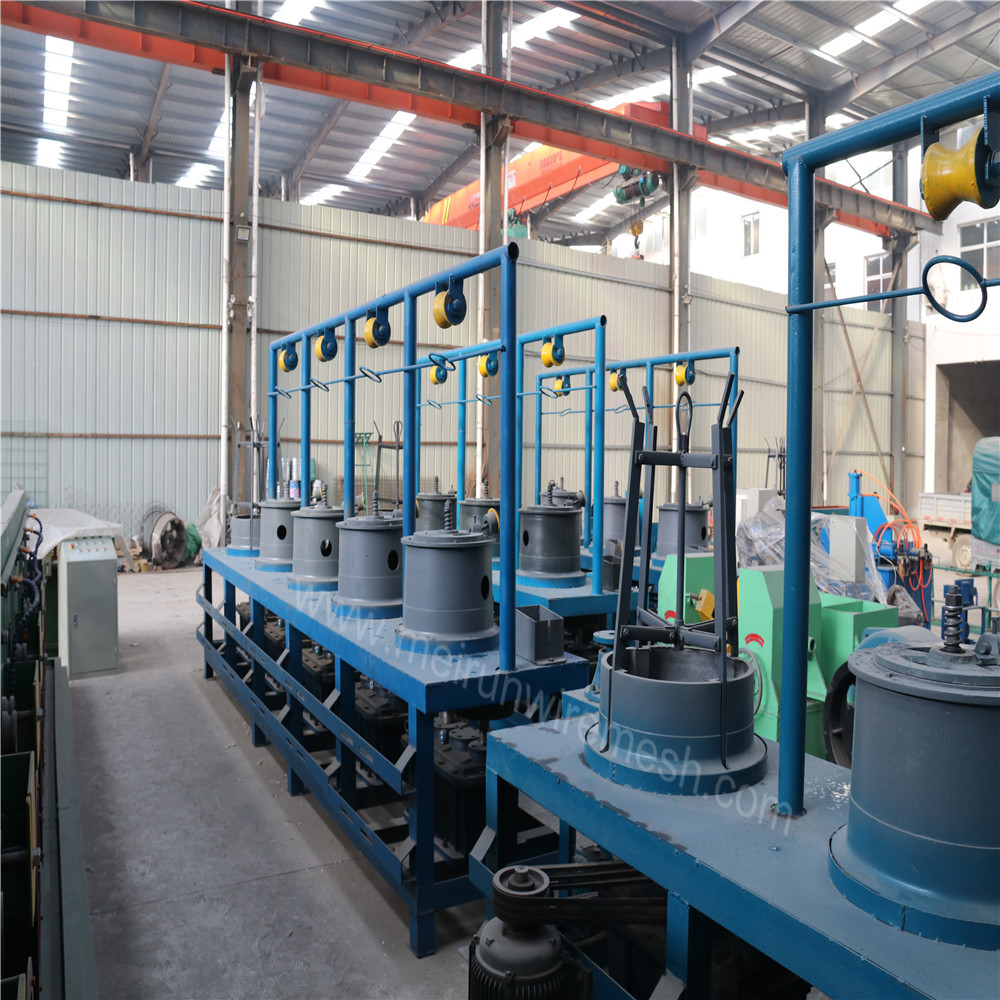

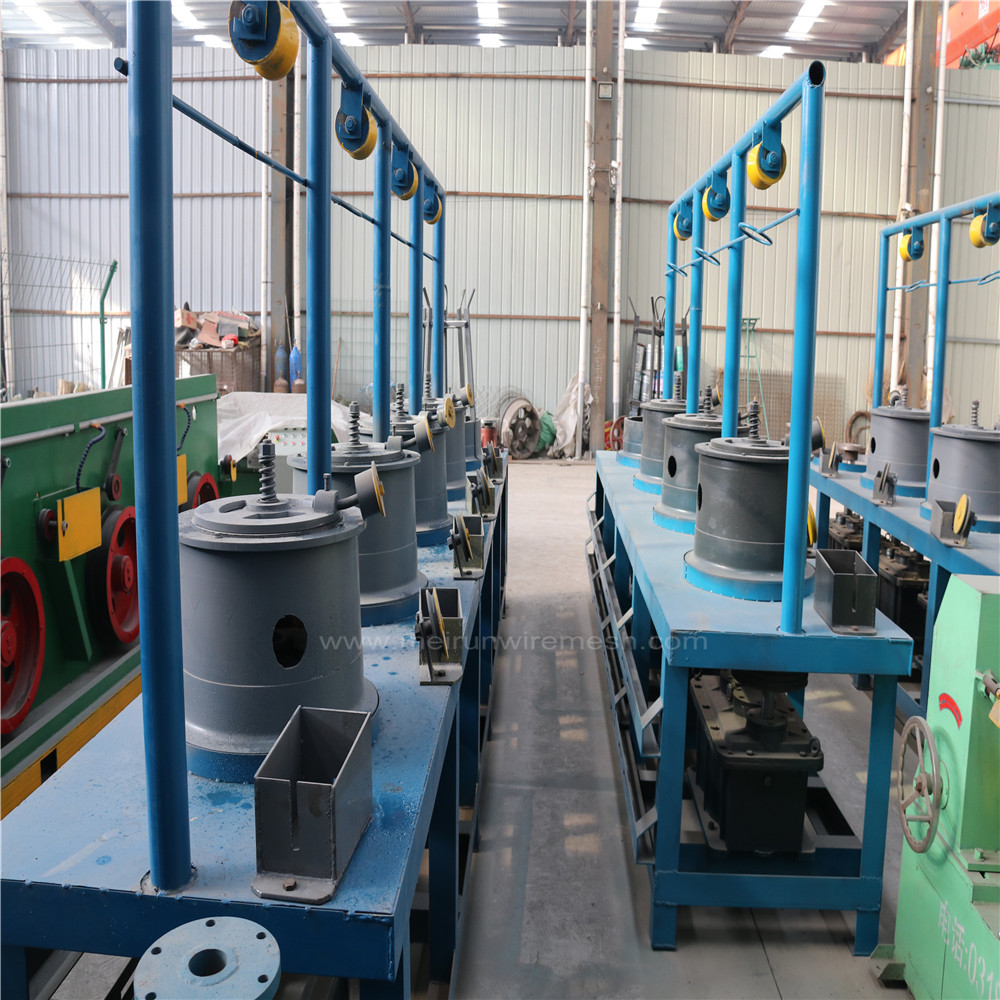

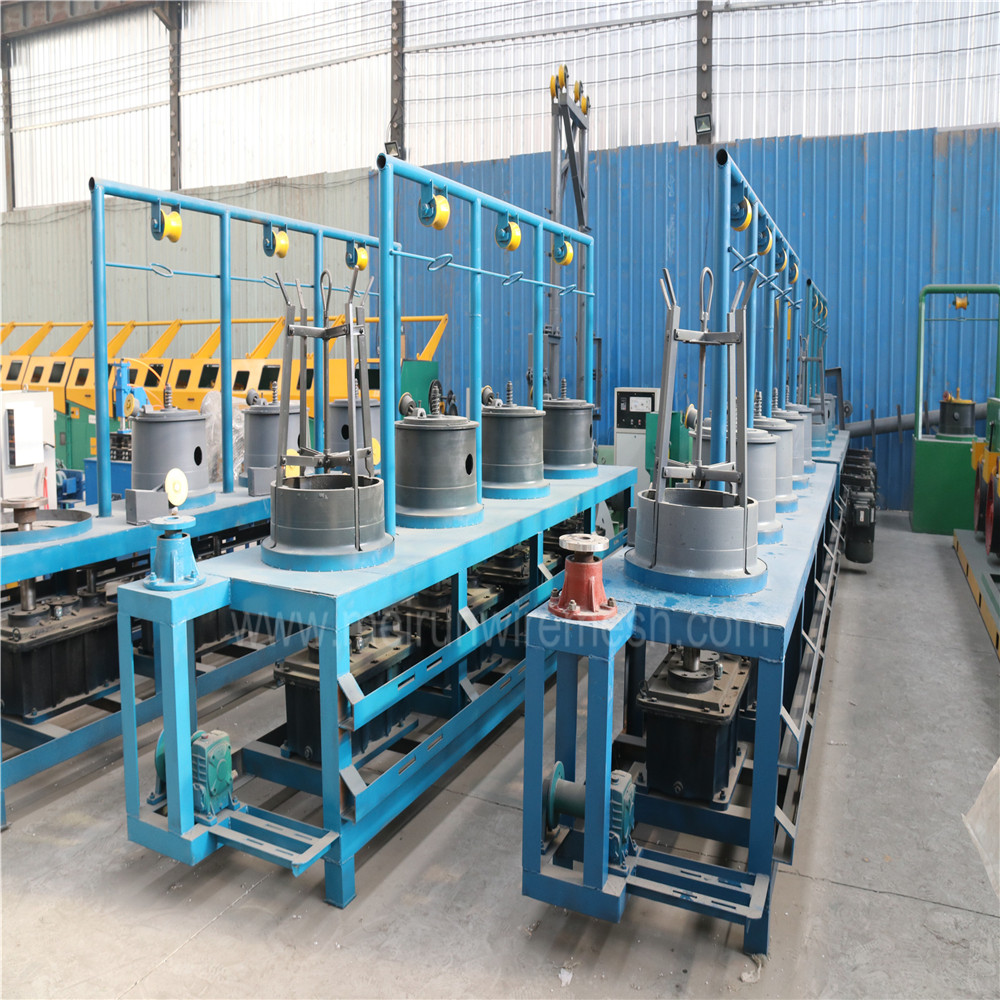

Annealing Wire Drawing Machine Manufacturer

Our wire drawing machine is a full Automation Equipment which could draws the metal wires rod to section bar once completed.It has the advantages of accurate geometric shap, good surface roughness, high dimensional.

Its process include: Decoil, initial straightening, cold drawing, precision straightening, CNC shearing cutting, polishing and finished products collection.
Availability:
Quantity:
  • Wire drawing machine

  • MR

  • MR19

Product Description

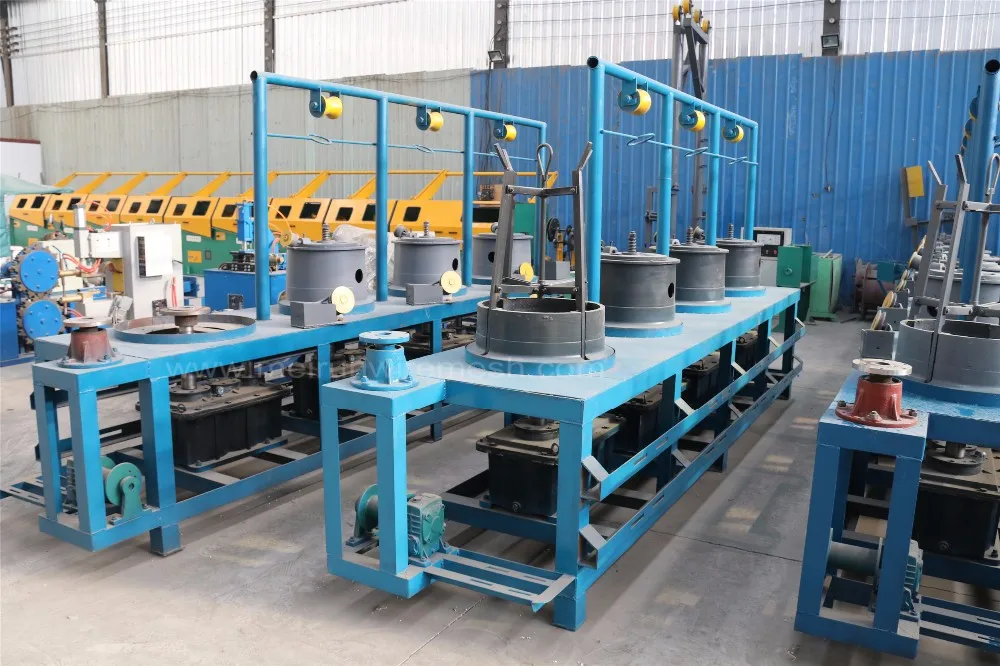

                                                                      Wire drawing machine

Our wire drawing machine is a full Automation Equipment which could draws the metal wires rod to section bar once completed.It has the advantages of accurate geometric shap, good surface roughness, high dimensional.

Its process include: Decoil, initial straightening, cold drawing, precision straightening, CNC shearing cutting, polishing and finished products collection.

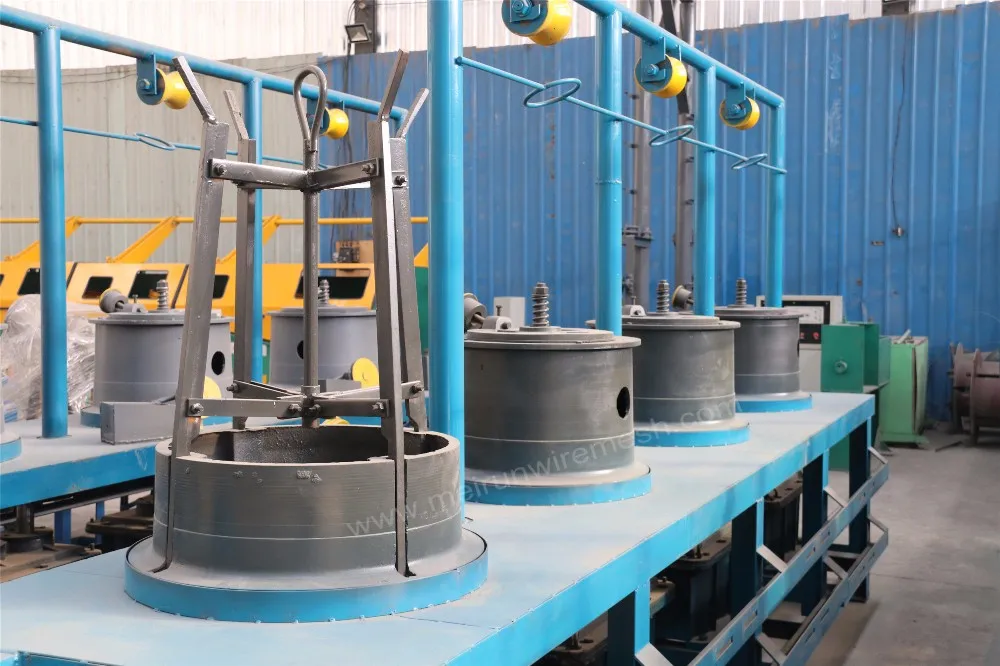

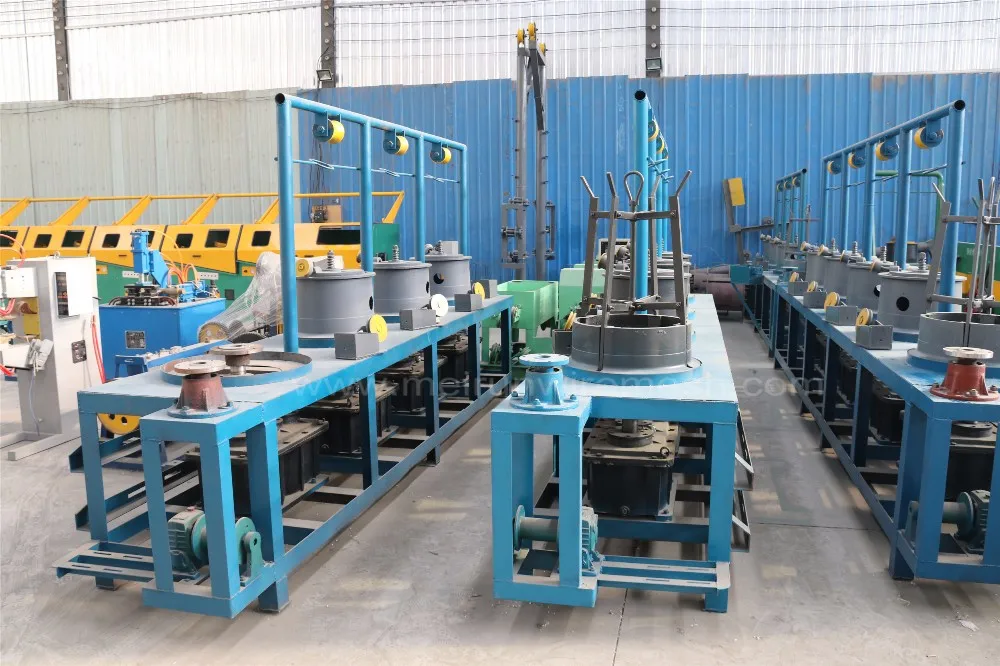

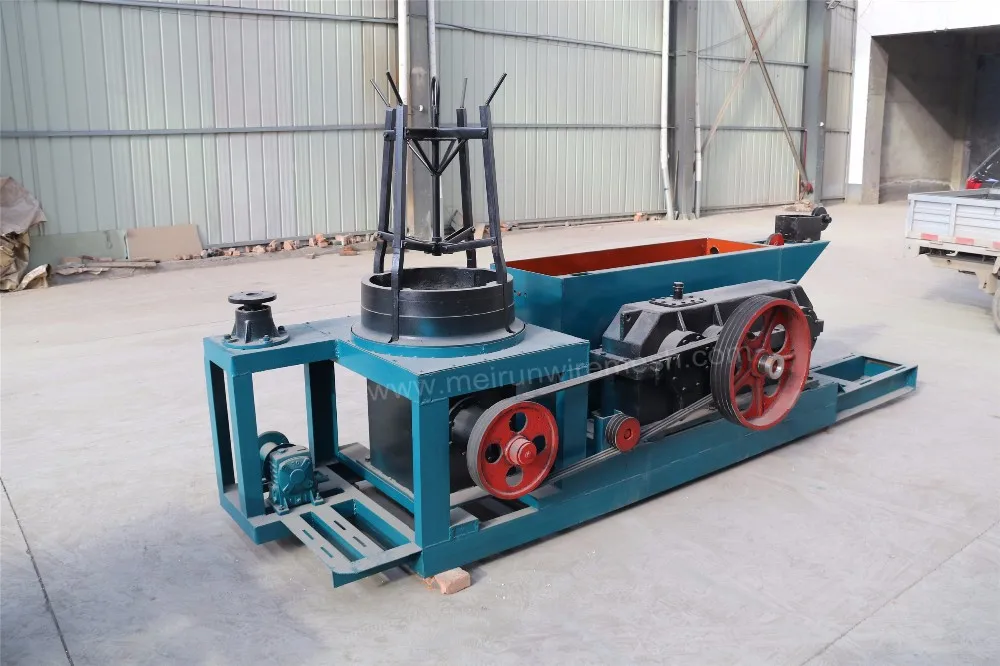

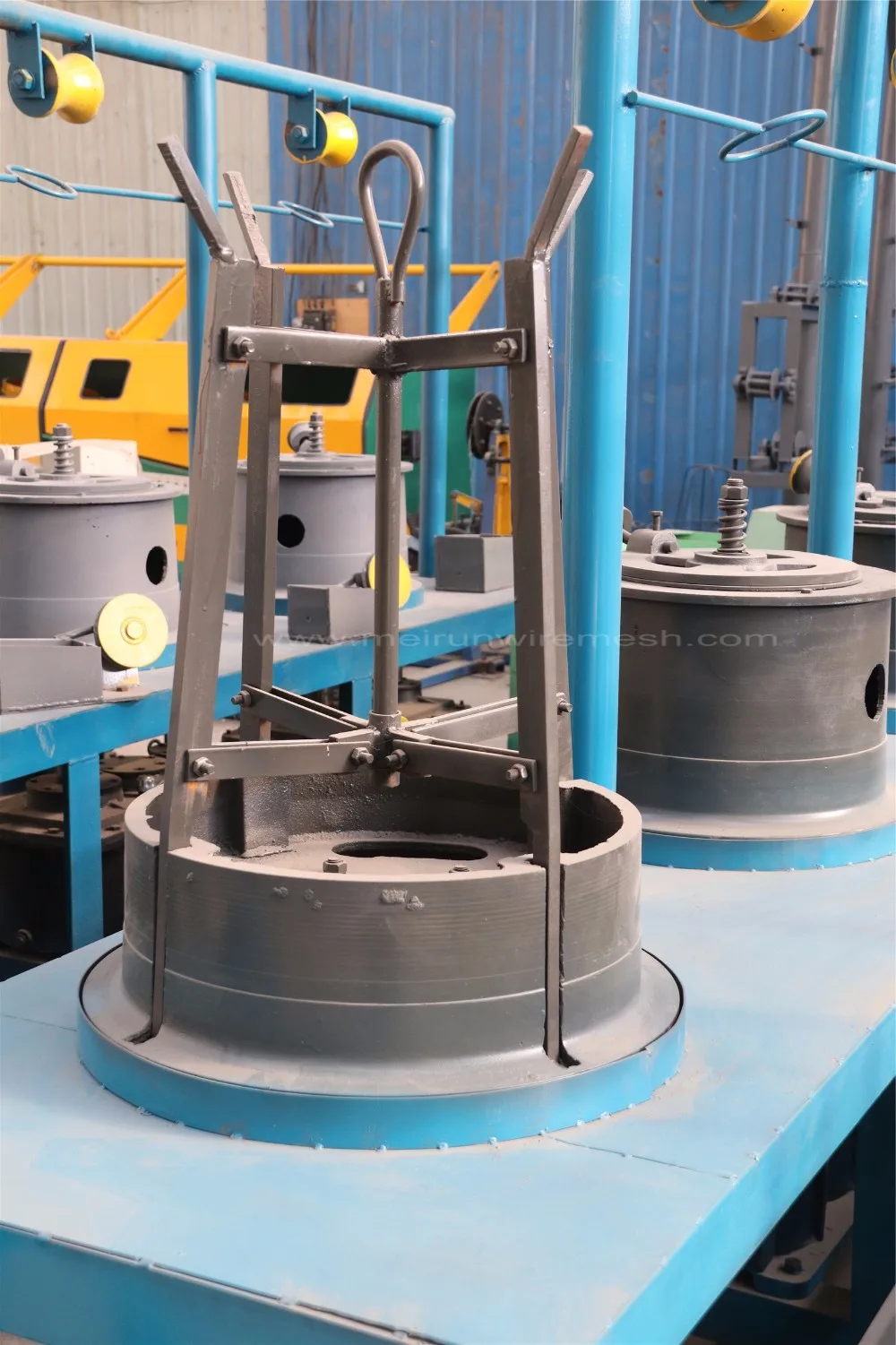

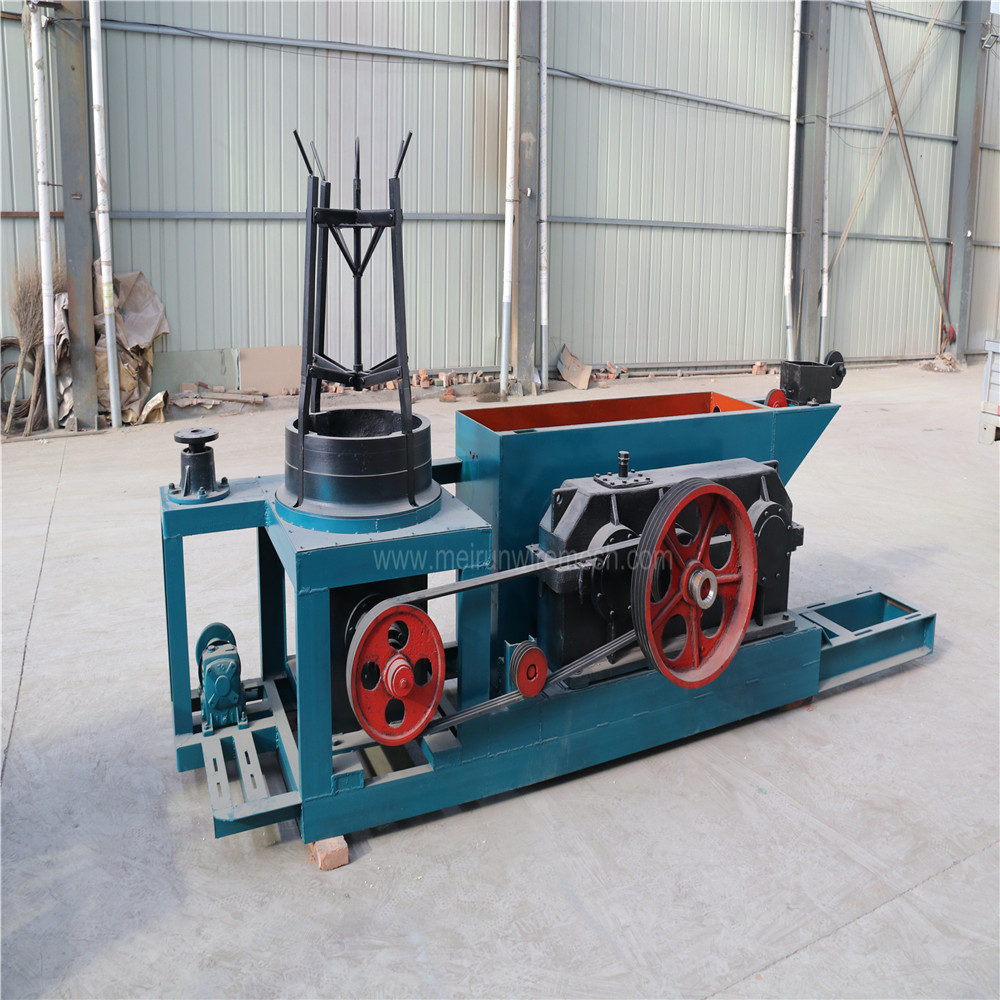

Detailed Images

Our combined cold drawing machine contains many parts, The main parts are include

1.Decoiler and rolling rack,
2.Pre-straightening machine(V+H),
3.Cold Drawing machine,
4.Precision straightening machine(V+H).
5.CNC shearing machine(Flying shear),
6.Automatic feeder,
7.Feeding tube box.
8.Polishing machine(if you need round bar, you should have this),
9.Unloading rack.
10.Electric Control system.
1).Mitsubishi PLC;2).Weiun (Taiwan) Touch screen;3).Frequency converter(China);4).US Parker servo drive;5).Main low-voltage accessories using Siemens or Schneider brand.

TECHNICAL DATA


Type
LT2-17/280
LT1-11/350
 LT1-9/450
LT1-12/350
LT1-9/560
Drum diameter
280mm
350mm
450mm
350mm
560mm
Number of mould
17pcs
11pcs
9pcs
12pcs
9pcs
Input diameter
2.5-2.0mm
2.8-2.5mm
3.4-3mm
2.2mm
4.7mm
Output diameter
0.9-0.45mm
1.4-1.2mm
1.8-1.6mm
0.7mm
1.6mm
Speed (m/min)
500-650
160-350
160-300
250-400
280-300
Motor
22-30kw
30-45kw
37-45kw
15-18.5kw
110kw
Dimension (mm)
3000*1300*1100
2400*1400*1200
 3000*1500*1200
2400*1100*1100
3500*1500*1200
Weight
4200kg
3300kg
4000kg
1800kg
4000kg

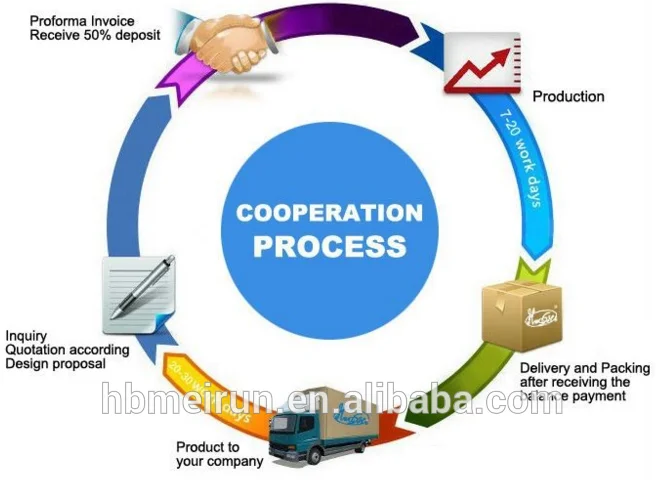

Packing & Delivery

Delivery: Delivery within 15 days after receiving 70% of balance payment

Packing: packing in wooden case or as required


Our Service

1.The seller will send our engineer to install the machine accordingly if the buyer need.
2.The buyer have to pay the salary US$100 per day, and the air ticket, accommodation, eating and some related fees should be your responsibility.
3.It is in same condition if the buyer need the seller to send the interpreter.
4.The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.

Our Company

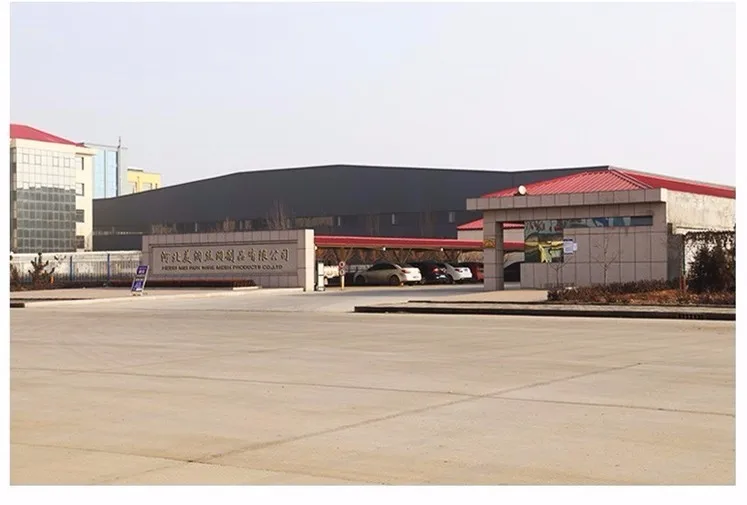

Hebei Meirun Wire Mesh CO.,Ltd.

Hebei Meirun Wire Mesh CO.,Ltd. is located in Anping county, Hengshui,Hebei. Anping county is the hometown of the wire mesh. And our company focuses on making and trading of wire mesh machines. We have our own factory and professional R&D team to guarantee the quality of products and strict tests pre-shippment. And as for some certain machines, our market share is up to 70%. So we're your sensible choice and stable cooperation partner. Welcome to contact us and visit our company!

All the machines are Independent research and development by our company, and we can also provide various wire mesh products besides the making machines. All the machines are Independent research and development by our company, and we can also provide various wire mesh products besides the making machines.
