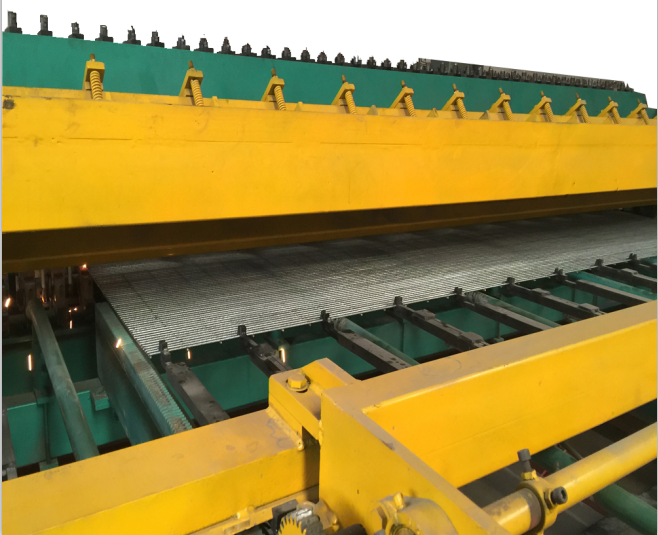

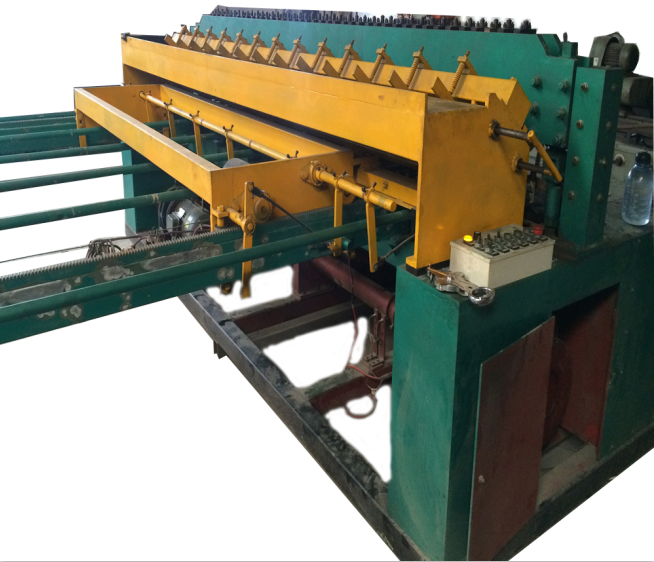

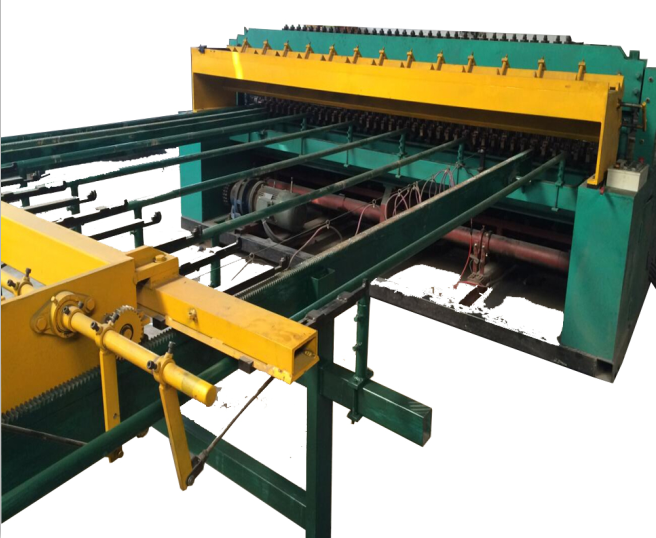

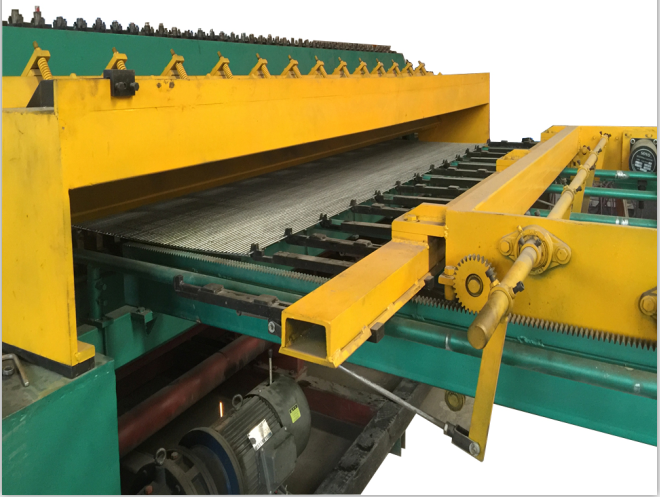

358 anti crawling mesh fence Welding Machine

1) This machine is our latest development, which adopts mechanism pressing principle with low cost , not cylinder.


2) This machine adopts synchronous control technique.
The cent-control and welding time are composed of PLC program system .
The input front-panel has two forms, touch screen and keyboard
That makes the machine more intelligent and reasonable and it could press at one time, times welding .

3) Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate.
The hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor .

4) The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
Availability:
Quantity:
  • 358 fence machine

  • MR

  • MR

Product Description

Hot sales 358 fence welding machine


Anti-climb anti-cut fence mesh welding machine with CE and ISO9001 Certifiaction adopts PLC control program with good quality and competitive price.


358 wire mesh fence high security machine

1) This machine is our latest development, which adopts mechanism pressing principle with low cost , not cylinder.


2) This machine adopts synchronous control technique.
The cent-control and welding time are composed of PLC program system .
The input front-panel has two forms, touch screen and keyboard
That makes the machine more intelligent and reasonable and it could press at one time, times welding .

3) Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate.
The hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor .

4) The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.

Parameter

Model
MW - 358
Width
1m-3.1m
Wire diameter
3mm-4mm
Mesh size
75.6 mm x 12.7 mm
Length
2000mm -4000mm
Dimension
7300mm x 3500mm x 1600mm
Capacity
40-55 times /min
Voltage
380V 50HZ
Power
5KW
Weight
5T
Drive type
PLC
Corollary equipment
Straightening Machines x2
Products Detailed

High Security Fence is well known in the word as an anti-climb&anti-cut through barrier,while providing the lowest level of visual impact to the surroundings.The panels are welded with high quality carbon steel wires.It is designed to give attractive,long lasting and secure perimeter protection for indust rial and commercial properties,public utilities,and it is really suited for electronic alarm and detection systems-no blid sports for CCTV.

Characteristics of the 358 wire mesh fence high security fence:
Flat surface
Uniform mesh hole
No burn marks
High precision
Anti-climb
Beautiful appearance
Anti-cut

Height of security fence
1m-3m
Width of security fence
2.0m, 2.2m, 2.5m, 3.0m
Mesh opening
12.7mmx75.6mm
wire diameter
3mm, 4mm
material
low carbon steel wire,
galvanized wire
finished
hot dipped galvanized,
polyester painting
polyester painting color
any RAL color
(dark green, black,ect.)
Packing & Delivery


Delivery:  Delivery within 15 days after receiving 70% of balance payment

Packing: with   plastic and package in the container or pack per customer's request
Related Products

Straightening and cutting machine

       Bending machine

Our Service

Pre-Sales Service:

* provide technical assistance for free

* Guarantee Period: 1 year

*24 hours online after-sale service

After-Sales Service:

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
