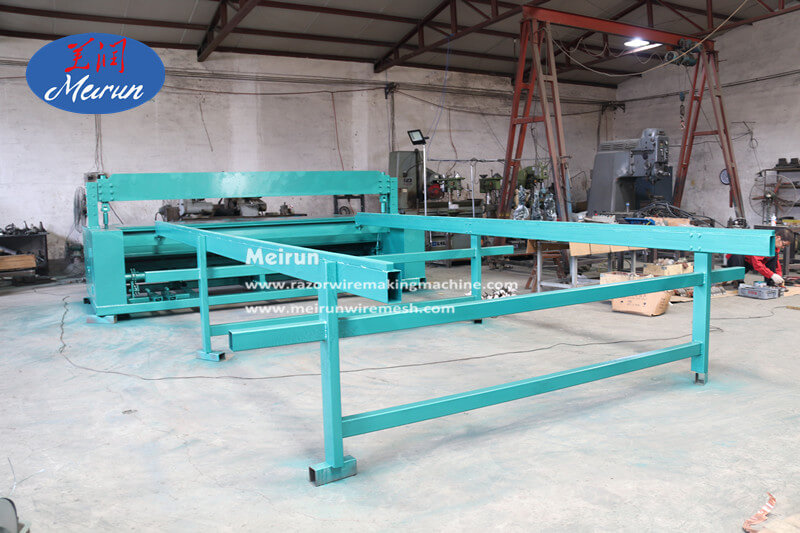

358 Anti Climb High Security Welded Mesh Fencing
system:Electromagnetic brake motor
358 Anti Climb High Security Welded Mesh Fencing also called security fence machine,it is used to mae fence mesh,road mesh,reinforcing mesh,shelf,explosion-proof wall etc.
Air cylinders&pneumatic parts,machine working more stable;we are the unique manufacturer of this machine in China.
The longitude wires and cross wires should be pre-straightened and pre-cut.
♦The longitude wires are inserted into the slot tunnels manually.
♦The cross wire are put into the cross wire feeder, which is controlled by step motor&Japan air cylinders,automatic falling.
Mesh Pulling System
The guide adopts linear rails,used with famous brand servo control together,whichh greatly improves accuracy of mesh.
Part of machine
Welding electrodes is from upper 20mm pure cooper.
Main motor connect axis by double chains,enough transmission torque
Eigh-grade regulation-changed transformers,high efficiency.

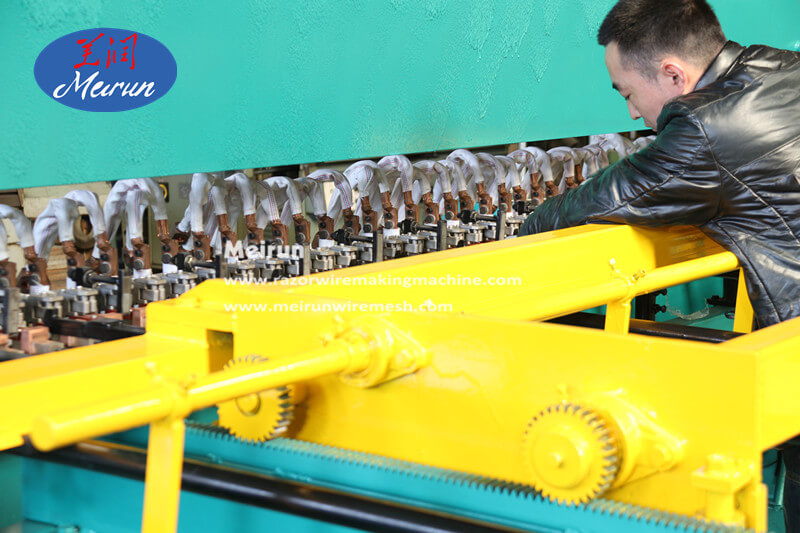

Duplex pull rod and Mechanical hook for mesh pulling,machine.Machine working more stable
Wire Feeding Way
The longitude wires is feeding from wire coils automatically.
The Cross wire is feeding from hopper (step motor)
Wire straightening and cutting machine 1 set.
Overall size: 4.2m x 0.5m x 0.9m
Straight motor:2.2kw, Cut motor:1.5kw.
Cut length: 100mm-3000mm.
Wire diameter: 3mm-6mm.
